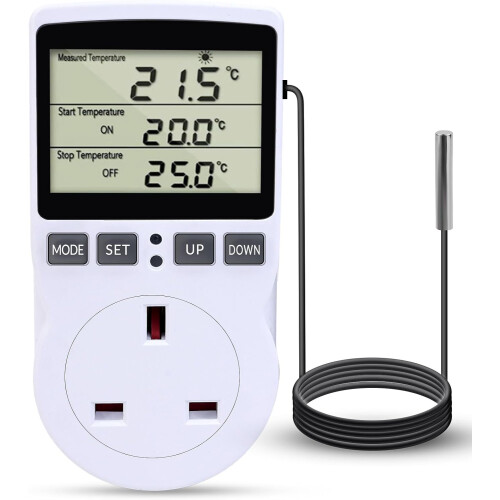

Digital Temperature Thermostat Controller UK Plug Outlet Socket with 1.7m Sensor 230V 16A Heating Cooling Timer for Greenhouse Freezer Fermentation

Digital Temperature Thermostat Controller UK Plug Outlet Socket with 1.7m Sensor 230V 16A Heating Cooling Timer for Greenhouse Freezer Fermentation Description

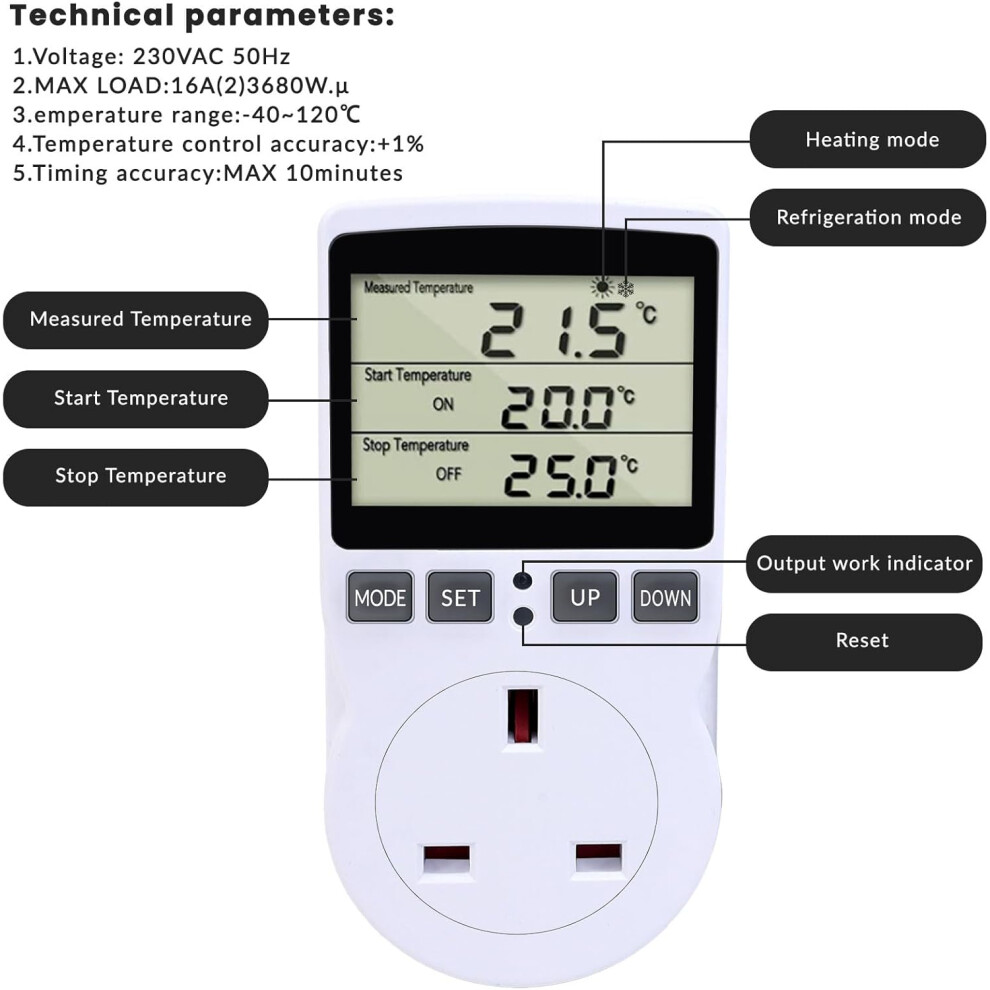

Specification:

Voltage: 230V/50Hz

Maximum load: 16A(2)3680W.μ

Temperature range: -40~120

Temperature control accuracy: 1%

Timing accuracy: MAX 10 minutes

Temperature detector: 1.7m

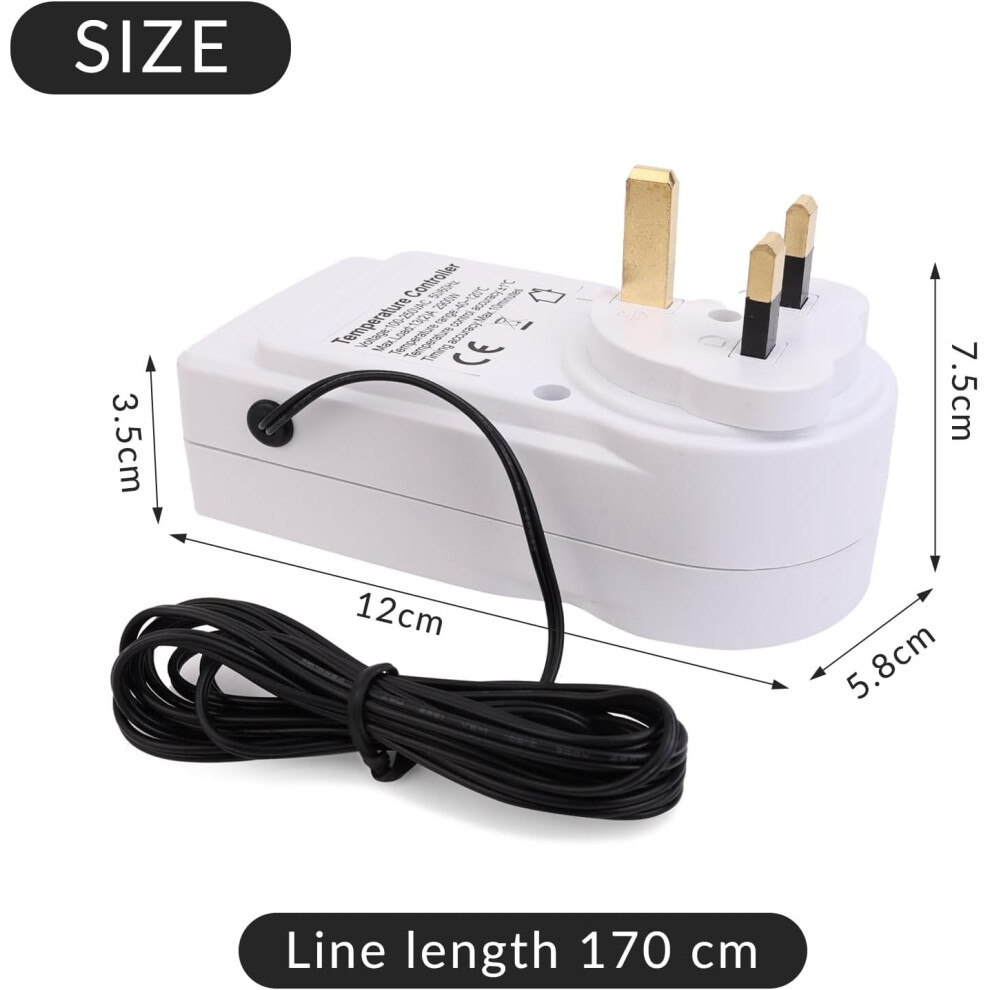

Thermostat dimensions: 12 x 5.8 x 3.5 cm

Weight: 200 g

Material: PC flame retardant material

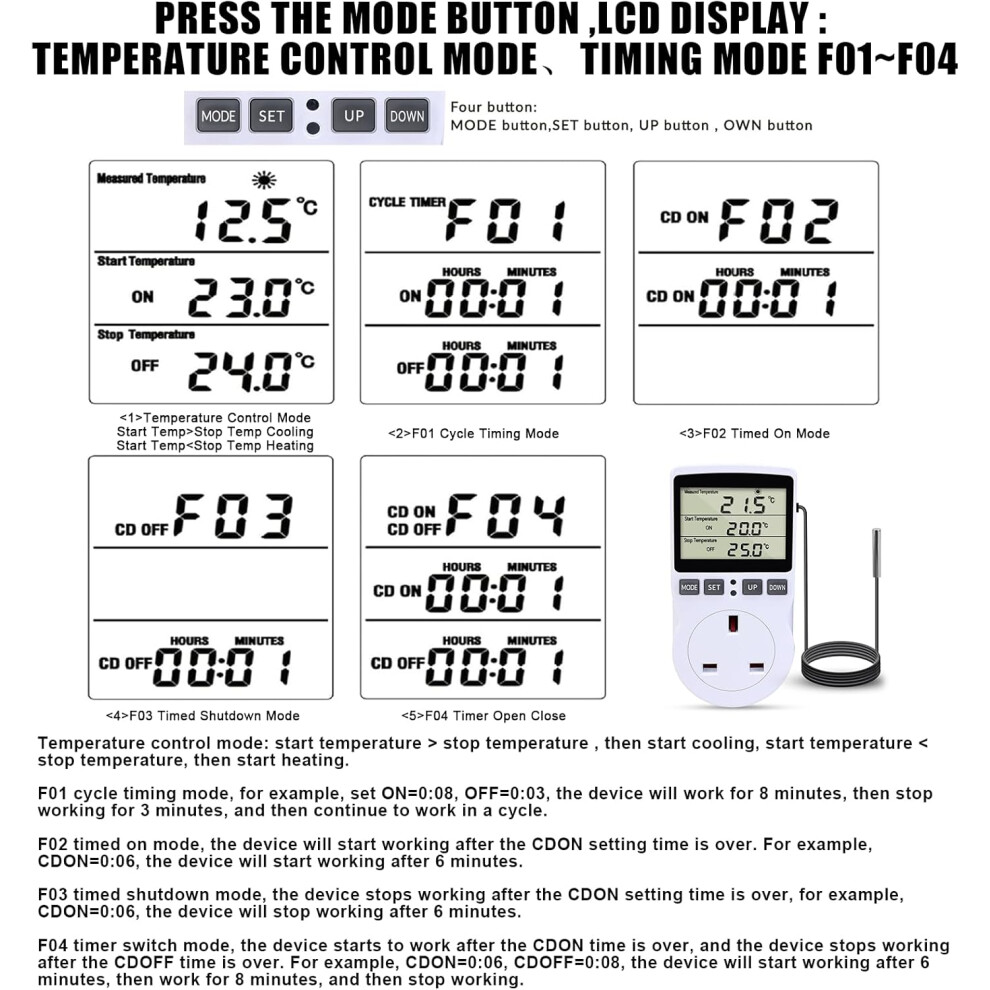

Temperature Control Mode + F01-F04 Mode

1.Temperature control mode: start temperature > stop temperature , then start cooling, start temperature

2.F01 cycle timing mode, for example, set ON=0:08, OFF=0:03, the device will work for 8 minutes, then stop working for 3 minutes, and then continue to work in a cycle.

3.F02 timed on mode, the device will start working after the CDON setting time is over. For example, CDON=0:06, the device will start working after 6 minutes.

4.F03 timed shutdown mode, the device stops working after the CDON setting time is over, for example, CDON=0:06, the device will stop working after 6 minutes.

5.F04 timer switch mode, the device starts to work after the CDON time is over, and the device stops working after the CDOFF time is over. For example, CDON=0:06, CDOFF=0:08, the device will start working after 6 minutes, then work for 8 minutes, and then stop working.

Package Included:

1 x Digital Temperature Controller
