DollaTek for meshcore 868MHz - 915MHz Lora SX1262 Development Board 0.96 OLED Display ESP32 WIFI HTIT Bluetooth Board Development IOT Module For Ardu

DollaTek for meshcore 868MHz - 915MHz Lora SX1262 Development Board 0.96 OLED Display ESP32 WIFI HTIT Bluetooth Board Development IOT Module For Ardu Description

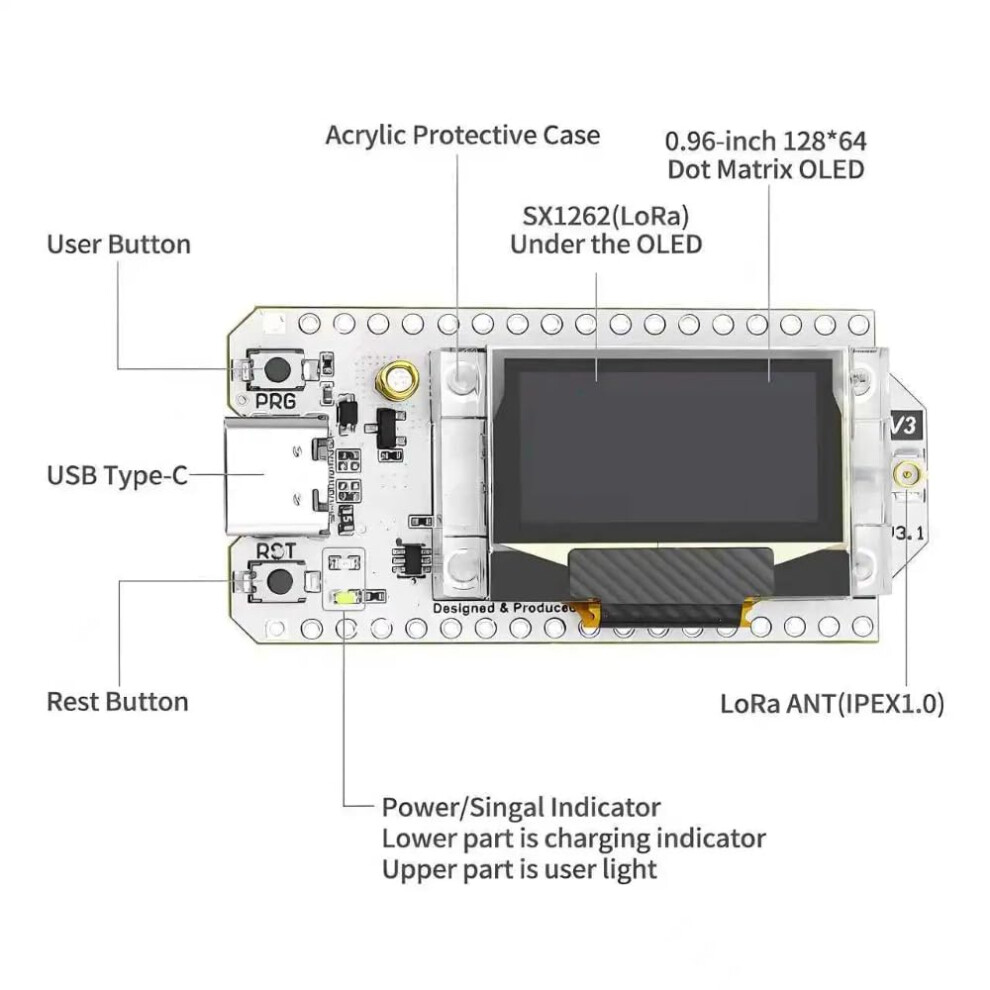

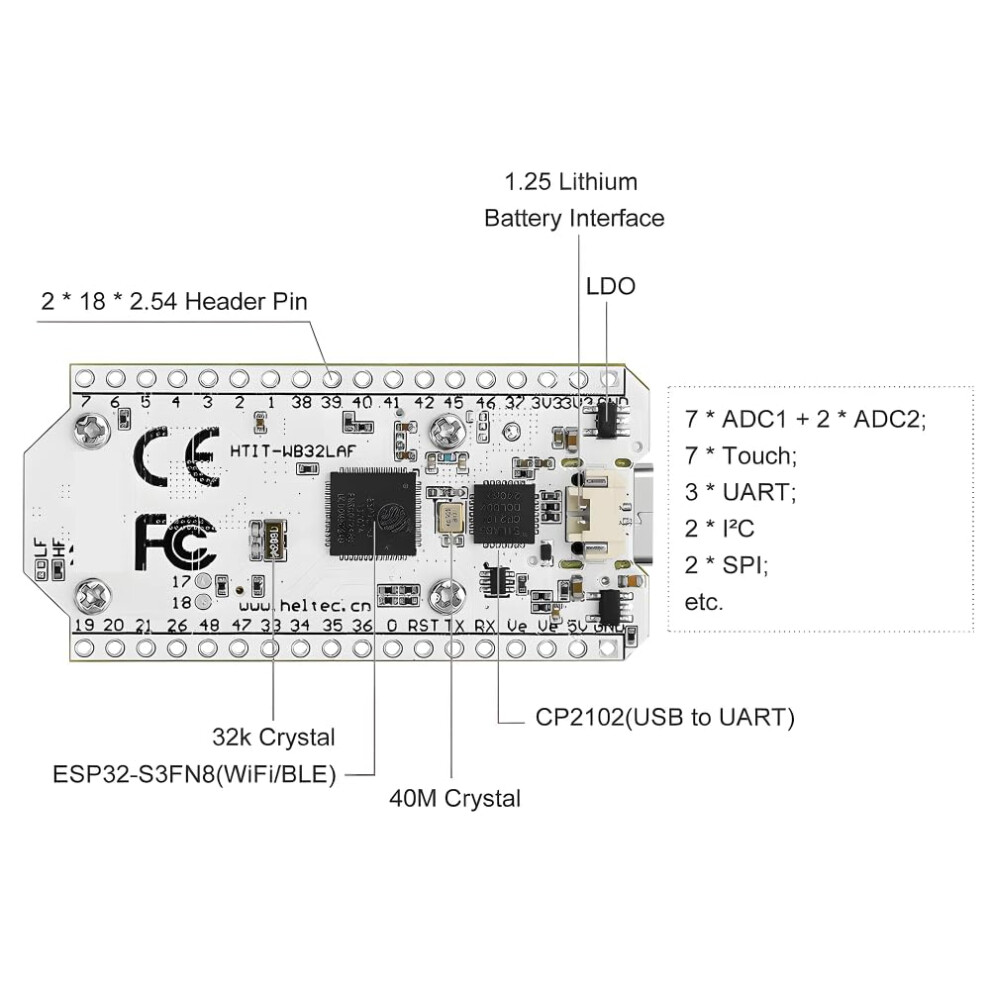

DollaTek for meshcore 868MHz - 915MHz Lora SX1262 Development Board 0.96 OLED Display ESP32 WIFI HTIT Bluetooth Board Development IOT Module For Arduino for Meshtastic Ideal for meshcore.This product is based on the WIFI Kit 32 added SX1262 chip, LoRa remote modem.Included antenna is connected,you can flashed via the web with the official Meshtati firmware and it will works perfectly. WIFI HTIT series is the new development of the cost-effective networking program, the main chip using ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS Chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Applicable frequency:868MHz and 915MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, 2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.
