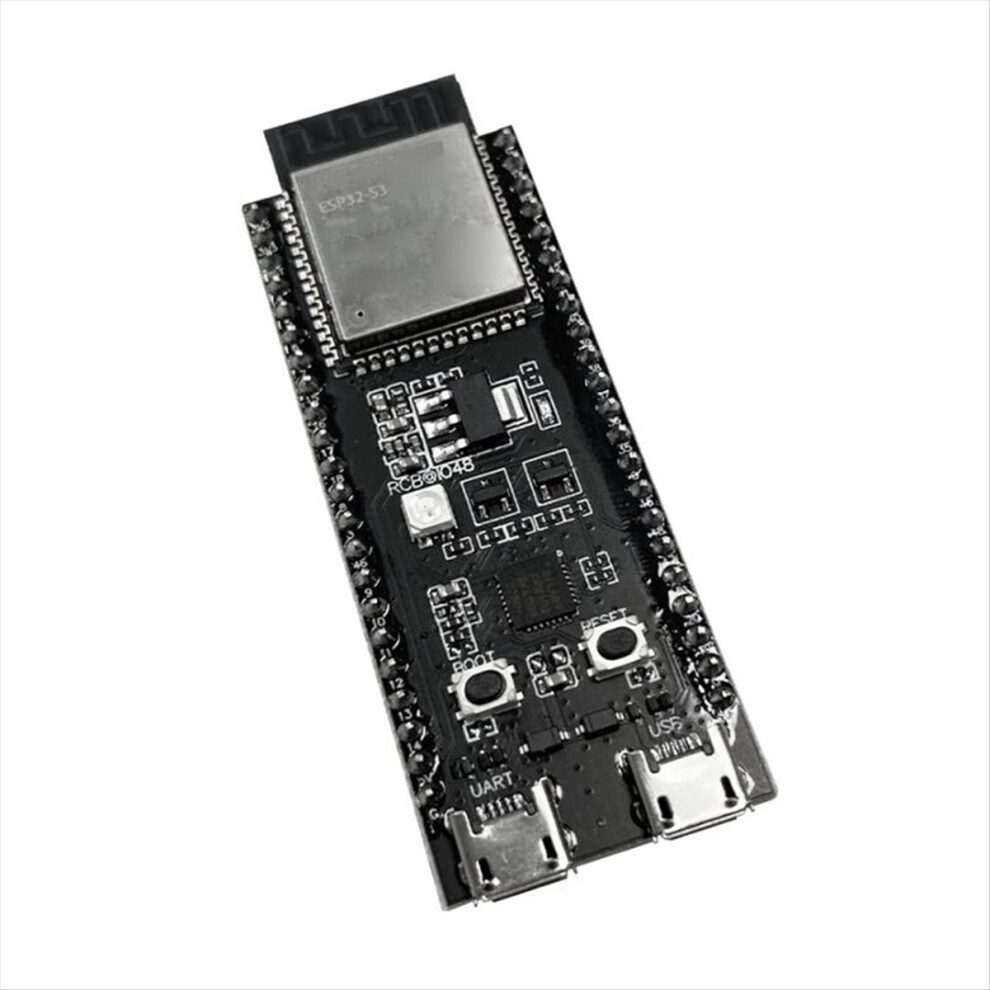

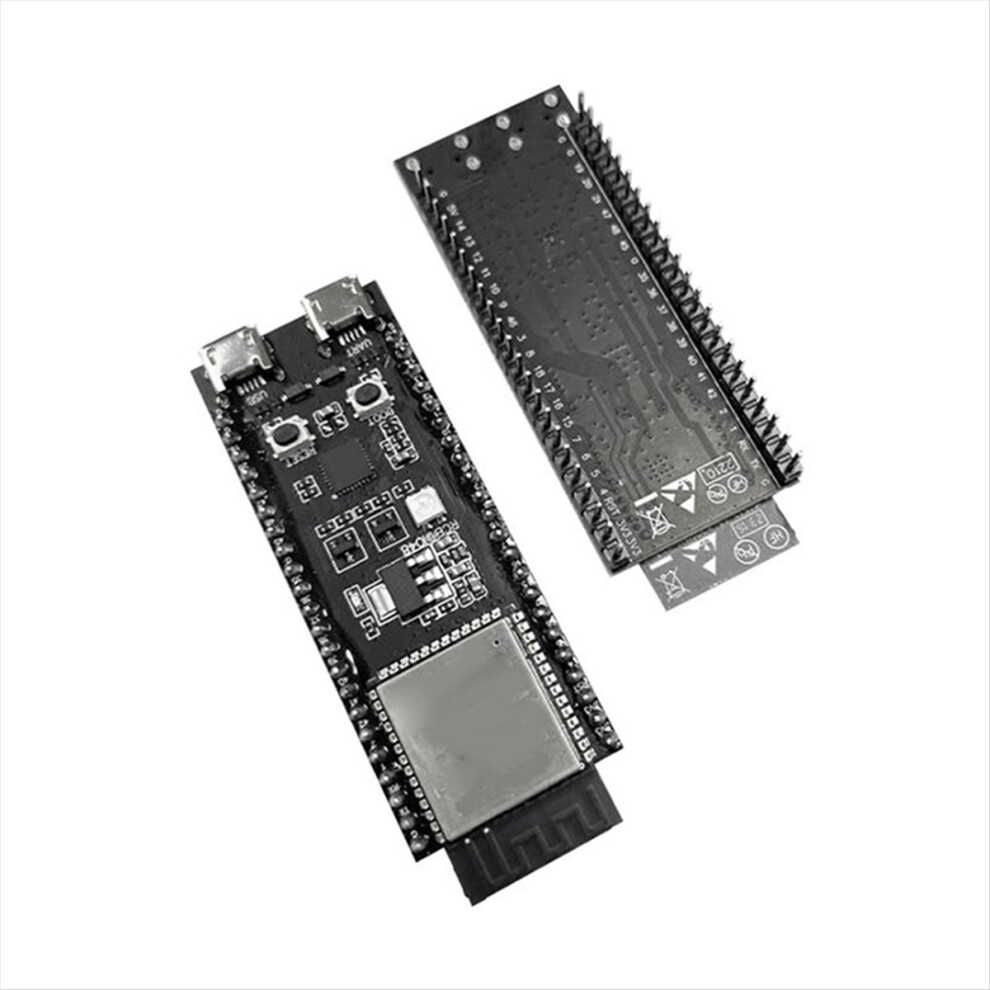

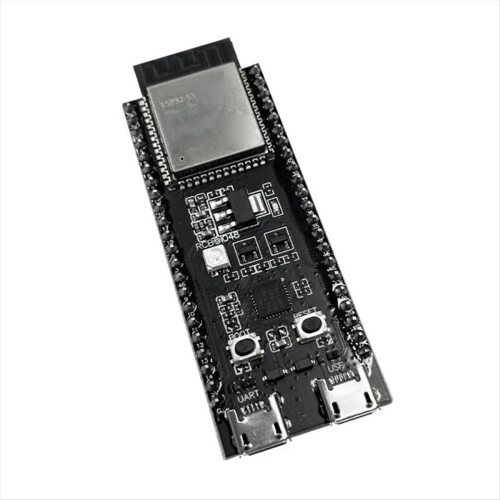

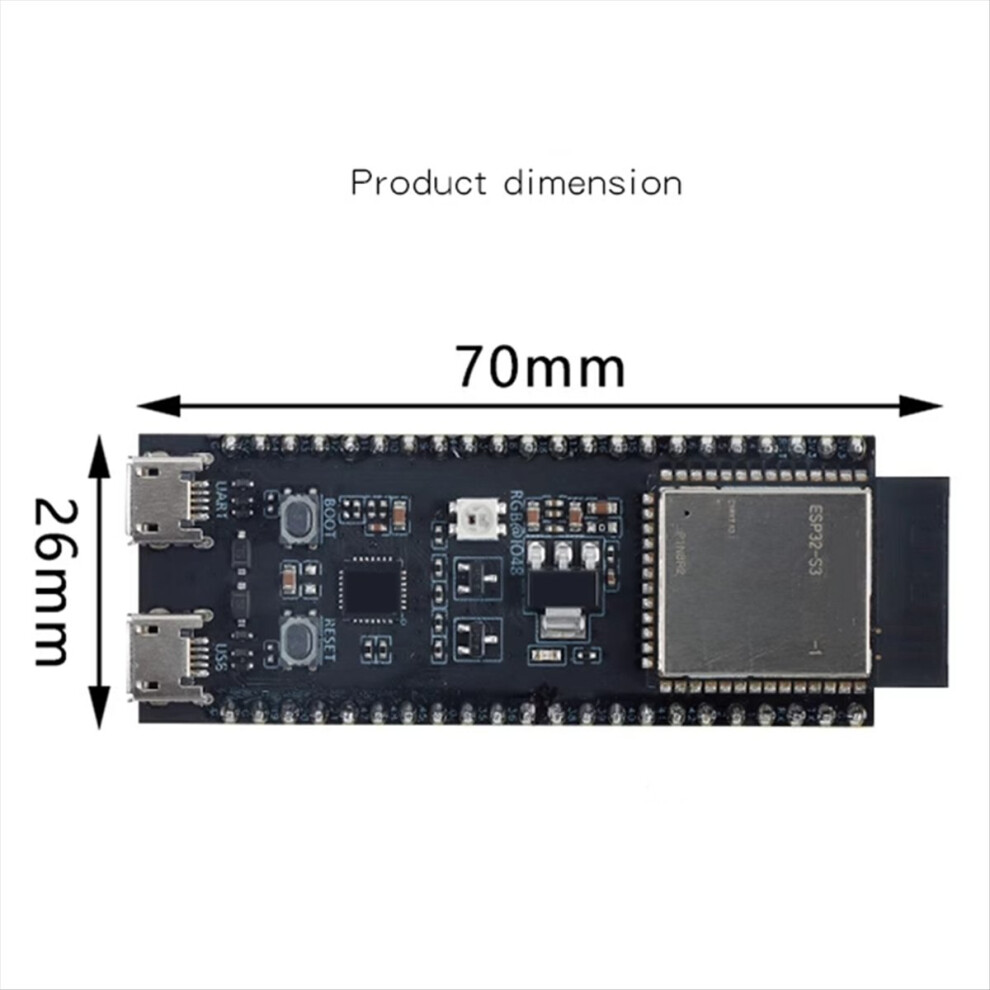

ESP32-S3-DevKitC-1 Development Board Module Welding

ESP32-S3-DevKitC-1 Development Board Module Welding Description

Note: Make sure to use appropriate USB data cable. Some data cables can only be used for charging, not for data transfer and programming.
Hardware setup: Connect development board to computer via USB to UART interface. The software does not currently support connecting via ESP32-S3 USB interface. In following steps, the USB to UART interface is used by default.
Software setup: Please go to Quick Start section and see how to quickly set up development environment and burn application to your development board in detailed installation steps section. Specifications: Onboard ESP32-S3-1-N16R8. ESP32-S3-DevKitC-1 development board (N16R8). Development board module with ESP32-S3

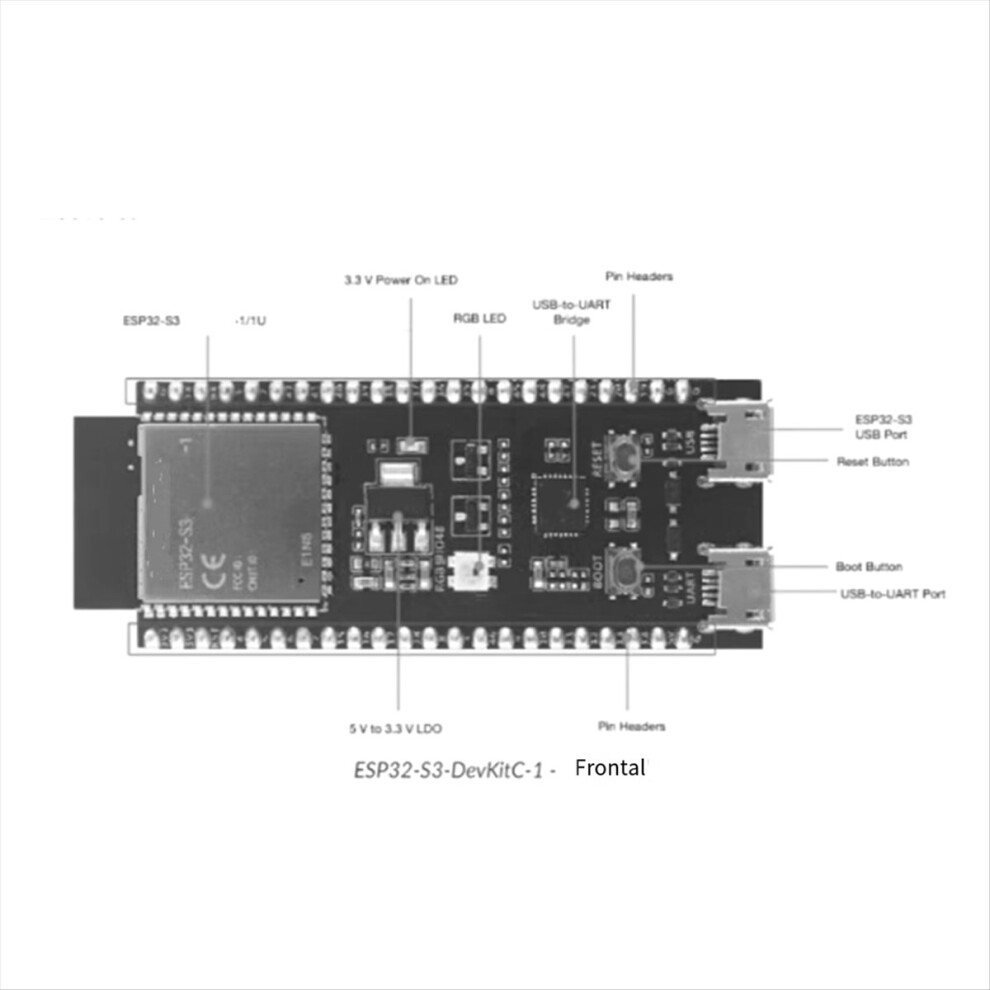

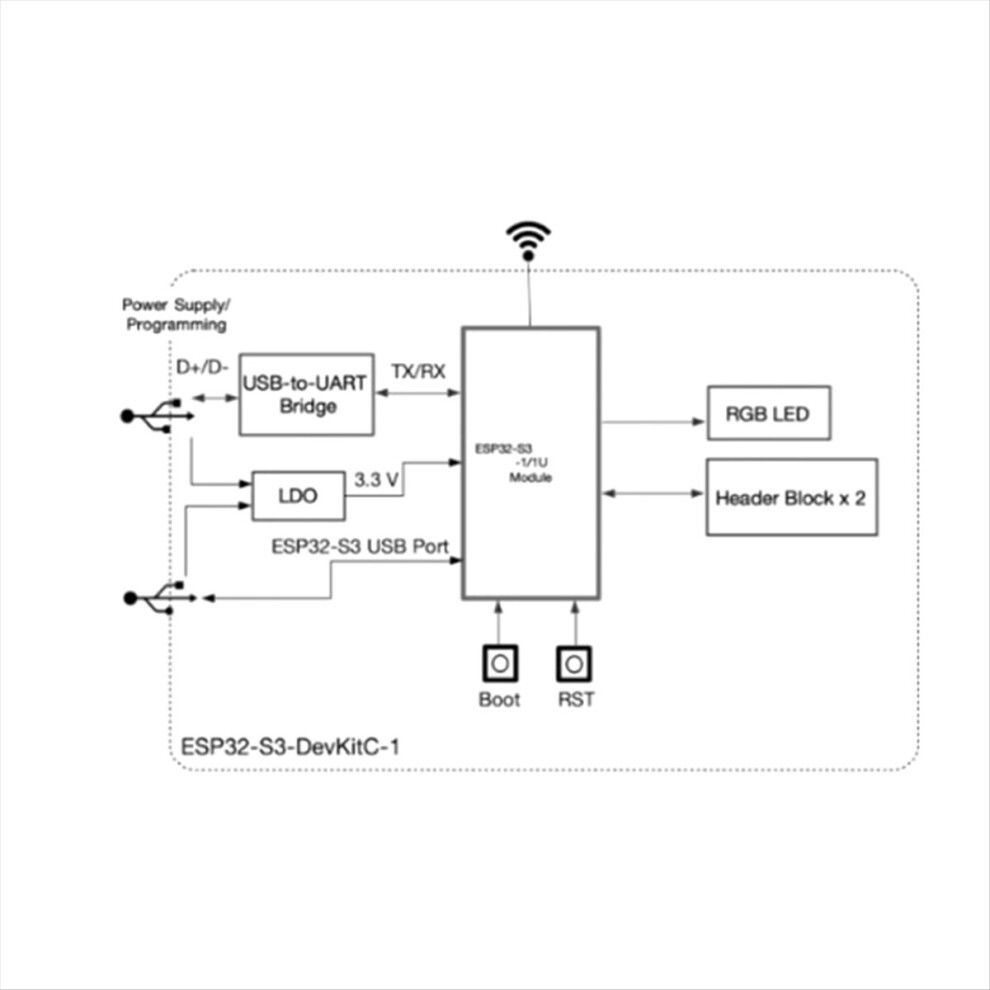

ESP32-S3: -1 and ESP32-S3; -1U are universal Wi-Fi + low-power Bluetooth MCU modules with rich peripheral interfaces, powerful neural 1/1U network computing power and signal processing capabilities, designed for artificial intelligence and AloT markets. ESP32-S3; -1 uses a PCB onboard antenna, and ESP32-S3; -1U uses a connector to connect an external antenna. 5V to 3.3 V : Power converter, input 5V, output 3.3V
Pin Headers: All available GPIO pins (except SPI bus of flash) are brought out to pin headers of development board. Please check pin headers for more information. USB-to-UART Port: Micro-USB port: It can be used as power supply interface of development board, can be used to burn firmware to chip, and can also be used as a communication interface to communicate with chip through onboard USB to UART bridge.

Boot Button: Download button. the Reset button while holding Boot button to enter "Firmware Download" mode and download firmware through serial port.
Reset Button: Reset button.
ESP32-S3 USB Port: ESP32-S3 USB OTG interface, supports full-speed USB 1.1 standard. The ESP32-S3 USB interface can be used as power supply interface of development board, can burn firmware to chip, can communicate with chip through USB protocol, and can also be used for JTAG debugging.
USB-to-UART Bridge: Single-chip USB to UART bridge, which can provide a transfer rate of up to 3Mbps.
RGB LED: Addressable RGB light-emitting diode, driven by GPIO48.
3.3V Power On LED: This indicator lights up when development board is connected to USB power.
Required hardware:
ESP32-S3-DevkitC-1
USB 2.0 data cable (Standard Type A to Micro-B)
Computer (.Linux macos)
(Different batches may have different words, but it does not affect use)
Specification: Welding
Color: As Shown
Material: PCB

Package Contents:
1 * Development Board Module

Only above package content, other products are not included.
Note: Light reflection and different displays may cause color of item in picture a little different from real thing. The measurement allowed error is +/- 1-3cm.
