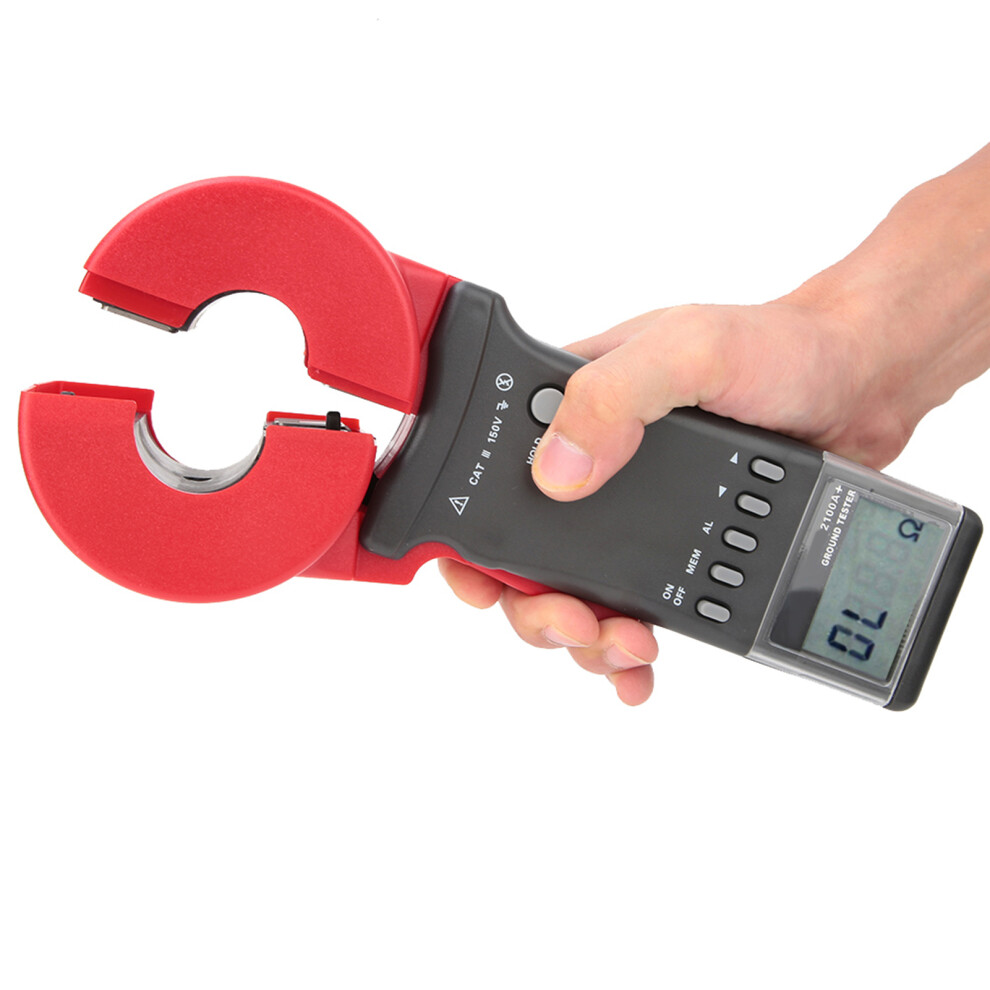

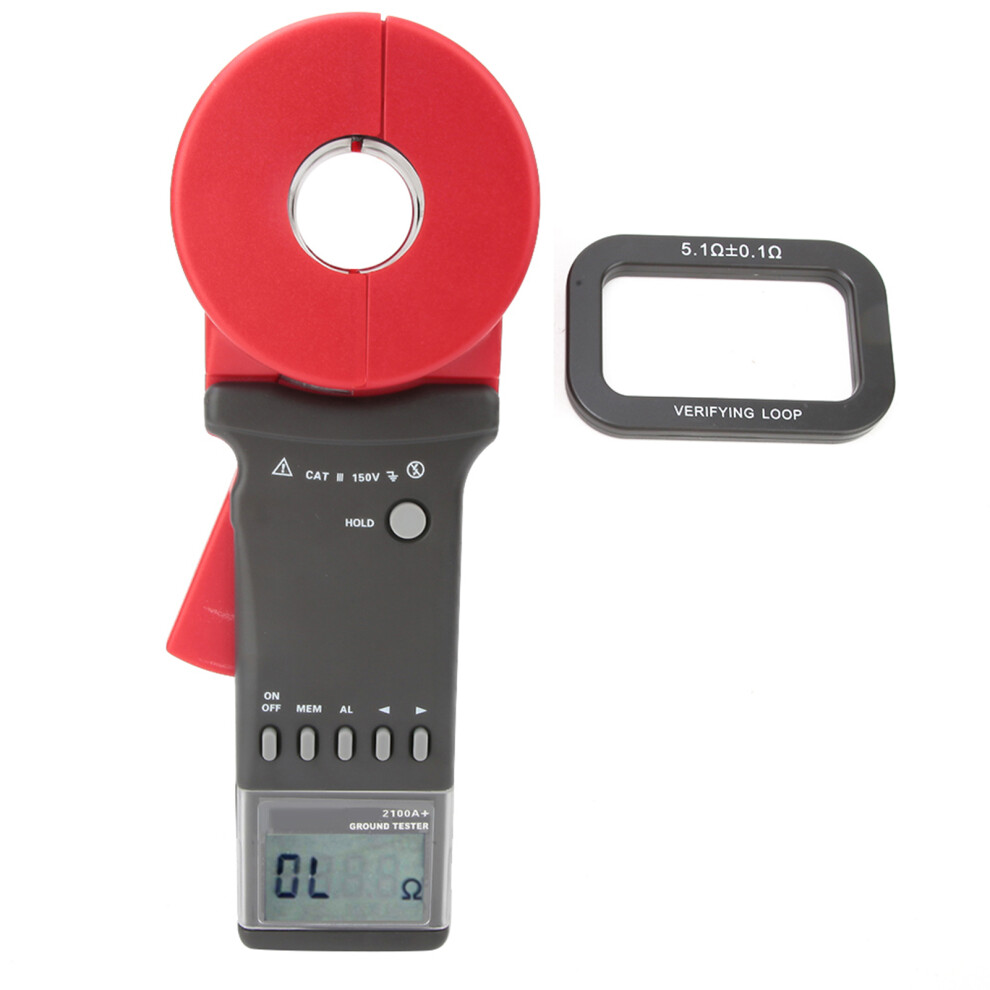

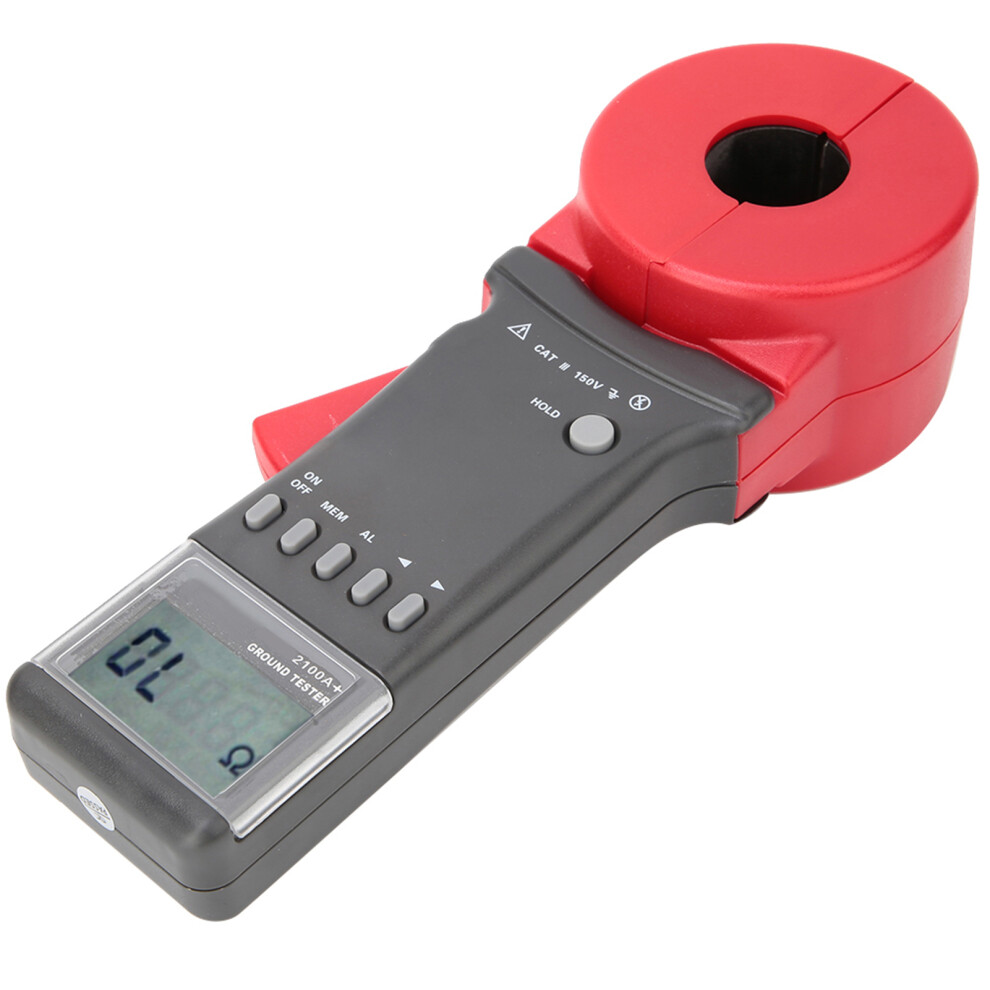

ETCR2100A+ Digital Clamp Ground Resistance Tester

ETCR2100A+ Digital Clamp Ground Resistance Tester Description

1、Made of premium materials, it is sturdy, wear-resistant and can be used for a long time 2、This type of resistance meter can self-test within 0.5 seconds and start up immediately, which is easy to use 3、The resistance range is 0.01-200Ω, and the measurement accuracy is high and the rate is fast 4、With warning light, the beep and NOISE symbols flash, and the anti-interference ability is strong 5、Low power consumption, long battery life and long life
Feature:
Made of premium materials, it is sturdy, wear-resistant and can be used for a long time.
This type of resistance meter can self-test within 0.5 seconds and start up immediately, which is easy to use.
The resistance range is 0.01-200Ω, and the measurement accuracy is high and the rate is fast.
With warning light, the beep and NOISE symbols flash, and the anti-interference ability is strong.
Low power consumption, long battery life and long life.
With fastening screws, it is safe, and it is easy to replace the battery.
Specifications:
Material: Plastic
Function: ground resistance test, loop resistance test
Power: 4 x 6V DC Battery (Battery not included)
Resistance range: 0.01-200Ω
Resistance resolution: 0.001Ω
Maximum resistance accuracy: 1%0.01Ω
Data storage: 99 sets
Alarm threshold setting range:
Resistance: 1-199Ω
Alarm sound and light: "Beep-beep" alarm sound, the alarm symbol flashes, press the AL key to turn it on, turn off the alarm or set the alarm threshold.
Interference signal recognition: "Beep-beep" sound, NOISE symbol flashes
Working temperature: -20 C -55 C
Humidity: 20% RH-90% RH
LCD screen: 4-digit LCD display
Screen size: Approx. 47 x 28.5mm / 1.9 x 1.1in
Fixture diameter: Approx. 32mm / 1.3in
Clamp opening range: 32mm
Weight: Approx. 2271g / 80.1oz
Size: Approx. 260 x 95 x 68mm/10.2 x 3.7 x 2.7in
Protecting level: double insulation
Structural features: clamping CT
Shift: automatic shifting
External magnetic field:
