FY159B Digital Multimeter 1000mAh Lithium, Bright Color Display

FY159B Digital Multimeter 1000mAh Lithium, Bright Color Display Description

Mastfuyi FY159B Digital Intelligent Multimeter, Fully Automatic Portable Multimeter, Digital Display Multimeter
This digital multimeter has concise appearance, digital color display, with backlight and large font for easy data reading, and
applicable to various measurement under complex environment, greatly enhance the reading experience. With capacitance, frequency,
resistance, AC/DC voltage, diode, and with on-off buzzer, breakpoint detection, zeroline/fireline identification, automatic shutdown
function. It can be widely used in electrical testing, automotive repairing, and more household improvements, industrial electrical
maintenance, etc.
Features:
Concise Appearance: Compact size, easy to carry and does not occupy an area, say goodbye to the traditional heavy and difficult to carry
size.
Digital Display: Clear definition digital color display, with backlight and large font for easy data reading, and applicable to various
measurement under complex environment, greatly enhance the reading experience.
Multiple Measurement Functions: Adopts intelligent chip, quick identification and accurate measurement. With capacitance, frequency,
resistance, AC/DCvoltage, diode, and with on-off buzzer, breakpoint detection, zeroline/fireline identification, automatic shutdown
function.
Non-contact Voltage Measurement: Non-contact voltage detection with voltage alarm. Support two sensitivity. Built-in high-sensitivity
sensors that ensure operational safety when measuring electricity.
Zeroline/fireline Identification: When measuring to the live line, the analog bar is full and the buzzer sounds; when measuring to the
zeroline, there is no response.
Wide Applications: Easy to replace the current fuse design, which can be widely used in electrical testing, automobile repairing, and
more household improvements, industrial electrical maintenance, etc.
Specifications:
Model: FY158A / FY159B (Optional)
Material: ABS
Measurement mode: automatic+manual dual mode
Screen display: high-definition color screen
Power supply:
FY158A: 3 * 1.5V AAA battery (not included)

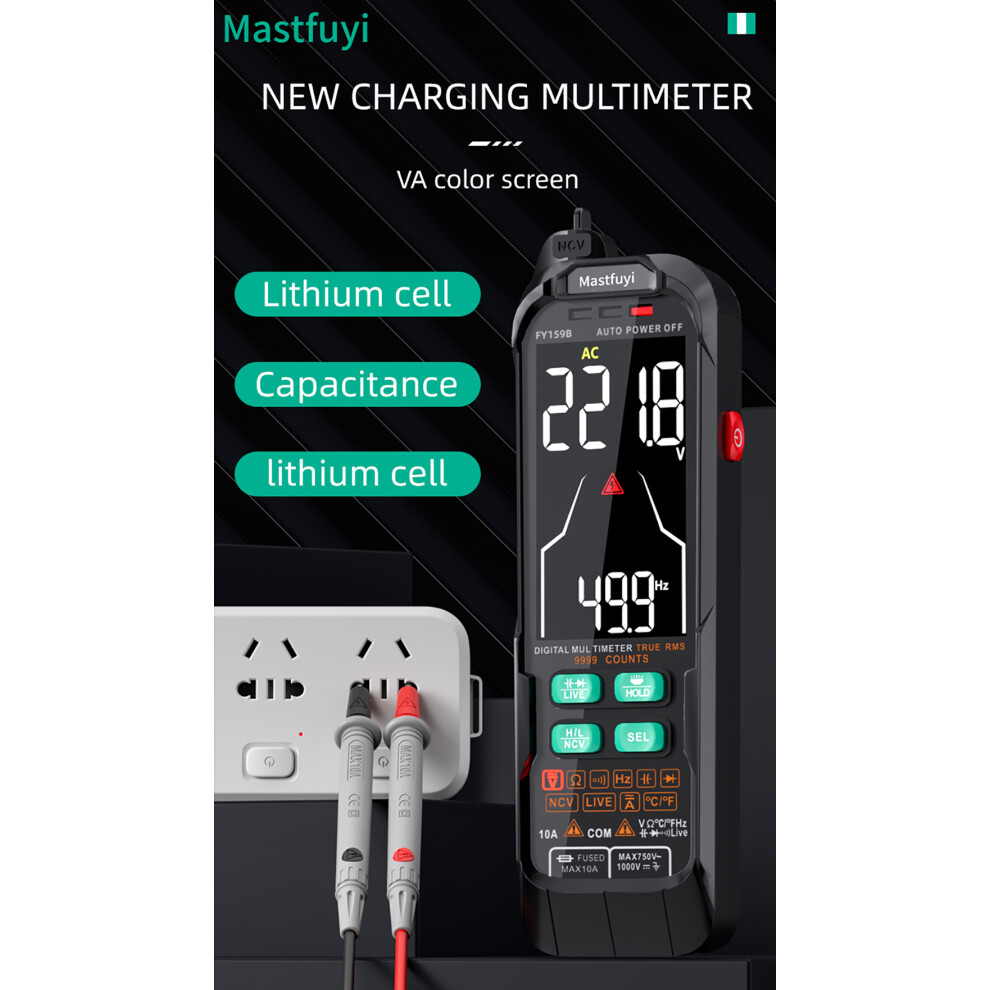

FY159B: Built-in 1000 mAh lithium battery.

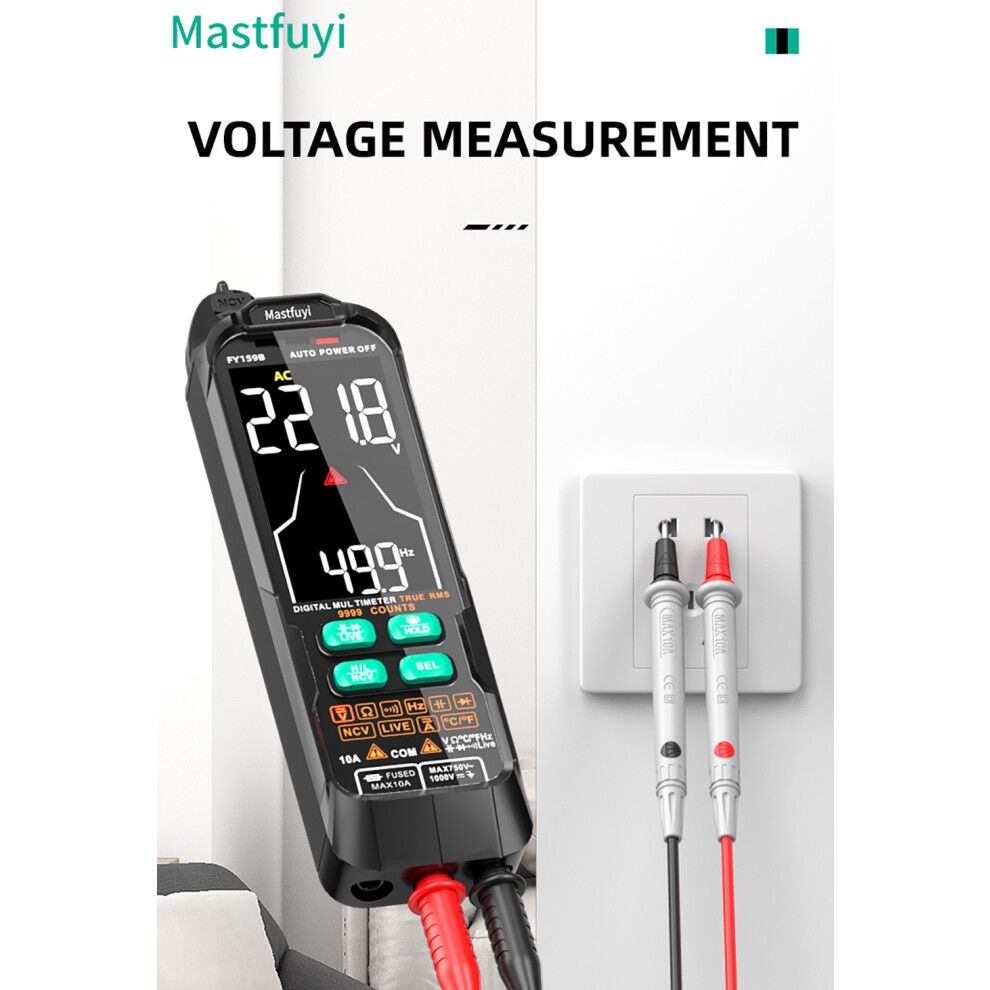

AC Voltage: FY158A: 1V~600V / FY159B: 0.5V~750V
DC Voltage: FY158A: 1V~600V / FY159B: 0.5V~1000V

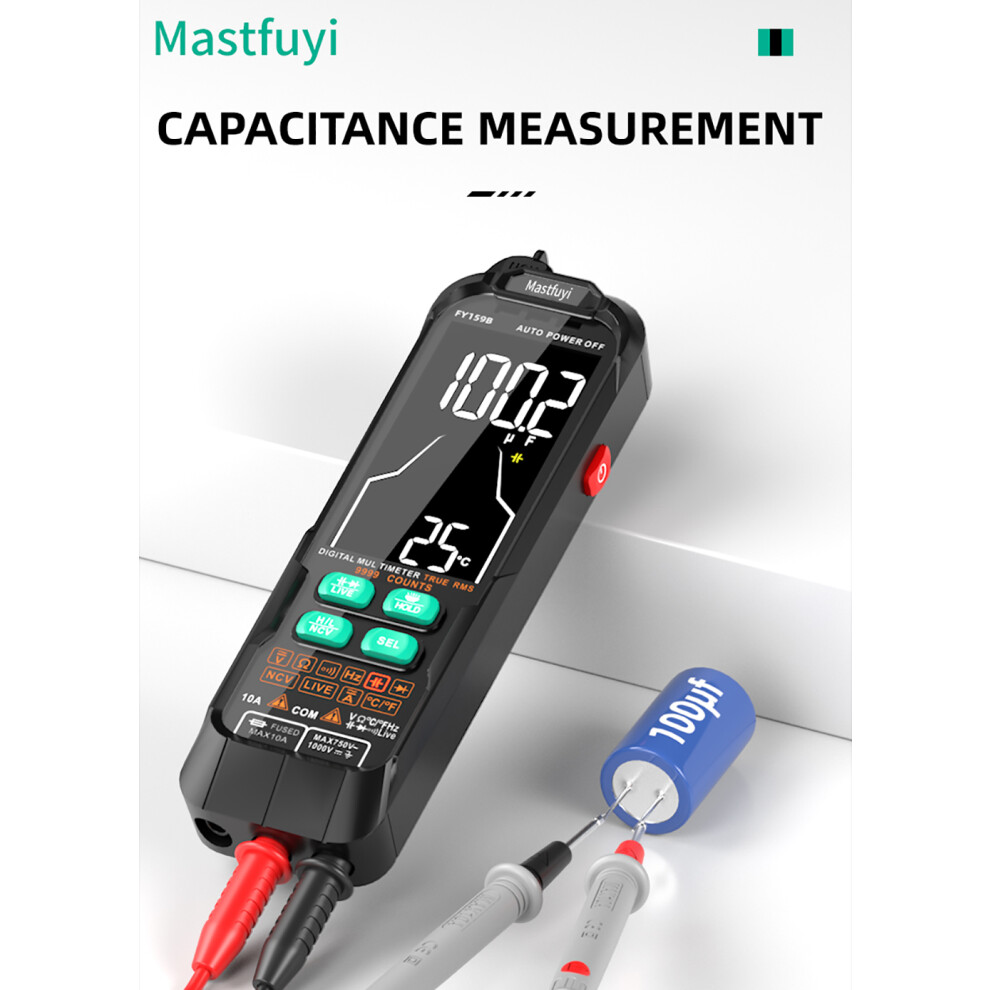

Capacitance: FY158A: 500nf-6000μf / FY159B: 100nf-100000μf
Resistance: FY158A: 1Ω~10000KΩ / FY159B: 1Ω~100000KΩ
Frequency: FY158A: 40HZ~1000HZ / FY159B: 40HZ~10MHZ
On-off buzzer: Yes.
Ambient temperature: 0~70
Maximum display: FY158A: 5999 count / FY159B: 9999 count
Intelligent anti-burning: Yes.
Breakpoint judgment: single wire live test
NCV non-contact voltage detection: high/low sensitivity adjustable
Automatic shutdown: automatic shutdown in about 15 minutes.
Item Size: 162 * 47 * 26mm / 6.38 * 1.85 * 1.02inch
Item Weight: FY158A: 107g / 3.77oz, FY159B: 125g / 4.41oz
Packing Size: 185 * 93 * 45mm / 7.28 * 39.09 * 1.77inch
Packing Weight: FY158A: 249g / 8.78oz, FY159B: 290g / 10.23oz
Packing List:
1 * Multimeter(FY158A)
1 * Multimeter pen set
1 * Cloth Bag
1 * Manual (English)
/
1 * Multimeter(FY159B)
1 * Multimeter pen set
1 * Cloth Bag
1 * Manual (English)
1 * Charging Cable
1 * Thermocouple
