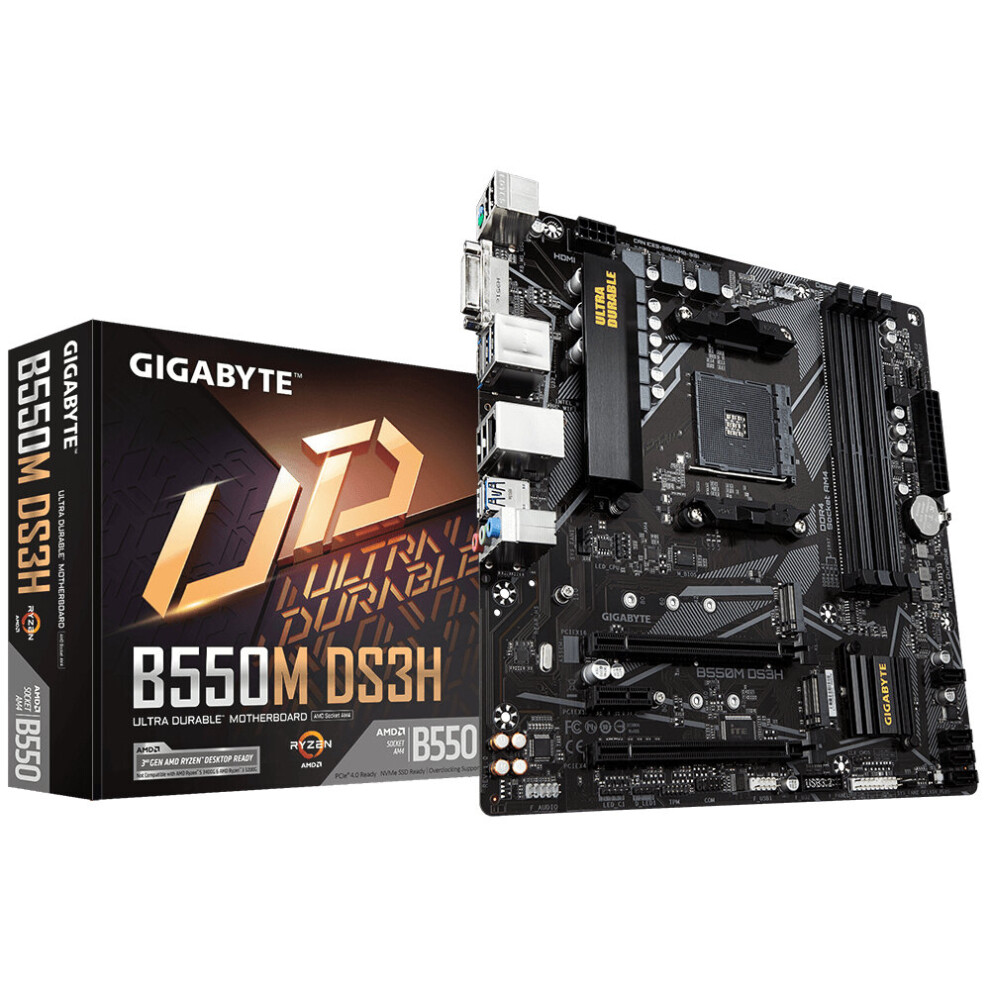

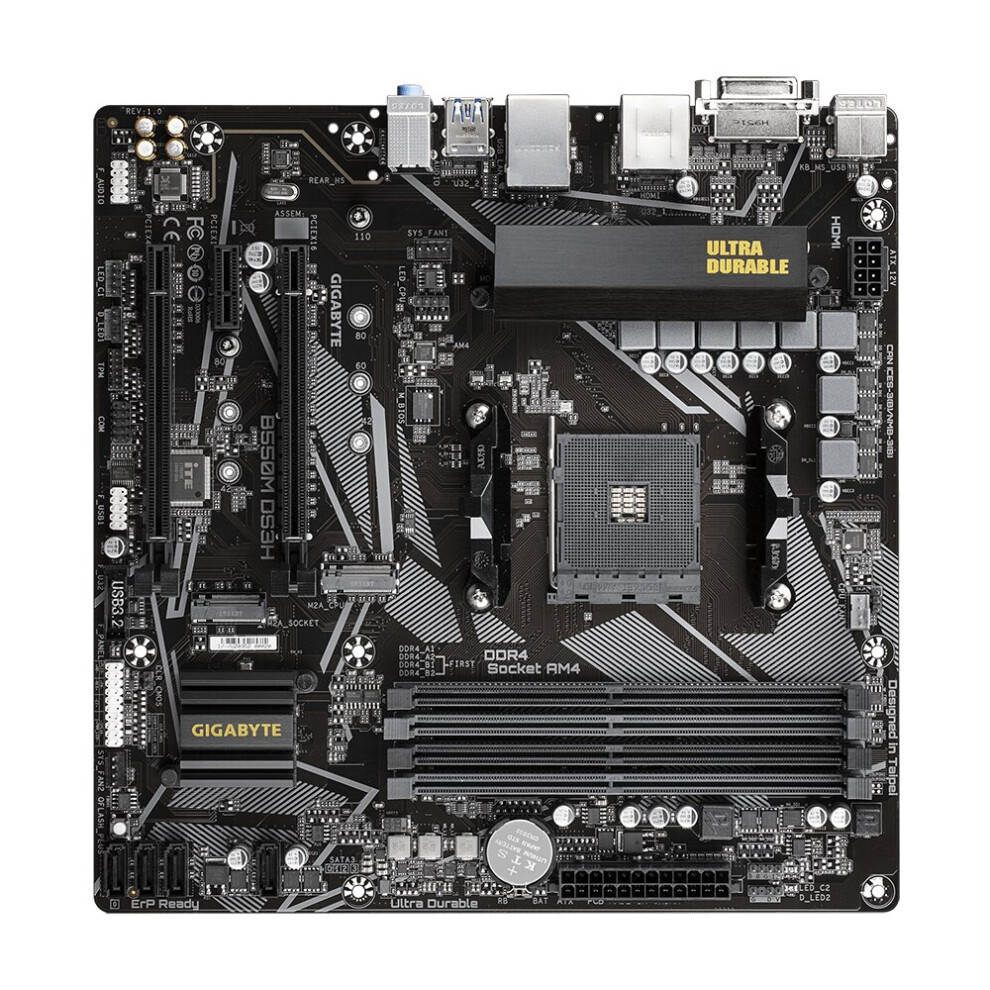

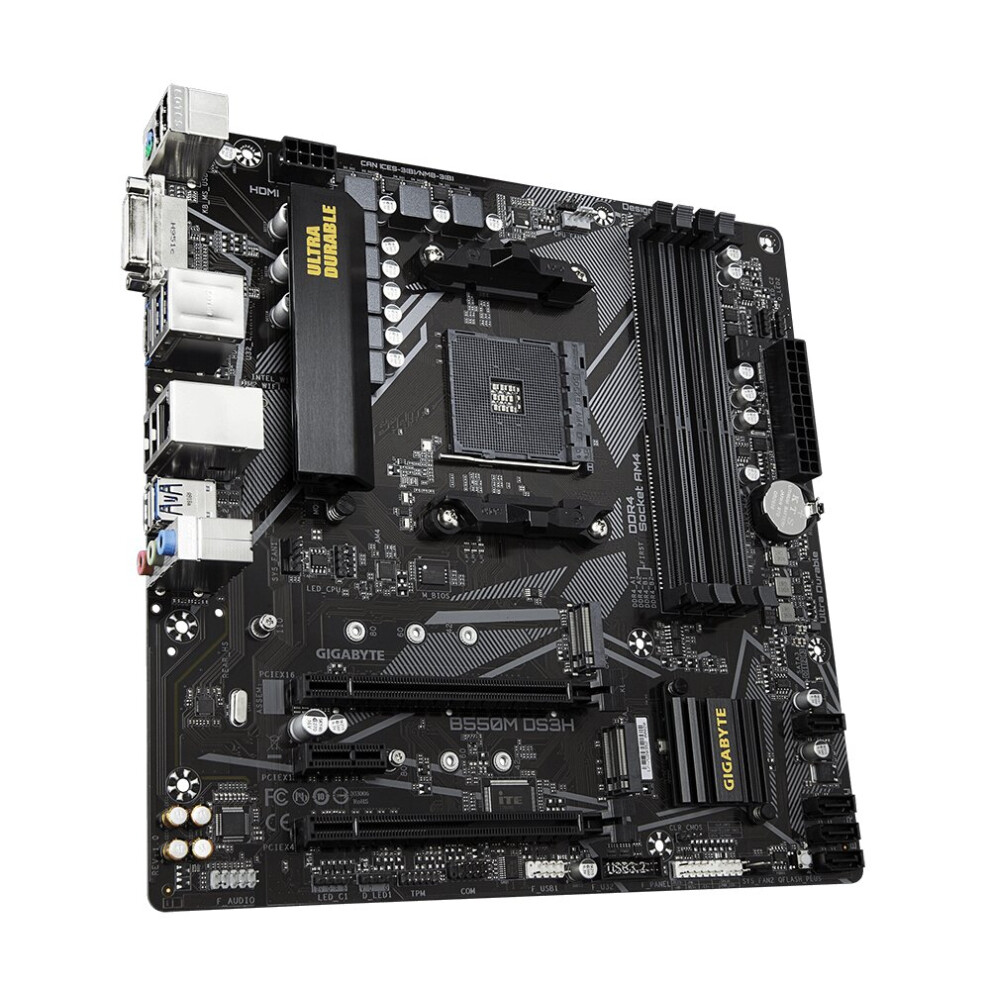

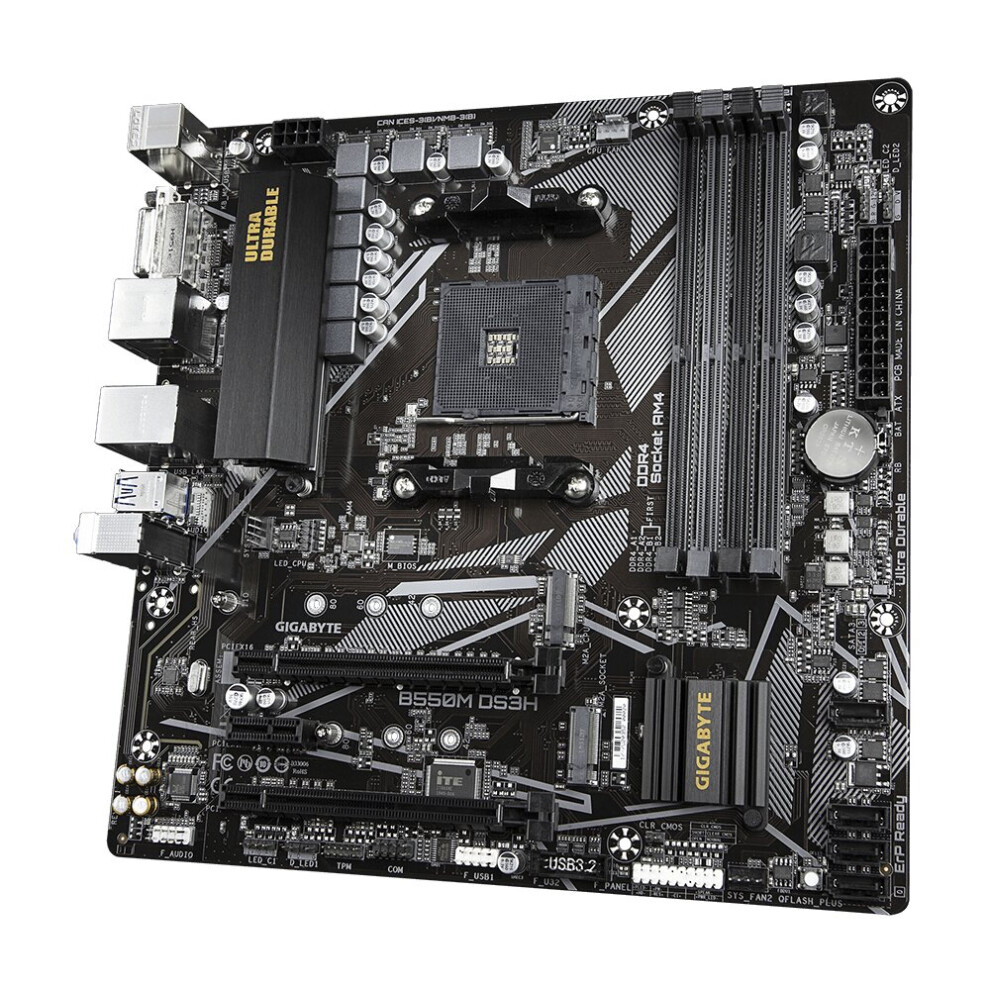

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550 Description

PERFORMANCE

GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Low RDS(on) MOSFETs
- Optimized gate charge to minimize switching losses.
- Lower temperature, smaller size, better thermal characteristics.

CONNECTIVITY

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

COOLING

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Intelligent Fan Control Design
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperatureall of it can be customized to your liking.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensorsgiving you absolute mastery over your PC.
- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

LIGHTING

RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

AUDIO

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you dont need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and youre good to go!

Solid Pin Power Connectors
B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE EXCELLENCE

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS
The GIGABYTE @BIOS app allows you to update your systems BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Processor

    Processor Manufacturer  :  AMD
    Processor Socket  :  Socket AM4
    Compatible Processor Series  :  AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
    Maximum Number Of SMP Processors  :  1Memory

    Supported Memory Types  :  DDR4-SDRAM
    Number Of Memory Slots  :  4
    Memory Slots Type  :  DIMM
    Supported Memory Clock Speeds  :  2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
    Maximum Internal Memory  :  128 GB
    Memory Channels  :  Dual-channel
    ECC  :  Yes
    Non-ECC  :  Yes
    Unbuffered Memory  :  YesWeight & dimensions

    Width  :  244 mm
    Depth  :  244 mmNetwork

    Ethernet LAN  :  Yes
    Wi-Fi  :  No
    Ethernet Interface Type  :  Gigabit EthernetInternal I/O

    USB 2.0 Connectors  :  1
    USB 3.2 Gen 1 (3.1 Gen 1) Connectors  :  1
    Number Of SATA III Connectors  :  4
    Front Panel Audio Connector  :  Yes
    Front Panel Connector  :  Yes
    ATX Power Connector (24-pin)  :  Yes
    CPU Fan Connector  :  Yes
    Number Of Chassis Fan Connectors  :  2
    TPM Connector  :  Yes
    Serial Port Headers  :  1
    12V Power Connector  :  Yes

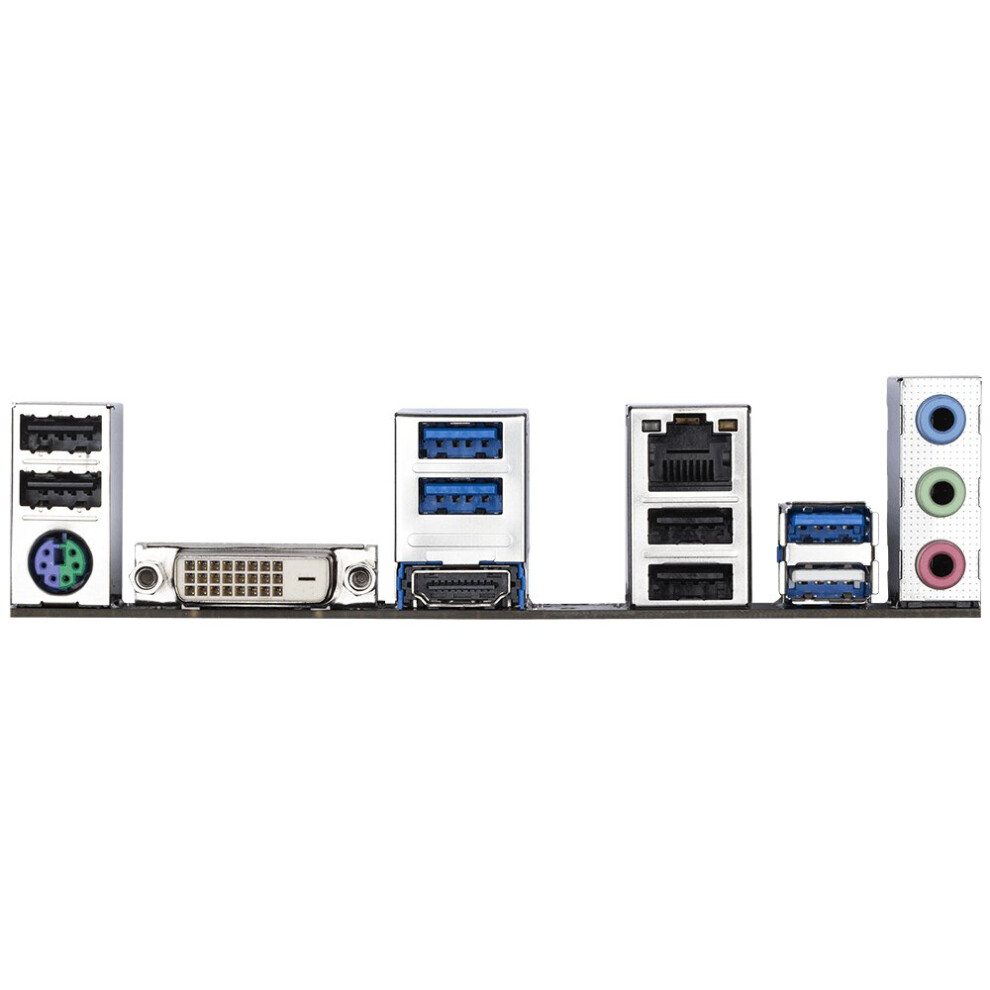

    RGB LED Pin Header  :  YesRear panel I/O ports

    USB 2.0 Ports Quantity  :  4
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity  :  4
    Ethernet LAN (RJ-45) Ports  :  1
    PS2 Ports Quantity  :  1
    HDMI Ports Quantity  :  1
    DVI-D Ports Quantity  :  1
    HDMI Version  :  2.1Storage controllers

    Supported Storage Drive Interfaces  :  Serial ATA III
    Supported Storage Drive Types  :  HDD & SSD
    RAID Levels  :  0,1,10Packaging content

    Cables Included  :  SATA
    Drivers Included  :  Yes
    Bundled Software  :  Norton Internet Security (OEM)
Realtek 8118 Gaming LAN Bandwidth Control UtilityExpansion slots

    PCI Express X1 (Gen 3.x) Slots  :  1
    PCI Express X16 Slots  :  2
    Number Of M.2 (M) Slots  :  2BIOS

    BIOS Type  :  UEFI AMI
    BIOS Memory Size  :  256 Mbit
    ACPI Version  :  5.0
    Clear CMOS Jumper  :  Yes
    Desktop Management Interface (DMI) Version  :  2.7
    System Management BIOS (SMBIOS) Version  :  2.7Graphics

    Maximum Graphics Adapter Memory  :  16000 MB
    Maximum Resolution  :  4096 x 2160 pixels
    HDCP  :  YesFeatures

    Component For  :  PC
    Motherboard Form Factor  :  micro ATX
    Motherboard Chipset Family  :  AMD
    Motherboard Chipset  :  AMD B550
    Audio Output Channels  :  7.1 channels
    Audio Chip  :  Realtek ALC887
    PC Health Monitoring  :  Fan, Temperature, Voltage
    Windows Operating Systems Supported  :  Windows 10 x64
