Handheld 2in1 Oscope Meter with Digital Display 1MHz Bandwidth 2.5Msps Sampling

Handheld 2in1 Oscope Meter with Digital Display 1MHz Bandwidth 2.5Msps Sampling Description

2in1 Oscilloscope Multimeter Digital Display Handheld Oscope Meter 1Mhz Bandwidth 2.5Msps Sampling Rate Data Storage Function for DIY and Electronic Test

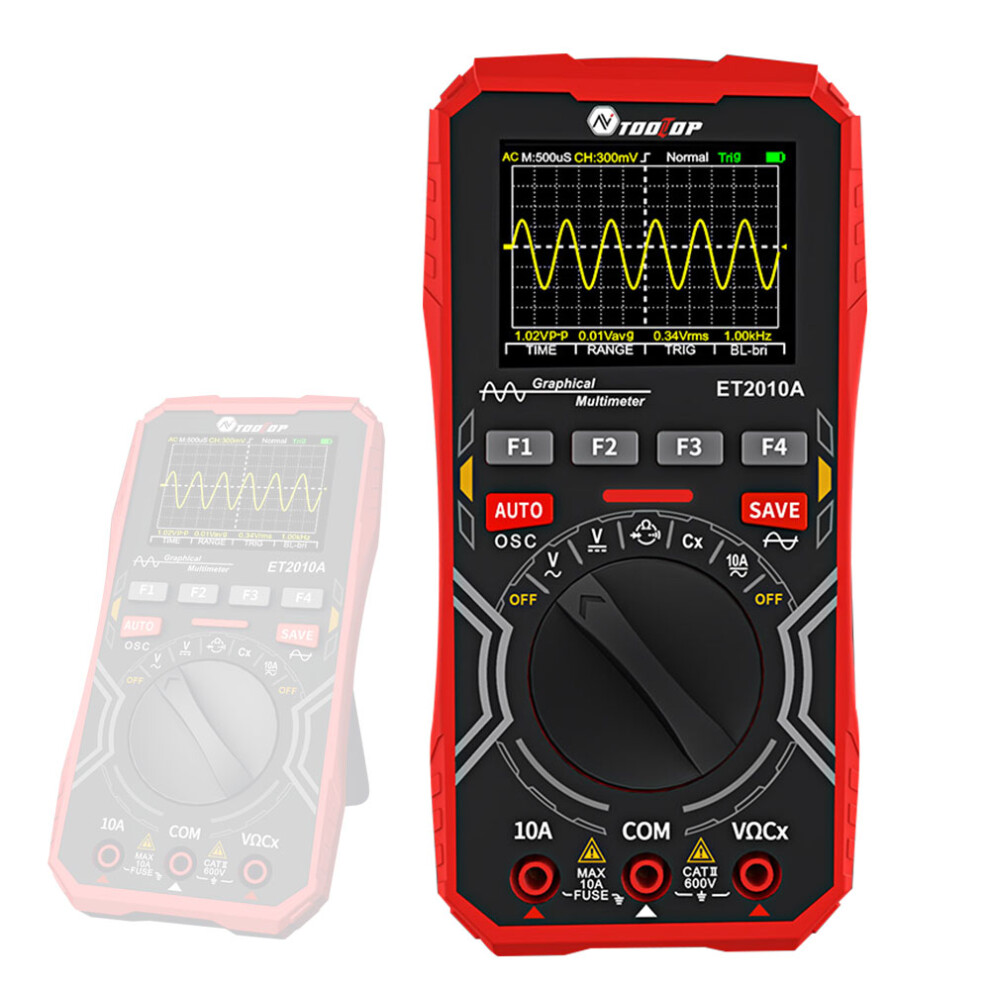

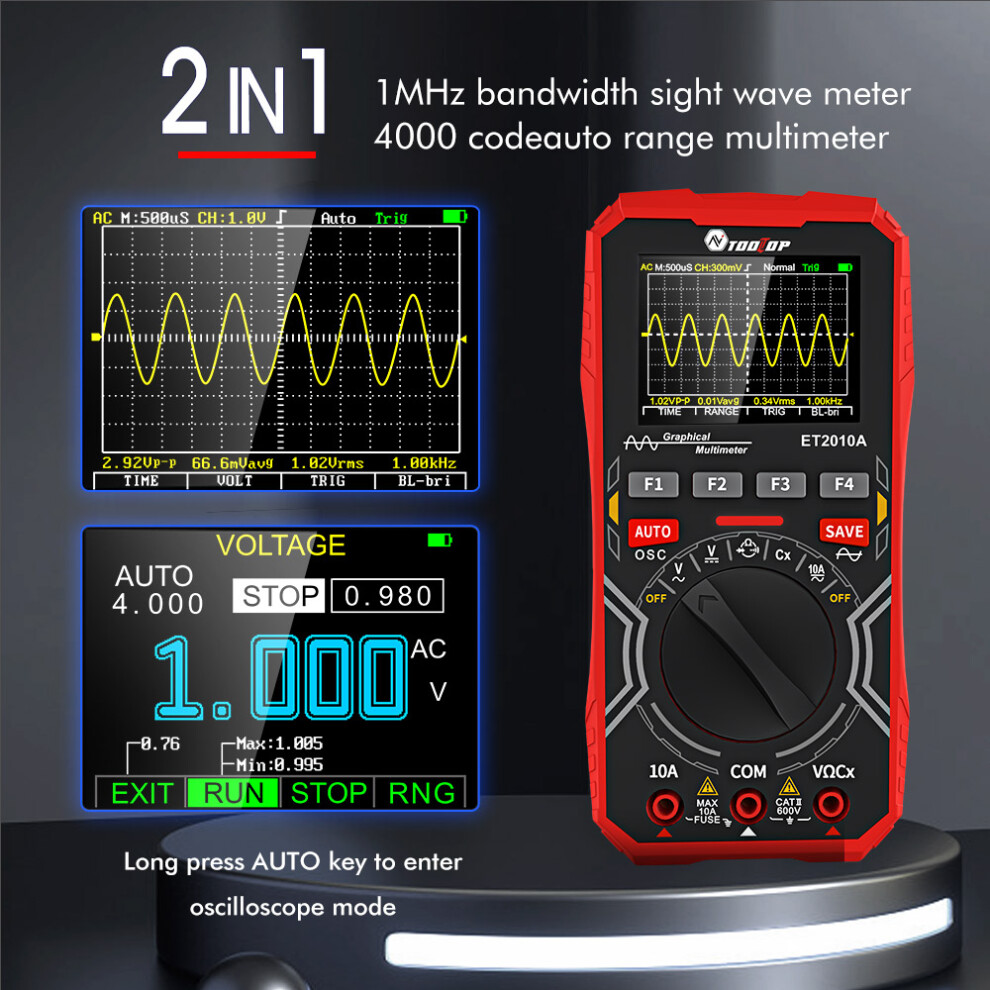

This product is an example of a combination of an 1MHz oscilloscope and a 4000-count autoranging multimeter. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Multifunctional design, with time base adjustable, amplitude adjustable, data storage, and auto-sleep functions. Supports ACVoltage, DCVoltage, resistance, capacitance, frequency, diode and on/off test functions. It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of electronics, communications, computers, etc.

Features:

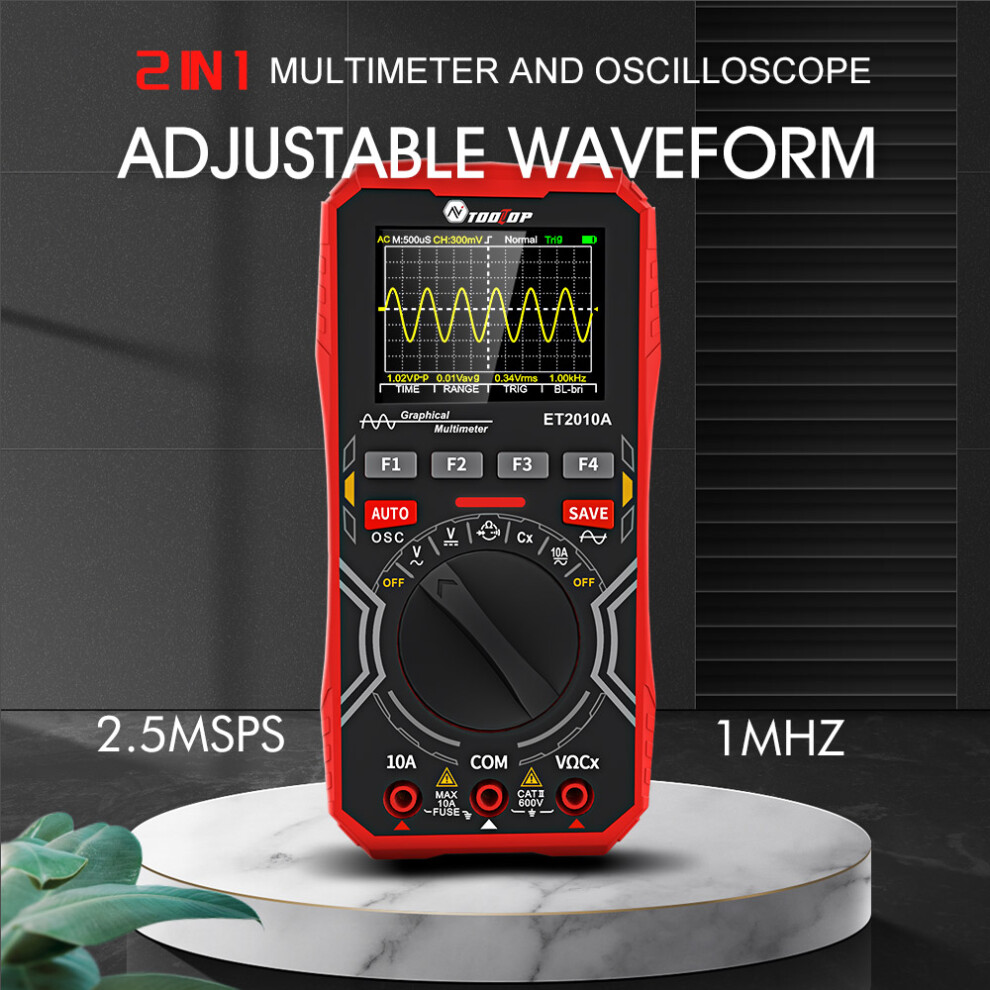

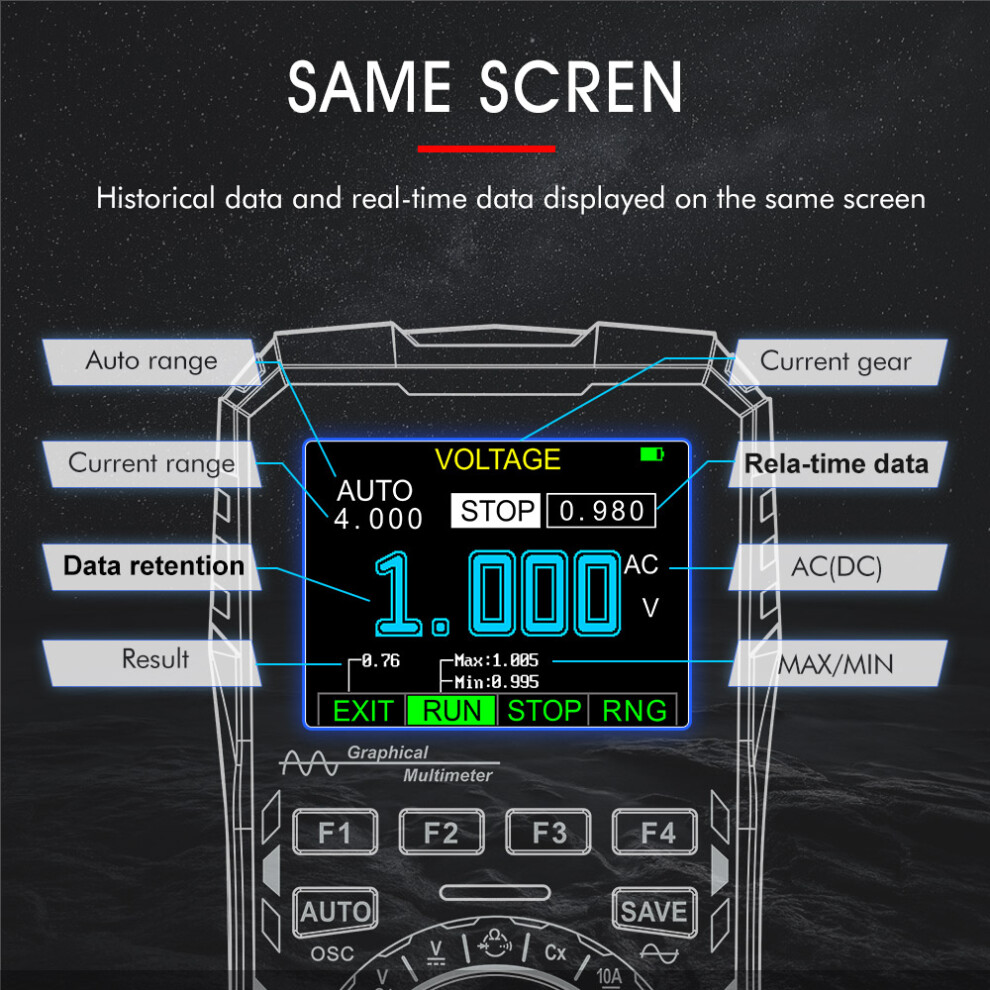

【2-in-1 Versatility & Digital Display】: Combining a 1MHz oscilloscope with a 4,000-count auto-ranging multimeter, this instrument provides a comprehensive diagnostic toolset for automotive, electronics, and industrial applications. Its 320*240 high-resolution color display ensures clarity in both waveform visualization and numerical readings. Historical data and real-time data are displayed on the same screen.

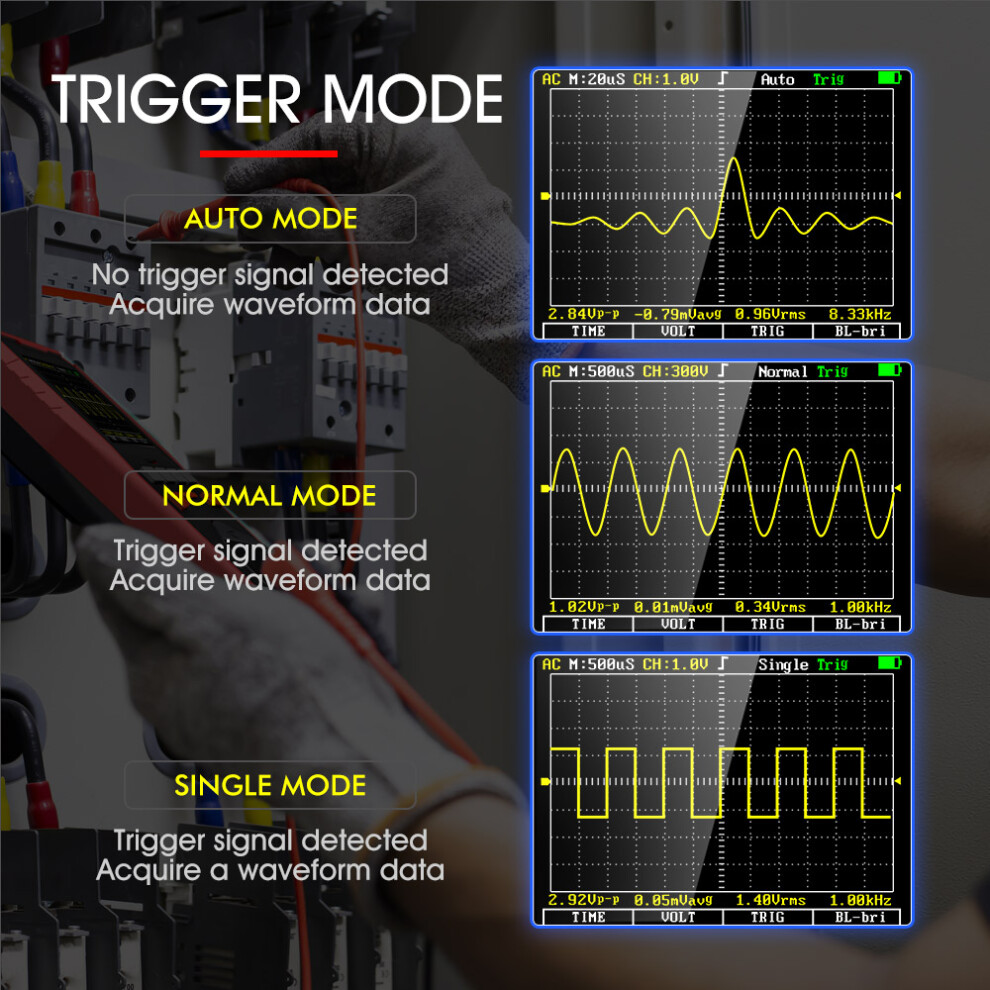

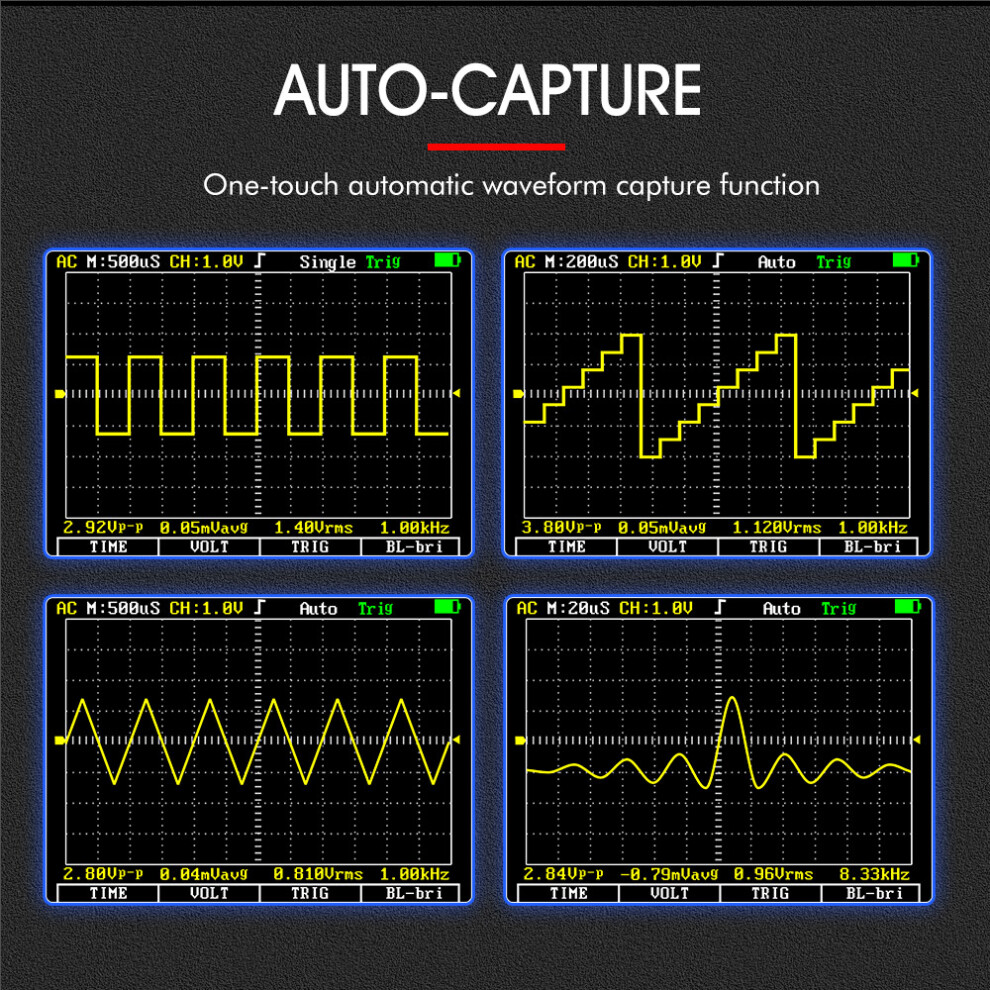

【3 Trigger Modes & Auto Capture】: This device features three triggering modes: AUTO, NORMAL, and SINGLE, ensuring precise control over waveform acquisition. The auto-capture function simplifies operation by automatically capturing waveforms, suitable for quick analysis and troubleshooting.

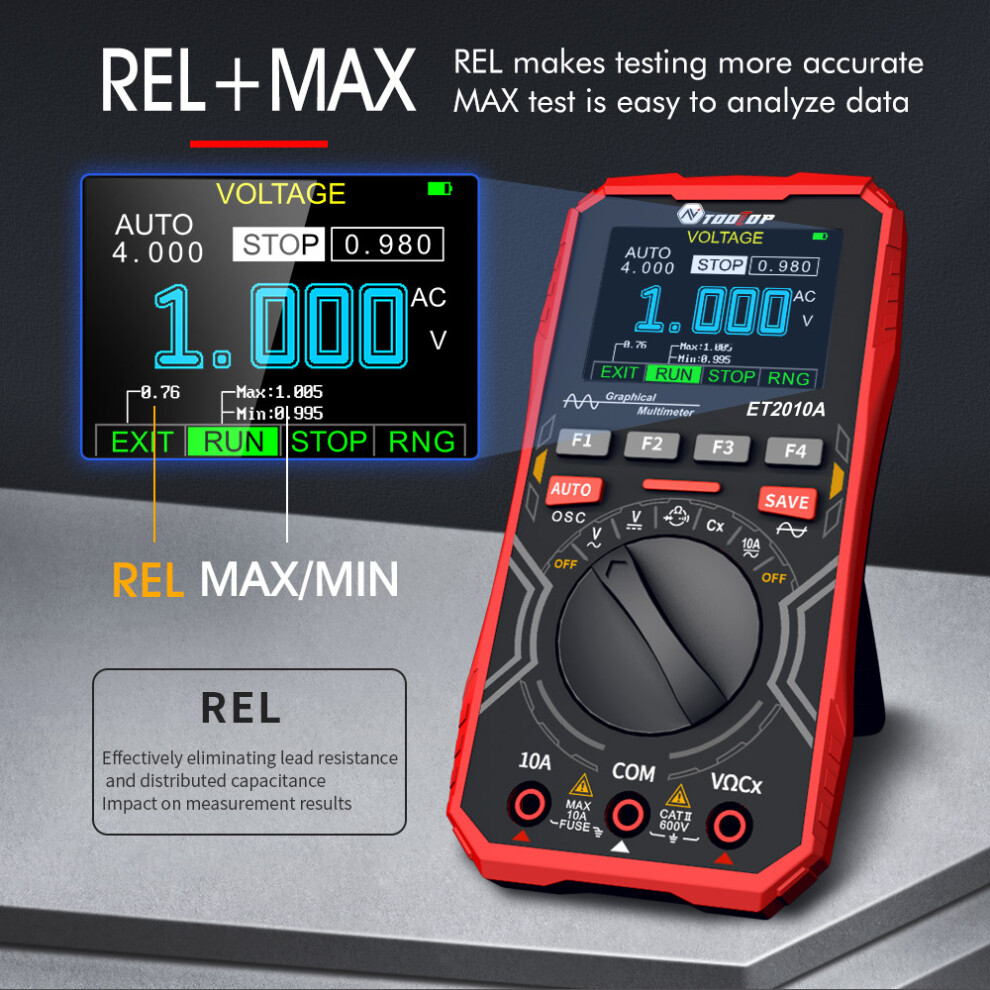

【In-depth Measurement Capabilities】: Offering multiple measurement functions, including Vp-p, Vavg, Vrms, Hz, and more, this unit provides a detailed analysis of voltage, current, resistance, capacitance, frequency, and duty cycle. It also includes REL and Maximum/Minimum testing for enhanced accuracy and data analysis, effectively eliminating the influence of leadwire resistance and distributed capacitance on the measurement results.

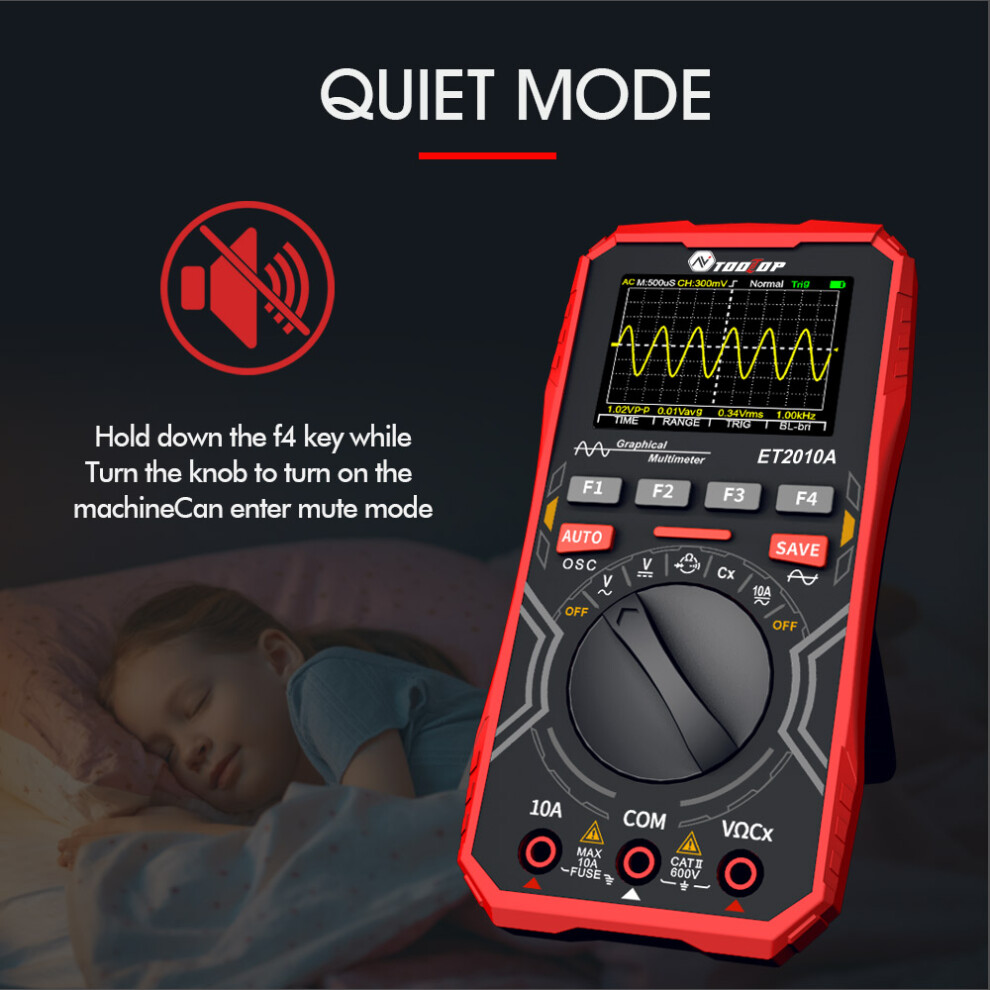

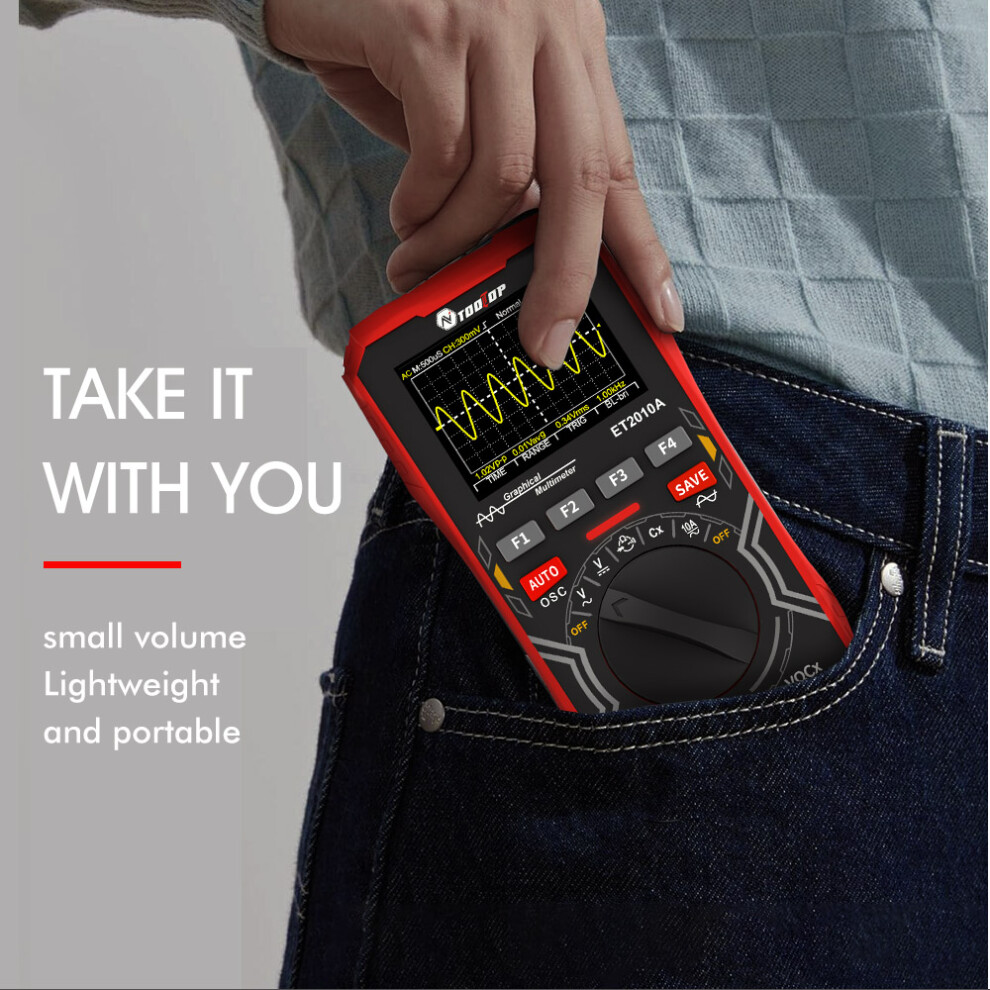

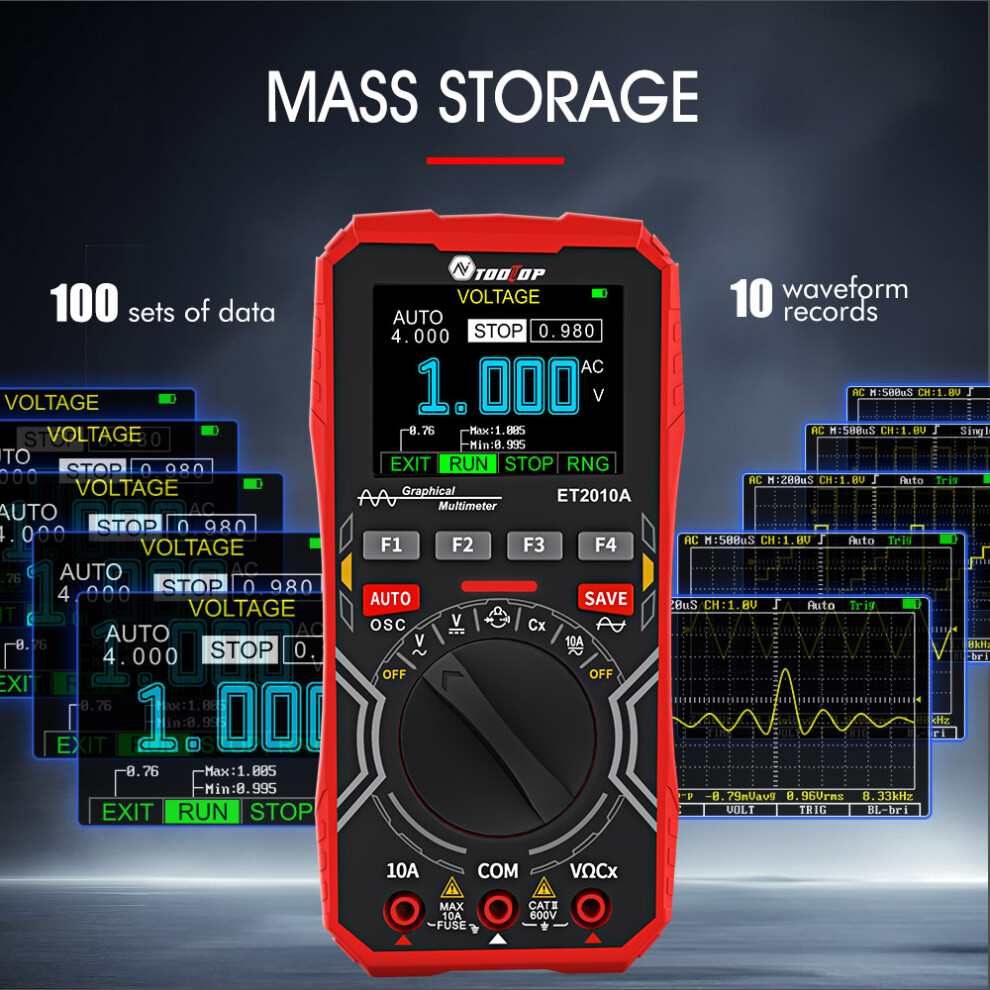

【Enhanced User Experience】: With a 100-group data storage capacity and 10-waveform memories, users can conveniently store and recall critical measurements. The silent mode and auto-sleep function add er comfort and efficiency, while the compact size and lightweight design make it highly portable.
【Comprehensive Safety & Wide Applications】: This instrument is equipped with dual fuses for added safety, ensuring safer operation in various environments. It can easily handle measurement in various fields of testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.

Specifications:
Name: 2in1 Oscilloscope Multimeter
Material: ABS
Battery: 3 * AA battery (not included)
Display: 320*240 display

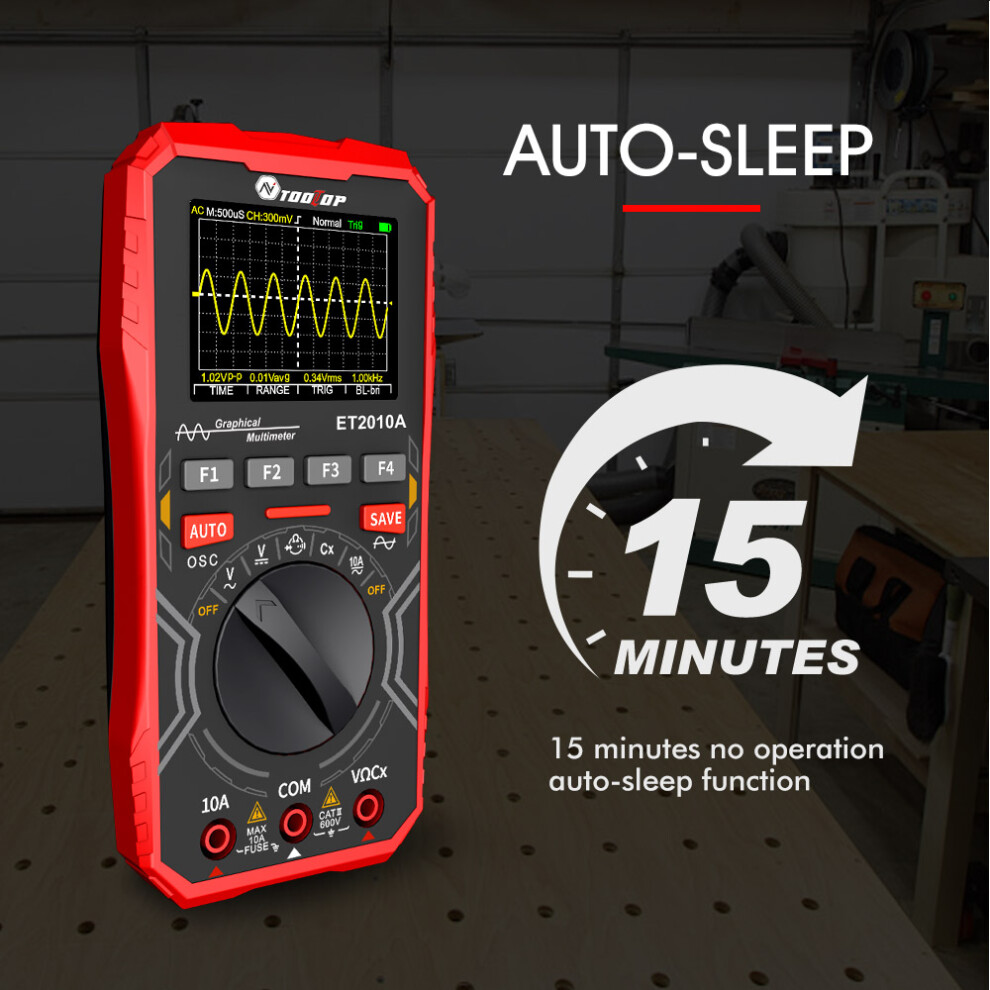

Auto-sleep: no operation for 15 minutes or disabled
Storage: 100 data, 10 waveforms
Fuse: 10A, 250 V
Use environment: 0-40; <75%RH relative humidity
Storage environment: -10 to +60; <90%RH relative humidity

Multimeter:
ACvoltage: 400mV-600V
DCvoltage: 400mV-600V
ACcurrent: 4A-10A
DCcurrent: 4A-10A
Resistance: 400.0Ω-40.00ΜΩ
Capacitance: 51.2nF~100uF
Frequency: 5Hz-5MHz
Duty cycle: 0%-100%
Diode test: Voltage is about 1.5V
Continuity test: Resistance<50Ω, beep

Oscilloscope:
Bandwidth: 1MHz
Maximum real-time sampling rate: 2.5Msps
Number of channels : 1
Vertical sensitivity ranges: 300mV- 1000V/div
Timebase ranges: 2.5us-10s/div
Vertical ranges accuracy: ±(5%+ 0.2div)
Time base accuracy: ±(0.01%+ 0.1div)
Trigger modes: Auto/Single /Normal
Trigger edges selection: Rising/falling edges
Automatic sleep: 15 minutes or disabled
Measurement function: Vp-p, Vavg, Vrms, Hz
Input resistance: about 10MΩ

Package size: 195 * 140 * 45mm / 7.68 * 5.51 * 1.77in
Package weight: 290g / 10.23ounce

Packing List:
1 * 2in1 Oscilloscope Multimeter
1 * Pair of Test Pen
1 * Guideline
1 * Storage Bag
