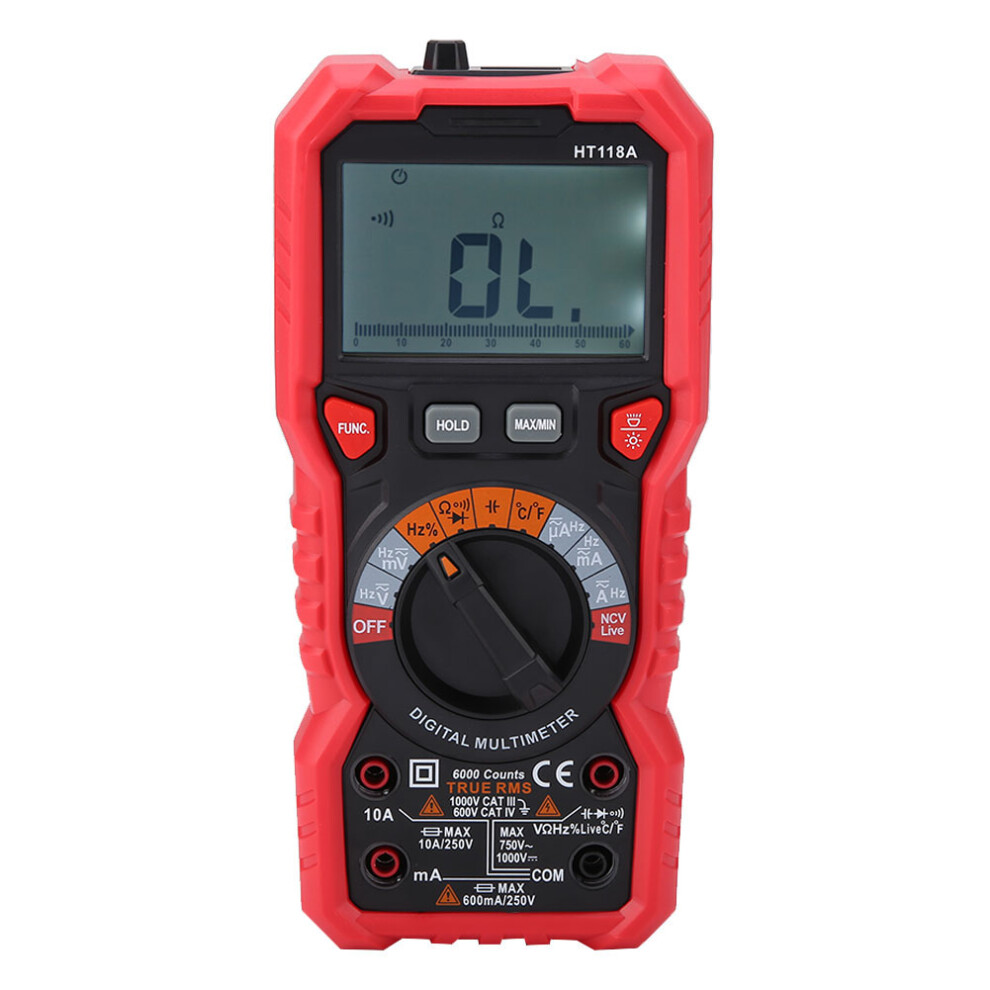

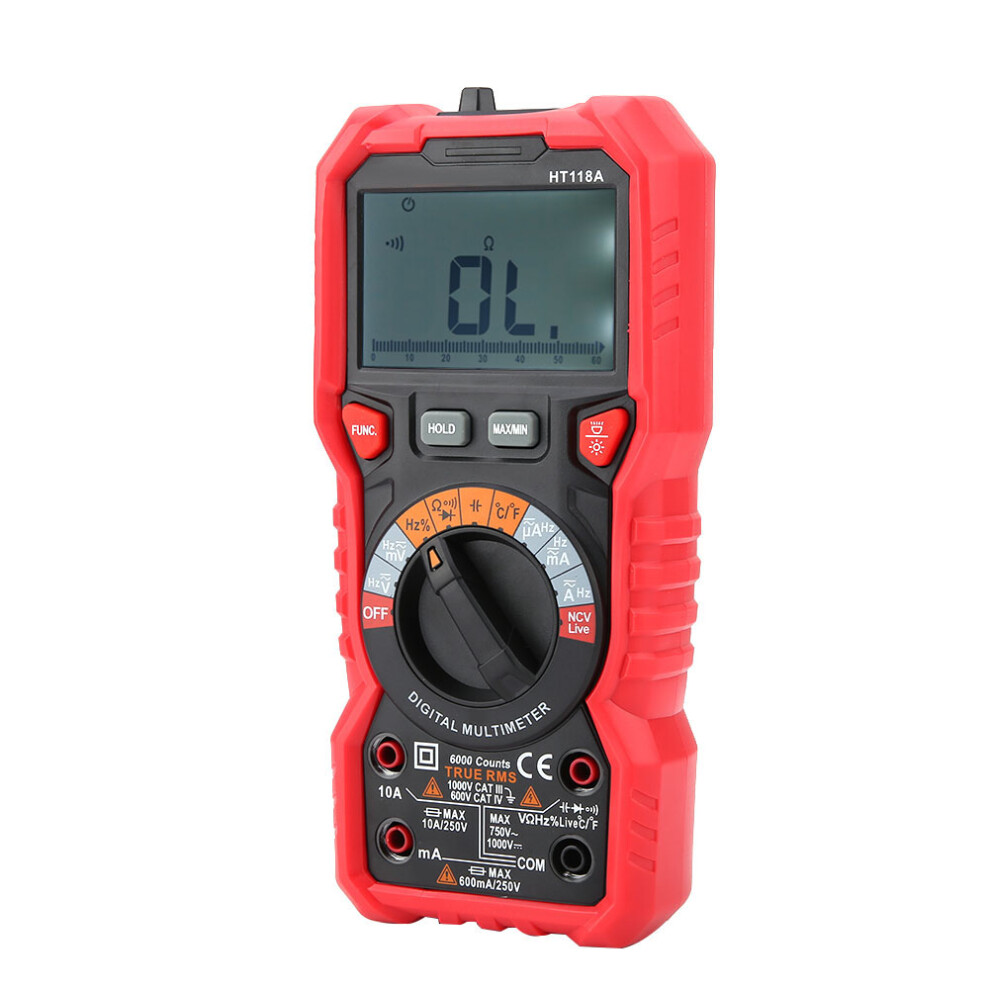

HT118A Digital Multimeter AC DC Volt Amp Ohm Capacitance Temp

HT118A Digital Multimeter AC DC Volt Amp Ohm Capacitance Temp Description

1、This multimeter can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode and continuity. 2、Clear backlight LCD display, easy to read. 3、With bright flashlight, convenient to operate at darkness. 4、Support maximum/minimum value measurement. 5、More functions: Data hold, auto power off, over range indication, low battery indication, high voltage prompt and more.
Features:
Clear backlight LCD display, easy to read.
With bright flashlight, convenient to operate at darkness.
Support maximum/minimum value measurement.
Specification:
Measurement
Range
Resolution
Accuracy
DC Voltage
600mV
0.1mV
(0.5% reading+3)
6V
0.001V
60V
0.01V
600V
0.1V
1000V
1V
AC Voltage
600mV
0.1mV
(0.8% reading+5)
6V
0.001V
60V
0.01V
600V
0.1V
750V
1V
DC Current
600μA
0.1μA
(1.2% reading+3)
6000μA
1μA
60mA
0.01mA
600mA
0.1mA
10A
0.01A
AC current
600μA
0.1μA
(1.5% reading+3)
6000μA
1μA
60mA
0.01mA
600mA
0.1mA
10A
0.01A
Resistance
600Ω
0.1Ω
(1.0% reading+3)
6kΩ
0.001kΩ
60kΩ
0.01kΩ
600kΩ
0.1kΩ
6MΩ
0.001MΩ
(1.5% reading+3)
60MΩ
0.01MΩ
Capacitance
10nF
0.001nF
(4.0% reading+5)
100nF
0.01nF
1000nF
0.1nF
10mF
0.001mF
100mF
0.01mF
1000mF
0.1mF
10mF
0.001mF
(5.0% reading+5)
100mF
0.01mF
Frequency/Duty
10Hz
0.001Hz
(1.0% reading+3)
100Hz
0.01Hz
1000Hz
0.1Hz
10kHz
0.001kHz
100kHz
0.01kHz
1000kHz
0.1kHz
10MHz
0.001MHz
(3.0% reading+3)
1~99%
0.1%
Temperature
-20~ 0
1
5.0%reading or 3
0 ~ 400
1.0% reading or 2
400 ~ 1000
2.0% reading
-4~ 32
1
5.0% reading or 6
32~ 752
1.0% reading or 4
752~ 1832
2.0% reading
Function
Diode Test
Yes
Continuity Test
Yes
NCV
Yes
Live Test
Yes
Yes
Max/Min
Yes
Backlight
Yes
Flashlight
Yes
Display
6000 counts
Auto Power Off
15min
Over Range Indication
"OL"
Low Battery Indication
Yes
General Parameters
Model
HT118A
Material
Plastic
Color
Red + Black
Sampling Rate
About 3 times/second
Battery Type
2 x 1.5V AAA batteries (NOT included)
Working Environment
0~40C,
