Low Pressure Gas LPG Fireplace Safety Control Valve Kit 5/8-18UNF

Low Pressure Gas LPG Fireplace Safety Control Valve Kit 5/8-18UNF Description

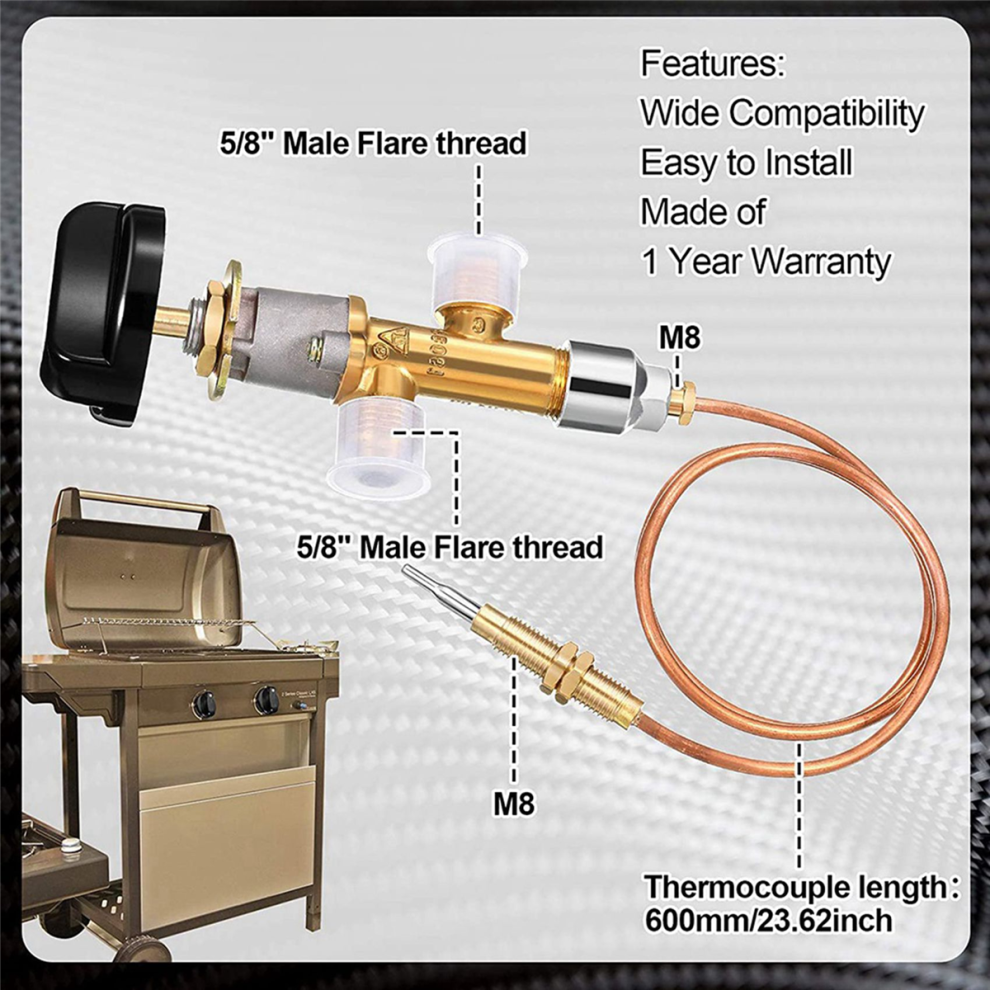

Flame failure valve with inlet and outlet with Flare thread 5/8-18UNF
Only suitable for Low pressure application (max BTU rating: 50000)
Suitable for Gas grill, heater, fire pit, fireplace if same connections

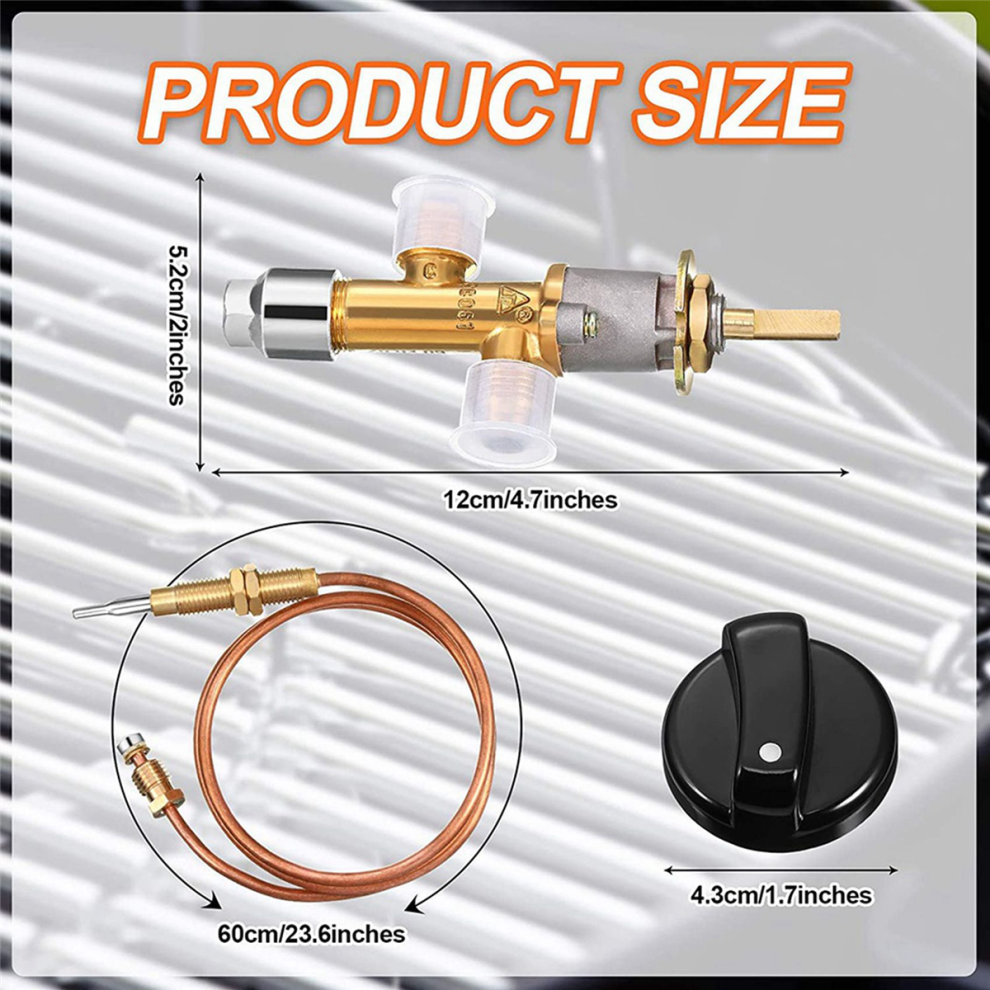

Specifications:
600mm thermocouple with M8 x 1 threaded head
Bakelite knob OD 38mm, D shaft 6.1mm
Operation Instructions
1. Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2. Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage)
3. Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)
4. Connect thermocouple and end thread well
5. Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6. Release your hand and it work properly If when you release hand, gas valve shut off again, please check
If your thermocouple is always be heated on flame
If the thermocouple end is well connected with valve
If the inlet and outlet side well connect with hose you have
Colour: yellow
Material: copper

Package Contents:

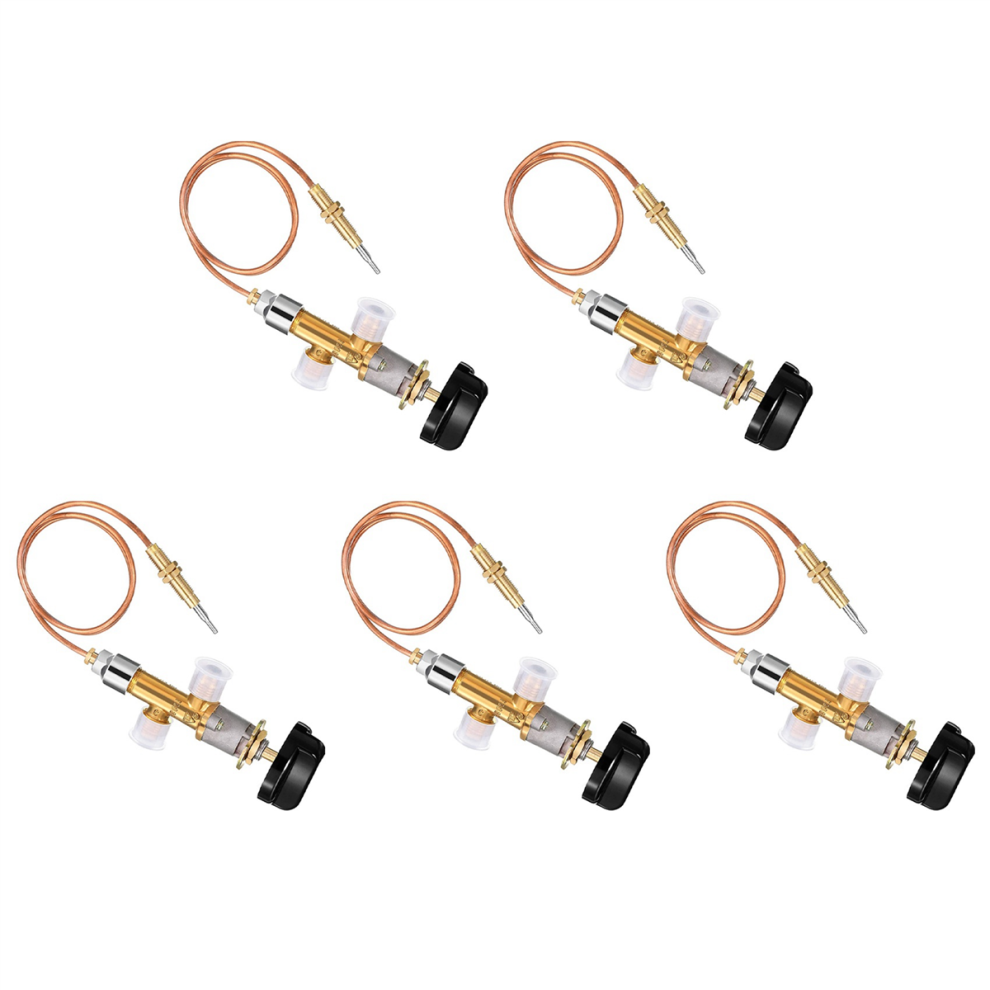

5 x Gas Control Valve

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
