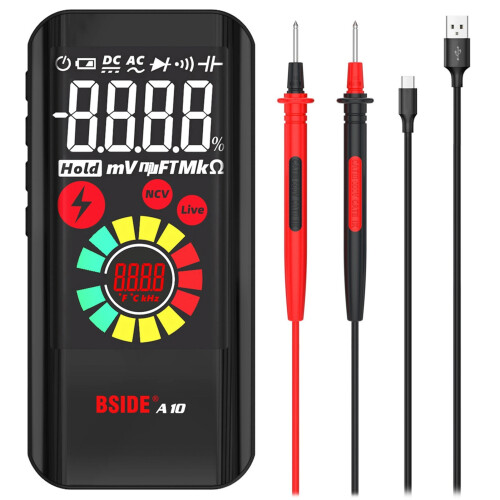

Mini Smart Digital Multimeter NCV Multifunctional Tester Voltmeter AC/DC Voltage Resistance Capacitance Frequency Diode Measuring

Mini Smart Digital Multimeter NCV Multifunctional Tester Voltmeter AC/DC Voltage Resistance Capacitance Frequency Diode Measuring Description

Mini Smart Digital Multimeter NCV Multifunctional Tester Voltmeter AC/DC Voltage Resistance Capacitance Frequency Diode Measuring

Features:

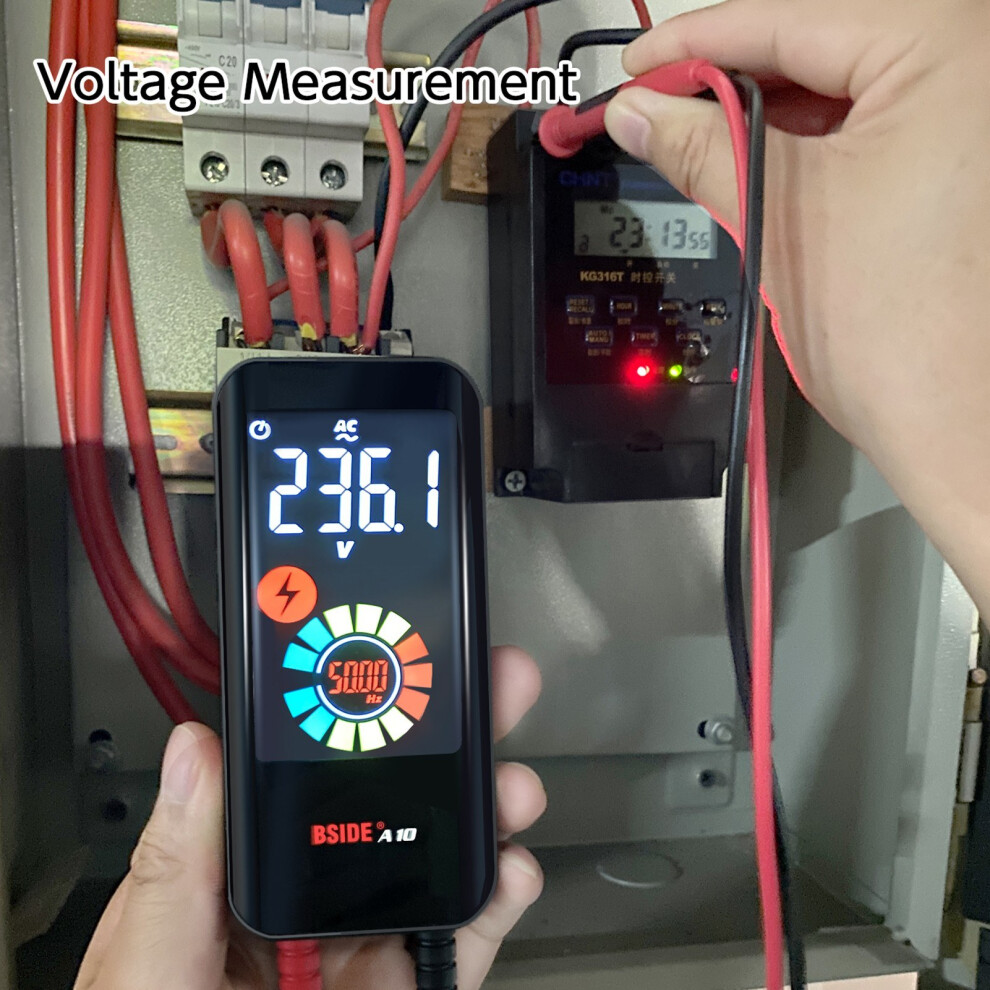

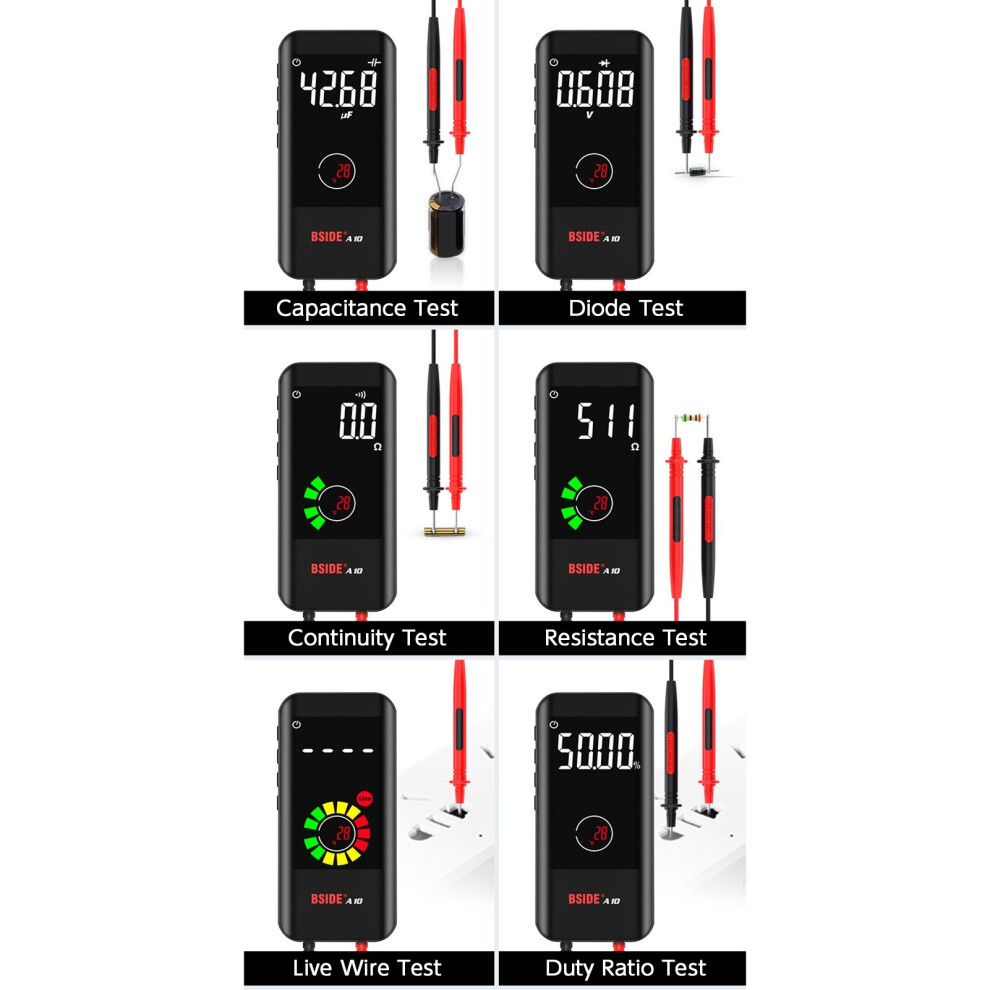

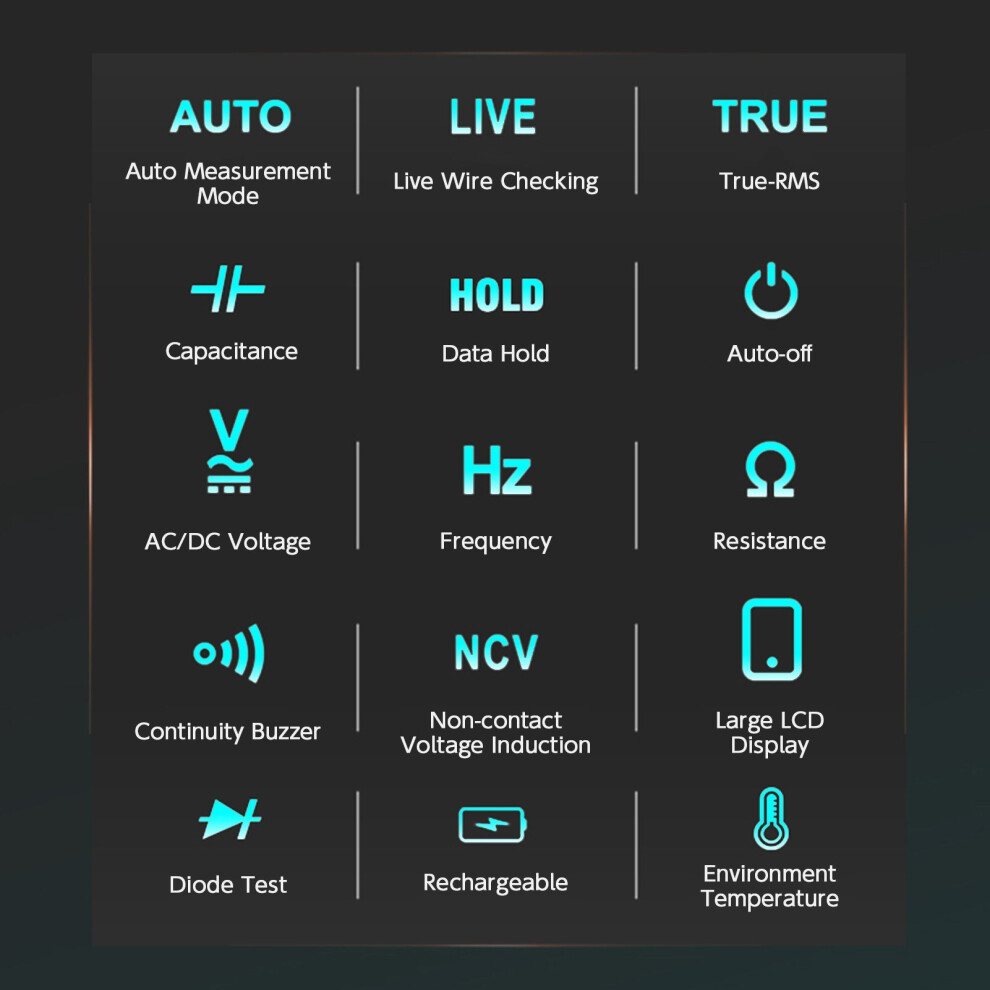

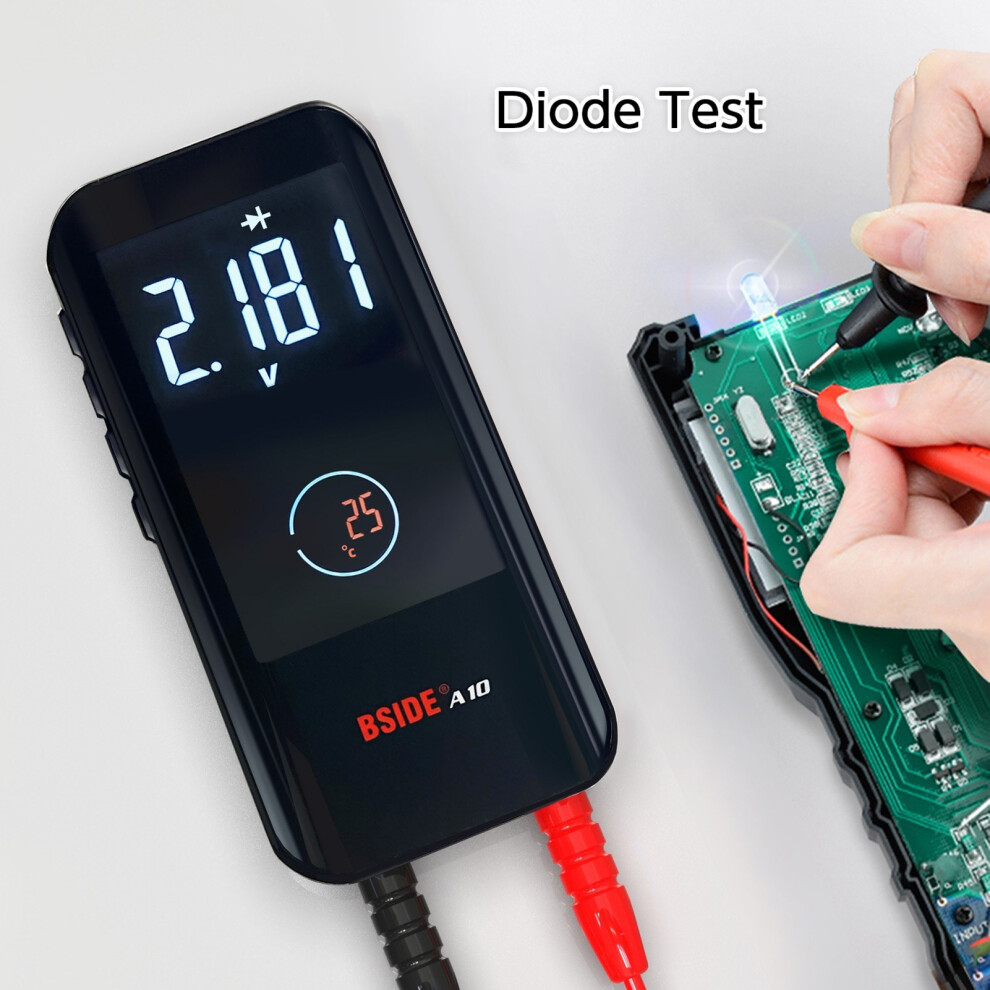

Basic Measuring Functions: including DC voltage, AC voltage, frequency, resistance, continuity, capacitance, diode, non-contact voltage induction, live wire checking.

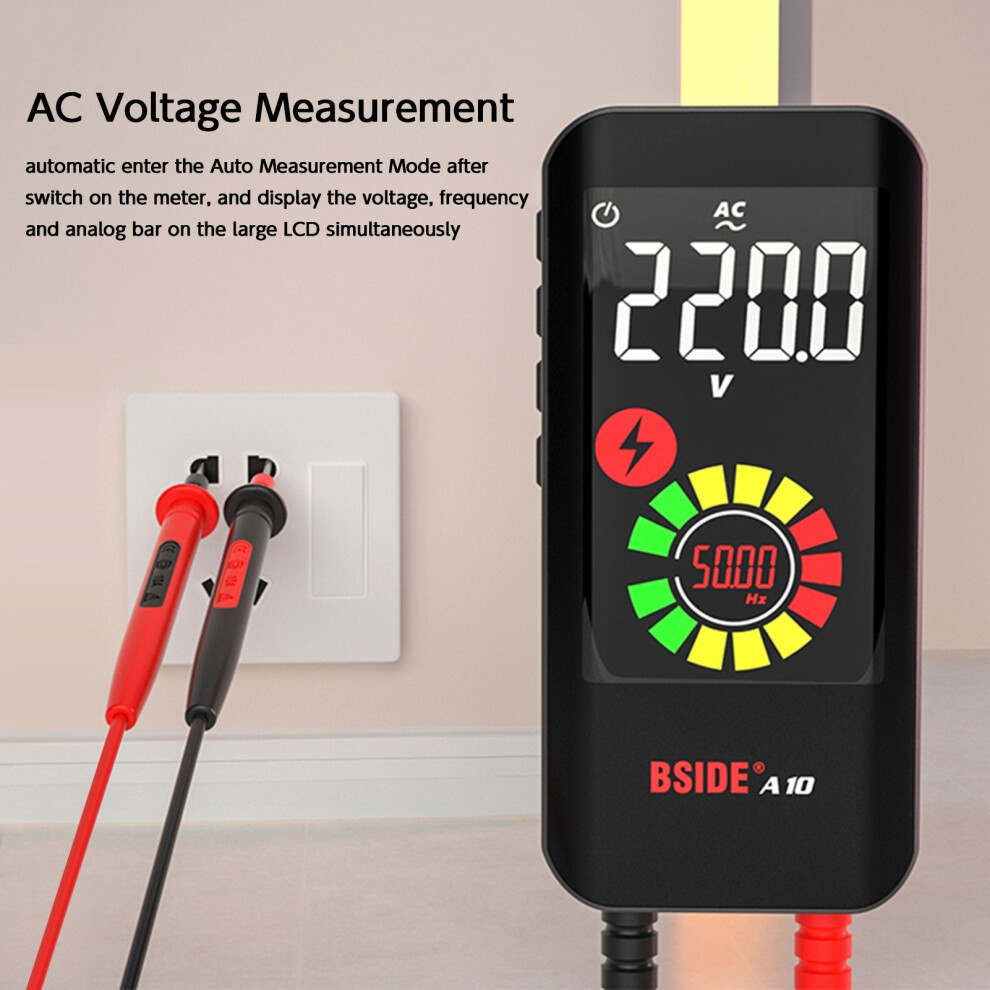

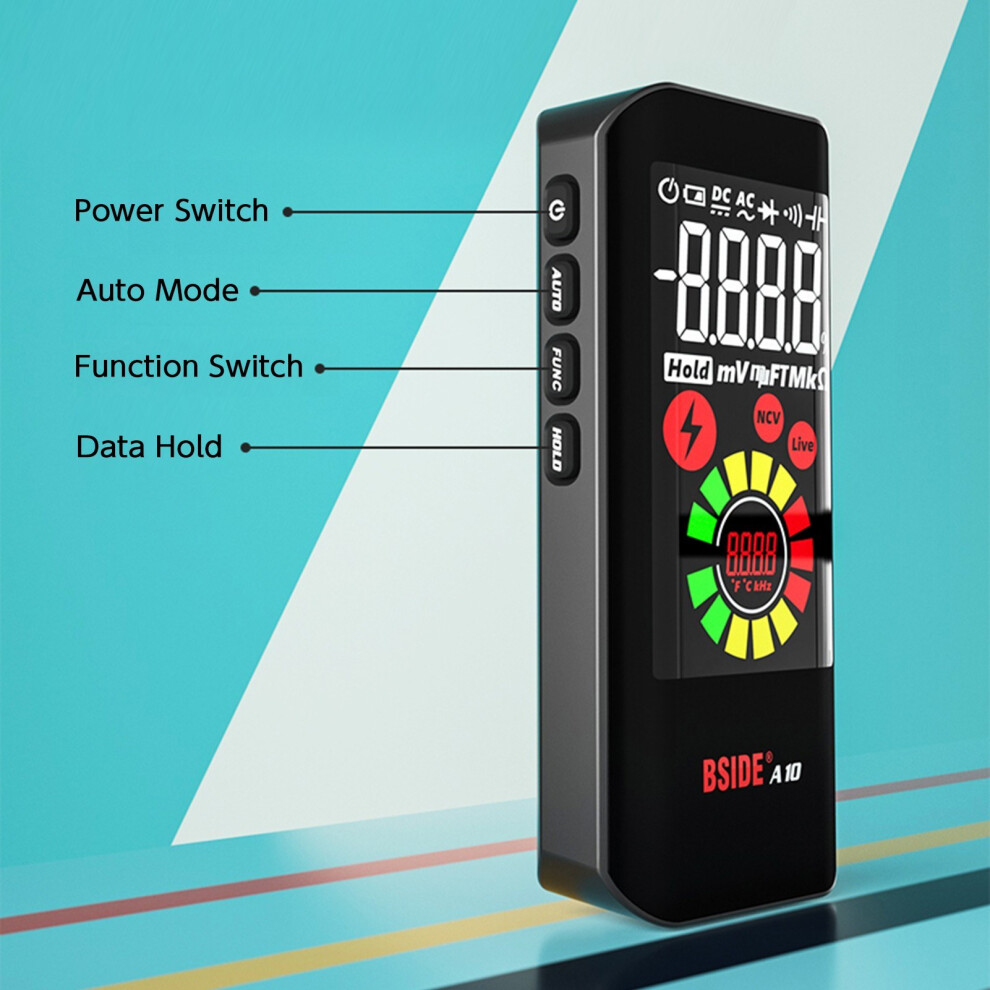

Auto Measurement Mode: automatic identification of AC voltage, DC voltage, resistance.

Wide Measurement Range: 0~600V AC/DC voltage, 0.1Ω~60MΩ resistance, 1nF~60mF capacitance, 10Hz~10MHz frequency, 0.1~99.9% duty ratio, 0~50 temperature, and measure diodes within 3V.

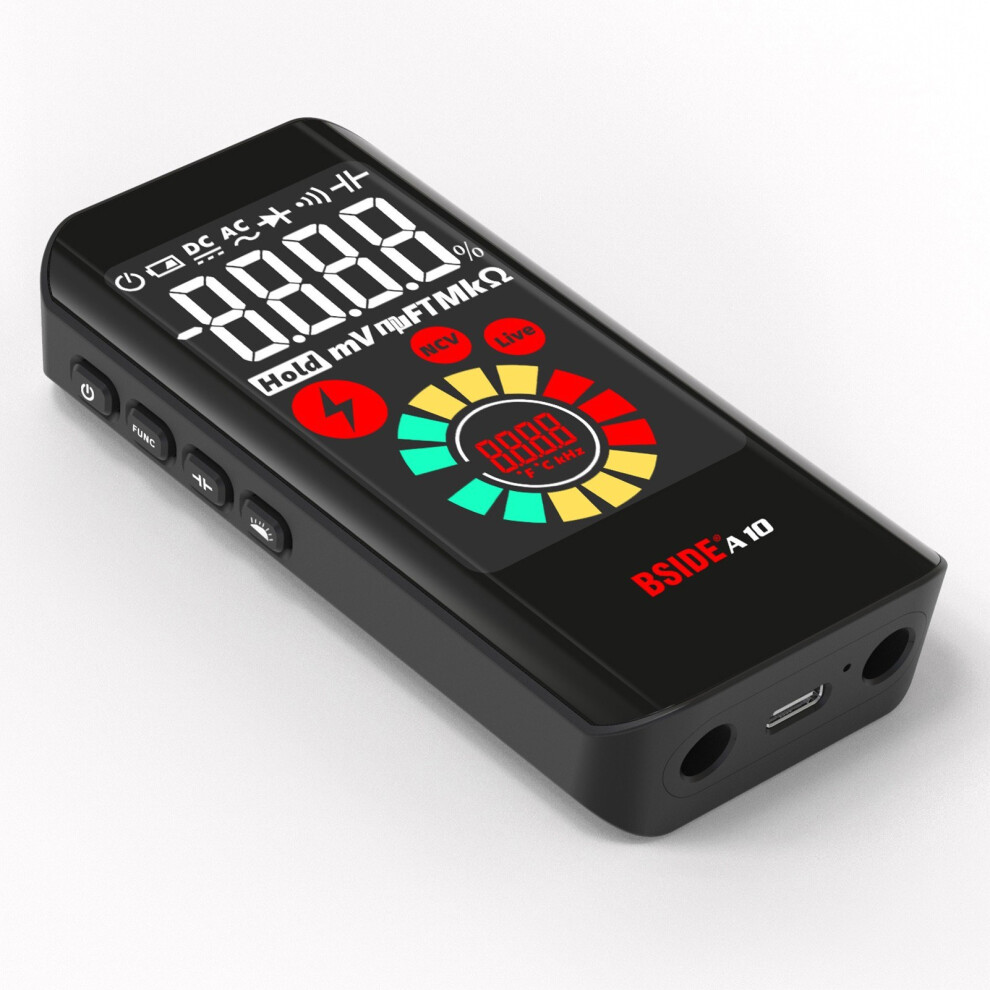

Easy-to-read Color LCD Screen: greatly enhance the reading experience.

3 Results Display: shows voltage, frequency and analog bar on the large LCD simultaneously.

Rechargeable Li-ion Battery: built-in 800mAh li-ion battery, conveniently recharged by the included charging cable via computer or the USB socket.

Safety Operation: full measuring range overload protection, double insulation protection, meet with CAT II safe grade.

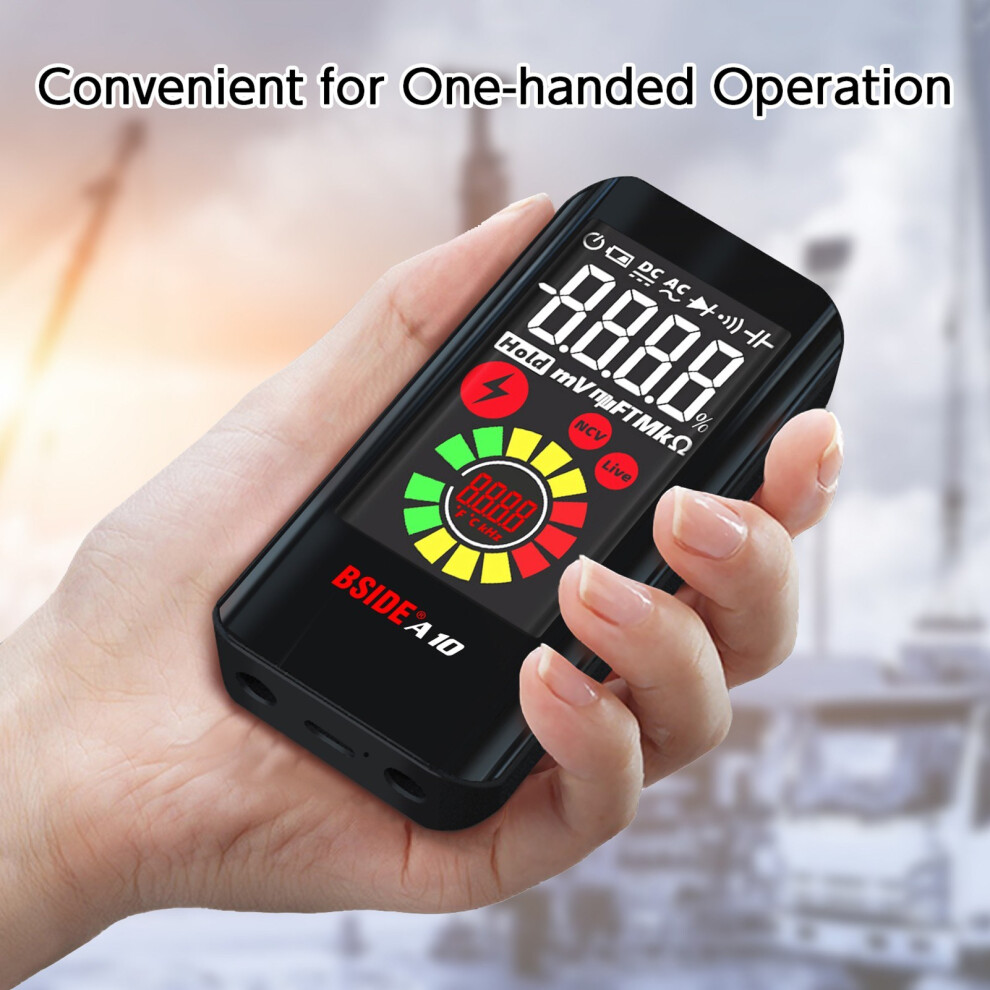

Compact Pocket Size: convenient for one-handed operation, portable to carry around, with a zipper pouch to store and protect the meter.

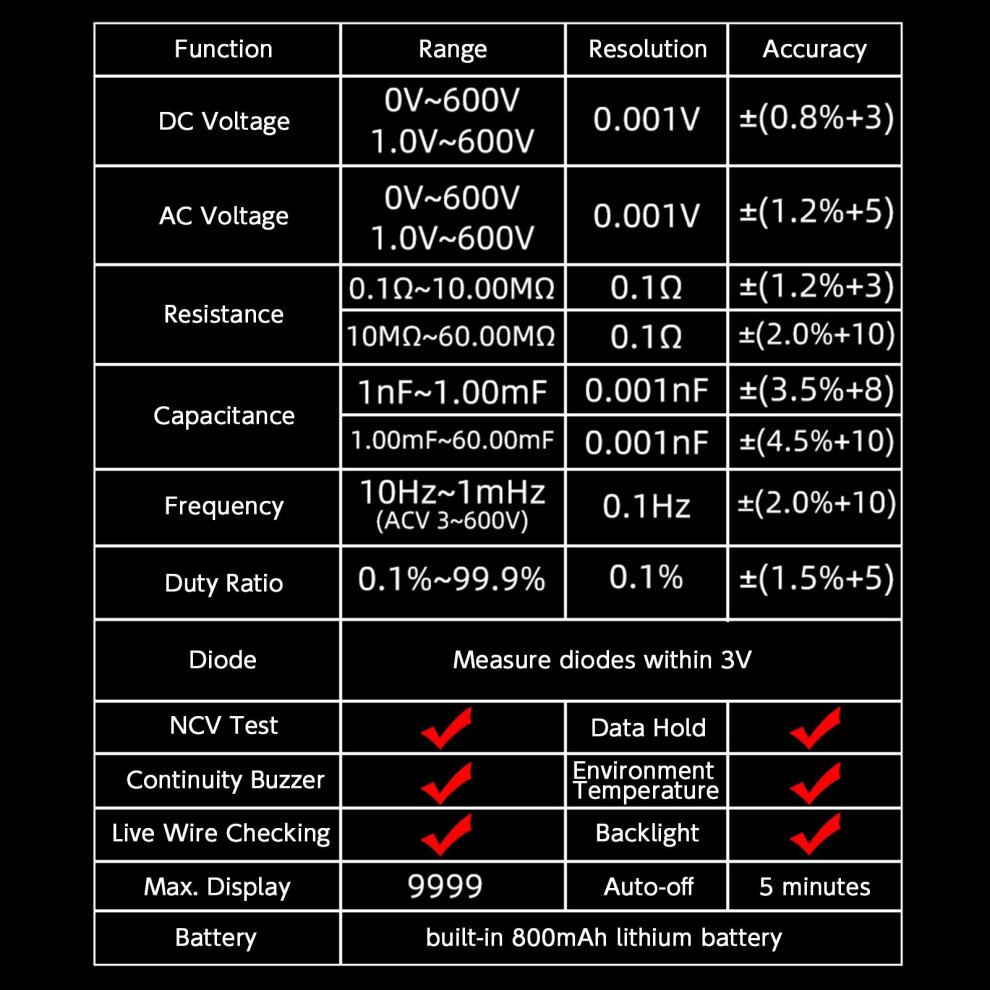

Specifications:

DC Voltage: 0~600V(DC mode), 1~600V(auto mode)

AC Voltage: 0~600V(AC mode), 1~600V(auto mode)

Resistance: 0.1Ω~10MΩ, 10~60MΩ

Capacitance: 1nF~1mF, 1mF~60mF

Frequency: 10Hz~10MHz(ACV 3~600V)

Duty Ratio: 0.1~99.9%

Material: ABS

Range: Automatic range

Display: Color LCD

Maximum Display Value: 9999 digits

Polarity Indication: Self-indicating, "-"means Negative polarity

Over-range Display: "OL" or "-OL"

Sampling Time: The meter figures show about 0.4 seconds

Automatic Power-off Time: 5 minutes

Battery Low Voltage Indication: LCD display a battery symbol

Operational Temperature and Humidity: 0~40, 0~80%RH

Storage Temperature and Humidity: -10~60, 0~70%RH

Operating Altitude: 2000m

Battery: Li-ion battery inside

Item Size: 113.3 * 54.2 * 22mm / 4.46 * 2.13 * 0.87in

Item Weight: 102g / 3.60oz

Package Weight: 250g / 8.52oz

Package Size: 18 * 8.5 * 4cm / 7.09 * 3.35 * 1.57in

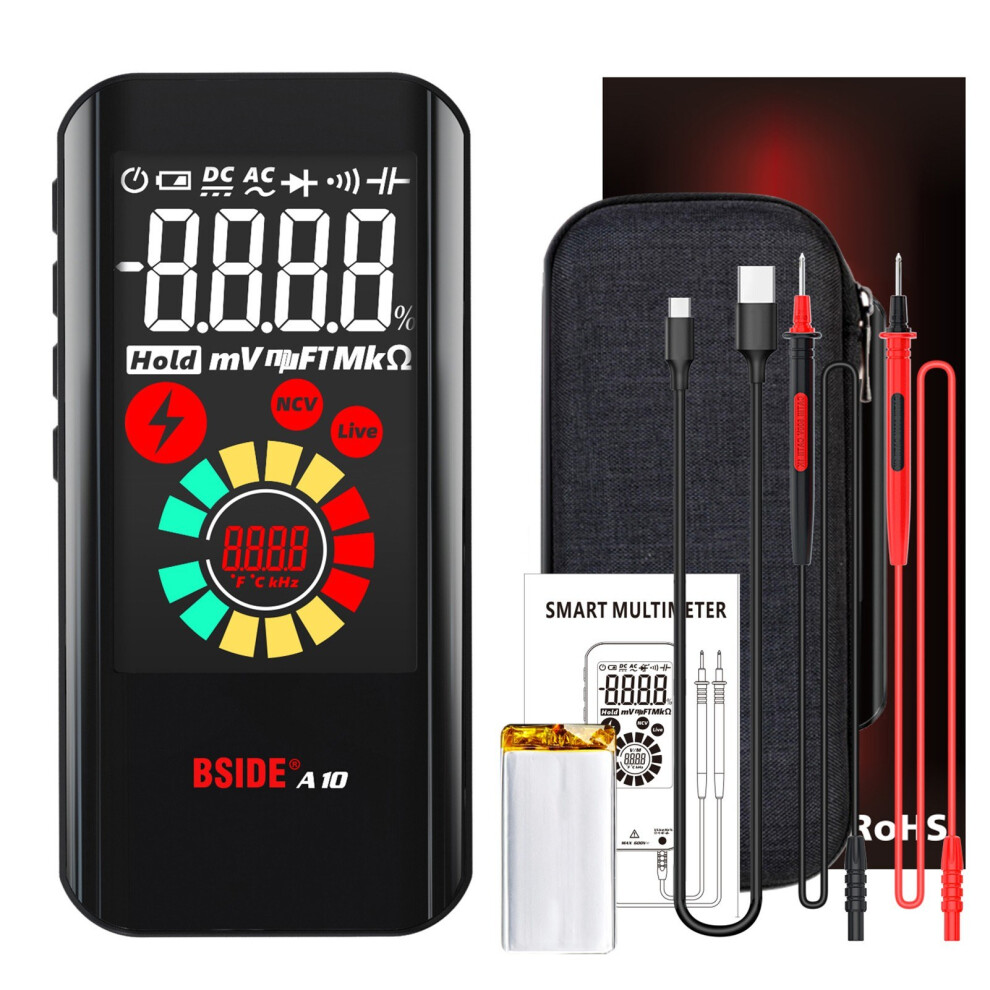

Packing List:

1 * Multimeter

1 * Pair of Test Lead

1 * Charging Cable

1 * Storage Pouch

1 * Manual (English)
