New Compact GRT8-S2 Cycle Timer Relay: Adjustable ON/OFF Delay Wide Range

New Compact GRT8-S2 Cycle Timer Relay: Adjustable ON/OFF Delay Wide Range Description

GRT8-S2 Mini Asymmetric Cycle Timer ON/OFF Repeat Cycle Time Relay AC

Features:


1. Time setting for delay ON and OFF is separated so you can set different delay time.


2. Super wide delay time range, 0.1 second - 100 days settable (10 selections).


3. Switch different working modes by short-circuiting S-A1.


4. Relay working status is indicated by LED indicators.


5. With small volume, this relay can be mounted on 35mm DIN rail.


6. It is used for cyclic delay control occasions, providing periodic energizing, lighting control and heating control for electric circuit.





Specification:


Model: GRT8-S2



Power consumption: AC max.6VA/1.3W


Delay time range: 0.1s-100days, NO, NC


Setting method: knob


Setting accuracy: 10%


Repeated accuracy: 0.2%


Temperature fluctuation error: 0.05%/, at = 20


Output contact: 2 x SPDT, 2 x 16A/AC1


Minimum switching power: 500mW


Power indicator: Green LED


Output relay indication: Red LED


Mechanical life: 1x107


Electrical life: 1x106


Reset time: Max 200ms


Working temperature: -20~55


Storage temperature: -35~75


Mounting method: 35mm DIN rail


Protection grade: IP20


Wiring capability: 1x2.5mm2 or 2x1.5mm2

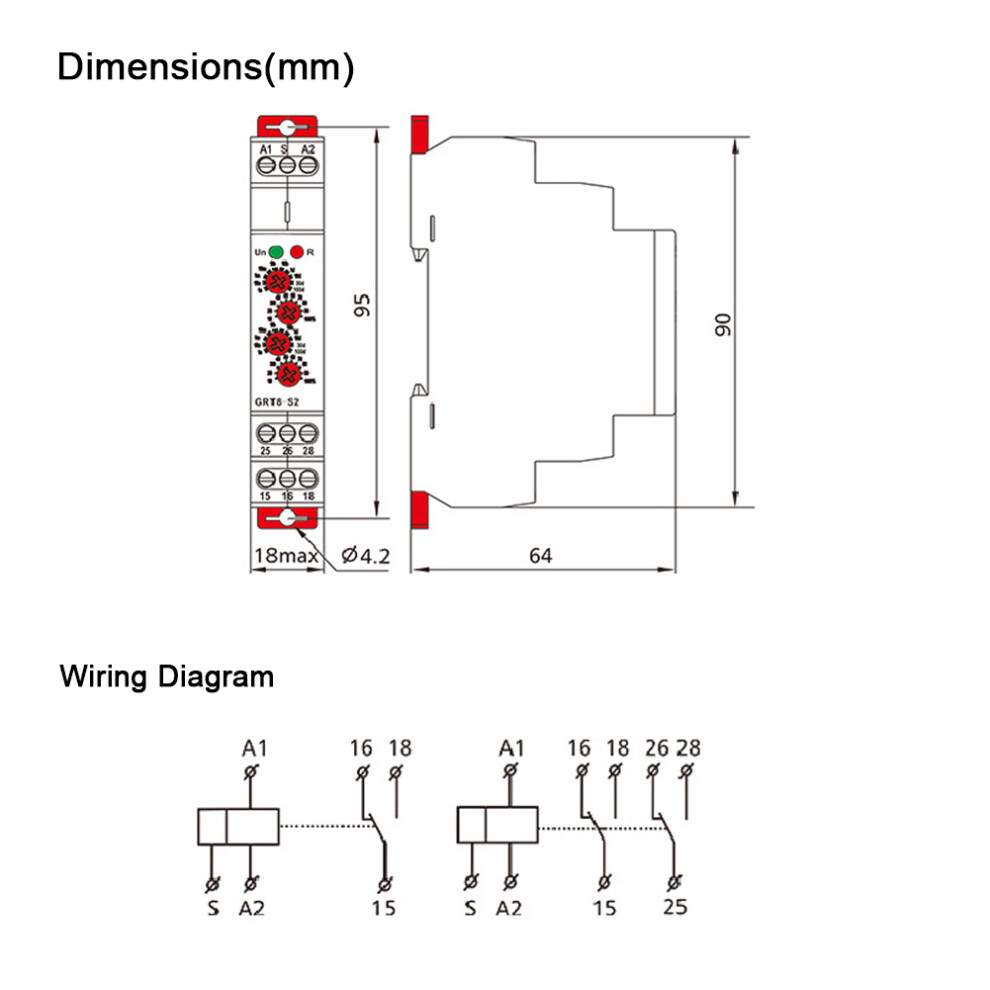

Dimensions: 90*18*64mm / 3.54*0.71*2.52in


Package weight: Approx. 96g/3.4oz





Package List:


1 * Cycle Timer Relay





Note:


1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.


2. Please allow slight error due to manual measurement. Thanks for your understanding.
