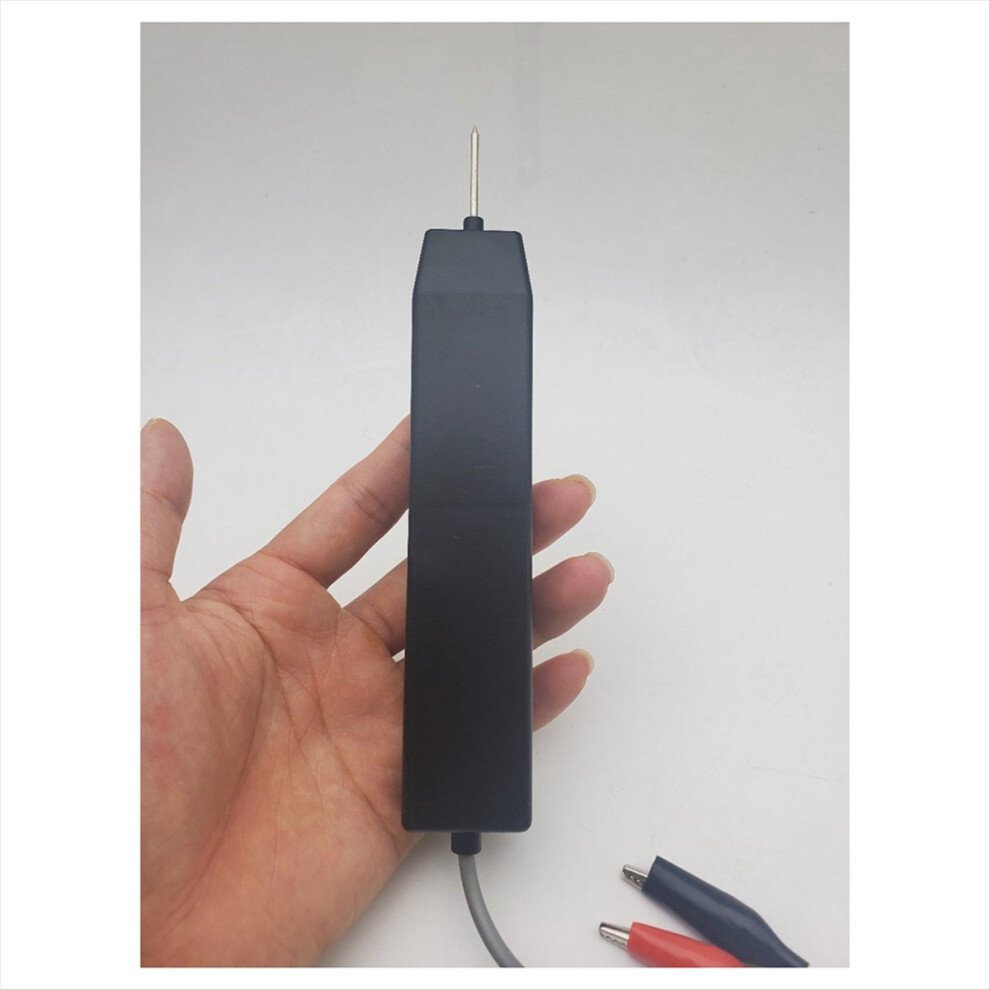

New LP-1 Multifunctional Logic Probe High Frequenc

New LP-1 Multifunctional Logic Probe High Frequenc Description

Handy, Quick and Easy
For DTL, for TTL and for CMOS
High Frequescy Response
Instant Indication
Memory Function

How to use: RED clip to + terminal and BLACK clip to - terminal of the power source of the circuit under test. The supply should not 18V for Dc
for TTL and DTL, set the upper select to the side marked "TIL"
For CMOS, set the upper select to the side marked "CMOS", contact the probe pin to the point to be tested. The LEDs indicate its states:
A) ALL LEDs OFF -High impedance
B) RED LED ON - High (1)
C) Green LED ON - low (0)
D) Orange LED ON -
for deteching and storing or level , set lower select to side marked first. Contact the probe pin to the poin to be tested. The LEDs indicate is basic Then set the lower select to side marked "", The orange LED light when any or level is detected. The direction, in comparison with basic, , cabe determined. After use, reset probe by setting the lower select to side marked ""
Color: Black
Material: ABS

Package Contents:
1 * Logic Tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
