Normally Close Temperature Switch, 75 N.C 5A Thermal Switch Thermostat Temperature Control Switch Controller 2pcs

Normally Close Temperature Switch, 75 N.C 5A Thermal Switch Thermostat Temperature Control Switch Controller 2pcs Description

Key Features

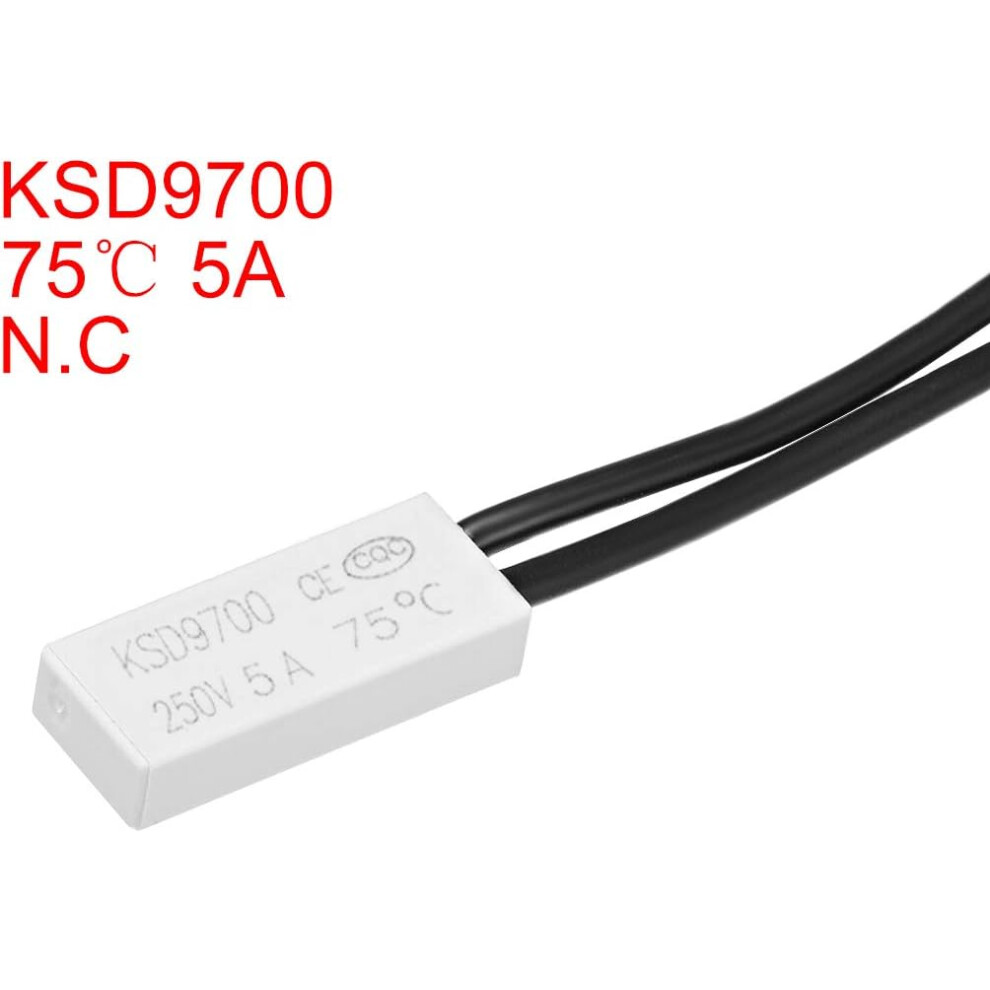

• Action Temperature 75 ; Action Type N.C (Normal Close) ; Power 250V 5A
• Advantage Contact sensor, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon
• Normally Closed The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
• Features temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life
• Wide used in home appliance's motor and electrical equipment, such as air Conditioner motor, transformer, thermal appliances, etc

Product Description

Specification : Product Name : ThermostatAction Temperature : 75Action Type: N.C (Normal Close)Power : 250V 5APin Type : 2 WiresWire Length : 70mm/2.76inchMain Body Material : PlasticLife : 100,000 times

Package Content

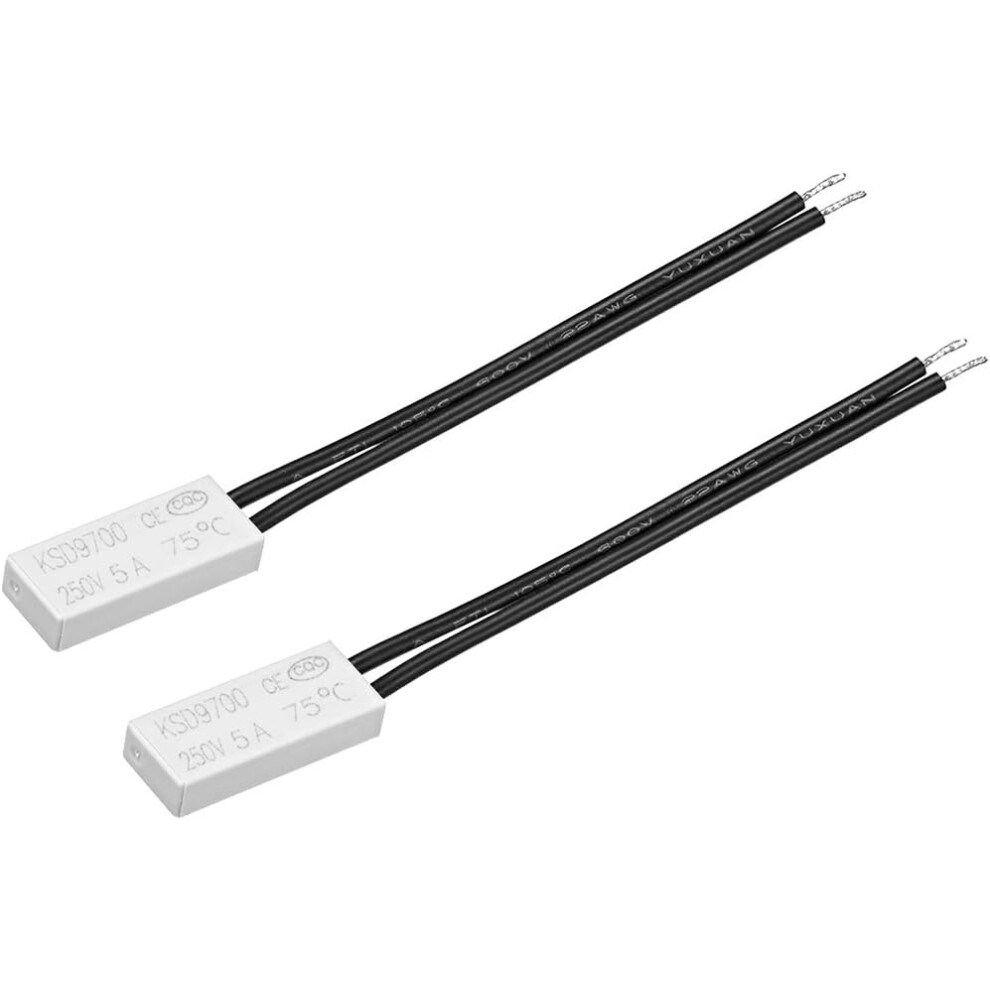

2 x Thermostat

Description

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.

Features

temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.3.Working Principle : uses square sheet as temperature sensor. When the temperature rises to the action temperature, the square sheet jumps suddenly, the transmission contacts act quickly, and the circuit is disconnected. When the temperature drops to the action temperature, the sheet is reset and the contacts are restored to their original state, so as to achieve the purpose of on-off circuit.4.Application : Be applicable to all kinds of home appliances and electronics products. Such as Electric Motors, Fluorescent Ballasts, Transformers, Solenoids, Heating pads, OA-Machines
