Portable LCD Monitor Driver Laptop 30Pin EDP Panel Controller DMI-Comp

Portable LCD Monitor Driver Laptop 30Pin EDP Panel Controller DMI-Comp Description

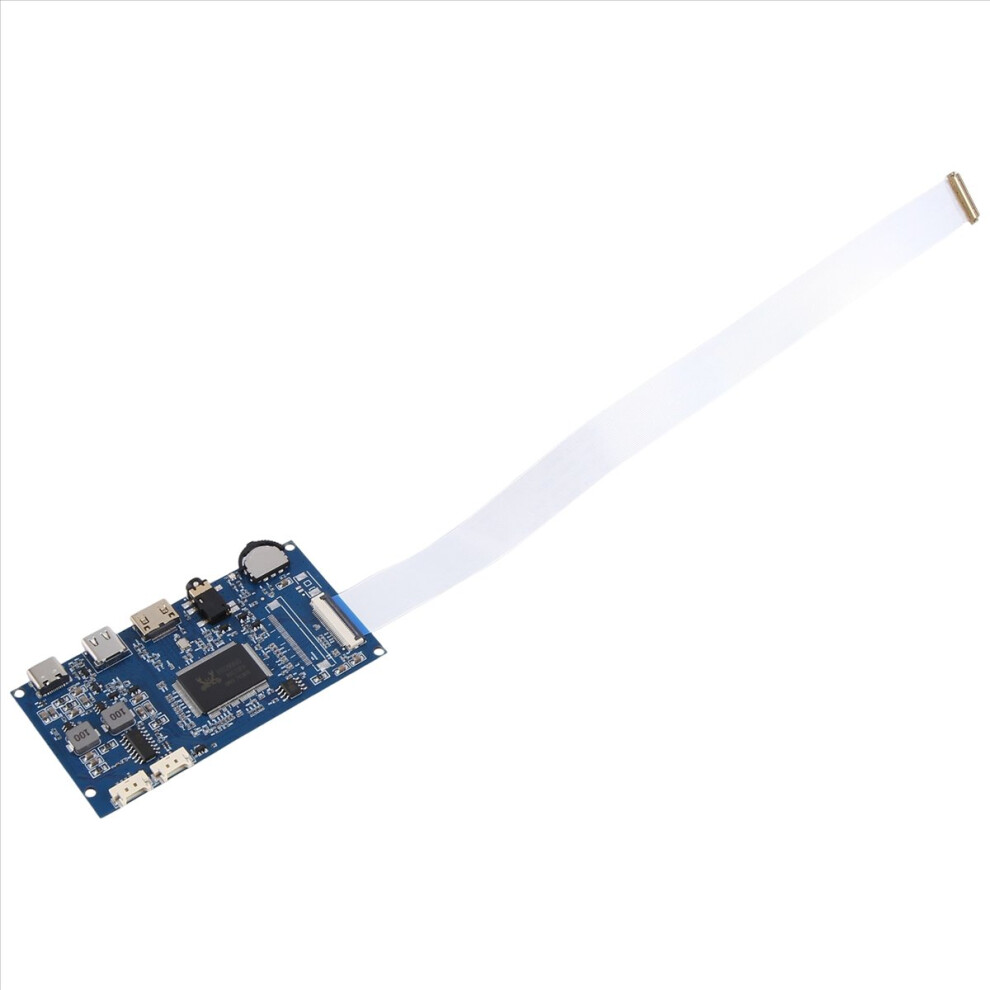

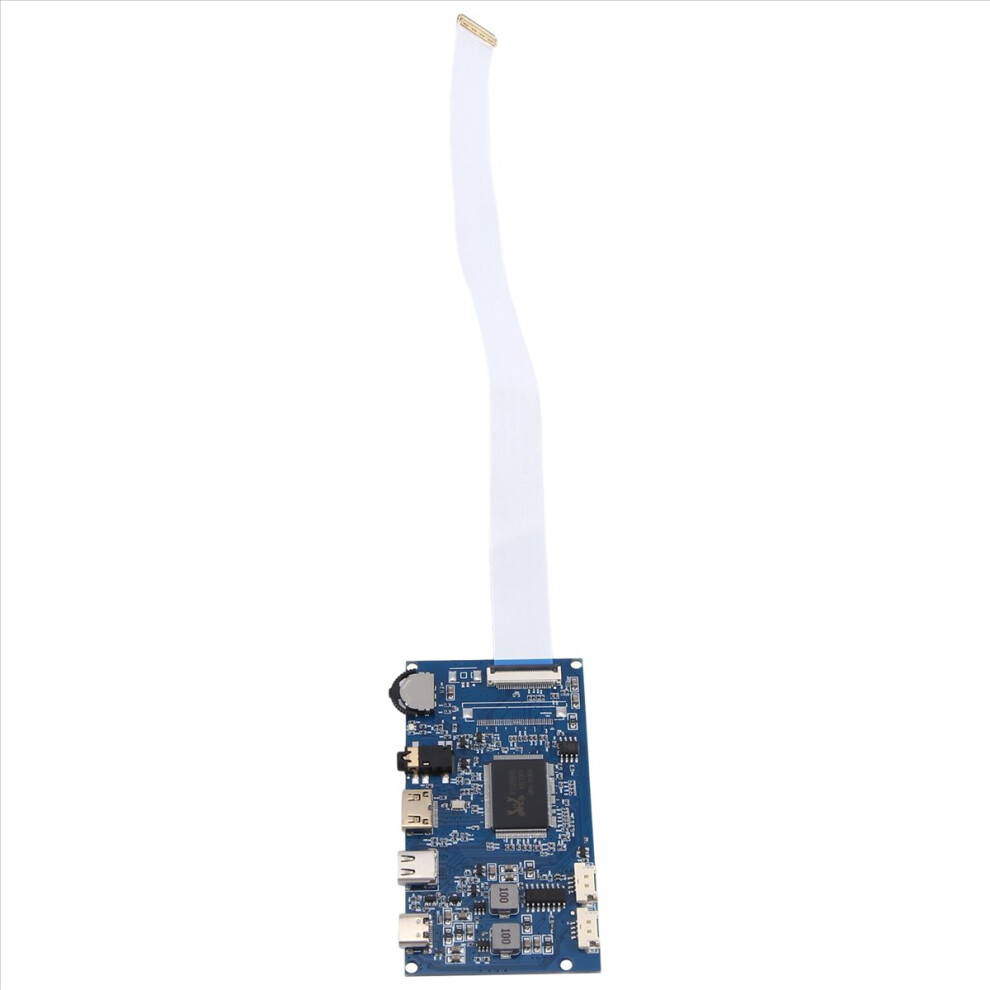

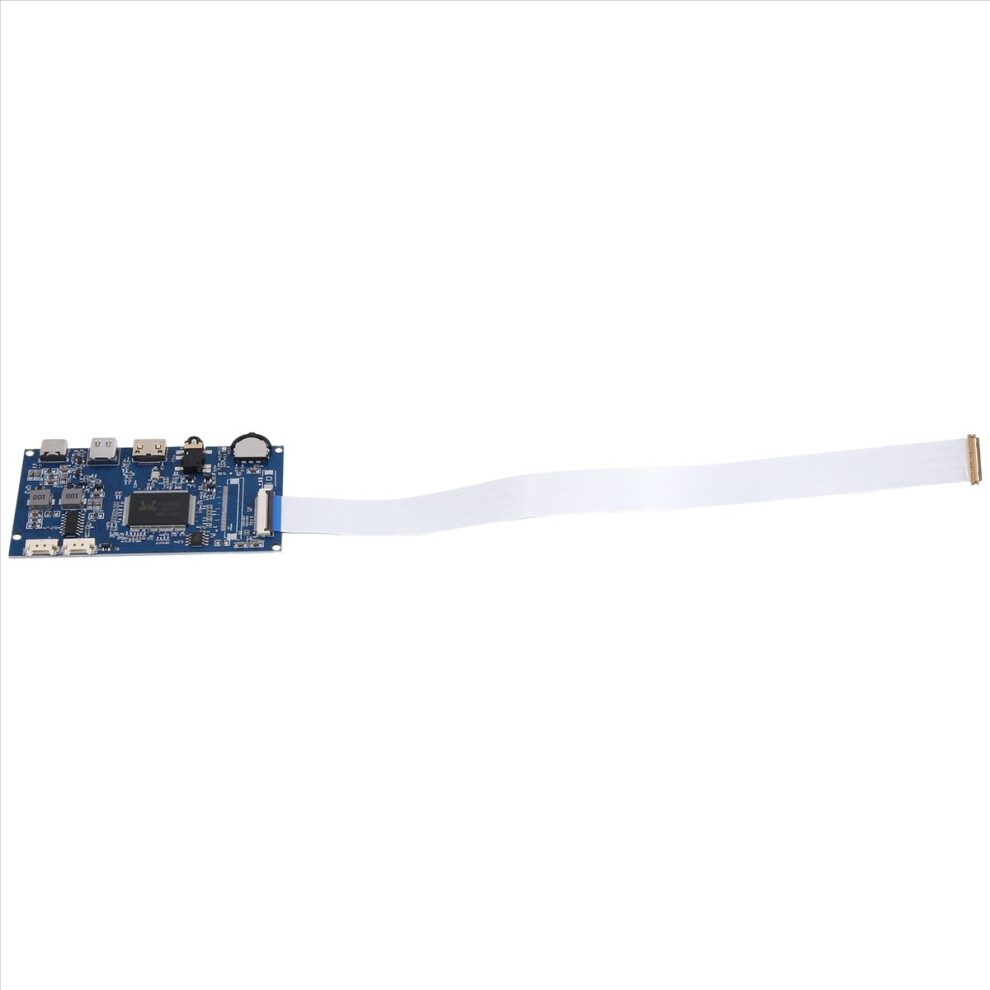

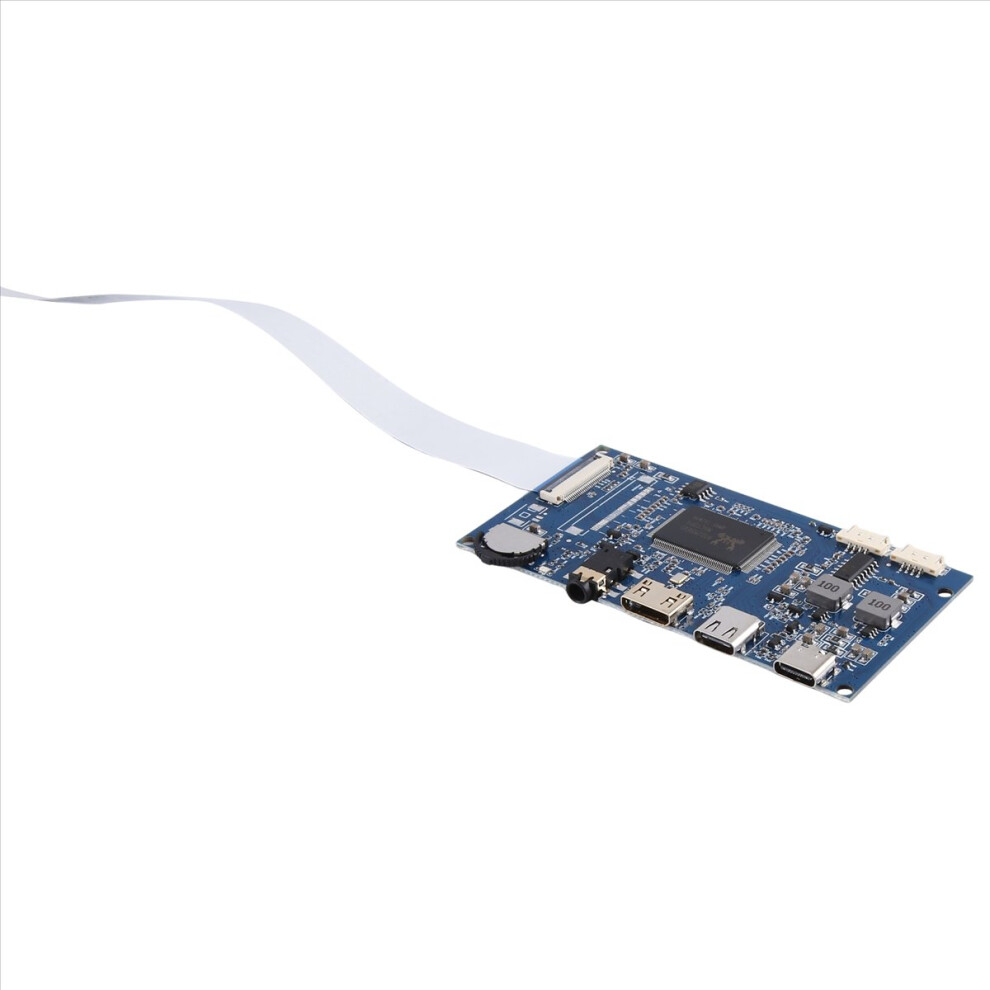

This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel Notebook LCD screen into a desktop/PC monitor. It be a surprise that your bare LCD be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves. Giving your lcd a new life with your fantastic idea.
HD set-top box, computer / host, //, game machine,Mobile phone,raspberry pie and TYPE-C signal interface.
the uav can do displays, industrial displays, personal display, monitors, and other needs to be displayed.
This driver board is a FHD display driver board, EDP output interface, the maximum resolution is1920 * 1200 @ 60 hz.
The driver board uses the main control IC, RTD2556

the driver board supports USB-5V voltage input, can use mobile phone charger, charging bank, computer USB interface as a power supply,
13.5 Earphone holder for audio output
Support for signal input and use MINIHDMI seat for HDMI1.4
The thickness of the driving board is controlled to 5MM
Potentiometer using wave wheel key, three-in-one function, menu, plus, minus, and compound brightness and volume
Earphone holder for audio output, you can use ordinary 3.5 earphones or connect external power amplifier devices
the touch seat is defined as 1.25-4P
Upgrading Using an Port
power amplifier output dual channel, spacing 1.25-4P definition
The LCD interface is the EDP30PIN interface. The output interface needs to be confirmed through the software upgrade
Compatible with 30 pin EDP interface LCD screen resolution is 1366x768 LCD
Colour:blue
Material:PC+metal

Package Contents:
1 x Driver board
1 x EDP cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
