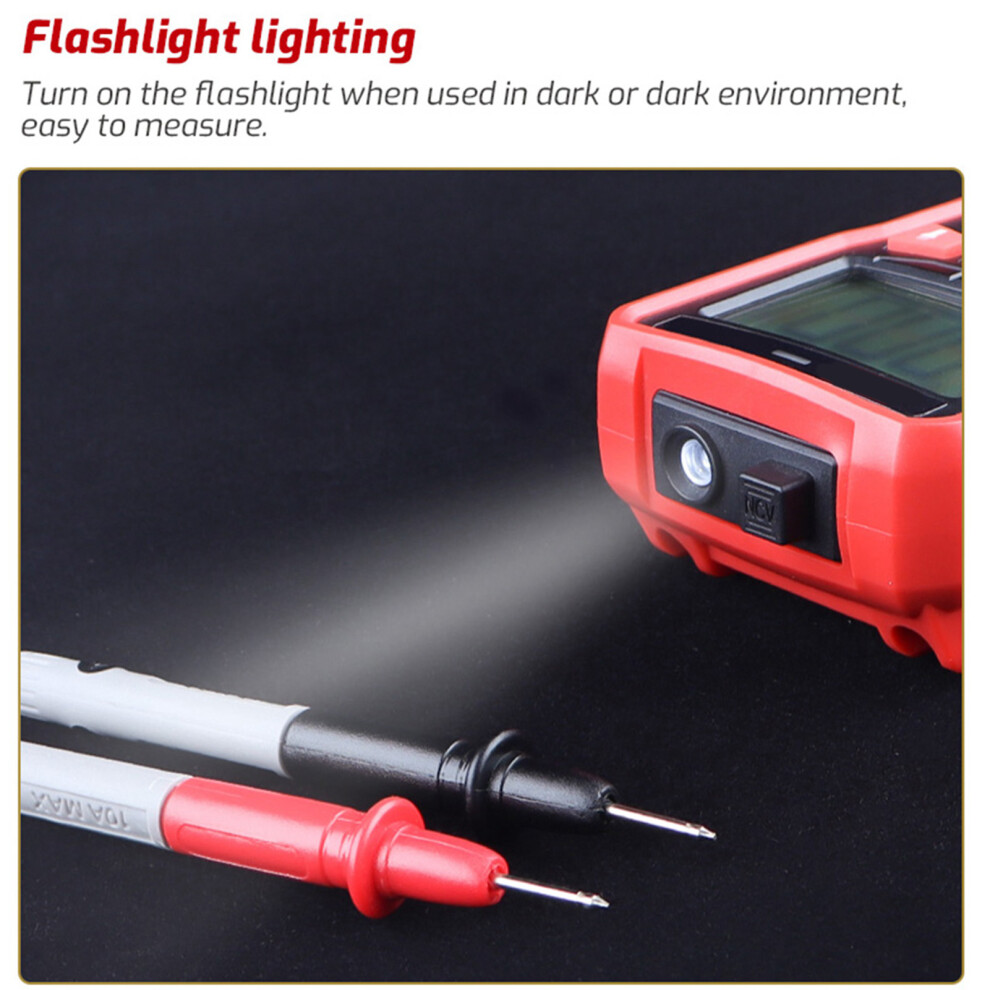

Portable LCD Multimeter for AC/DC Voltage Built-in Flashlight 1999 Count

Portable LCD Multimeter for AC/DC Voltage Built-in Flashlight 1999 Count Description

Digital Multimeter LCD Display DC AC Voltage Built in Flashlight Household Digital Multimeter

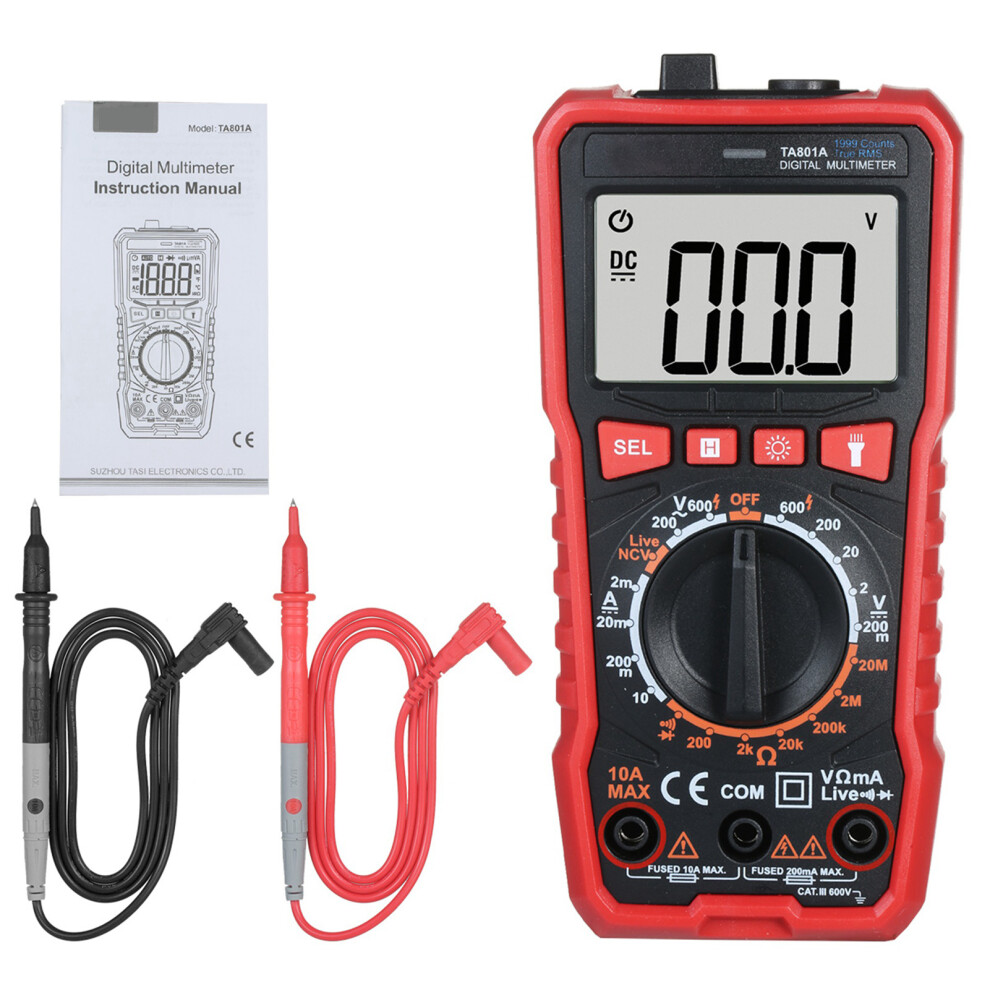

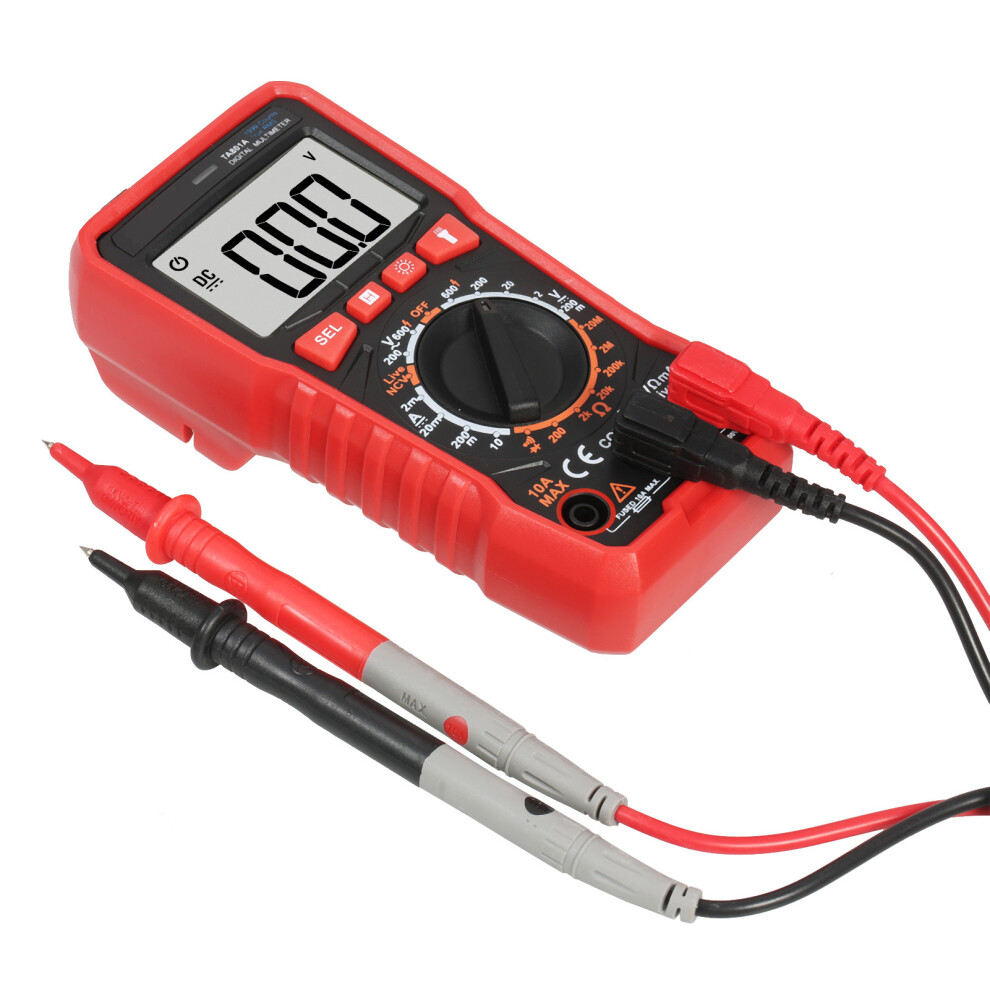

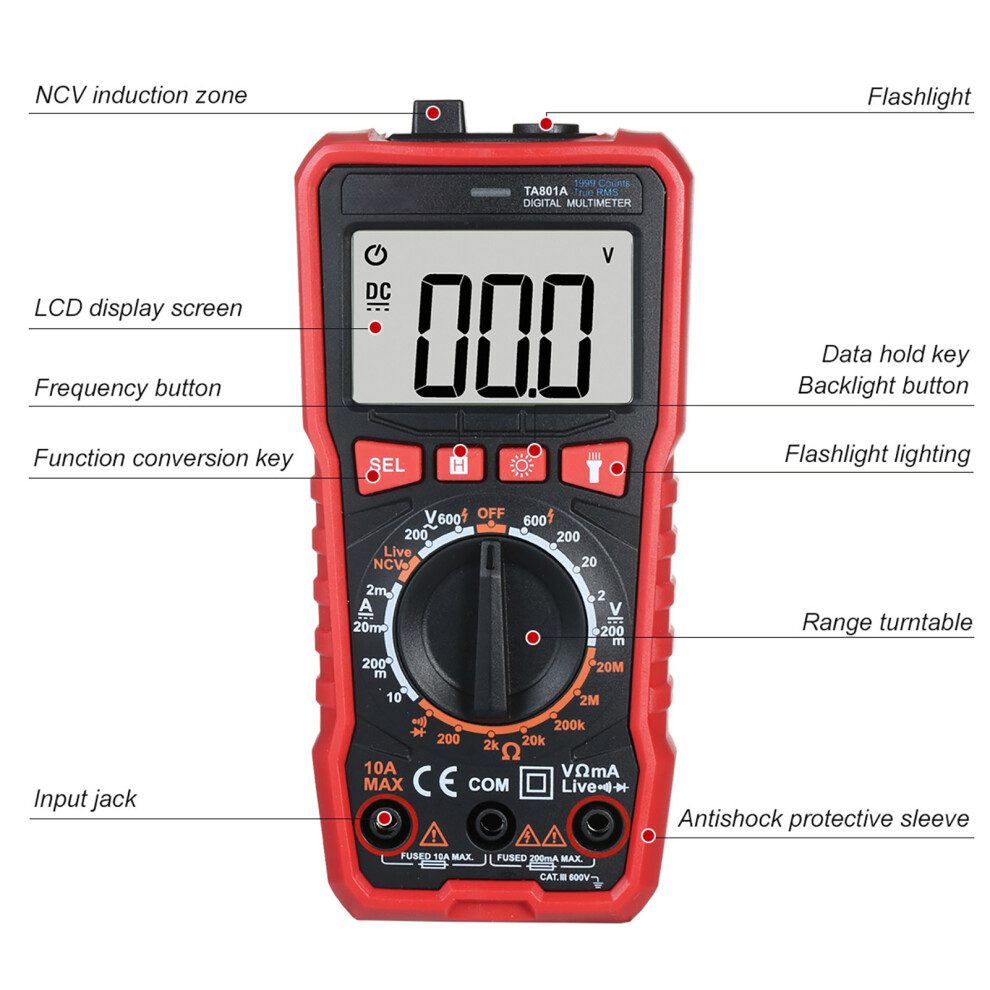

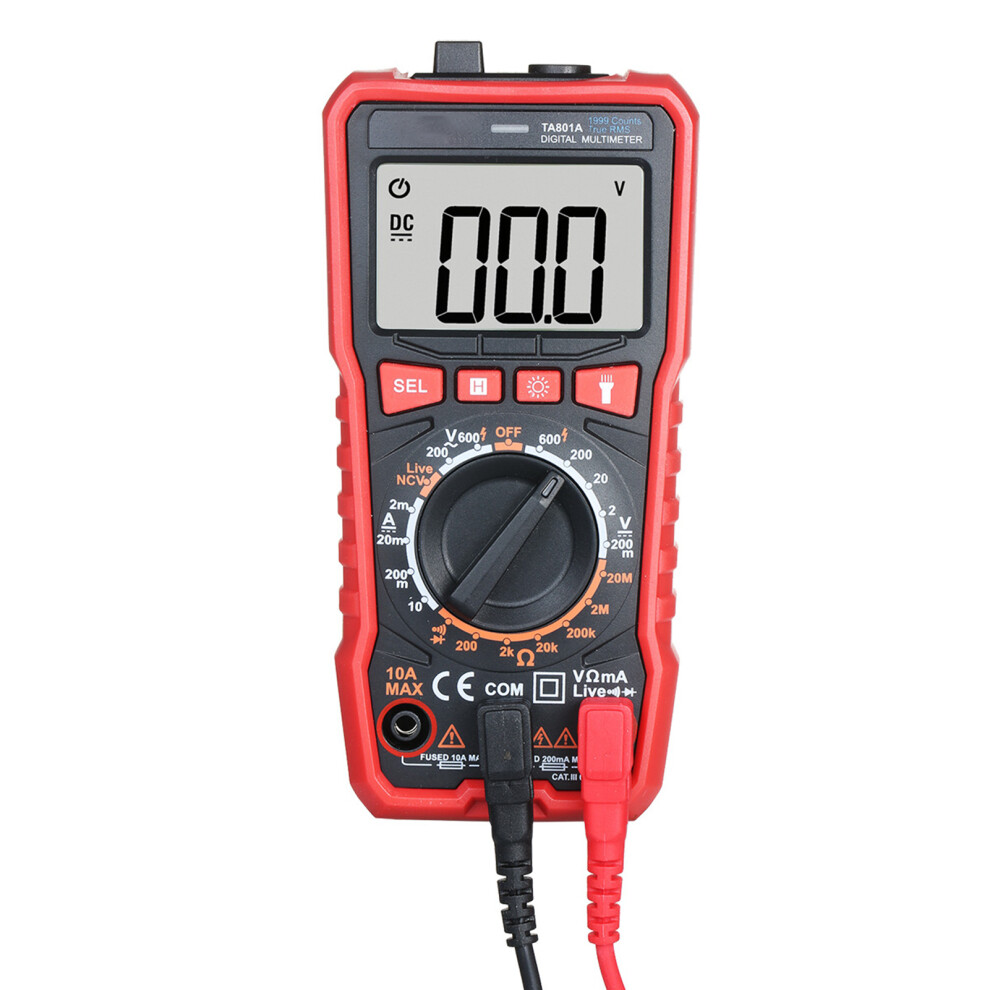

TA801A is a mini digital multimeter with 3 1/2 digit display and manual range. It features stable performance, high accuracy, high reliability and over load guard function. It can measure multiple parameters, including DC/AC voltage, DC current, diodes, and carry out on/off circuit test, NCV detection, neutral and live wire identification.

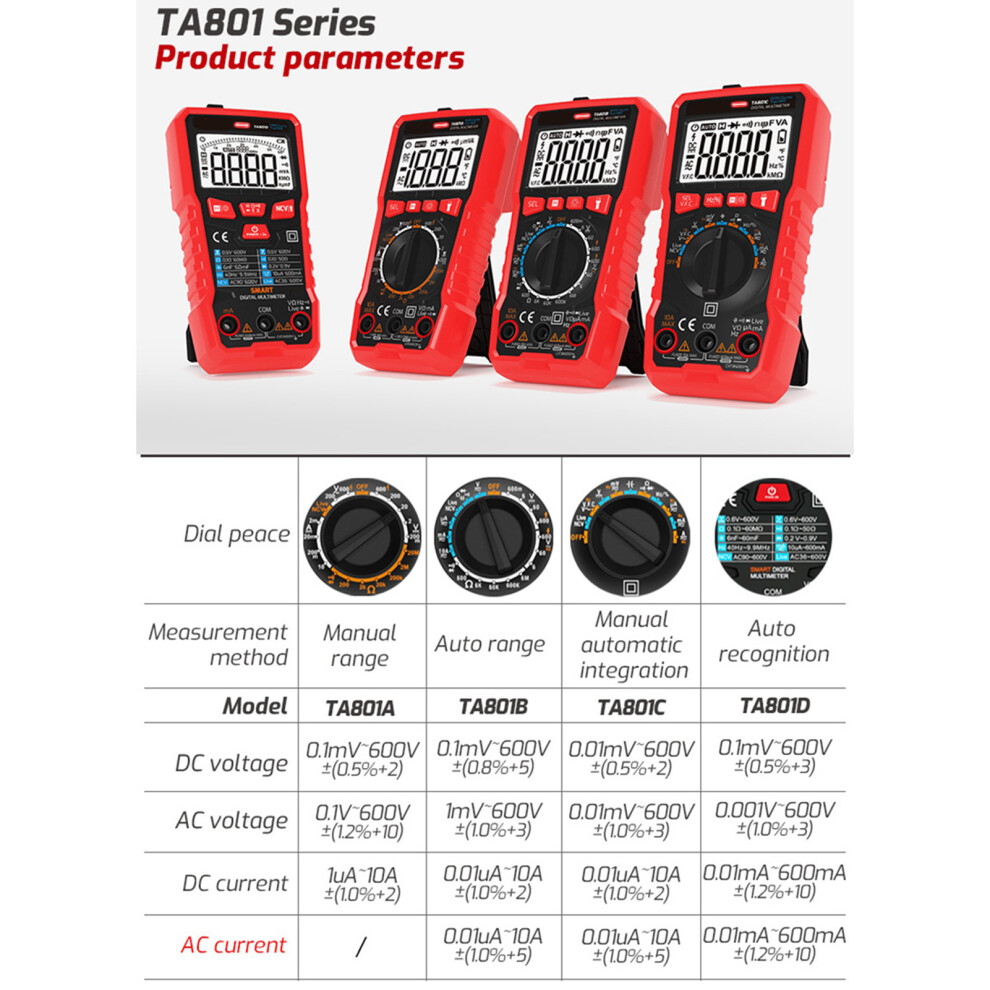

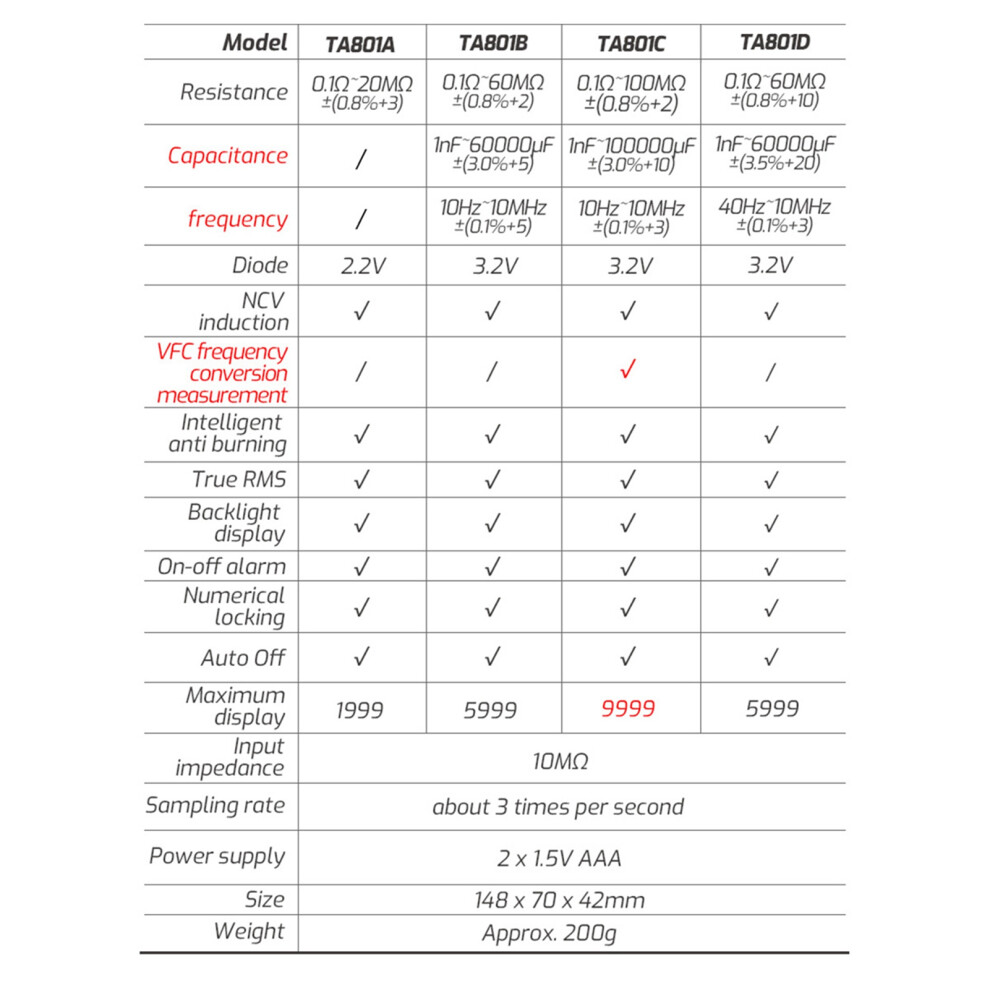

Specifications:

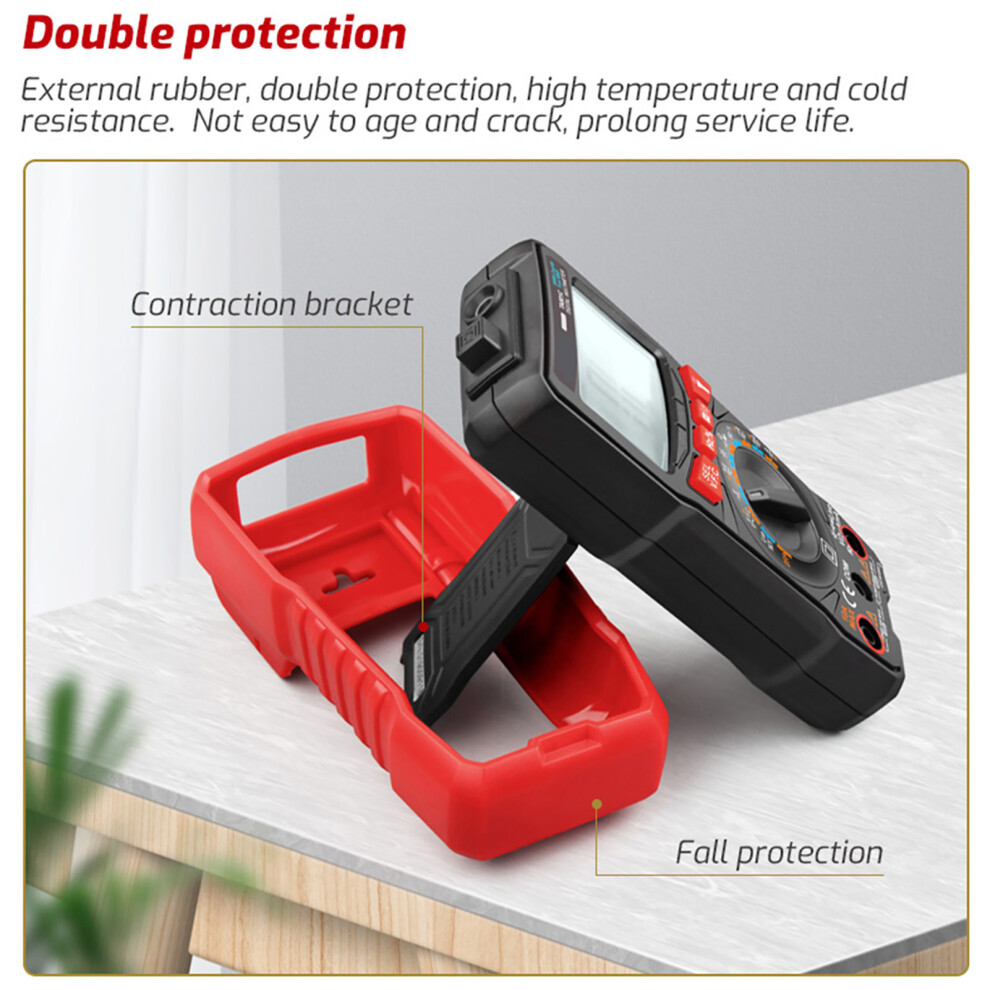

Material: ABS

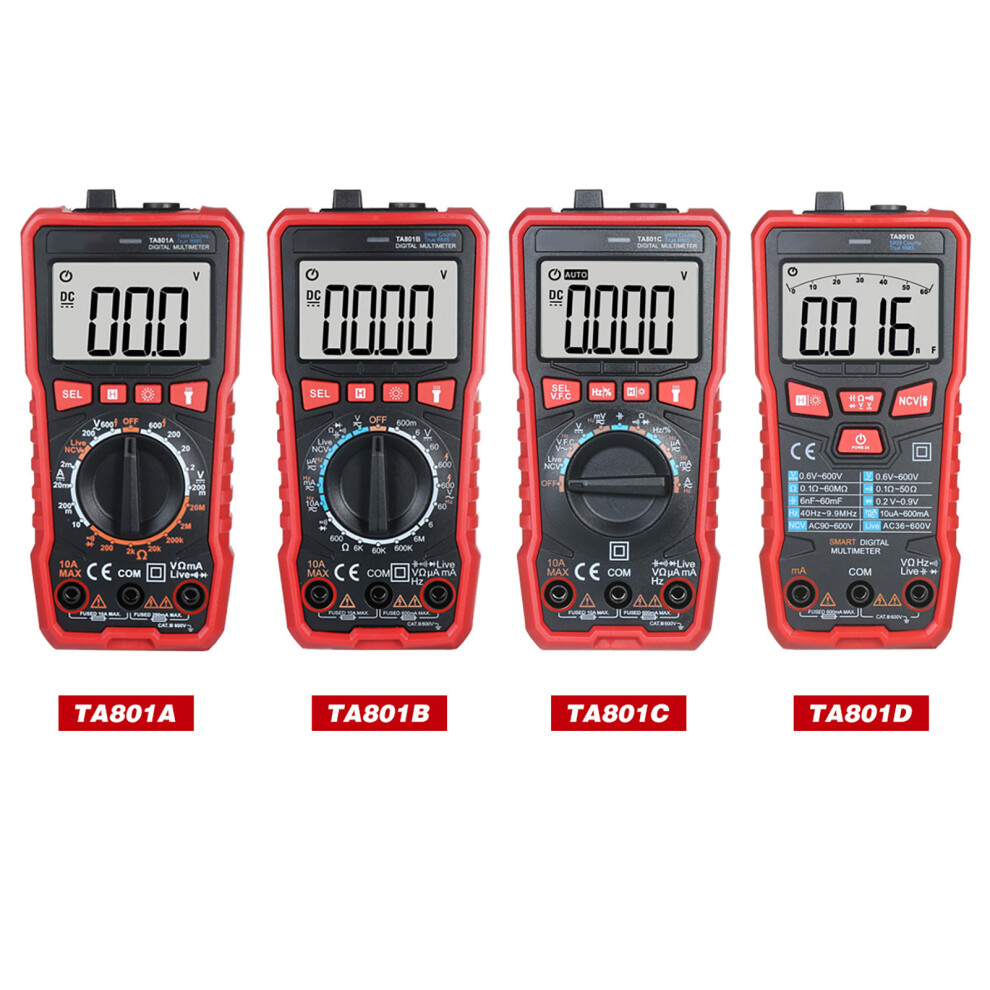

Model（Optional）
TA801A
TA801B
TA801C
TA801D
DC voltage
0.1mV~600V
(0.5%+2)
0.1mV~600V
(0.8%+5)
0.01uV~600V
(0.5%+2)
0.1mV~600V
(0.5%+3)
AC voltage
0.1V~600V
(1.2%+3)
1mV~600V
(1.0%+3)
0.01uV~600V
(1.0%+3)
0.001V~600V
(1.0%+3)
DC current
1uA~10A
(1.0%+2)
1uA~10A
(1.0%+2)
1uA~10A
(1.0%+2)
0.01mA~600mA
(1.2%+10)
AC current
N/A
0.01uA~10A
(1.0%+5)
0.01uA~10A
(1.0%+5)
0.01mA~600mA
(1.2%+10)
R
0.1Ω~20MΩ
(0.8%+3)
0.1Ω~60MΩ
(0.8%+2)
0.1Ω~100MΩ
(0.8%+2)
0.1Ω~60MΩ
(0.8%+10)
Capacitance
N/A
nF~60000μF
(3.0%+5)
1nF~100000μF
(3.0%+10)
1nF~60000μF
(3.5%+20)
Frequency
N/A
10~10MHz
(0.1%+5)
10~10MHz
(0.1%+3)
40~10MHz
(0.1%+3)
Diode
2.2V
3.2V
3.2V
3V
NCV voltage sensing
Yes
VFC  measurement
N/A
N/A
Yes
N/A
Smart anti-burn
Yes
True RMS
Yes
On/off beep
Yes
Data hold
Yes
Auto shut down
15 min
Range
Manual Range
Auto&Manual Range
Auto Range
Auto Identification Range
Display counts
1999
5999
9999
5999
Input impedance
10MΩ
Sampling rate
About 3 times/sec

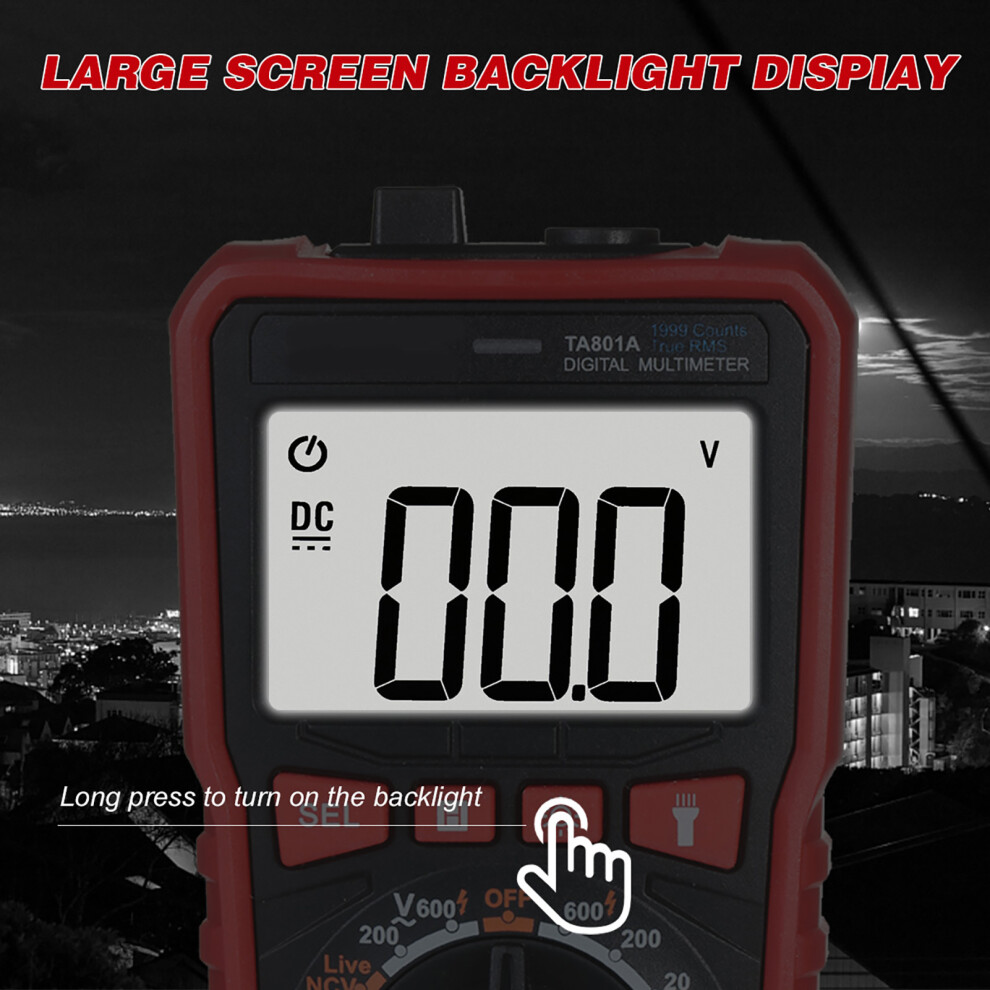

Display size
49x31mm
Power supply
2*AAA batteries （Not included）
Working environment temperature
0 - 40
Working environment humidity
80% RH No condensation
Item Size: 148 * 70 * 42mm / 5.82 * 2.75 * 1.65in
Item Weight: 188g / 6.63oz
Package Weight: 331g / 11.67oz
Package Size: 17.5 * 10.5 * 5.5cm / 6.88 * 4.13 * 2.16in
