PT100 Temperature Sensor Transmitter 24V DC 4-20mA 0 to 300

PT100 Temperature Sensor Transmitter 24V DC 4-20mA 0 to 300 Description

Key Features

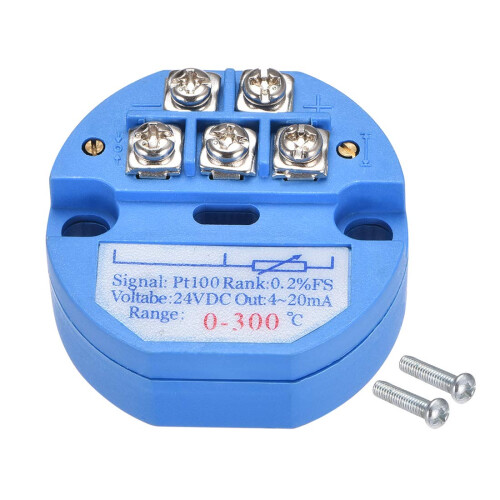

• RTD PT100 Temperature Sensor Transmitter
• Power Supply 24V DC; Output Current 4-20mA
• Temperature Range 0 to 300; Measurement precision 0.2%F.S
• Can be converted into 4-20mA current signal through the transmitter
• Perfect for two wire solution using a standard RTD sensor package

Product Description Specifications

Sensor: PT100Input Voltage: 24V DCOutput Current: 4-20mA Temperature Range: 0 to 300Measurement Precision: 0.2%F.STotal Size: 44 x 22mm / 1.73" x 0.87"(D*T)Material: Plastic, Metal; Color: Blue

Package Content

1 x Temperature Sensor Transmitter; 2 x Mounting Screws Descriptions:1.Through the transmitter, resistance signal of the thermal resistance can be converted into 4-20mA current signal.2.Perfect for two wire solution using a standard RTD sensor package. Easy to use with computer.

Specifications Item Weight4.8 ounces Product Dimensions3.94 x 2.76 x 0.79 inches
