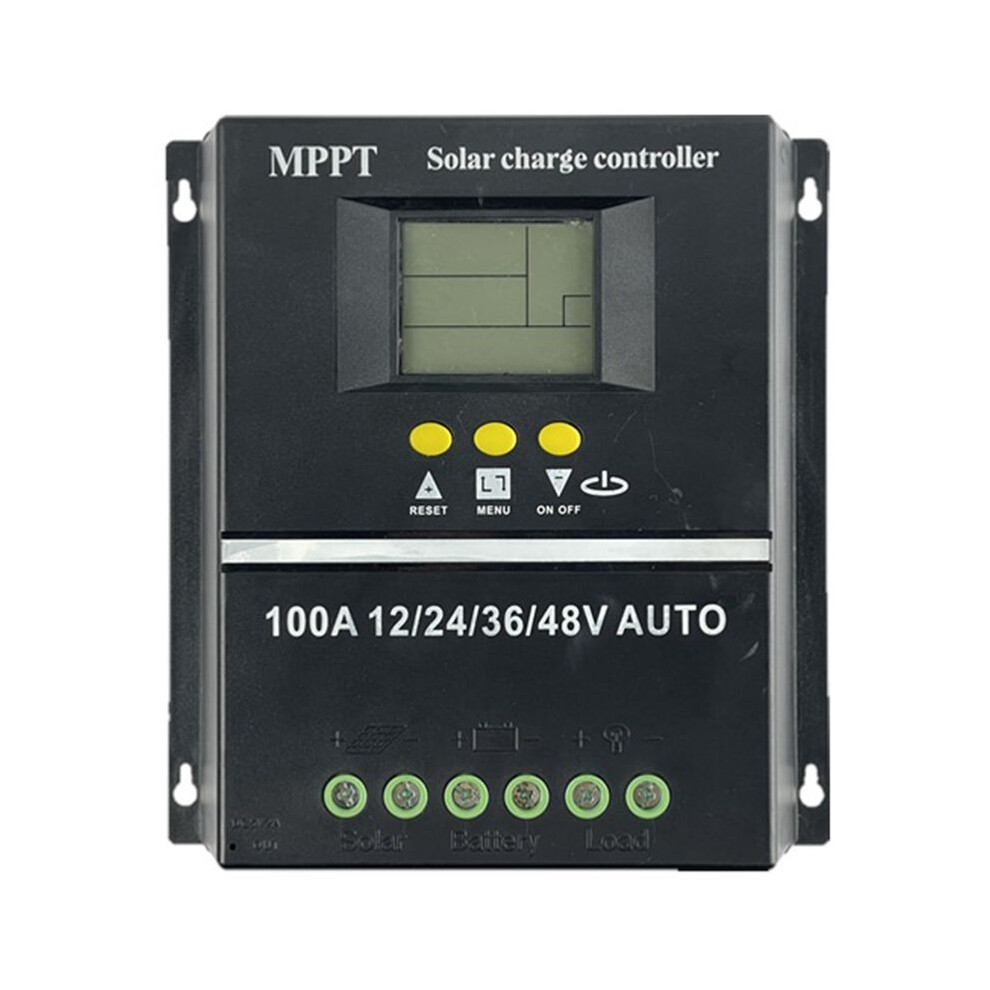

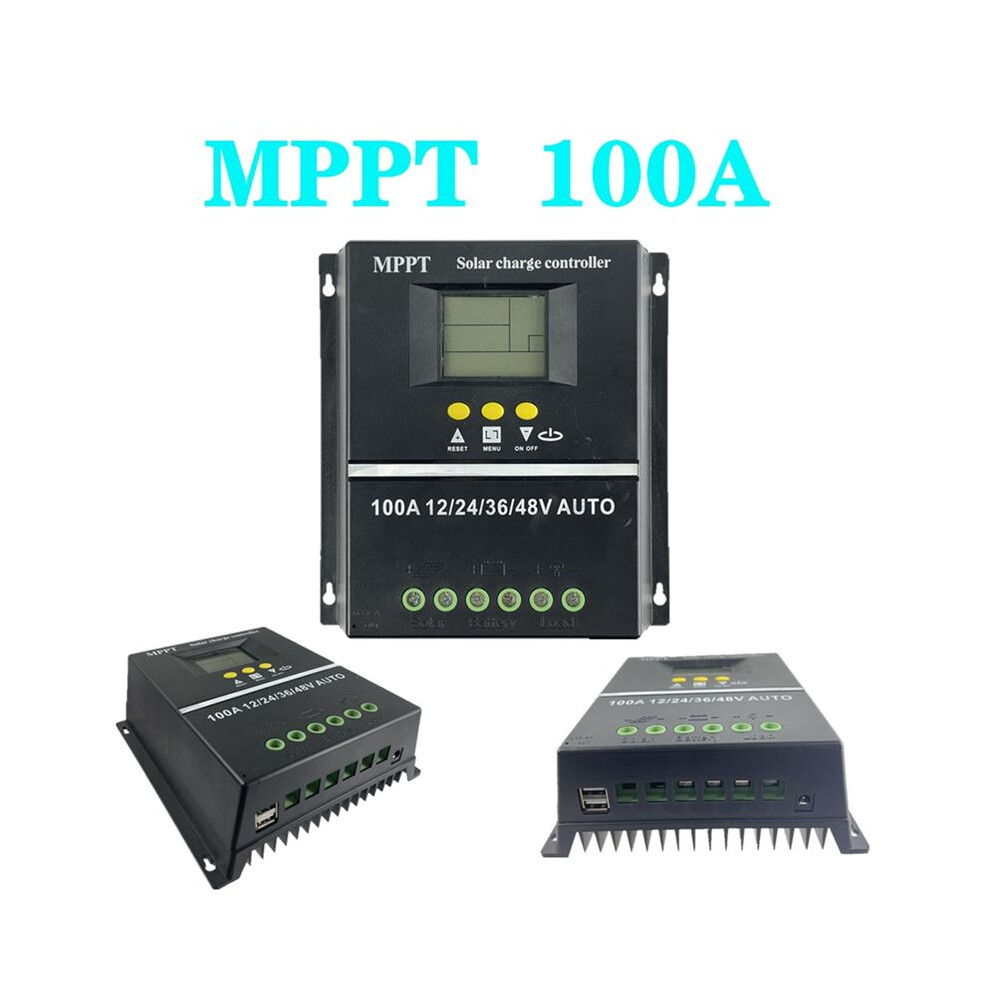

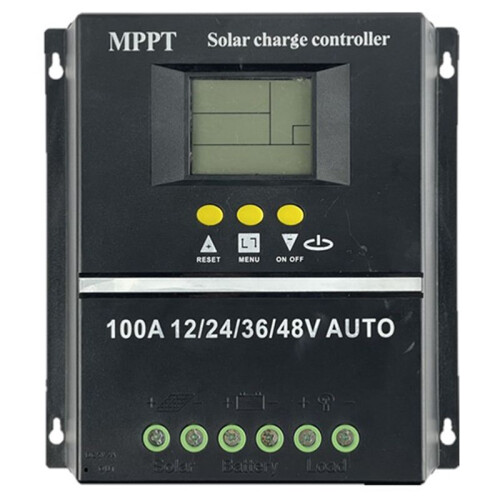

PWM 100A 12V 24V 36V 48V AUTO Solar Panel Charge Controller Solar PV Battery Charger with LCD MPPT Solar Controller
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£74.15
£87.43
15% off!
+£6.41 Delivery
1%
Earn £0.74 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£6.41) | Sat 31st Oct - Fri 6th Nov
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
- The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different. For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60. For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel. Disconnect the wire on the contrary, otherwise it will easily cause damage to the controller! ! !
- PWM Solar Controller
- Solar PV Battery Charger
- AUTO Solar Panel Charge Controller
PWM 100A 12V 24V 36V 48V AUTO Solar Panel Charge Controller Solar PV Battery Charger with LCD MPPT Solar Controller Description
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not Ture MPPT
The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different. For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60. For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel. Disconnect the wire the contrary, otherwise it will easily cause damage to the controller! ! !
Description of charging protection
When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V, and it is converted to a floating charging voltage of 13.8V.
When using a 24V battery, the battery boost charging voltage is higher than 29.6V, and it changes to a float charging voltage of 27.6V.
When using a 36V battery, the battery boost charging voltage is higher than 44.4V, and it changes to a floating charging voltage of 41.4V.
When using a 48V battery, the battery boost charging voltage is higher than 59.2V, and it changes to a floating charging voltage of 55.2V.

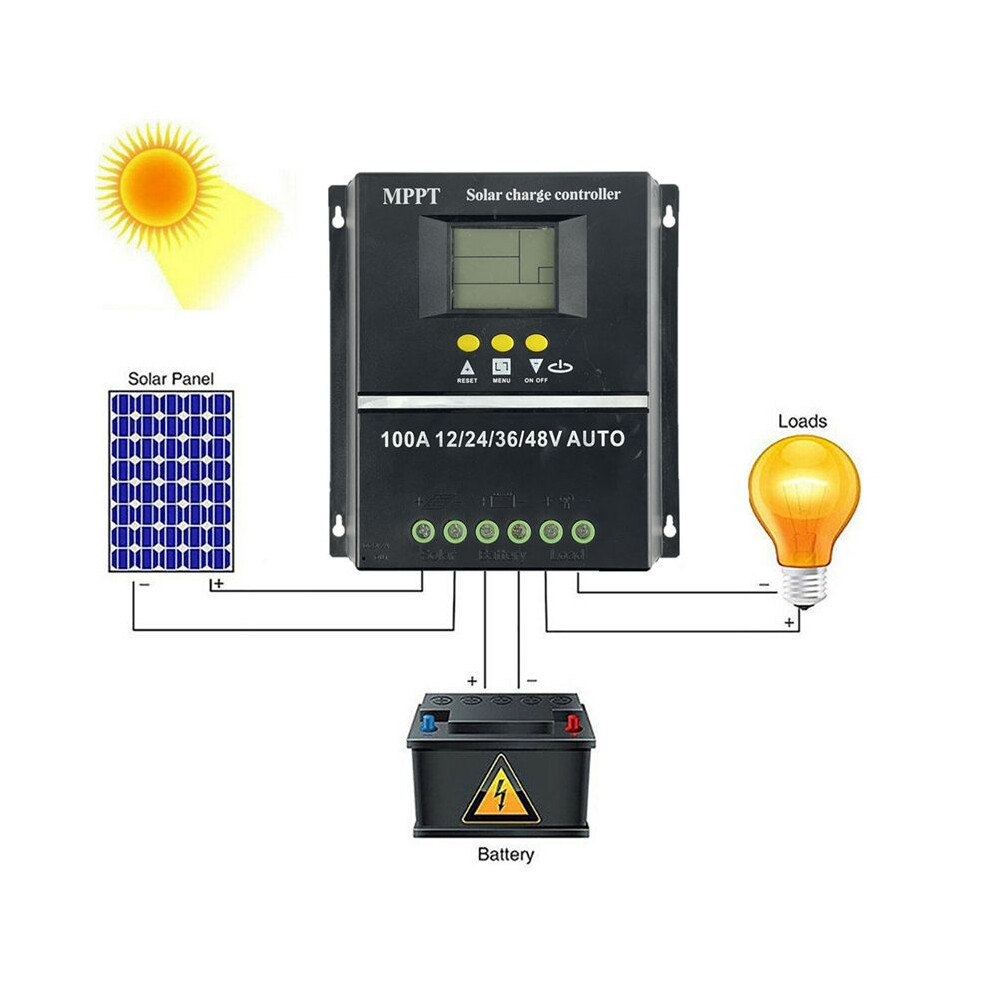

Note: Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.
Colour:black
Material:plastic
type: 100A
Package Contents:
1 x Solar MPPT Controller
Details
| OPC | PY9ZGQ8 |
|---|---|
| Codes | 6032023021117 (EAN) |
Product Data
| Height | 13cm |
|---|---|
| Width | 22cm |
| Length | 25cm |
| Weight | 0.6475kg |
| Colour | Black |
| Size | 100A |
| Material | plastic |
