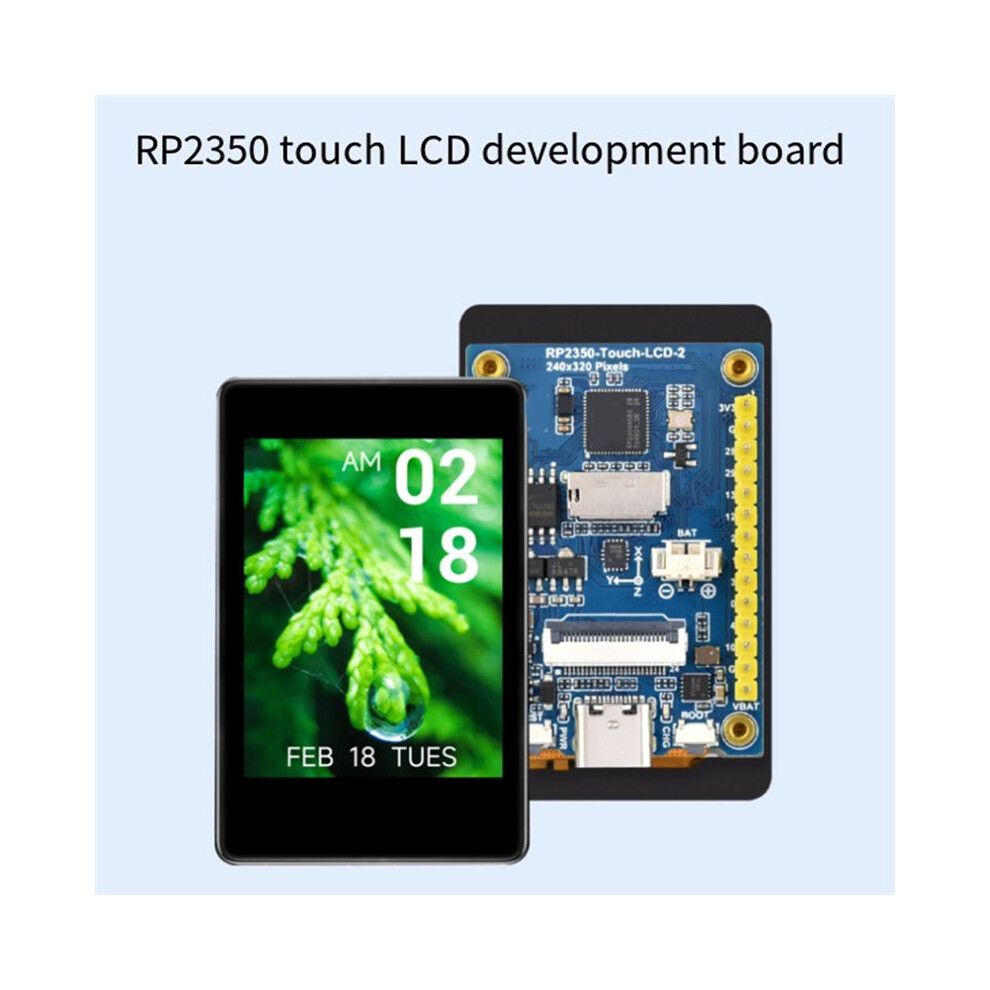

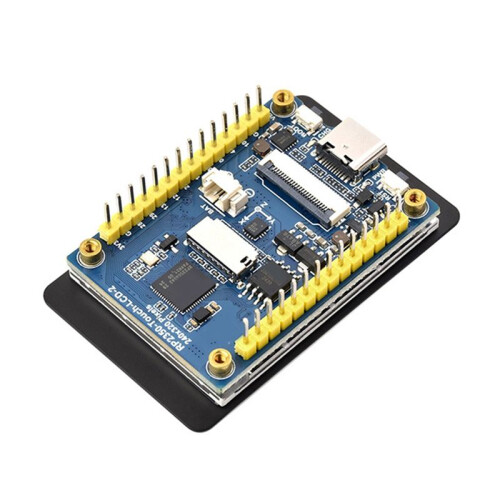

RP2350 2-Inch LCD Development Board Capacitive Touch Display 240x320 Pixels IPS Panel with Display

RP2350 2-Inch LCD Development Board Capacitive Touch Display 240x320 Pixels IPS Panel with Display Description

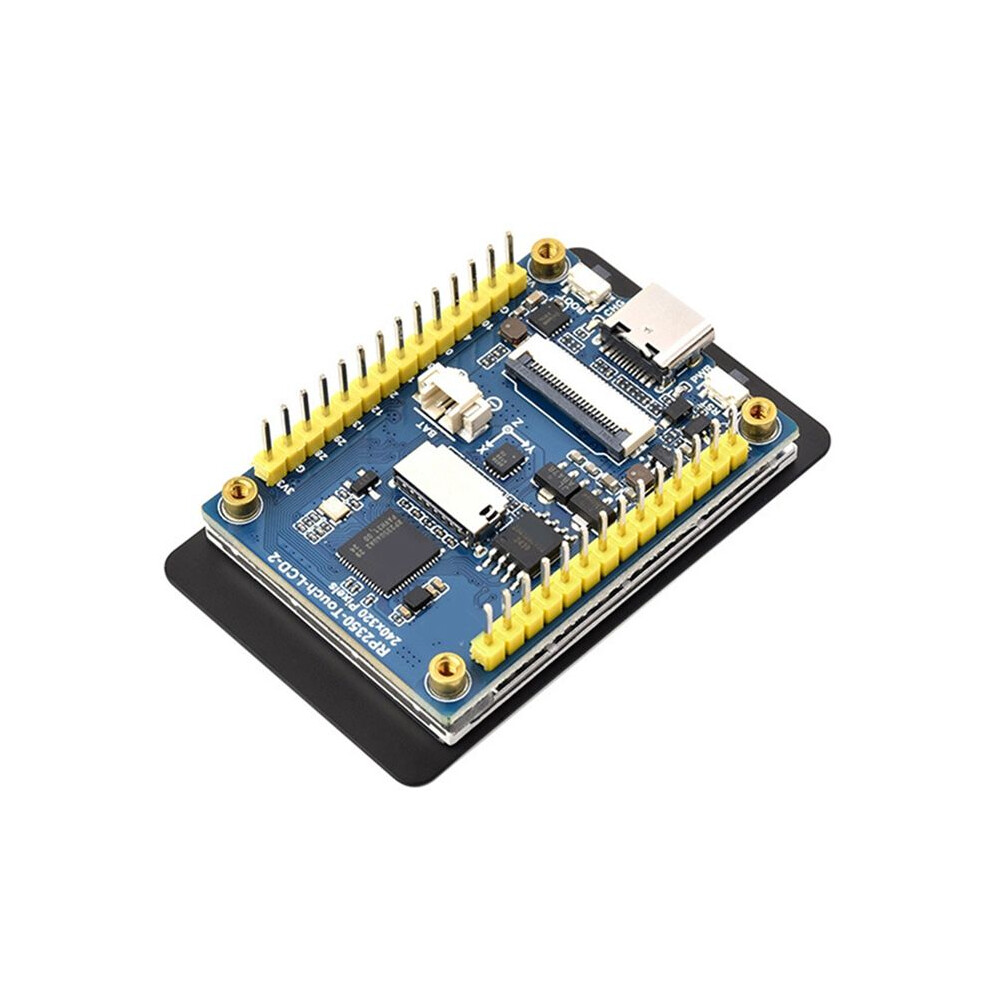

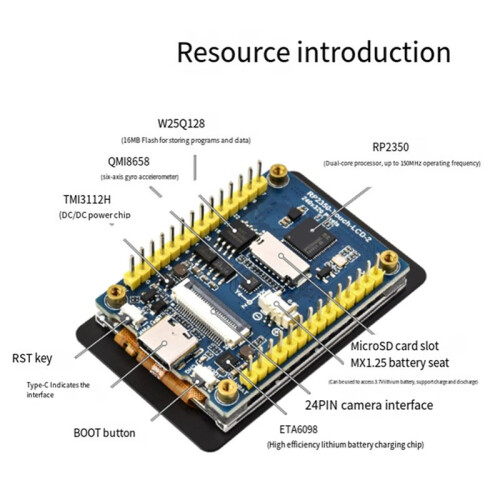

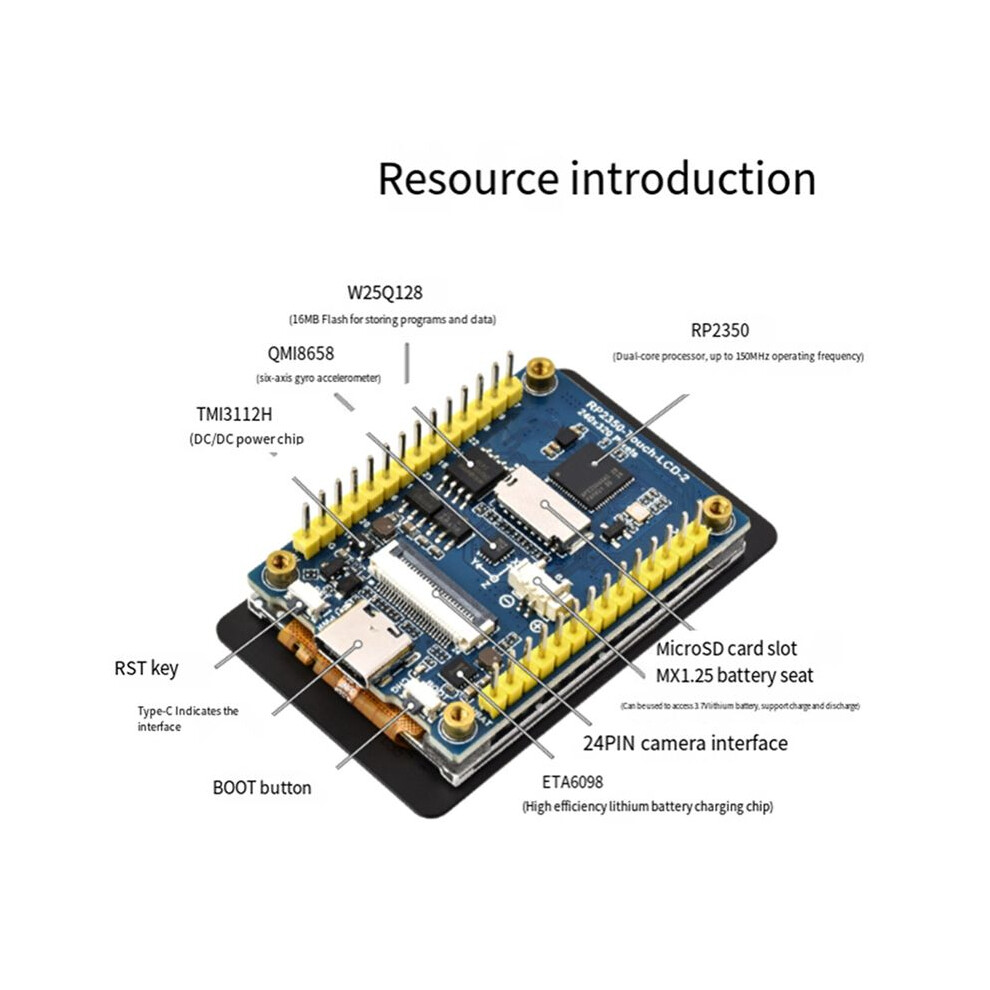

Description: This product is a low-cost, high-performance microcontroller development board. In a small form factor, it is equipped with a 2-inch capacitive touch LCD screen, camera interface, Micro- card slot, lithium battery charging chip, and six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals, which are easy to develop and integrate into products.
1. Adopts the RP2350 microcontroller chip designed by For Raspberry Pi. Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RlSC-V processor, the clock running frequency is to 150MHZ.
2. Built-in 520KB and 16MB -chip Flash, using Type-C interface, no need to worry about the forward and reverse insertion.

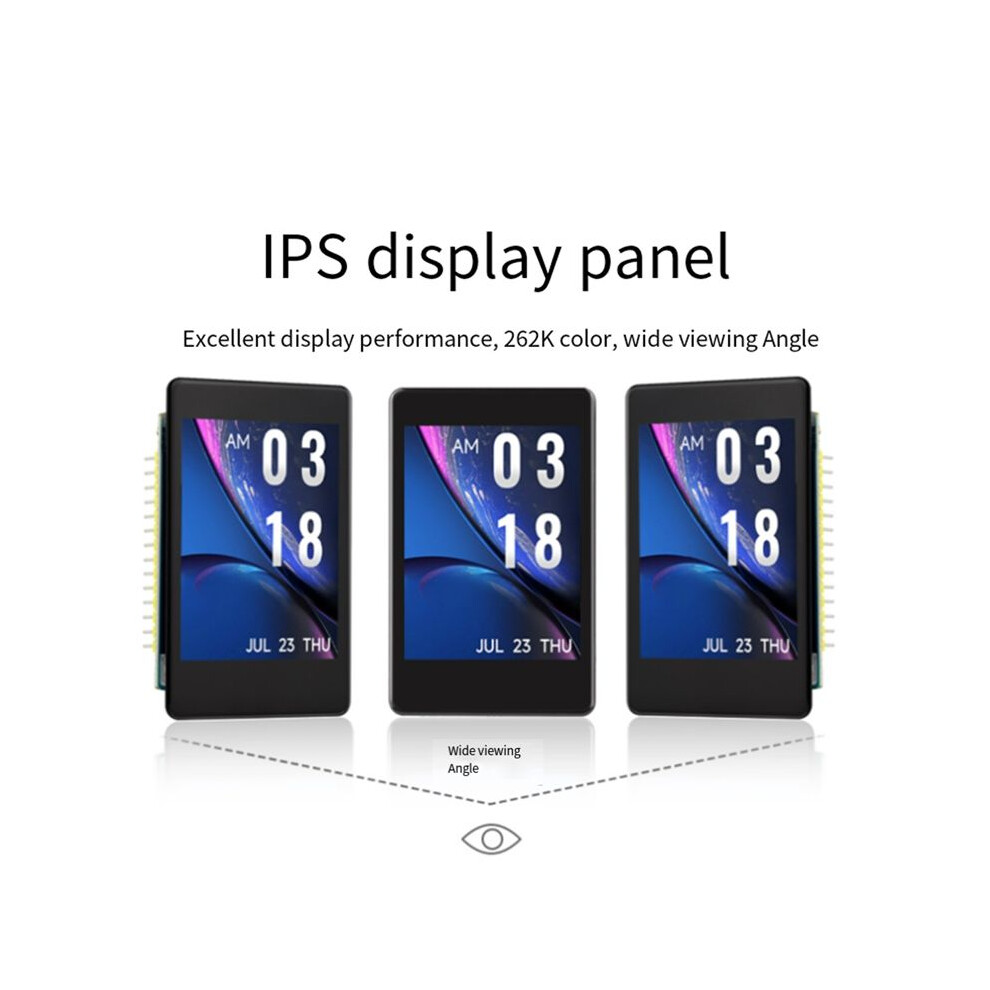

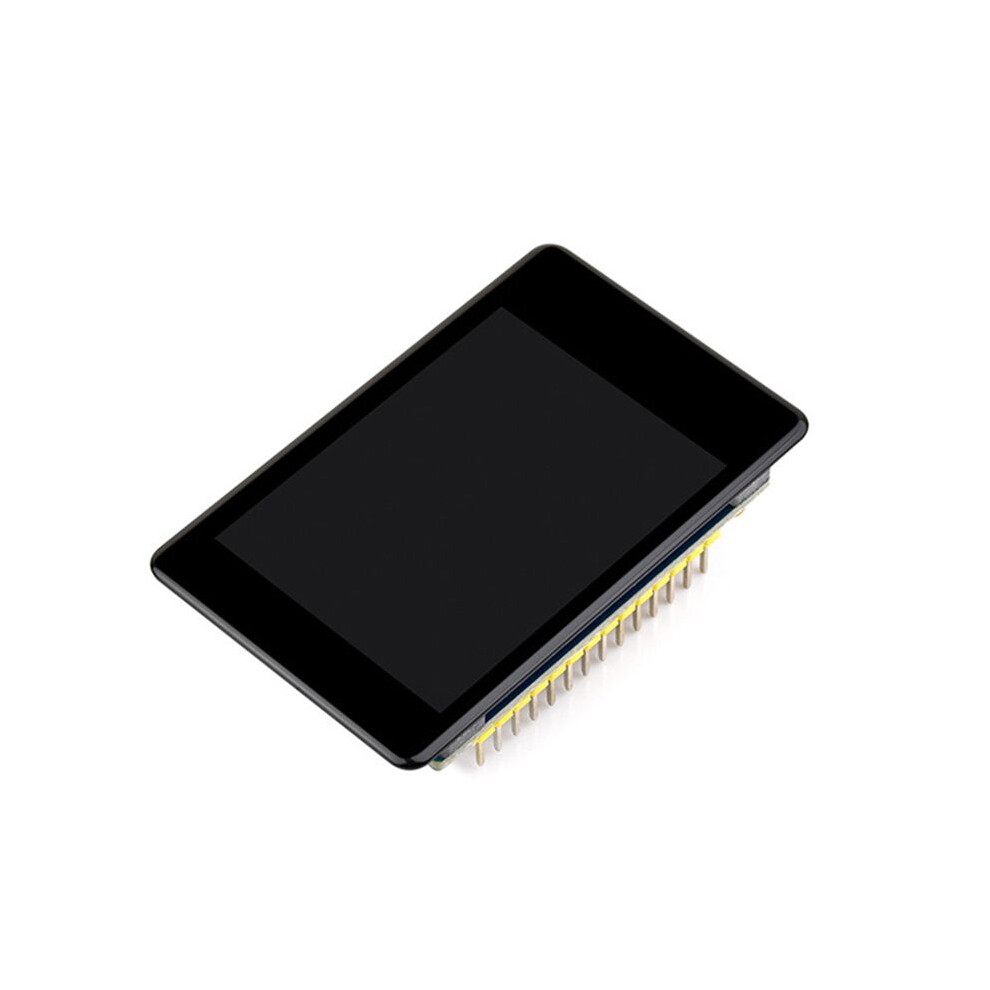

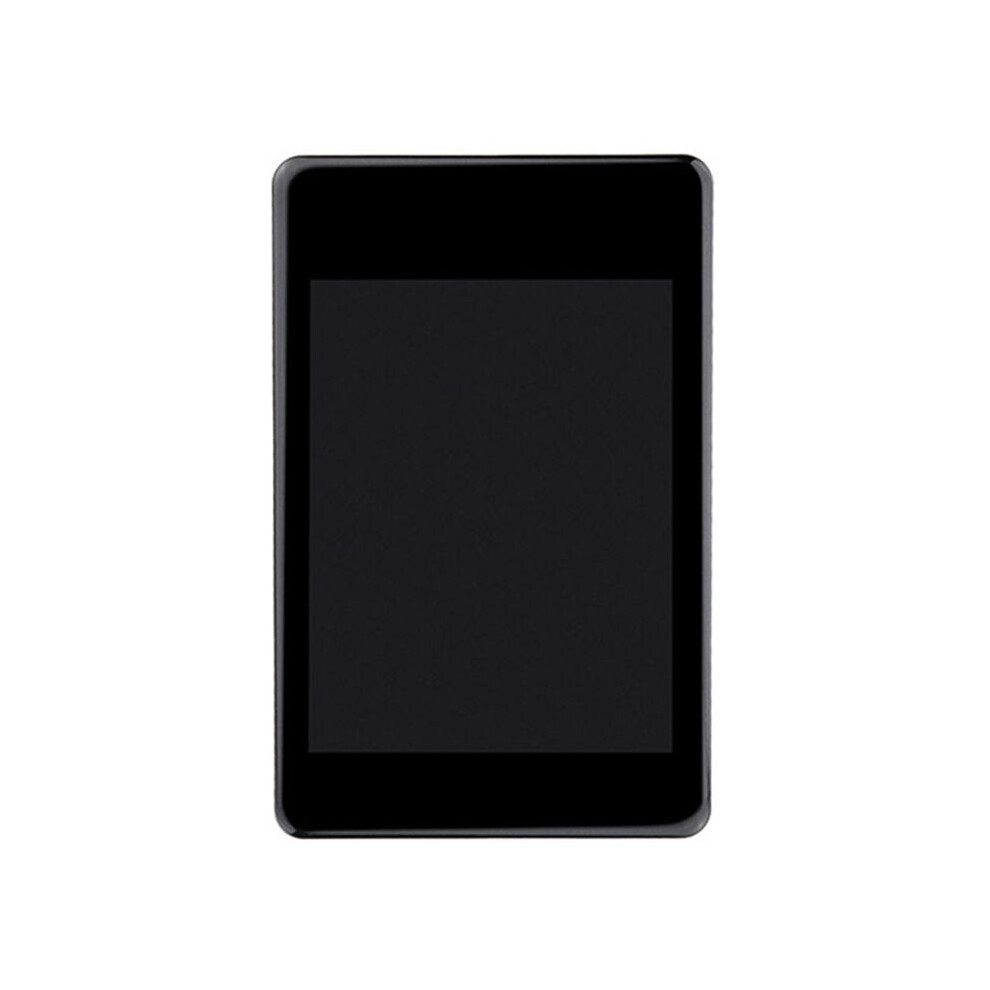

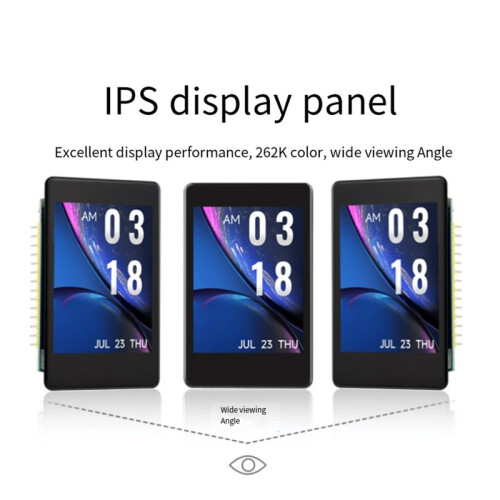

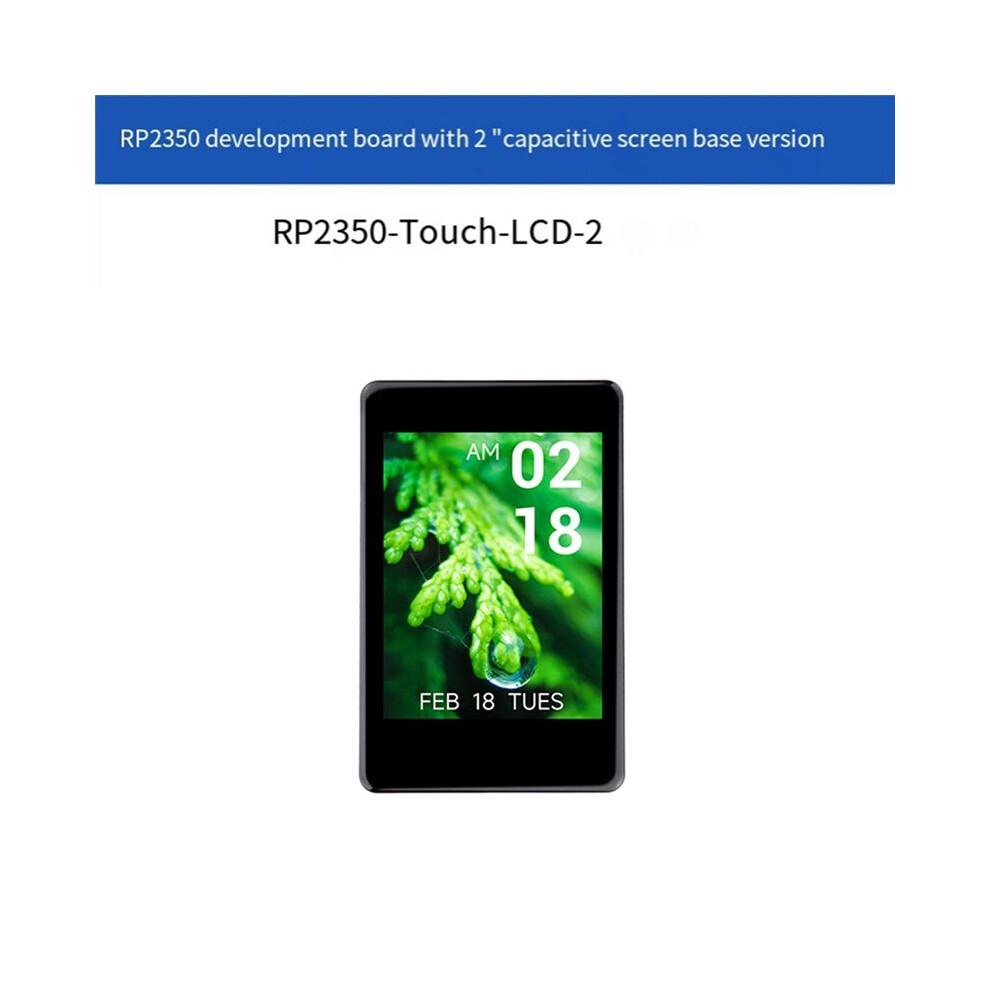

3. Onboard 2-inch capacitive touch LCD screen, 240x320 resolution, 262K color
4. Onboard lithium battery charging and discharging interface, suitable for mobile scenarios, USB1.1 host and device support, support low-power sleep and hibernation modes.

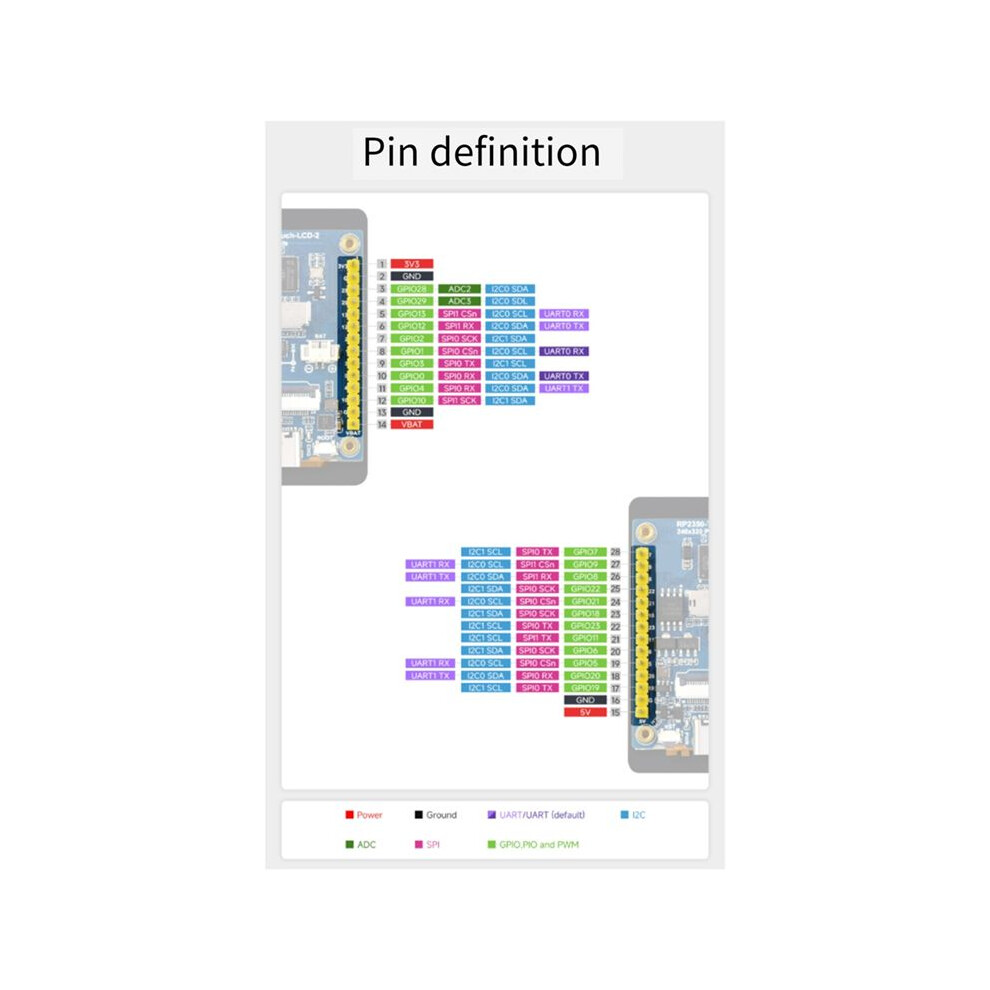

5. Can be identified as a large-capacity storage through USB for drag-and-drop program download, leading to 22 multi-function GPIO pins.
6. 2 SPI, 2 I2C, 2 UART, 2 12-bit ADC and 14 controllable PWM channels.
7. Accurate -chip clock and timer, onboard temperature sensor, 12 programmable I/O (PIO) state machines for custom peripheral support.
Specifications:
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As shown
Material: PCB+LCD

Package Contents:
1 x RP2350 2-inch LCD Development Board
