RP2350 Dual-Core Double-Frame Industrial Control Board 8-Channel Network Relay Supports Digital Input with Isolation B

RP2350 Dual-Core Double-Frame Industrial Control Board 8-Channel Network Relay Supports Digital Input with Isolation B Description

Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior performance
High quality relay, contact rating: 10A 250V AC / 30V DC

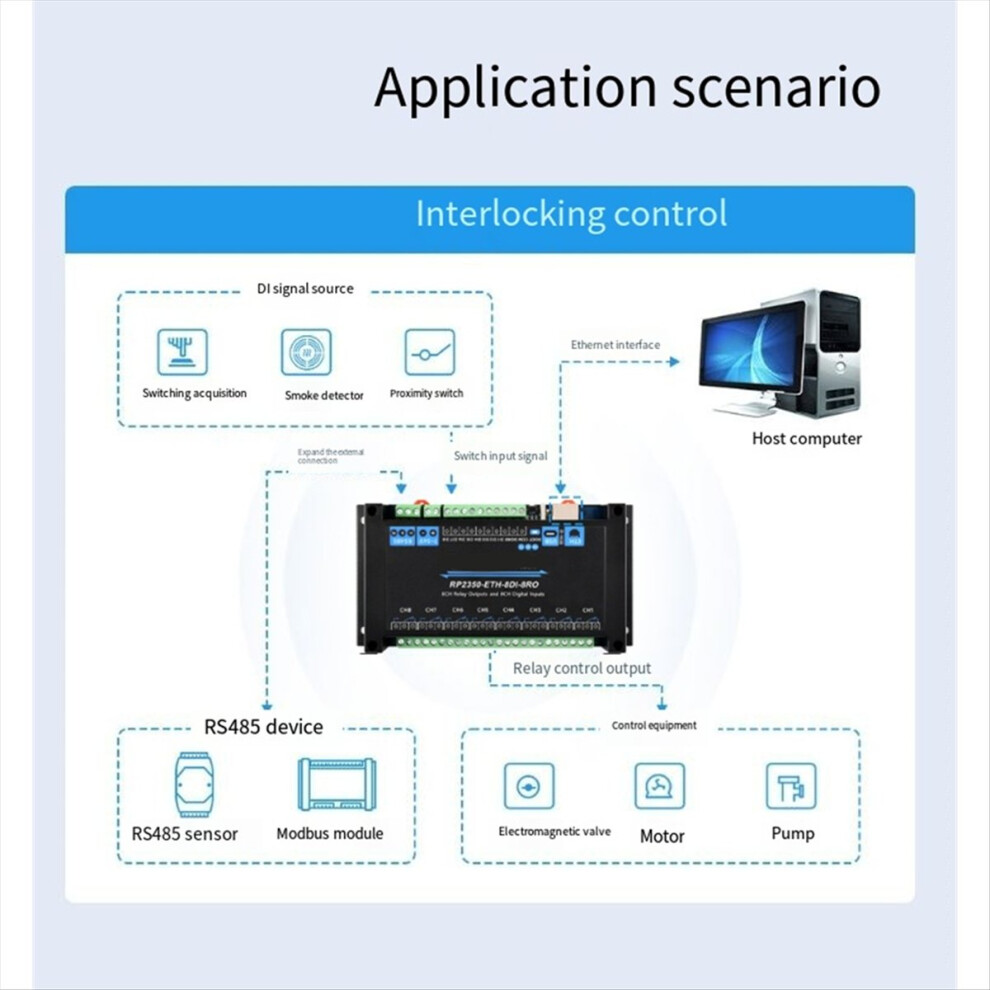

Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
Onboard isolated CAN interface, for connecting to CAN devices

Onboard pin header, allowing access to other devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7-36V wide voltage input, suitable for industrial applications
Onboard RTC chip, supports scheduled tasks
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

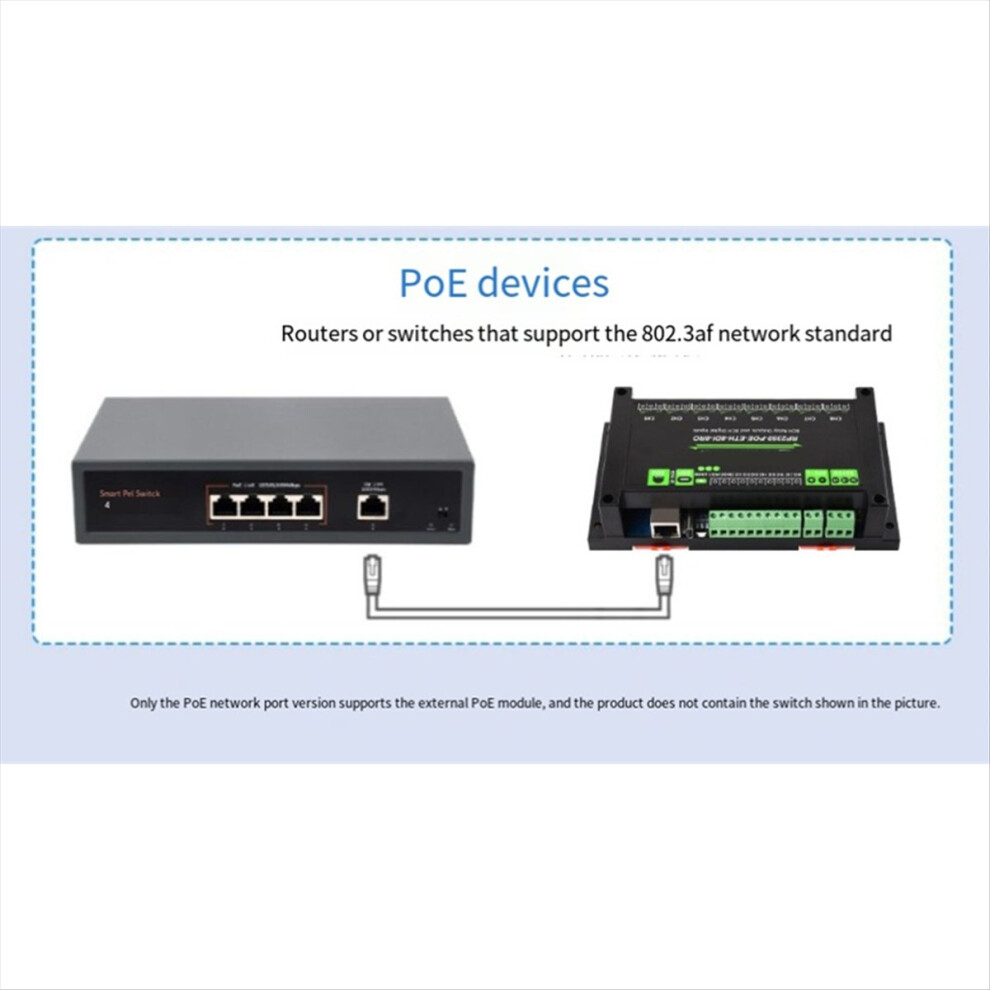

Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Onboard TF card slot for external TF card storage of images and files
Built-in buzzer, RGB LED, power supply and CAN TX/RX indicators for monitoring the operating status of the devices
Rail-mounted Plastic case, easy to install, safe to use

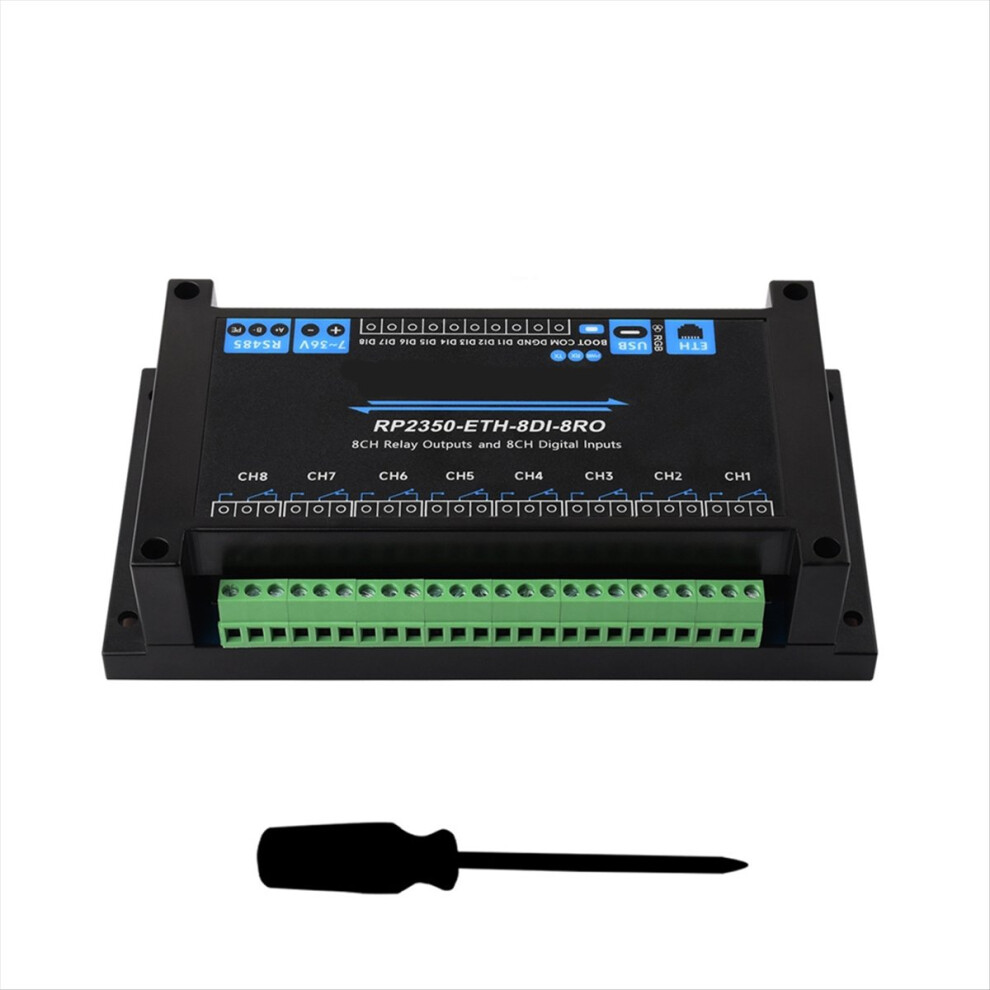

Specification:B:RP2350-ETH-8DI-8RO
Color: Black
Material: Plastic+Metal

Package Contents:
1 x 8-way network relay Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
