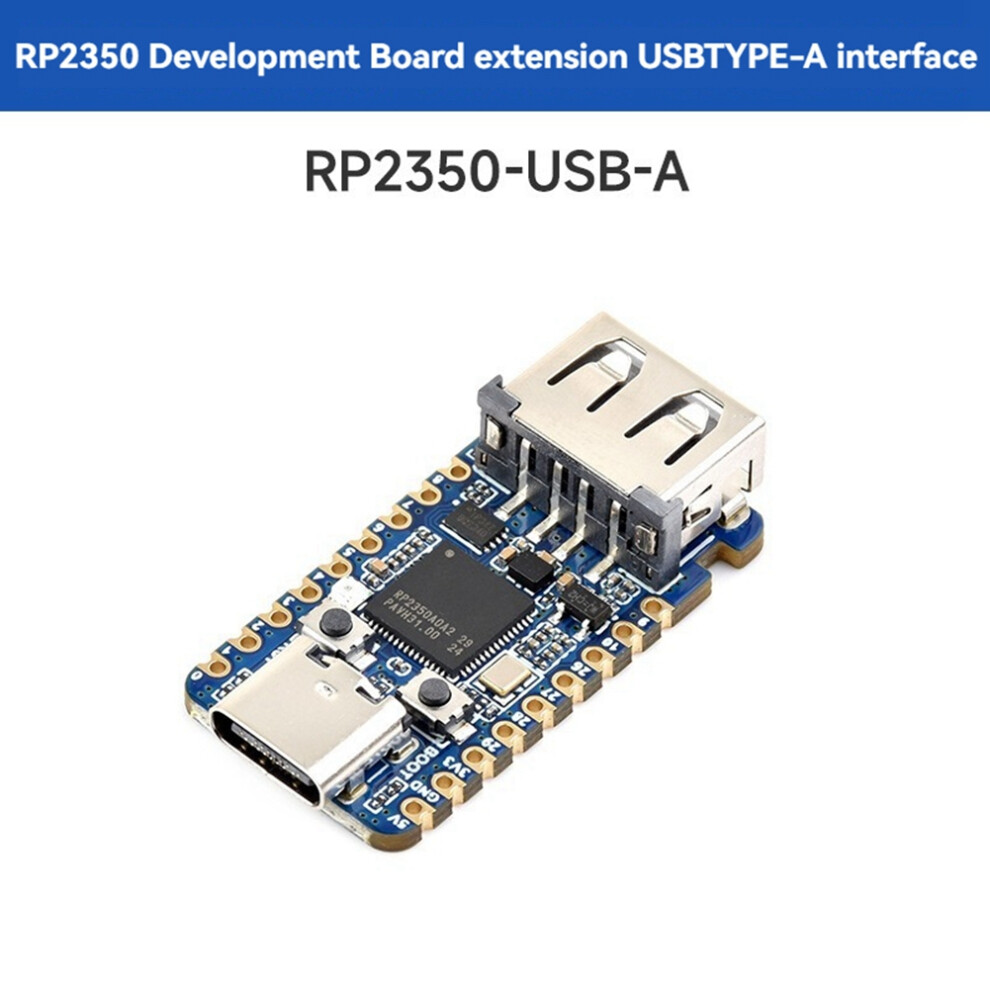

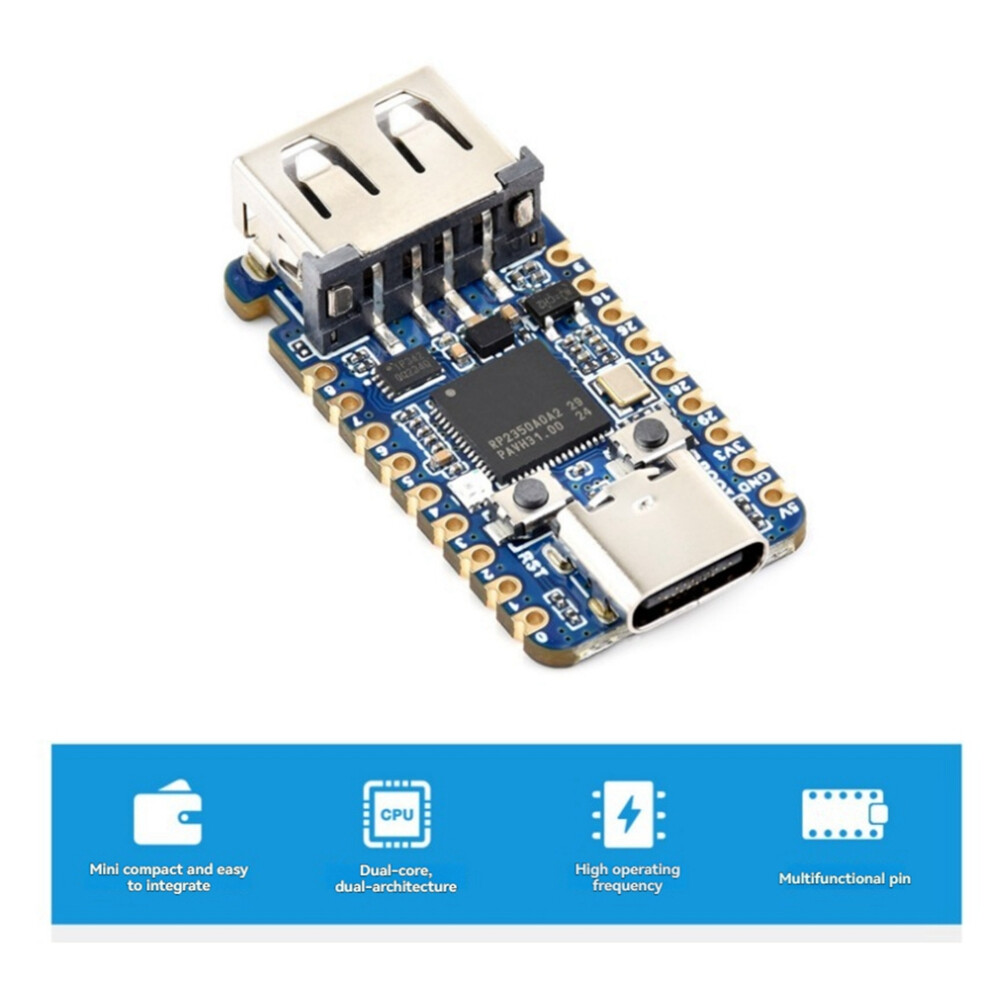

RP2350-USB-A RP2350A USB Mini Development Board 2Mb Flash Core Programmable Interface Demo

RP2350-USB-A RP2350A USB Mini Development Board 2Mb Flash Core Programmable Interface Demo Description

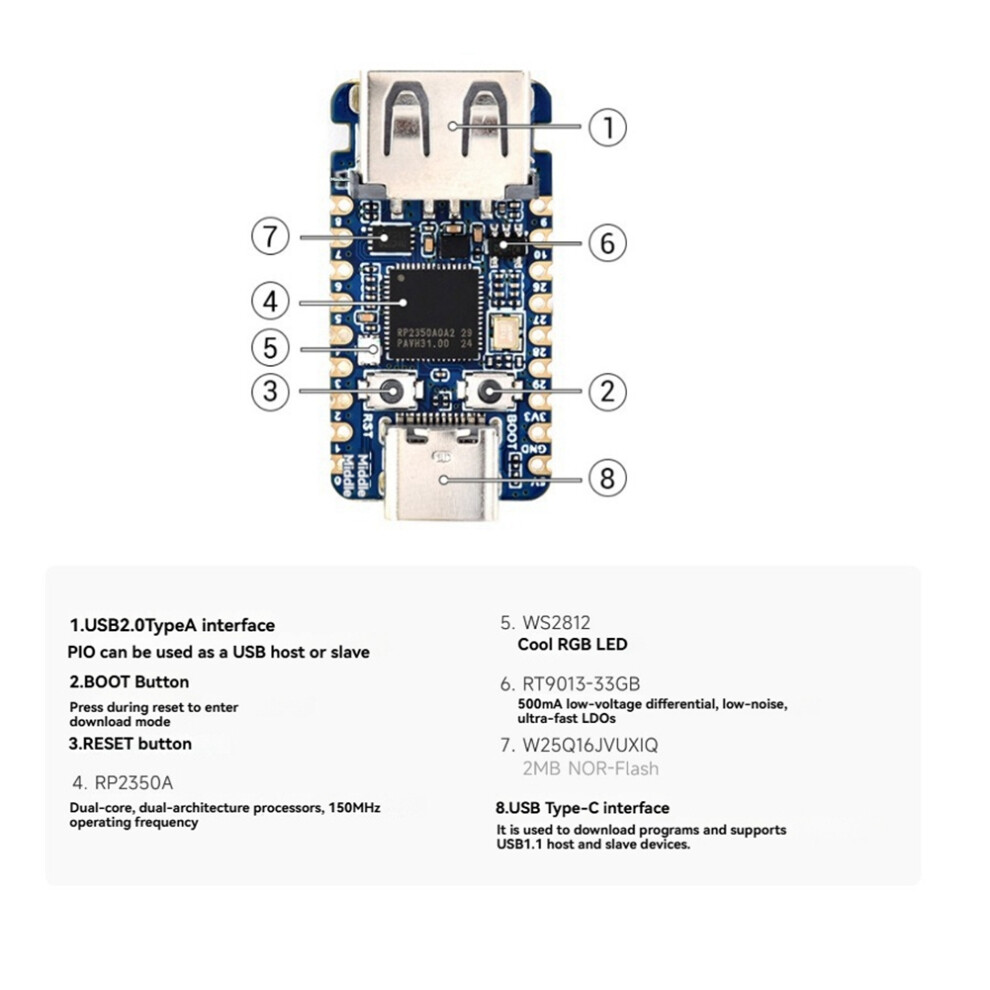

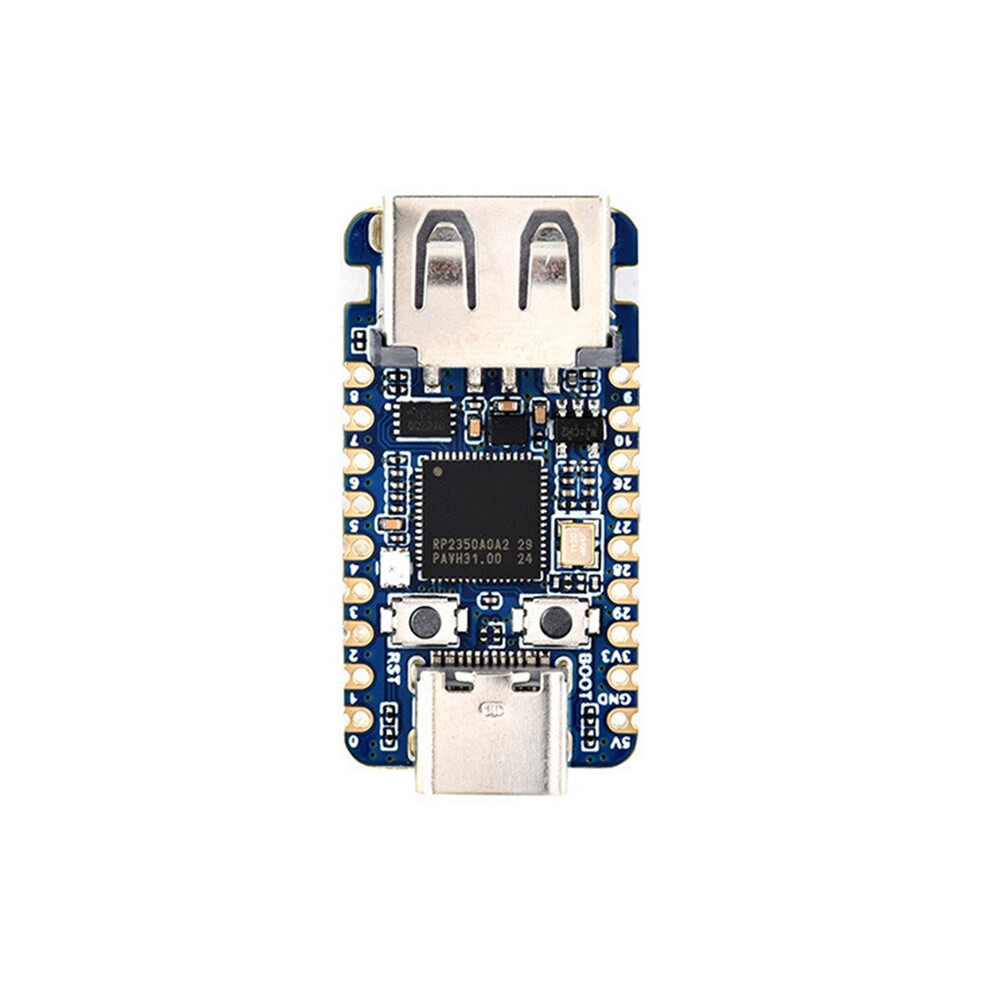

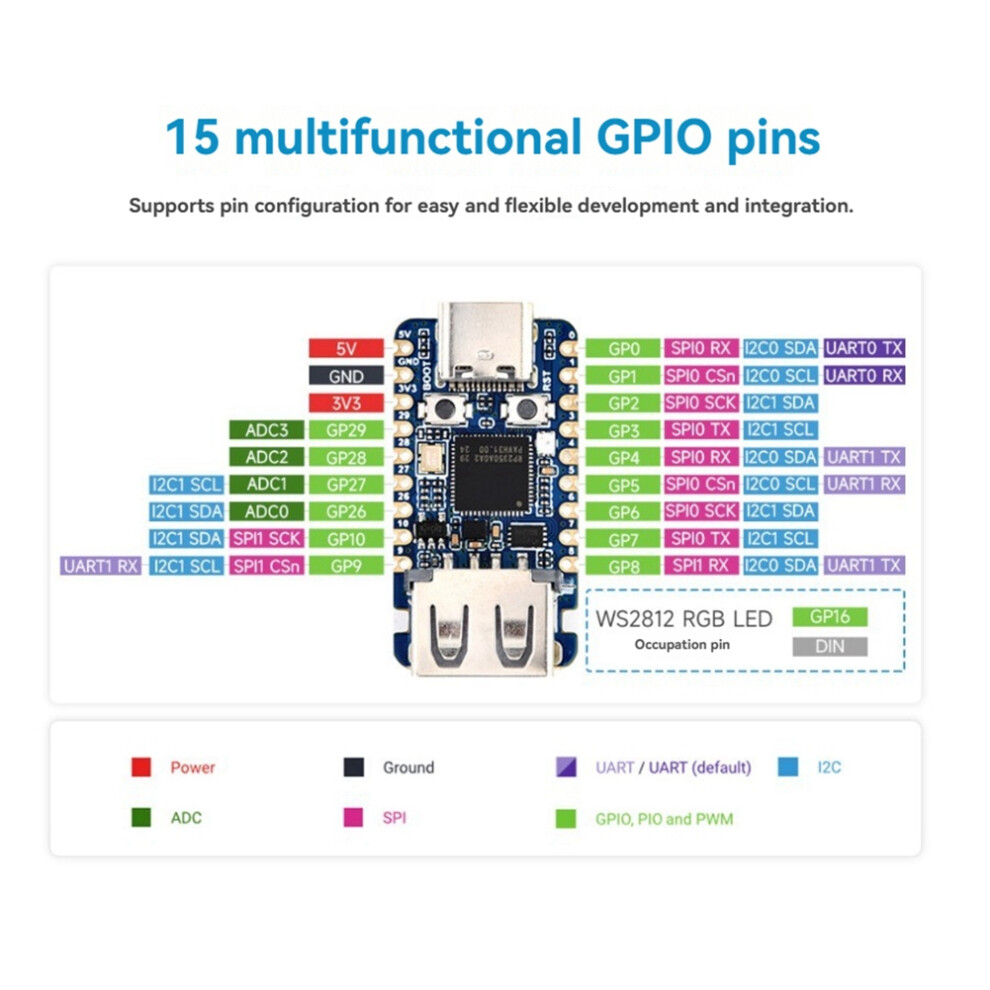

RP2350-USB-A is a mini RP2350 development board with a USB expansion port on board, compatible with USB2.0/1.1 transmission, 15 multi-function GPIO pins are led out in a very small board shape, and the PCB edge adopts a half-hole process, which can be easily and quickly integrated into the project.
It uses the RP2350 microcontroller chip officially designed by for .
dual-core and dual-architecture, equipped with dual-core ARM -M33 processor and dual-core. Hazard3 RISC-V core processor, running frequency is up to 150MHz flexible clock.
Built-in 520KB and 2MB on-chip Flash.
Stamp hole design, can be directly soldered and integrated into the user's self-designed baseboard.

Can be identified as a large-capacity storage via USB for drag-and-drop program download.
2 , 2 , 2 UART, 4 12-bit ADC and 14 controllable PWM channels.
Accurate on-chip clock and timer.
Built-in temperature sensor.
On-chip accelerated floating-point library.
12 programmable I/O (PIO) state machines for custom peripheral support.
Colour:Blue
Material:PCB+Metal

Package Contents:
1 x RP2350 Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
