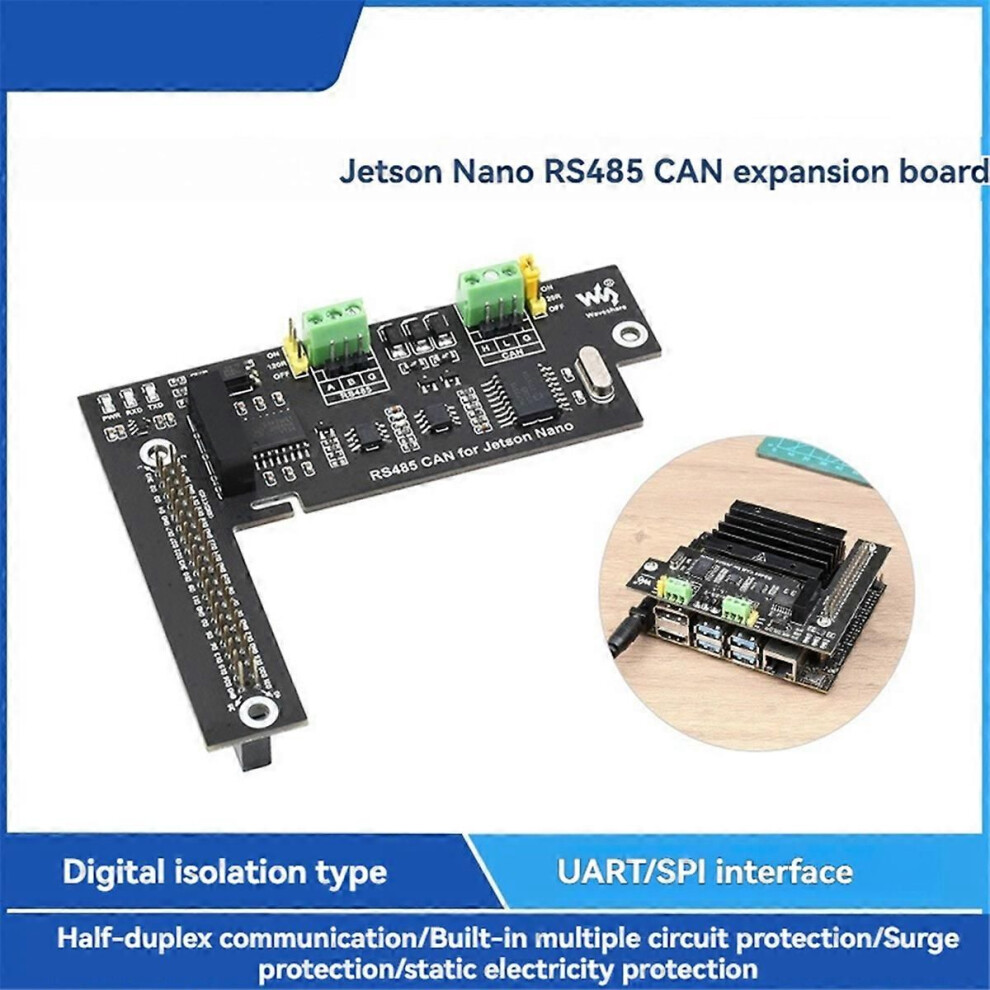

RS485 CAN Expansion Board for Nano Digital Isolated UART Communication Multiple Protection Circuits

RS485 CAN Expansion Board for Nano Digital Isolated UART Communication Multiple Protection Circuits Description

RS485 CAN Expansion Board for Nano Digital Isolated UART Communication Multiple Protection Circuits
CAN-capable, CAN controller MCP2515 using SPI with SIT65HVD230DR ceiver
On-board digital isolation chip isolation communication is , better stability, for stronger anti-interference
Onboard , RS485 communication with for protection and anti-static
With RS485 function, UART control half-duplex communication with SP3485 ceiver to support automatic switching of ceiver
Based on the GPIO 40Pin design, it is convenient to directly plug into the for Nano board

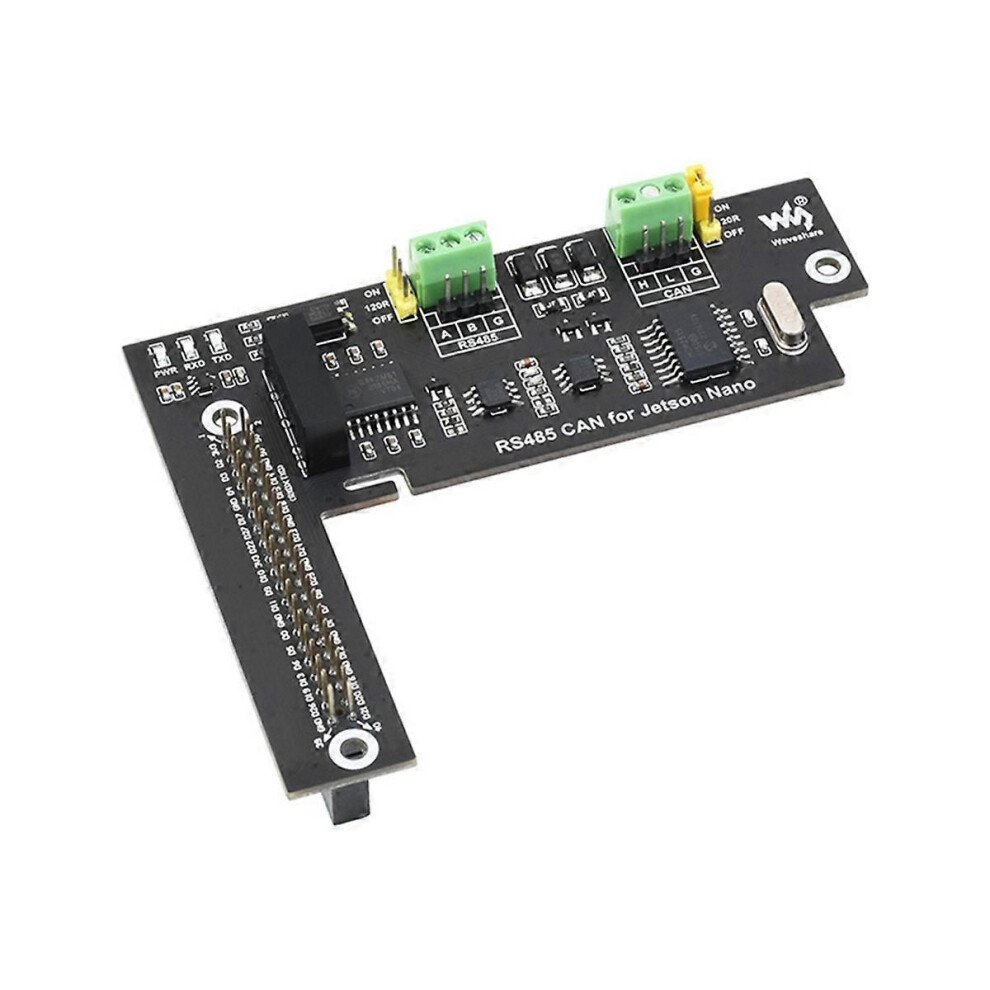

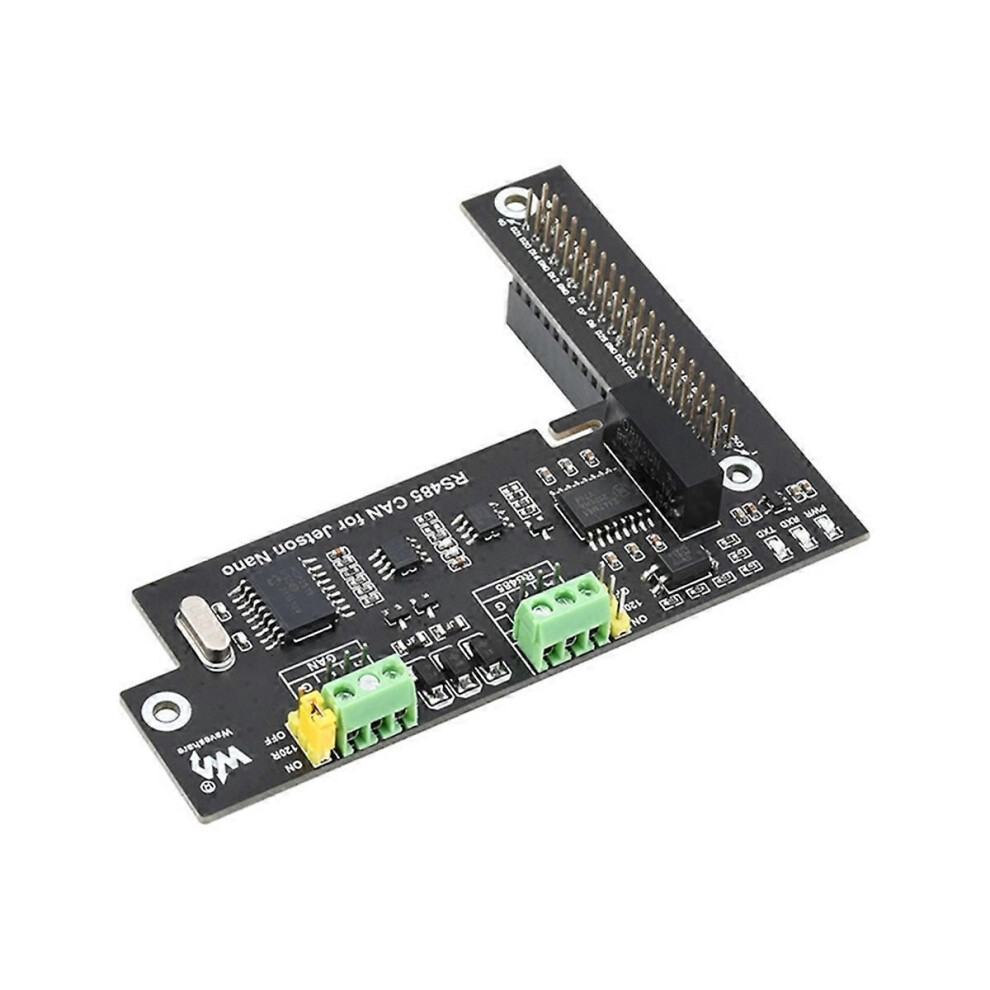

Item: RS485 CAN for Nano Expansion Board
CAN Controller:MCP2515
CAN ceiver: SIT65HVD230DR
Digital Isolation Chip:ADUM1412
RS485 ceiver: SP3485
Working 3.3V
Fixed Screw Hole Diameter:3mm
Item Size: 100x79mm/3.94x3.1in
(The product appearance and printed words depending on the batch, but this does not affect use)
Color:As shown
Material:PCB

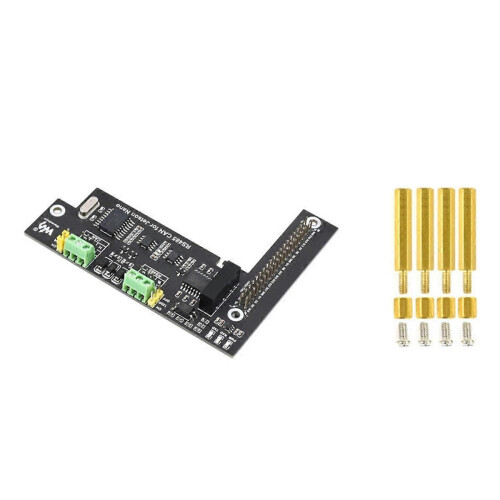

Package Contents:
1 * RS485 CAN Expansion Board
1 * Screw kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
