Solar Lighting Kit 2

Solar Lighting Kit 2 Description

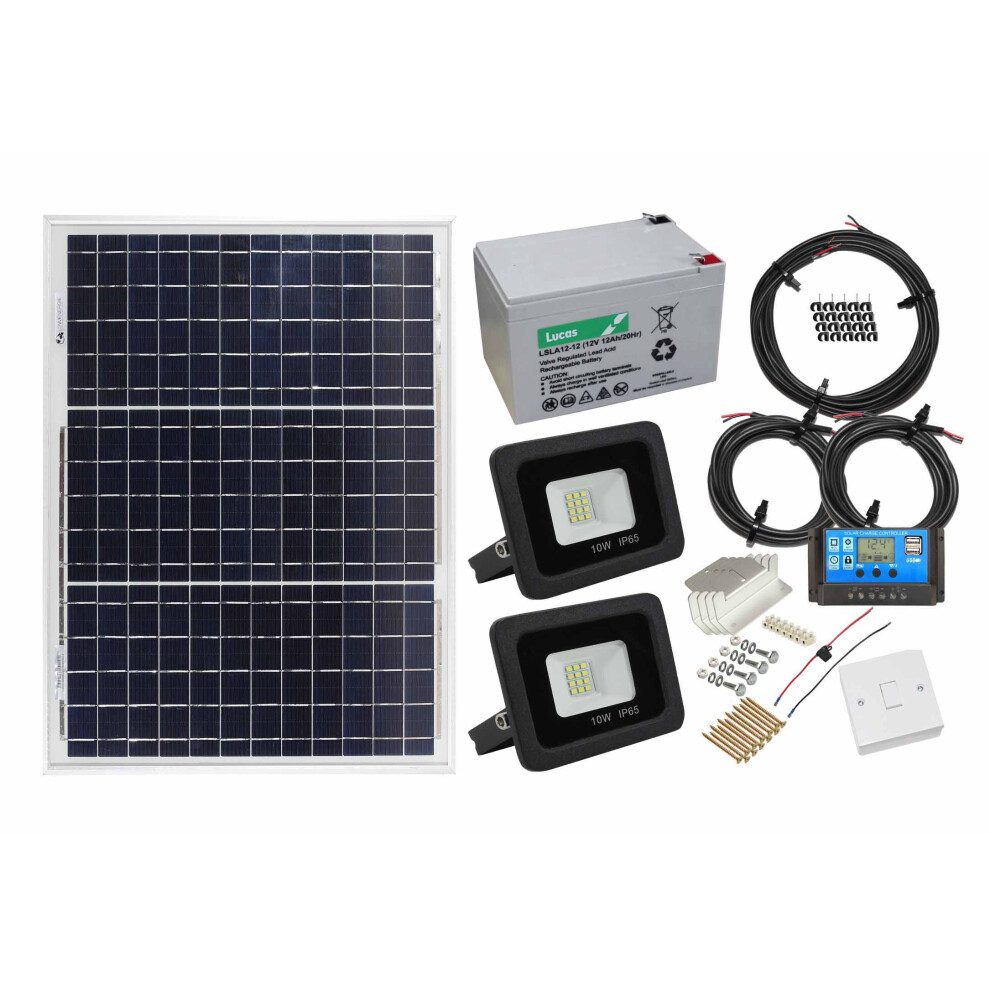

Kit Contents

1 x 30w Solar Panel
2 x 10w 12v DC floodlight
1 x 12ah Battery
1 x 10a PWM charge controller
4 x Solar panel mounting brackets
7 x Cable connection block
13m Solar cable
4 x Mounting bolts
16 x Screws
20 x Cable clips
30cm Negative cable
1 x Fuse holder
1 x 15A Fuse
1 x Socket back box
1 x Socket face plate
1 x 50mm Neoprene Rubber Strip Batt Terminal cover

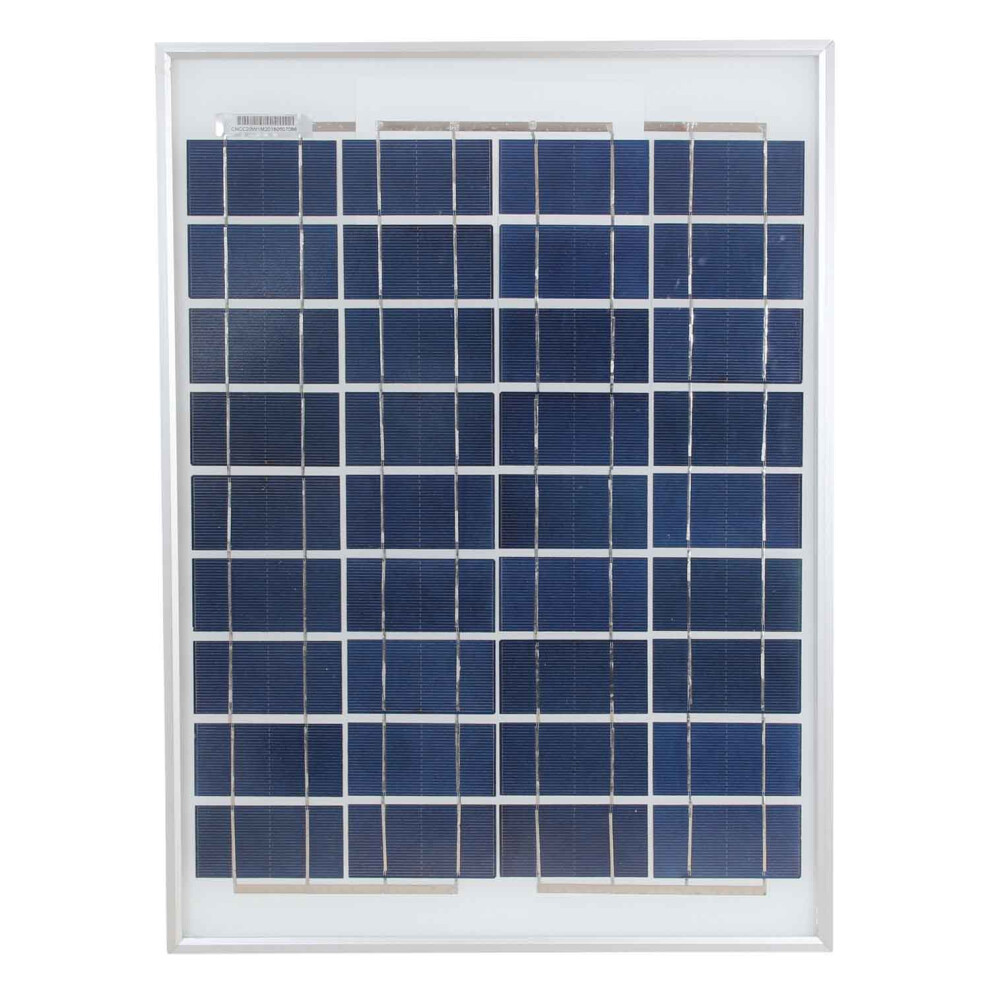

Solar Panel – 30w

Polycrystalline solar cells
Lightweight design with rigid anodised aluminium alloy frame and toughened glass
Max power 30w
weight 2.5kg
Size 510*445*23mm

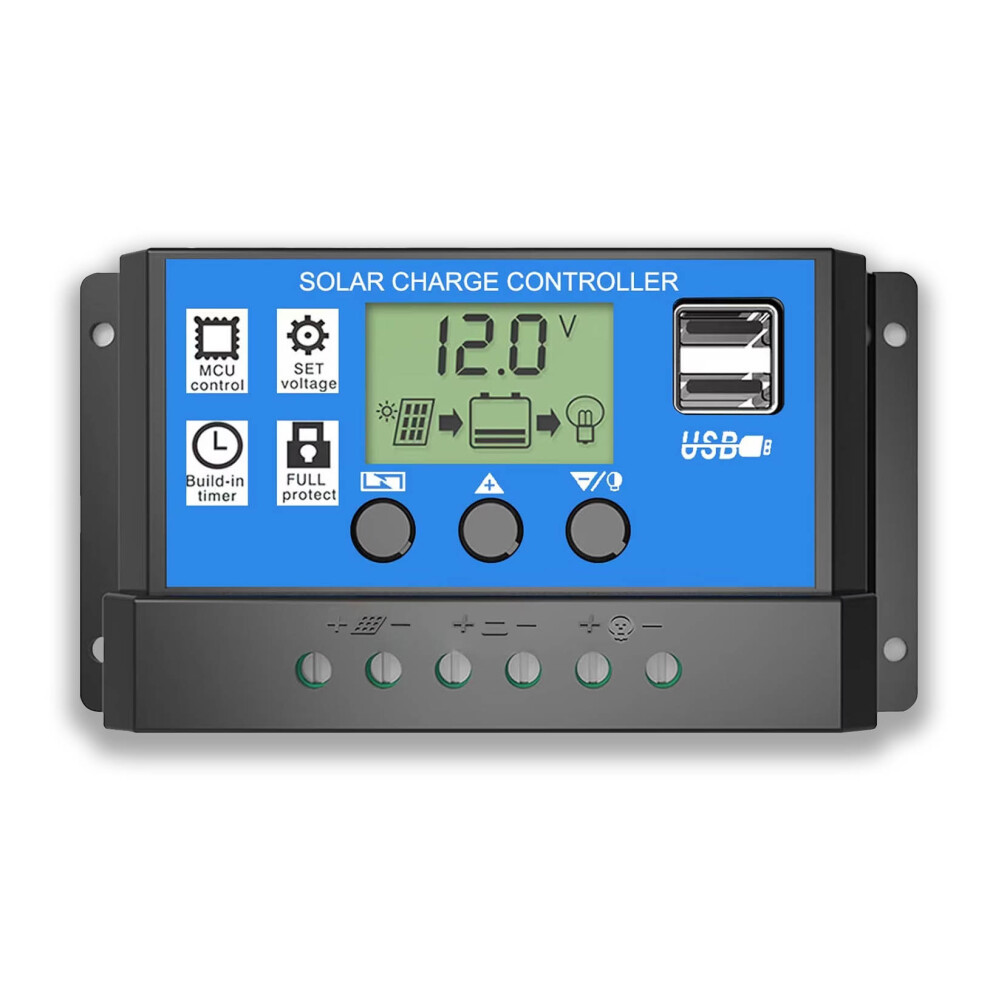

10A PWM Charge Controller

Required to regulate the power output from the solar panels to ensure effective battery charging and prevent overcharging. The LCD display shows and gives indication of battery charging state and battery voltage. The display also indicates solar power input or power discharge from the battery.
Includes two handy USB outlets – 5V/3A maximum.
Dimensions – 150 x 78 x 35 mm

12Ah Lead Acid Battery
12 Volts
Storage capacity 12 Amp Hours (approx 80 watt-hours usable).
Dimensions 150 x 98 x 98mm (l x w x h)

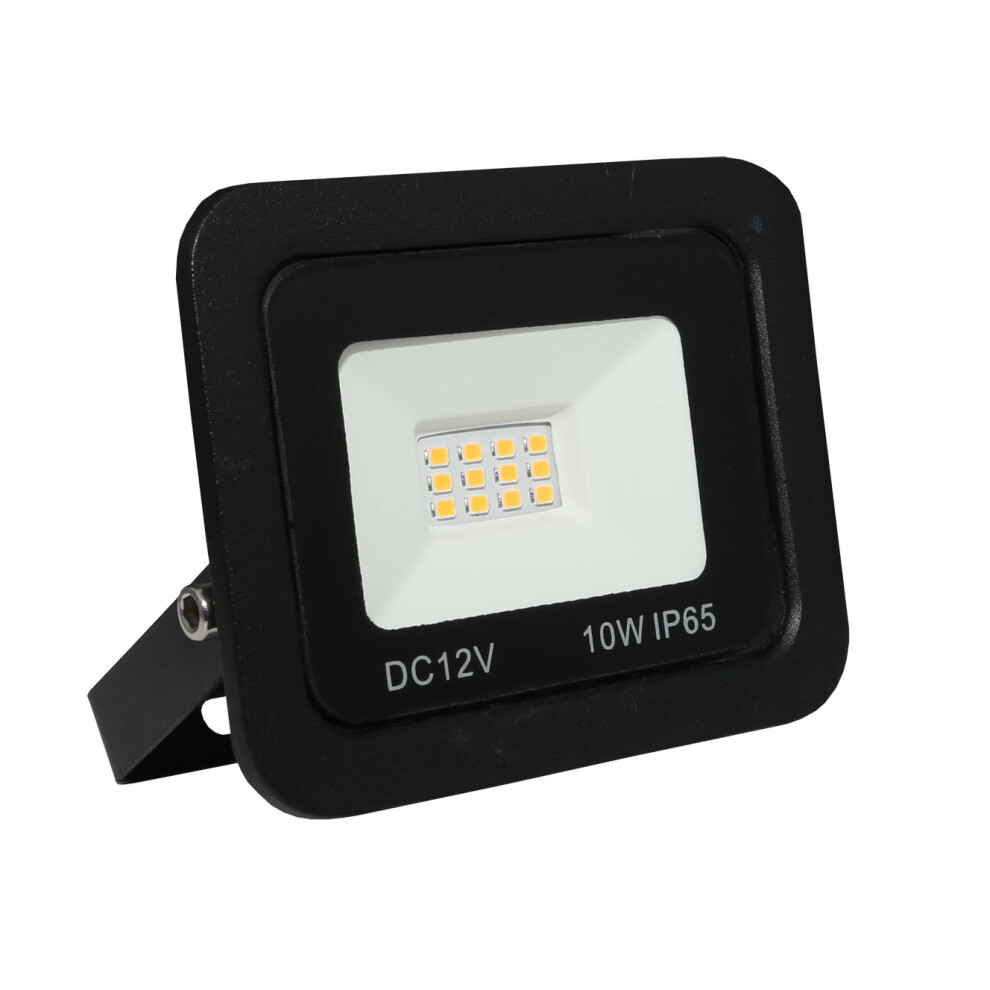

Floodlight 10w

Power: 10W
Input: DC 12V
LED Type: SMD
Material: High Strength Aluminium
Lumens: 90lm/watt
Working Temp.: -20° to 50°
Approx. 200mm connection cable
Dimensions 103mm x 84mm x 23mm (W x H x D)
