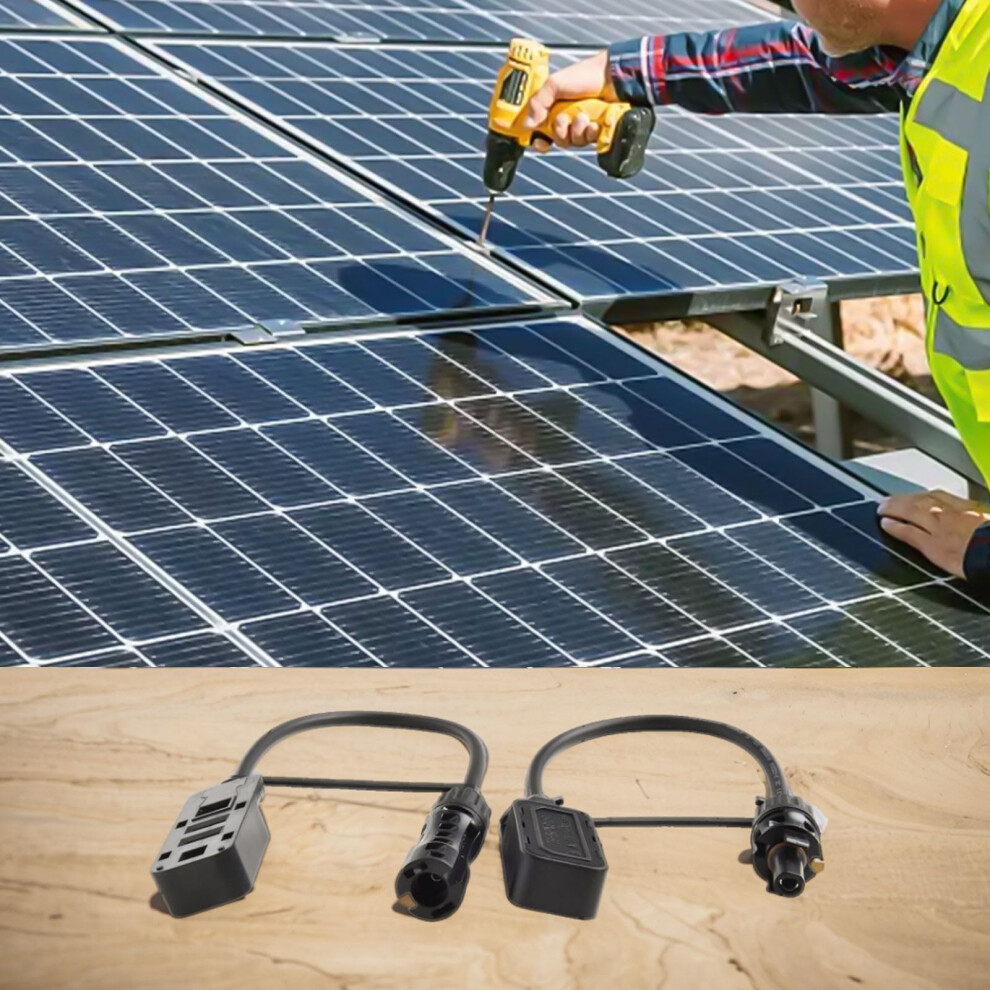

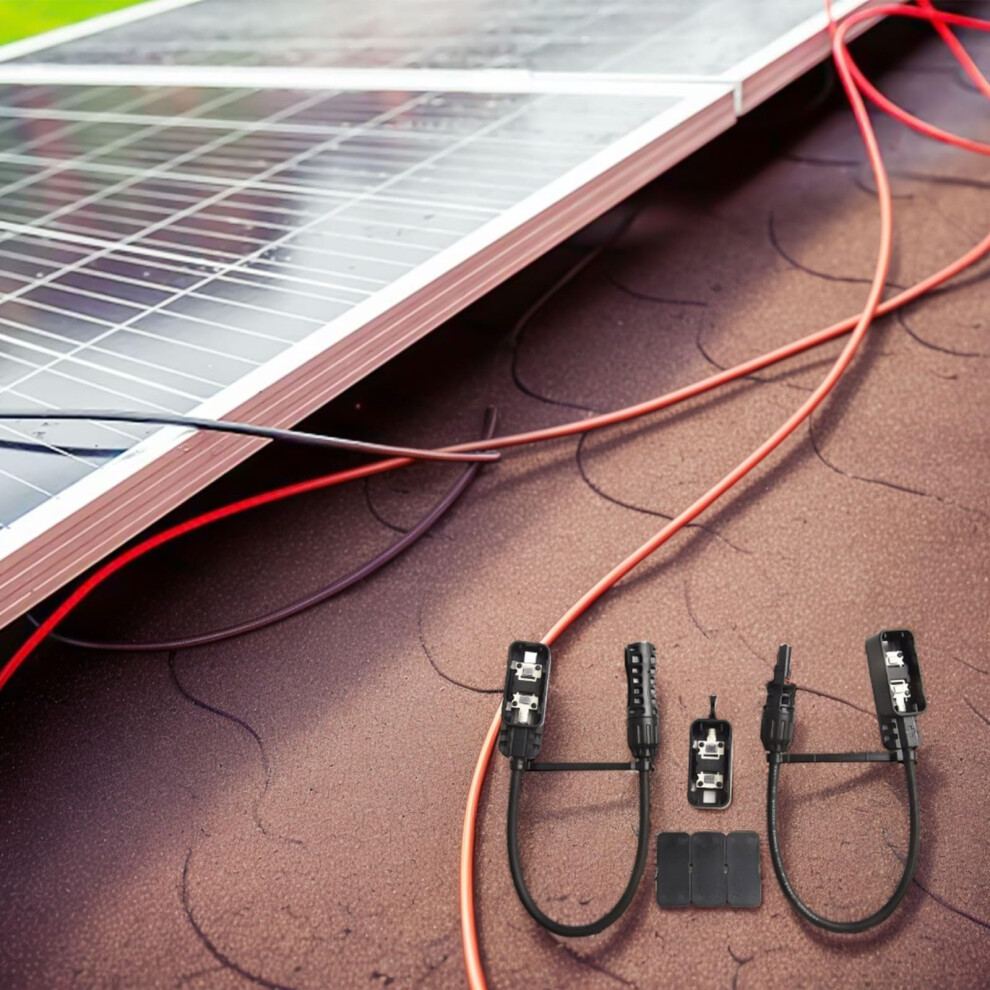

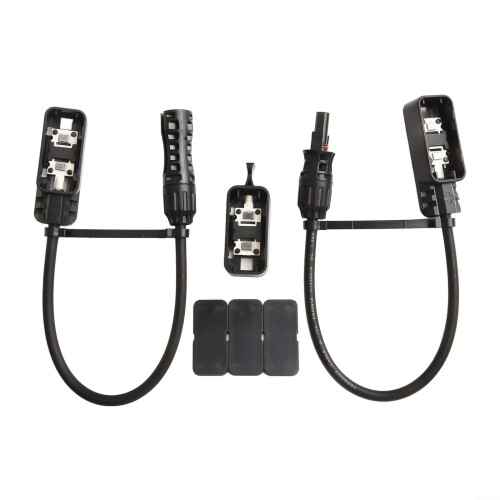

Solar Panel Junction Box 3 Split 1500V 30A IP67 Weatherproof Silver Copper Core for PV Systems

Solar Panel Junction Box 3 Split 1500V 30A IP67 Weatherproof Silver Copper Core for PV Systems Description

3Split Junction Box for Photovoltaic Modules A practical confluence connector designed for residential and small commercial solar installations. Handles up to 1500V DC and 30A, combines three PV inputs into a single output, and uses durable materials for longterm field performance. Key benefits Safe voltage compatibility: supports systems up to 1500V DC and rated current up to 30A, enabling use with modern highervoltage PV arrays. Reliable electrical connection: silverplated copper core provides low contact resistance and improved conductivity for stable power transfer. Weatherresistant housing: PC material enclosure with IP67 ingress protection rating helps prevent dust entry and withstand temporary water immersion. Spaceconscious design: threeinput confluence reduces wiring complexity and simplifies string aggregation without adding bulky hardware. Easy integration: designed to work with standard photovoltaic module cabling and typical home renewable energy systems, reducing installation time. What it does Combines three PV module outputs into a single consolidated connection point for inverters, charge controllers, or combiner boxes. Maintains electrical continuity at higher system voltages while minimizing heat buildup through efficient conductor design. Protects internal connections from environmental exposure with a robust polycarbonate housing. Key specifications Configuration: 3split junction box / confluence connector Maximum voltage: 1500V DC Maximum current: 30A Housing material: PC (polycarbonate) Conductor core: silverplated copper Protection level: IP67 ingress protection rating Practical applications Rooftop residential solar arrays: combine three panel strings into one output line for simpler routing to the inverter. Offgrid cabin or small commercial systems: aggregate module outputs for connections to charge controllers and battery inverters where space and wiring simplicity matter. DIY and retrofit installations: or add a junction point when expanding an existing PV array to maintain neat and reliable wiring. Installation and compatibility notes Designed to accept standard PV cables and connect with typical module wiring practices. Follow local electrical codes and installer guidelines for safe installation. Compact footprint and fixed threeinput layout make it suitable for mounting on module frames, combiner boxes, or nearby support structures where protection from the elements is required. Choose this 3split photovoltaic junction box when you need a straightforward, durable, and electrically efficient solution for combining multiple PV strings in home renewable energy systems.
