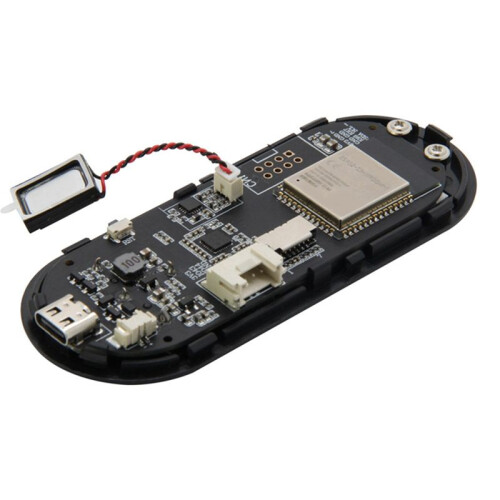

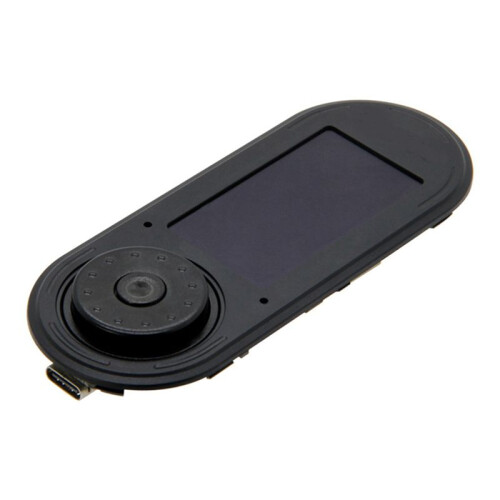

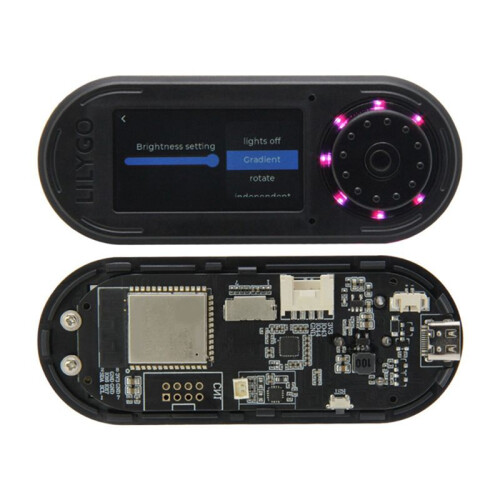

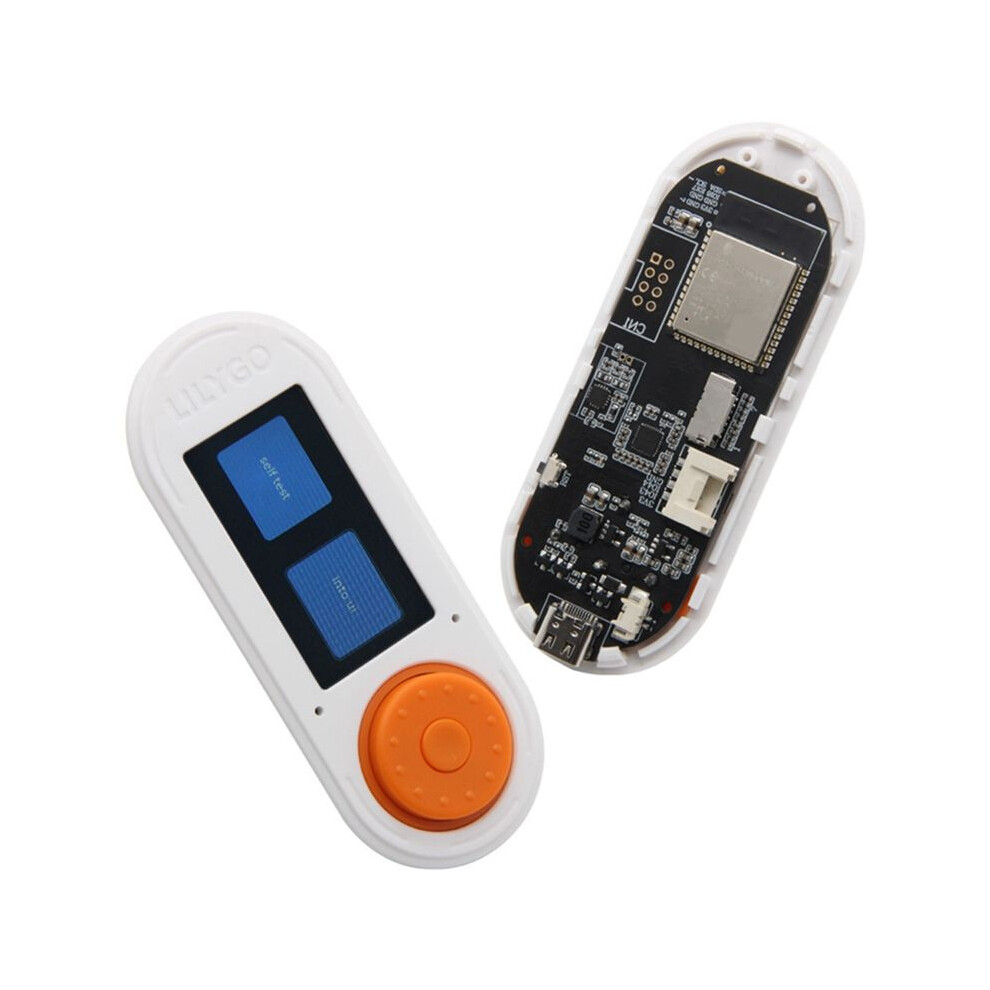

T-Embed Lcd RGB Microphone Rotary Encoder Development Board, B

T-Embed Lcd RGB Microphone Rotary Encoder Development Board, B Description

for : Click "File" in the upper left corner Preferences Additional Development Board Manager URL Enter the URL in the input box. (ESP32S3 is a new chip, and the SDK version needs to be version 2.0.3 or above) https: //raw.githubusercontent.com/espressif/-esp32/gh-pages/package_esp32_index.json
Click OK and the software be installed by itself. After installation, restart for the IDE software.
Search for ESP32 in ToolsBoard Manager and install for ESP32- SDK
Copy all files in the lib folder for to //libraries
Select the settings as shown. Note that the FLASH size partition and size may be modified depending on

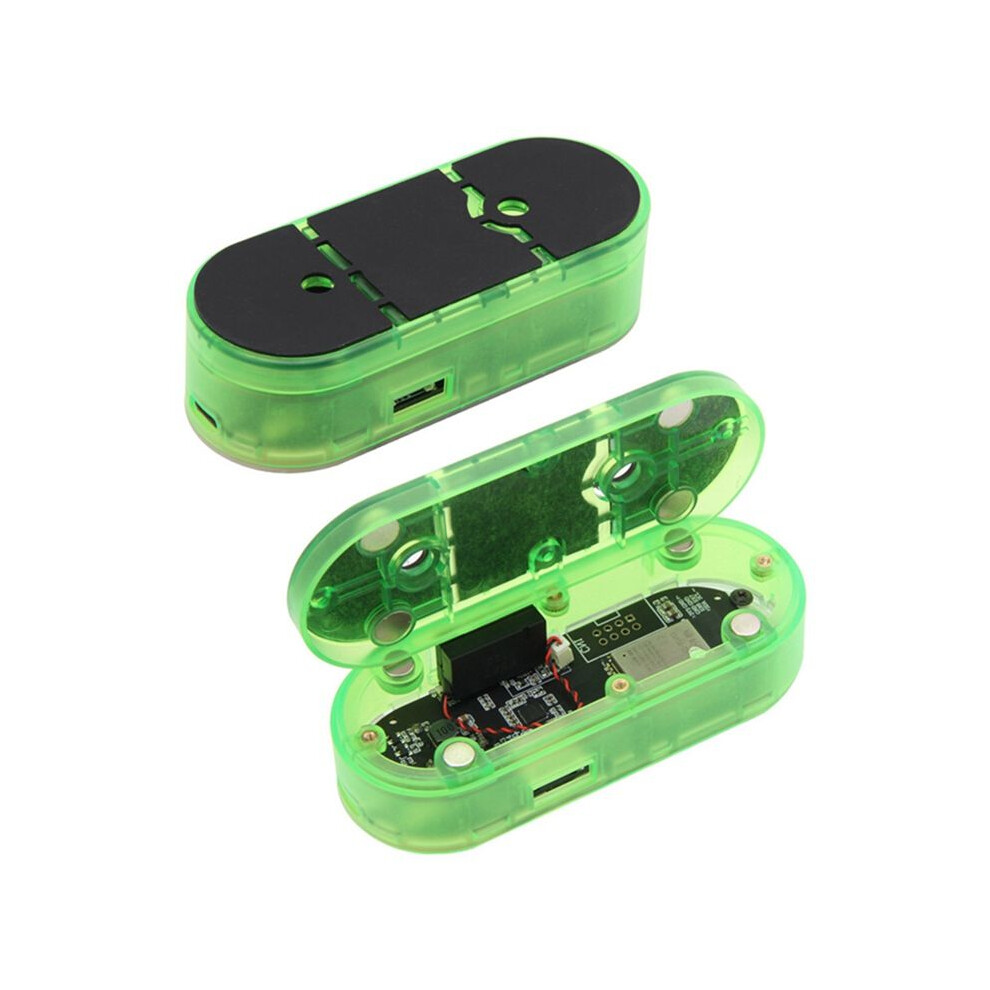

T-embed color: B-Fully transparent button, shell
size: 9.6 x 3.9 x 1.1cm
Material: plastic
colour: As shown

Package Contents:
1 x T-Embed
1 x IDC3 Simple Horn Seat 2.54 8pin
1 x Pin Header 5 Pin
1 x Battery Cable
1 x Flex Cable 2.54 8pin 10cm
1 x Flex Cable 6pin

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
