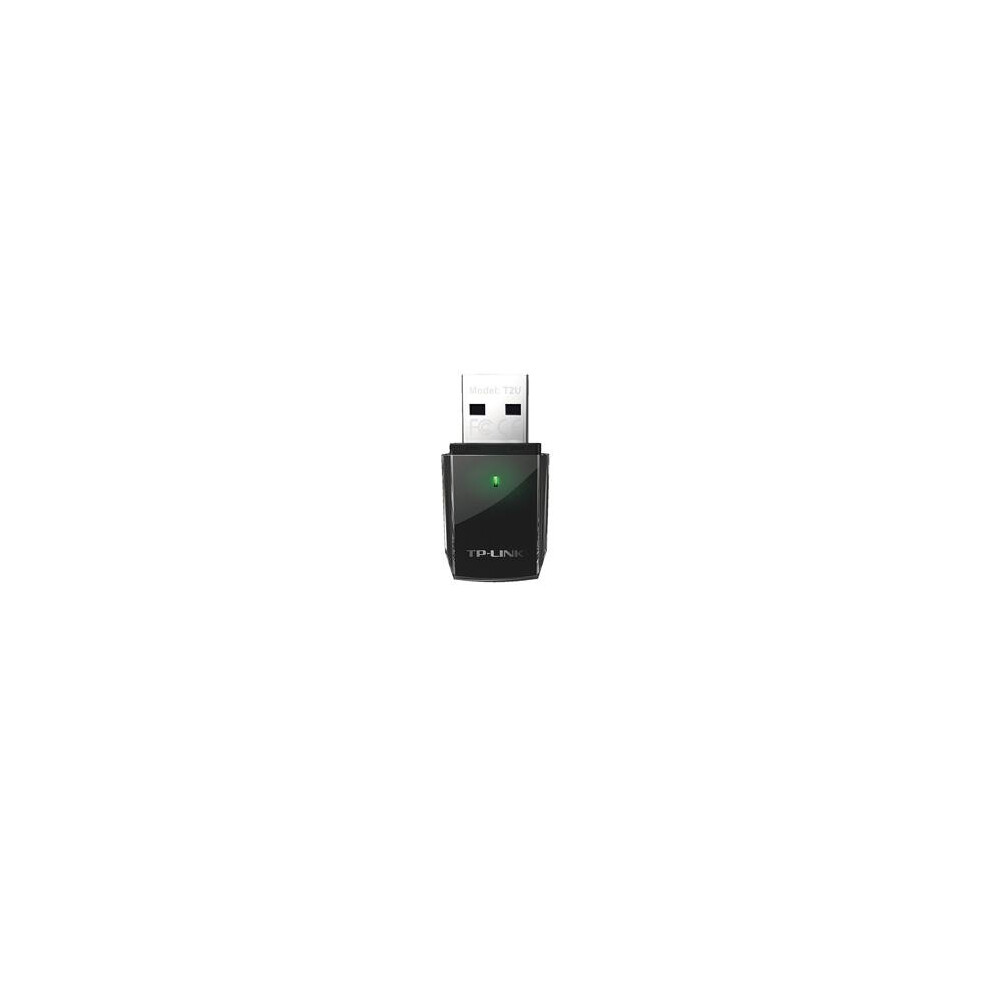

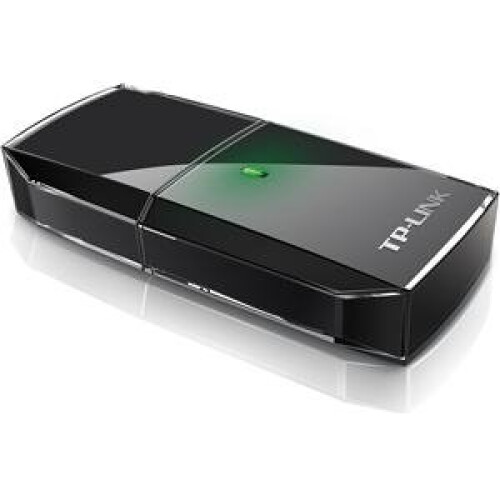

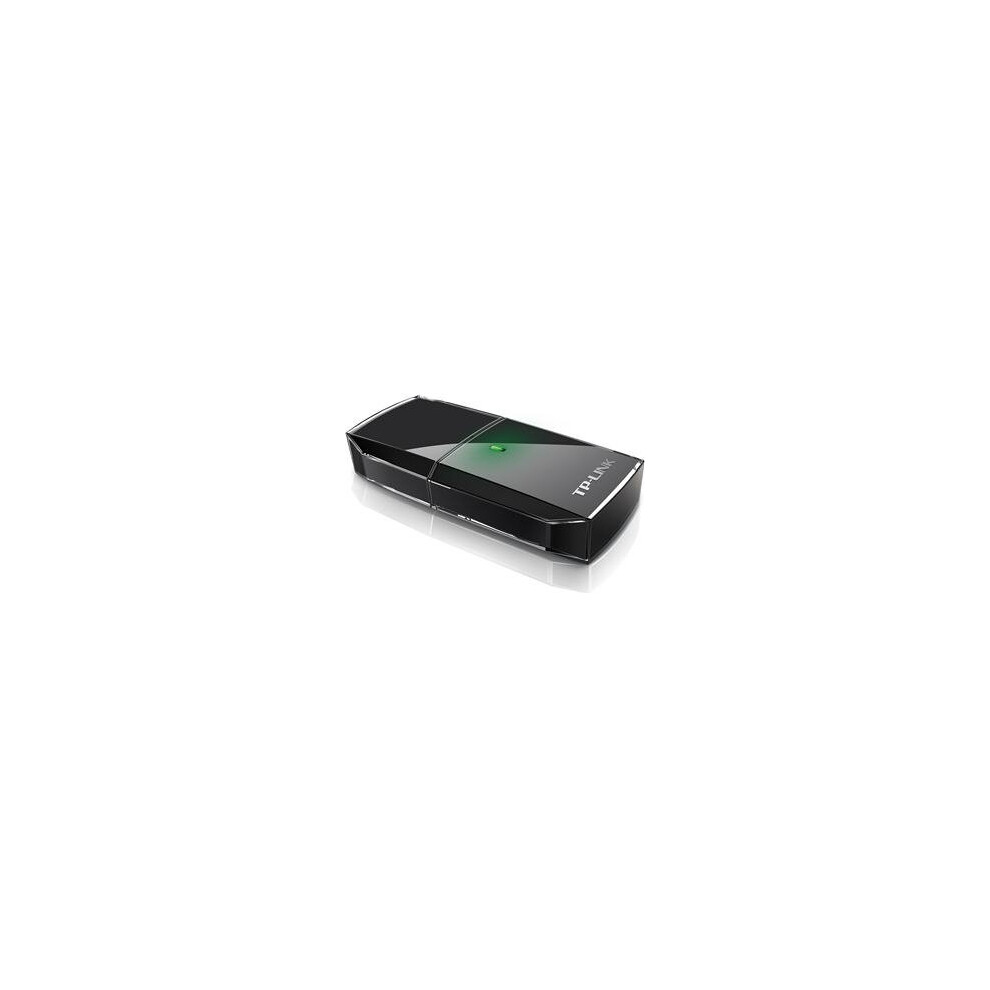

TP-LINK AC600 WLAN 600Mbit/s

TP-LINK AC600 WLAN 600Mbit/s Description

TP-LINK's Archer T2U comes with the next generation Wi-Fi standard - 802.11ac, 3 times faster than wireless N speeds. With 433Mbps wireless speeds over the crystal clear 5GHz band or 150Mbps over the 2.4GHz band, the Archer T2U is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks. The 5GHz 433Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 150Mbps Wi-Fi for average use such as web surfing. TP-LINK's Archer T2U is a dual band USB Adapter that provides selectable 5 GHz and 2.4 GHz bands for the latest standard and backward compatibility to existing Wi-Fi network. It gives users the ability to access crystal clear 5GHz connections to upgrade their notebook or PC's wireless capabilities, while ensuring that they can still access legacy 2.4GHz band wireless networks. The T2U provides WPA/WPA2 encryptions created by the WI-FI Alliance, promoting interoperability and security for WLAN, which effectively and efficiently protects the wireless network. With its bundled wireless setup utility and WPS button, the T2U is very easy to setup and secure, even for novice users.

Ports & interfaces Internal No Interface WLAN Host interface USB Connectivity technology Wireless Bandwidth Data transfer rate (max) 600 Mbit/s Networking Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ac Modulation 16-QAM,256-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM Frequency band 5 / 2.4 Wireless LAN features Top Wi-Fi standard IEEE 802.11ac Wi-Fi standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Wi-Fi Yes WLAN data transfer rates supported 11,54,150,433,600 Mbit/s Antenna Antenna Yes Technical details Colour of product Black Receiver sensitivity 5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -78dBm
11n HT20 MCS0: -94dBm
11n HT20 MCS7: -77dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -74dBm
11ac VHT80 MCS0: -89dBm
11ac VHT80 MCS9: -64dBm
2.4GHz:
11b 1Mbps: -99dBm
11b 11Mbps: -91dBm
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT20 MCS0: -95dBm
11n HT20 MCS7: -76dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -73dBm Software Windows operating systems supported Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 Indication LED indicators Yes Security Security algorithms 128-bit WEP,64-bit WEP,802.1x RADIUS,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP,WPS Design Colour of product Black LED indicators Yes Performance Security algorithms 128-bit WEP,64-bit WEP,802.1x RADIUS,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP,WPS Windows operating systems supported Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 Receiver sensitivity 5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -78dBm
11n HT20 MCS0: -94dBm
11n HT20 MCS7: -77dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -74dBm
11ac VHT80 MCS0: -89dBm
11ac VHT80 MCS9: -64dBm
2.4GHz:
11b 1Mbps: -99dBm
11b 11Mbps: -91dBm
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT20 MCS0: -95dBm
11n HT20 MCS7: -76dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -73dBm System requirements Optical drive required Yes Weight & dimensions Width 41 mm Depth 19.5 mm Height 8.7 mm Certificates Certification CE, FCC RoHS compliance Yes Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Packaging content Number of products included 1 pc(s) Quick start guide Yes
