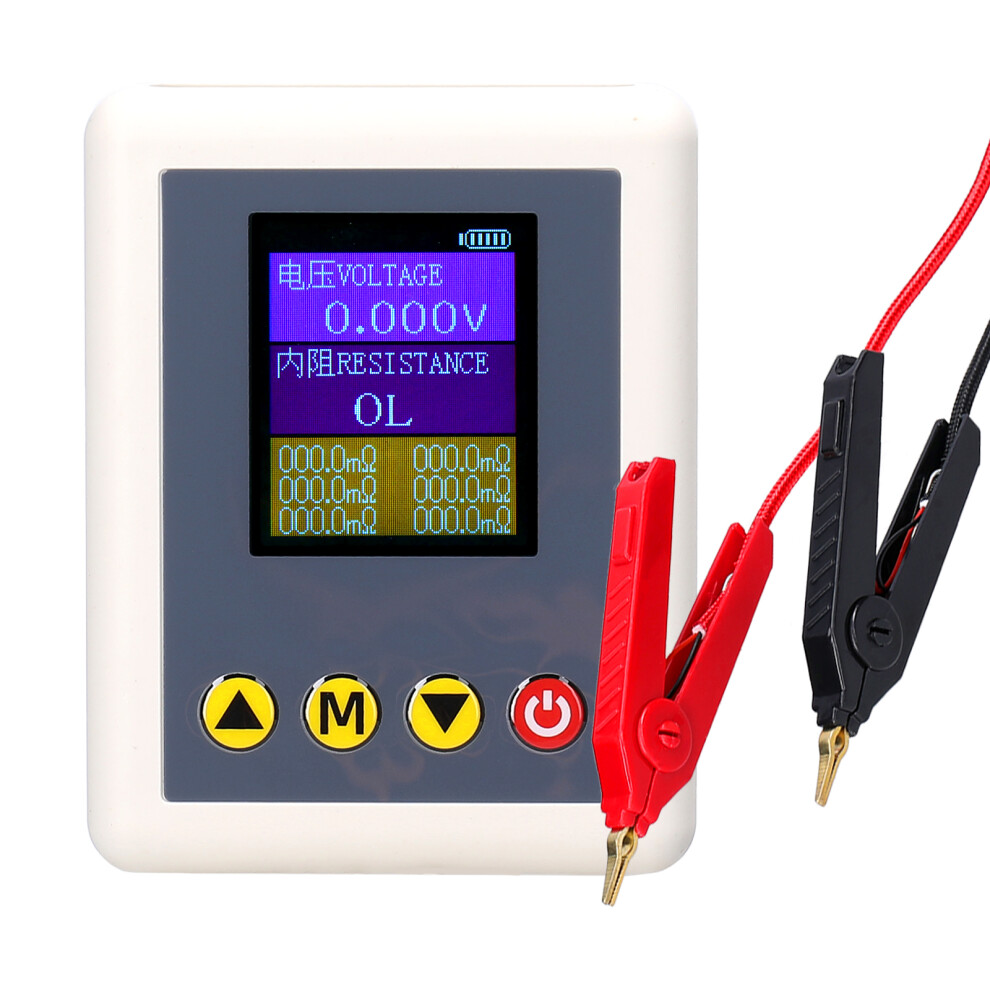

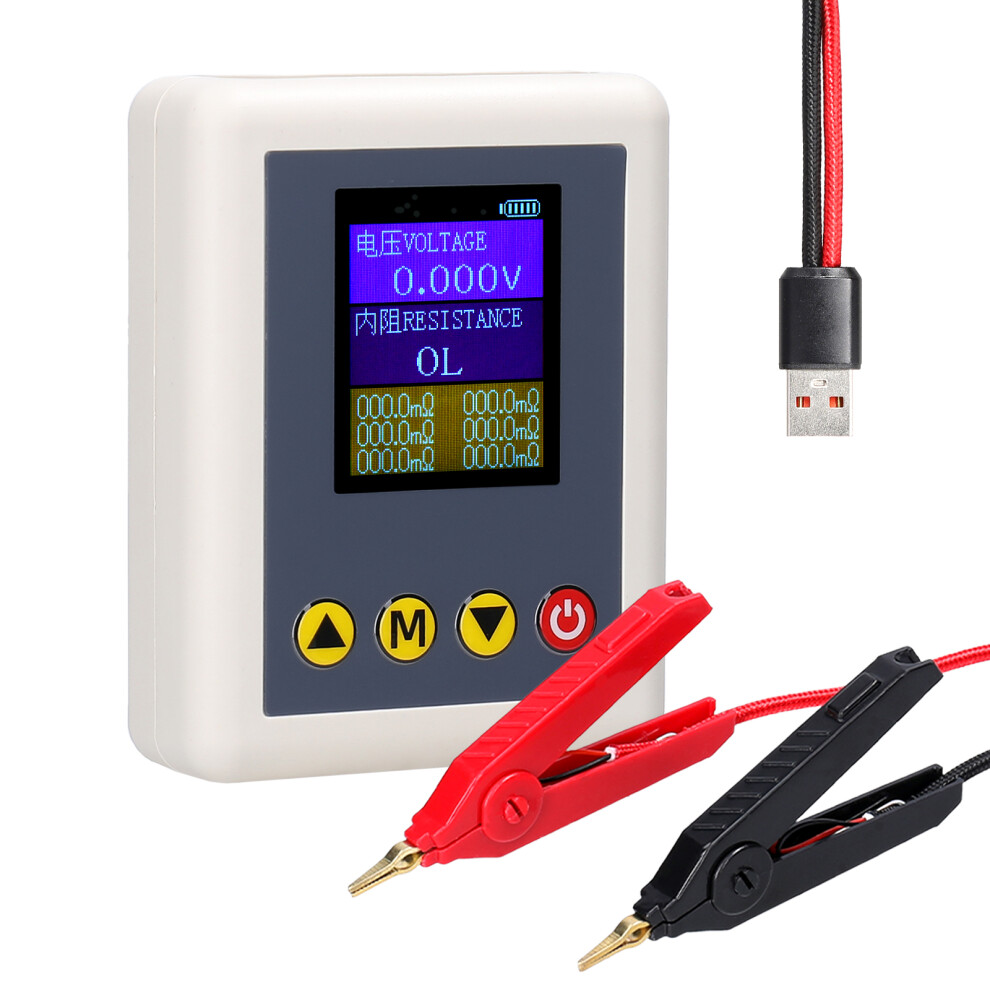

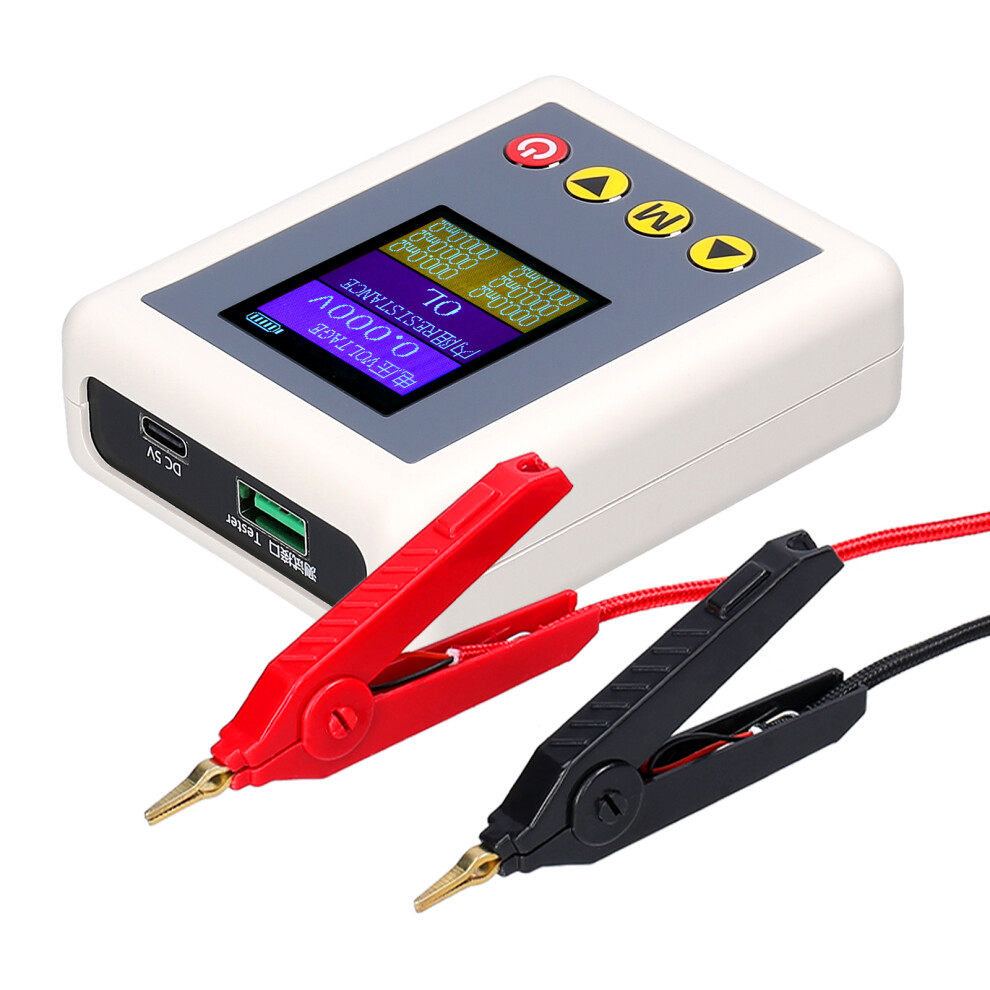

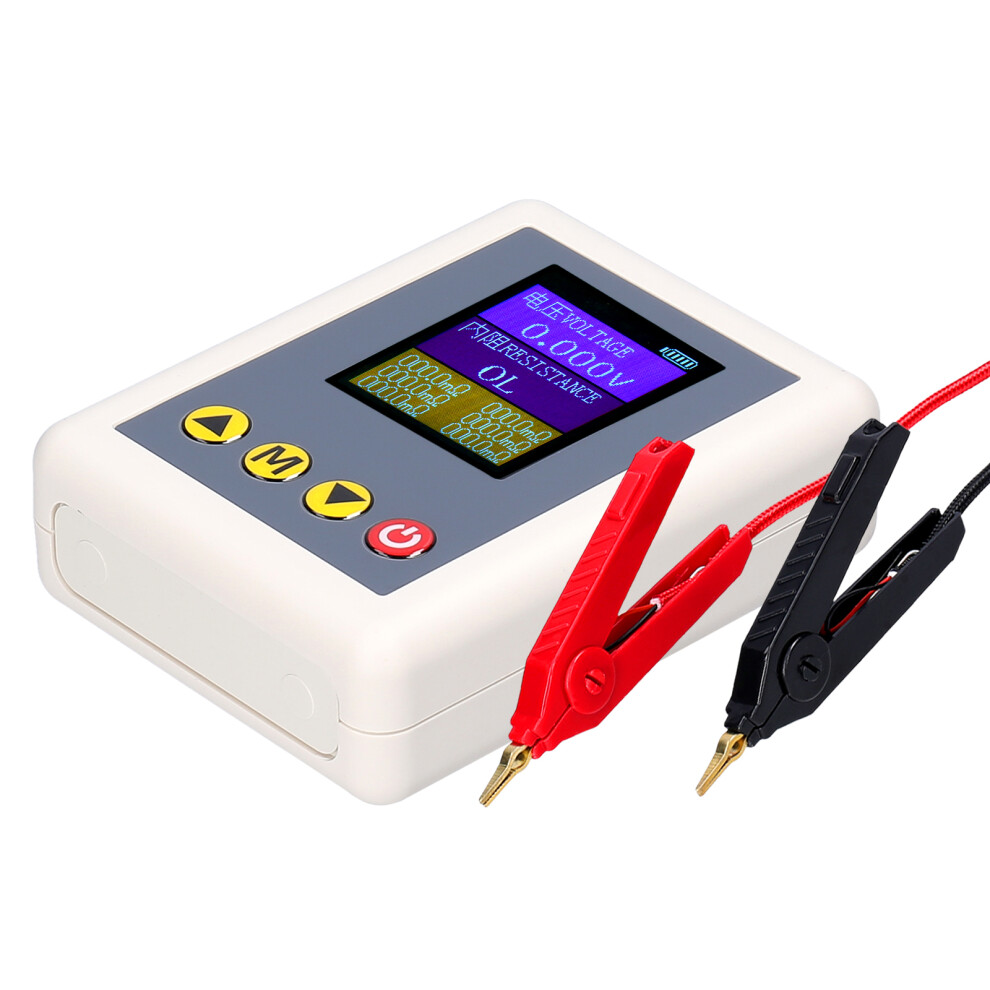

TS4520 Volt/Resistance Tester Screen Rotation Auto Off Calibration Feature
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£27.49
£35.24
22% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 14th - Thu 16th Jul
Returns: 30 days
180-day payment protection
Most Popular in Electrical Testers
Hot
Description & Details
Summary

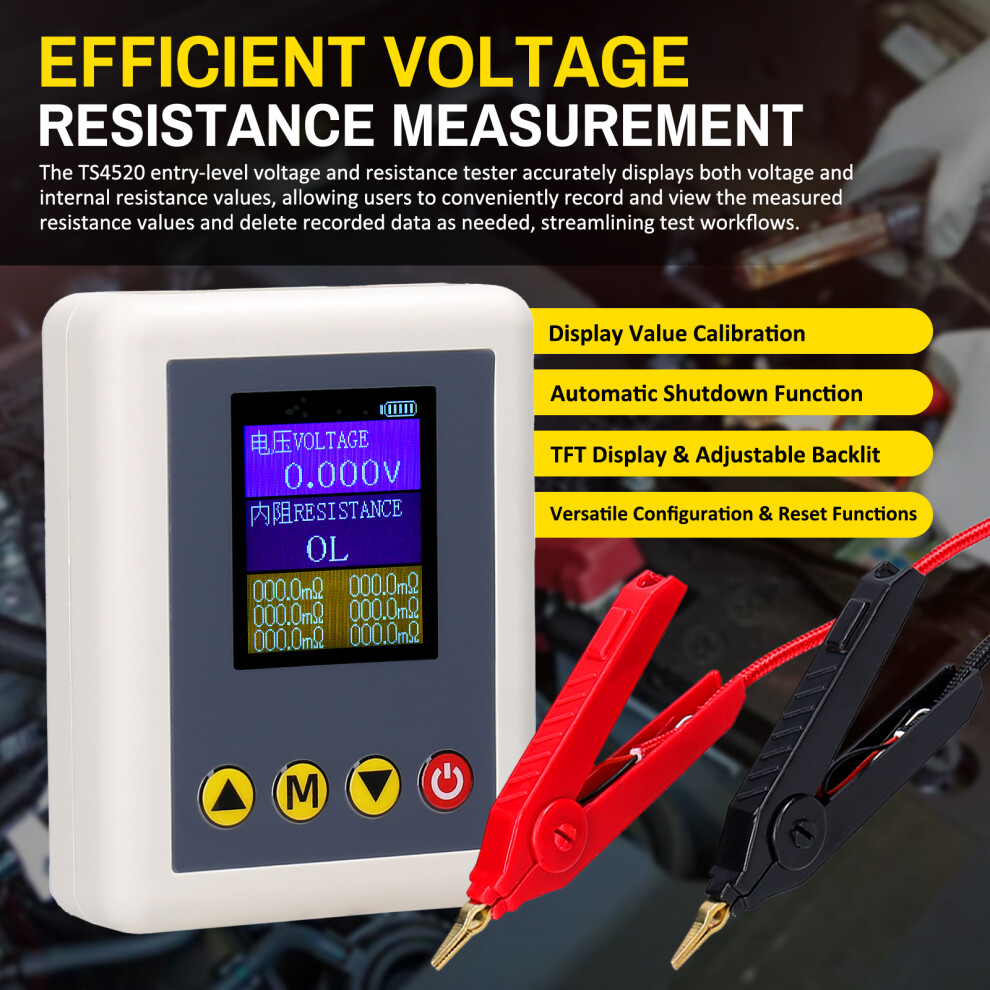

- 【Efficient Voltage & Resistance Measurement】: The TS4520 entry-level voltage and resistance tester accurately displays both voltage and internal resistance values, allowing users to conveniently record and view the measured resistance values and delete recorded data as needed, streamlining test workflows.

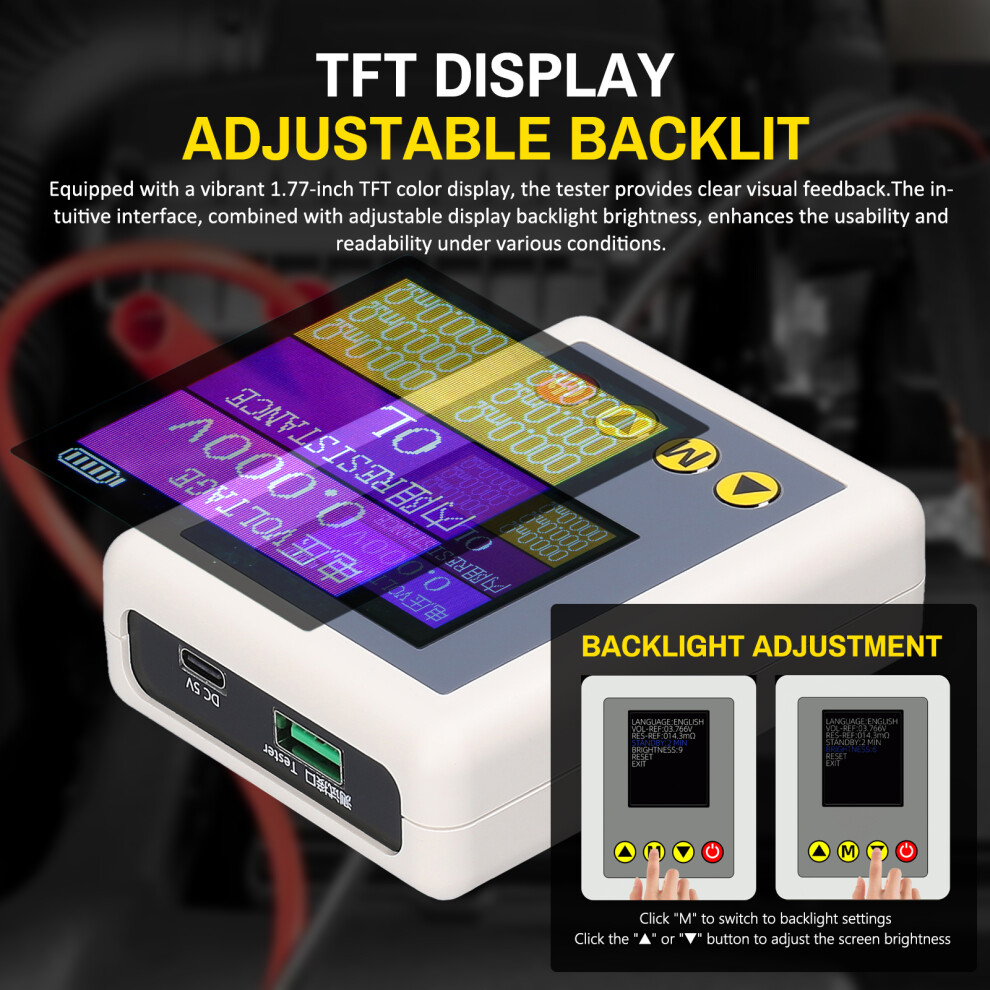

- 【TFT Display & Adjustable Backlit】: Equipped with a vibrant 1.77-inch TFT color display, the tester provides clear visual feedback. The intuitive interface, combined with adjustable display backlight brightness, enhances the usability and readability under various conditions.

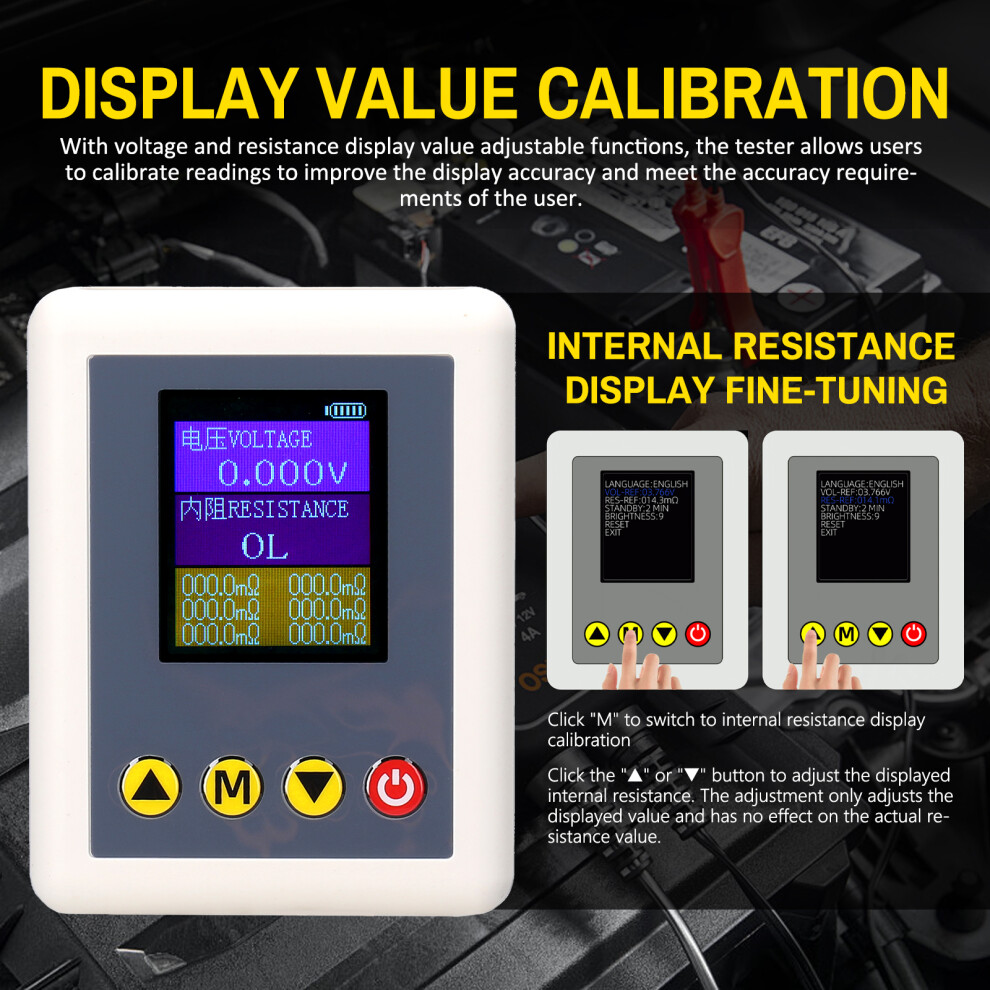

- 【Display Value Calibration】: With voltage and resistance display value adjustable functions, the tester allows users to calibrate readings to improve the display accuracy and meet the accuracy requirements of the user.

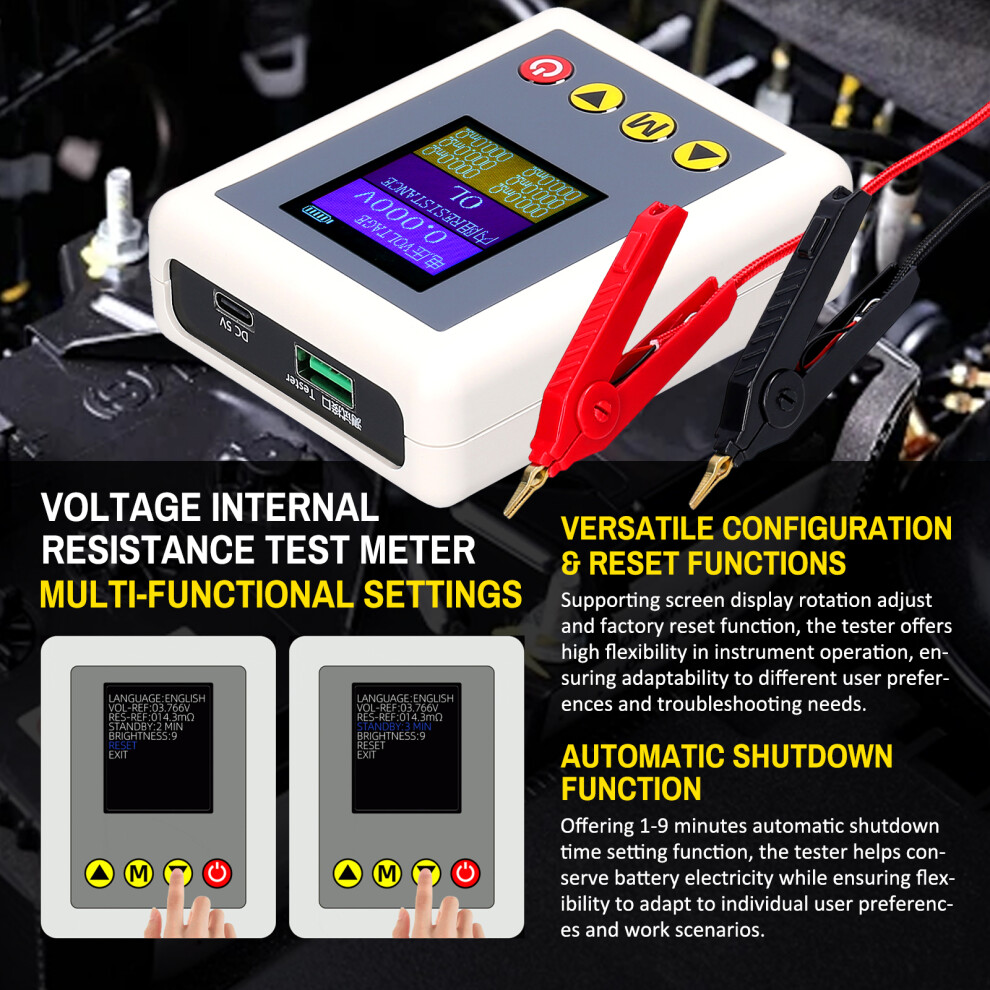

- 【Versatile Configuration & Reset Functions】: Supporting screen display rotation adjust and factory reset function, the tester offers high flexibility in instrument operation, ensuring adaptability to different user preferences and troubleshooting needs.
- 【Automatic Shutdown Function】: Offering 1-9 minutes automatic shutdown time setting function, the tester helps conserve battery electricity while ensuring flexibility to adapt to individual user preferences and work scenarios.
TS4520 Volt/Resistance Tester Screen Rotation Auto Off Calibration Feature Description
TS4520 Entry-Level Voltage Internal Resistance Tester AC 4-Wire Kelvin Method Professional Voltage Meter Internal Resistance Test Device
Name: Voltage Internal Resistance Tester
Material: plastics
Working voltage: 5VDC (do not over-voltage powersupply), need to provide their own powersupply
Powersupply interface: Type-C, need to provide their own powersupply cable
Charging module: integrated ternary lithium battery charging module, you can purchase and add the built-in battery by yourself
Energy consumption: 50mA
Display screen: 1.77-inch TFT color display screen
Test principle: AC 4-wire method
Test fixture: A type USB to Kelvin clip
Voltage test ranges: 0.001V~45.00V
Maximum resolution 0.001V
Voltage display fine-tuning: support
Internal resistance measurement ranges: 0.1mΩ~20.00Ω Maximum Resolution: 0.1mΩ
Internal resistance display fine-tuning: support
Data recording: 6 groups of internal resistance data can be recorded, and automatic recording when disconnecting the test clamp.
Auto shutdown: support 1-9 minutes standby time adjustment
Backlight brightness: support 1-9 levels of display backlight brightness adjustment

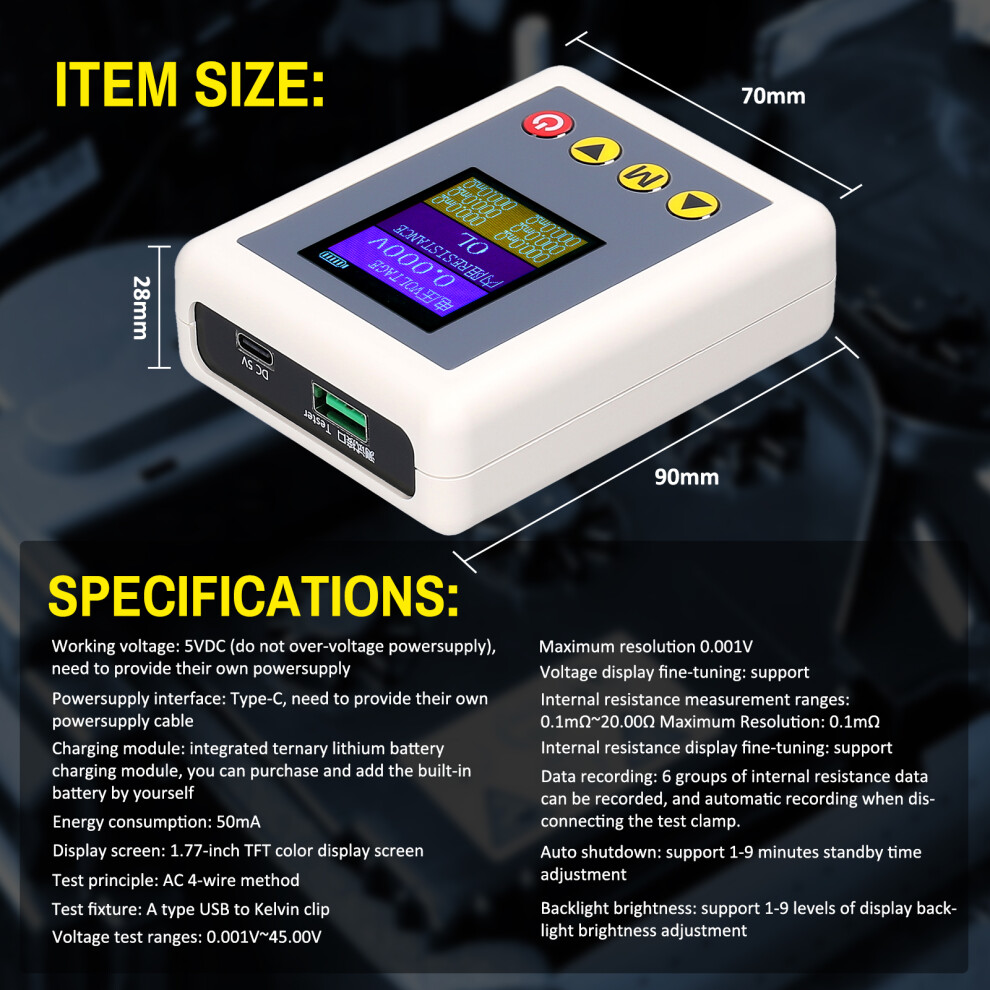

Item size: 70 * 90 * 28mm / 2.76 * 3.54 * 1.10in
Item weight: 134g / 4.72ounce
Package size: 155 * 100 * 40mm / 6.10 * 3.94 * 1.57in
Package weight: 170g / 6.00ounce
Details
| OPC | PKD7HP9 |
|---|---|
| Codes | 4021347592887 (EAN) |
