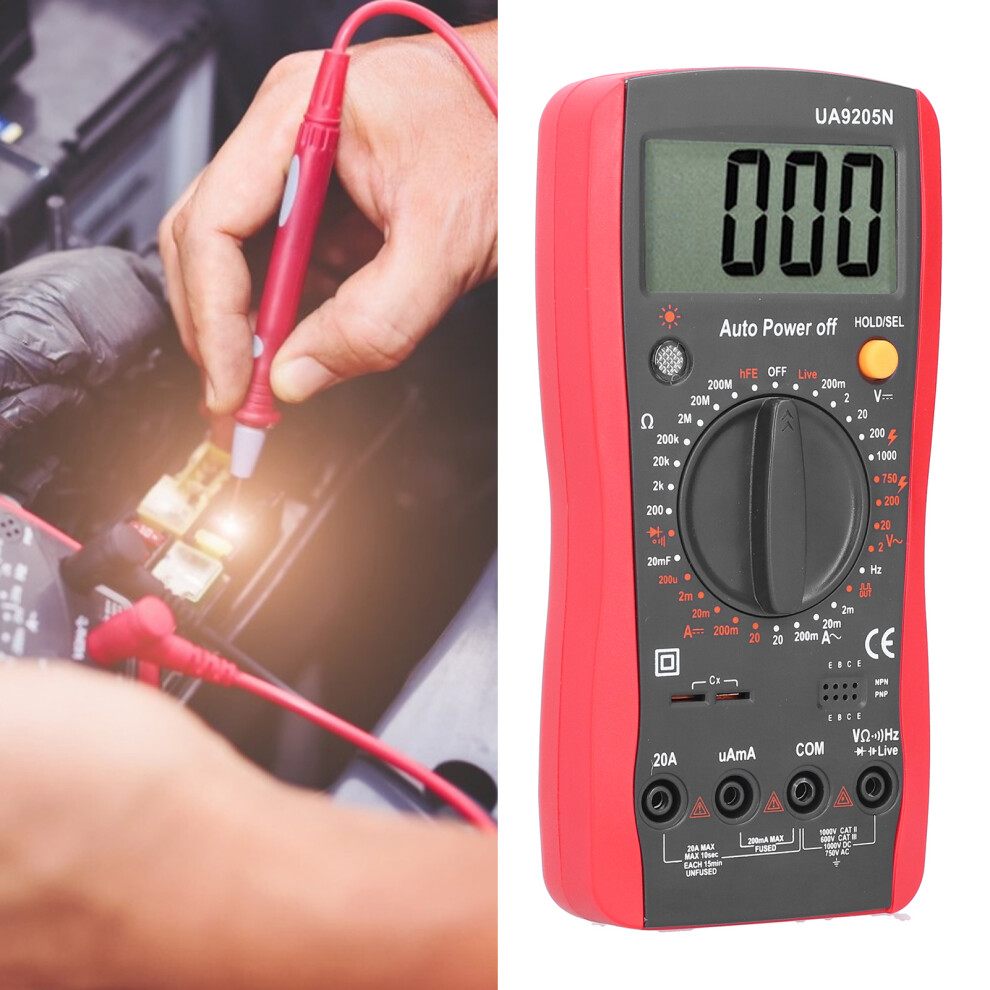

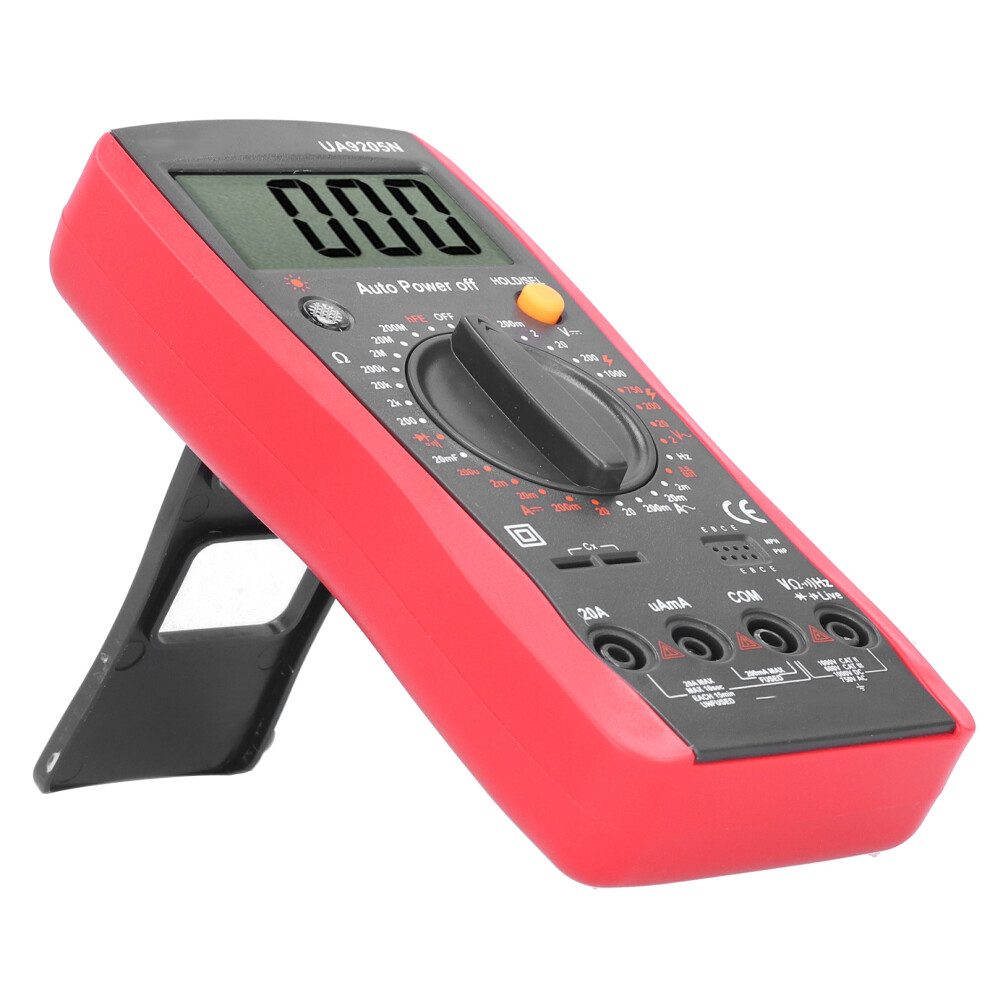

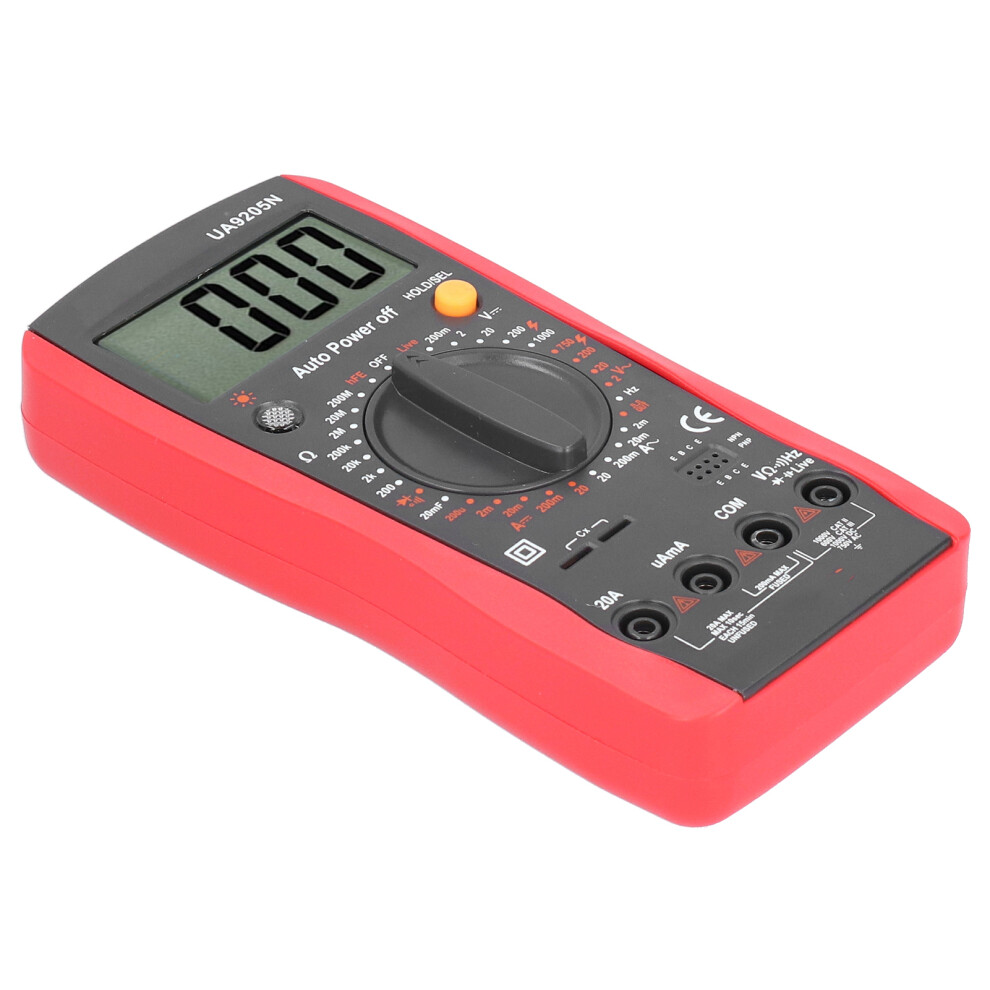

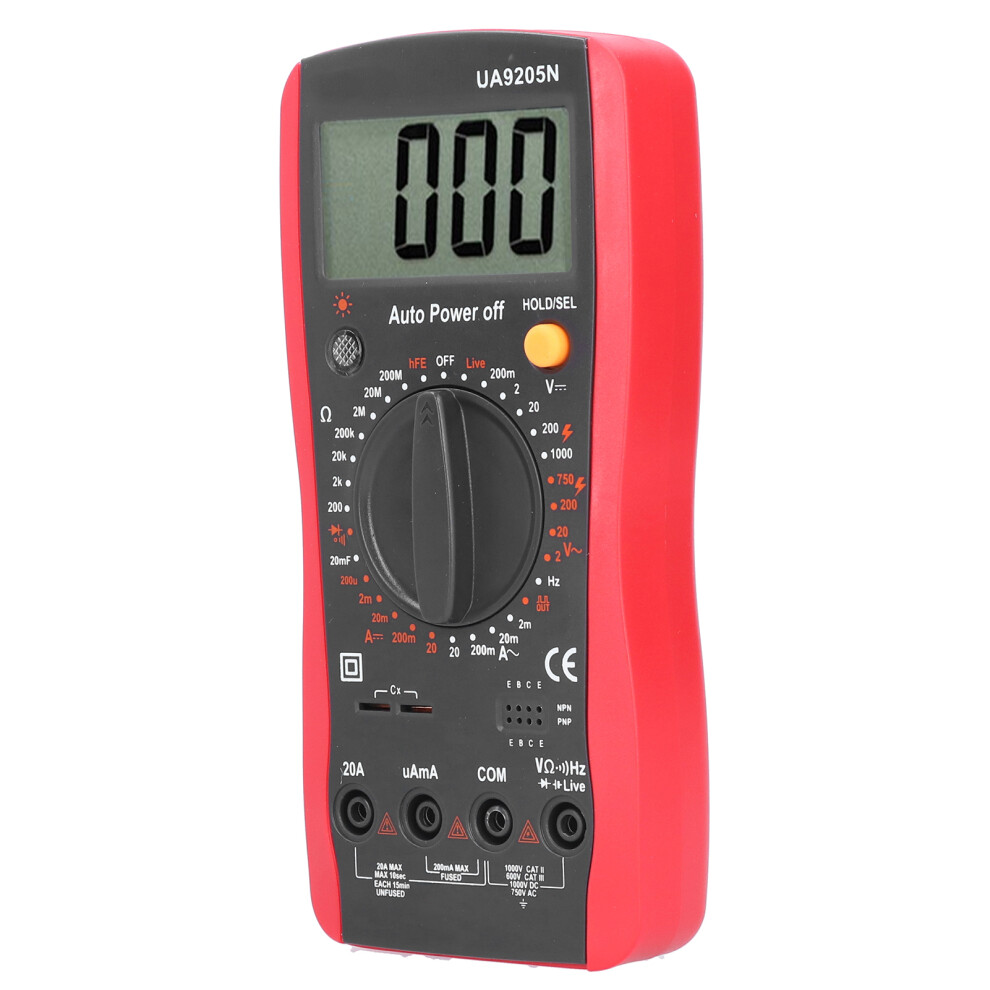

UA9205N LCD Digital Multimeter AC/DC Volt/current Capacitance Resistance 35x190x90mm
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£25.43
£41.02
38% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Wed 22nd Jul
Returns: 30 days
180-day payment protection
Most Popular in Electrical Testers
Description & Details
Summary
- Can measure capacitance, resistance, DC current, AC current, AC voltage, DC voltage, frequency, diode, triode test, true RMS test.
- Suitable for computer maintenance, various electrical appliances, electronic factories, mobile phone inspection, various circuit boards, household inspection.
- Using large LCD display, clear reading, intuitive display and easy operation. And the maximum display value is 1999.
- Support live wire test, OUT block input, strong anti‑interference ability, stable performance, high reliability, and auto power off function.
- The instrument has on-off buzzer, low-voltage indication, data hold, shock/drop protection, input impedance, overload protection, protection functions, etc.
UA9205N LCD Digital Multimeter AC/DC Volt/current Capacitance Resistance 35x190x90mm Description
UA9205N LCD Digital Multimeter AC DC Voltmeter Current Capacitance Resistance Tester Meter
Condition:
Item Type: Digital Multimeter
Material: Plastic
Color: As shown in the picture
Size: Approx.35x190x90mm/1.38x7.48x3.54in
Battery Type: 9V 6F22(Not included)
Basic function
Range
Resolution
Basic accuracy
DC voltage
200mV/2V/20V/ 200V/1000V
1.0V
(0.8%+5)
AC voltage
2V/20V/ 200V/750V
1V
(1.2%+3)
DC current
200uA/2mA/ 20mA/ 200mA/20A
0.01A
(2.0%+5)
AC current
2mA/ 20mA/ 200mA/20A
0.01A
(2.5%+10)
Capacitance
19.99nF/199.9nF/ 1.999uF/19.99uF/199.9uF/1.999mF/19.99mF
0.01mF
(4.0%+10)
Resistance
200Ω/2kΩ/20kΩ/ 200kΩ/ 2MΩ/ 20MΩ/ 200MΩ
0.1MΩ
(4.0%+20)
Frequency
1.999Hz/ 19.99Hz/ 199.9Hz/1.999kHZ/19.99KHz/199.9KHz/1.999MHz
0.001MHz
(1.0%+3)
Square wave output
50Hz-1000Hz/2.0KHz/4.0KHz/5.OKHz
Hz/KHz
(3.0%+5)
Special function
Diode test
Yes
Triode test
Yes
True RMS
Yes
On-off buzzer
Yes
Low voltage indication
Yes
Data hold
Yes
Automatic shut-down
Yes
Protective function
Yes
Shock/drop protection
Yes
Input resistance
Yes
Overload protection
Yes
Maximum display
1999
Operation method
Manual range
Sampling frequency response
60Hz
