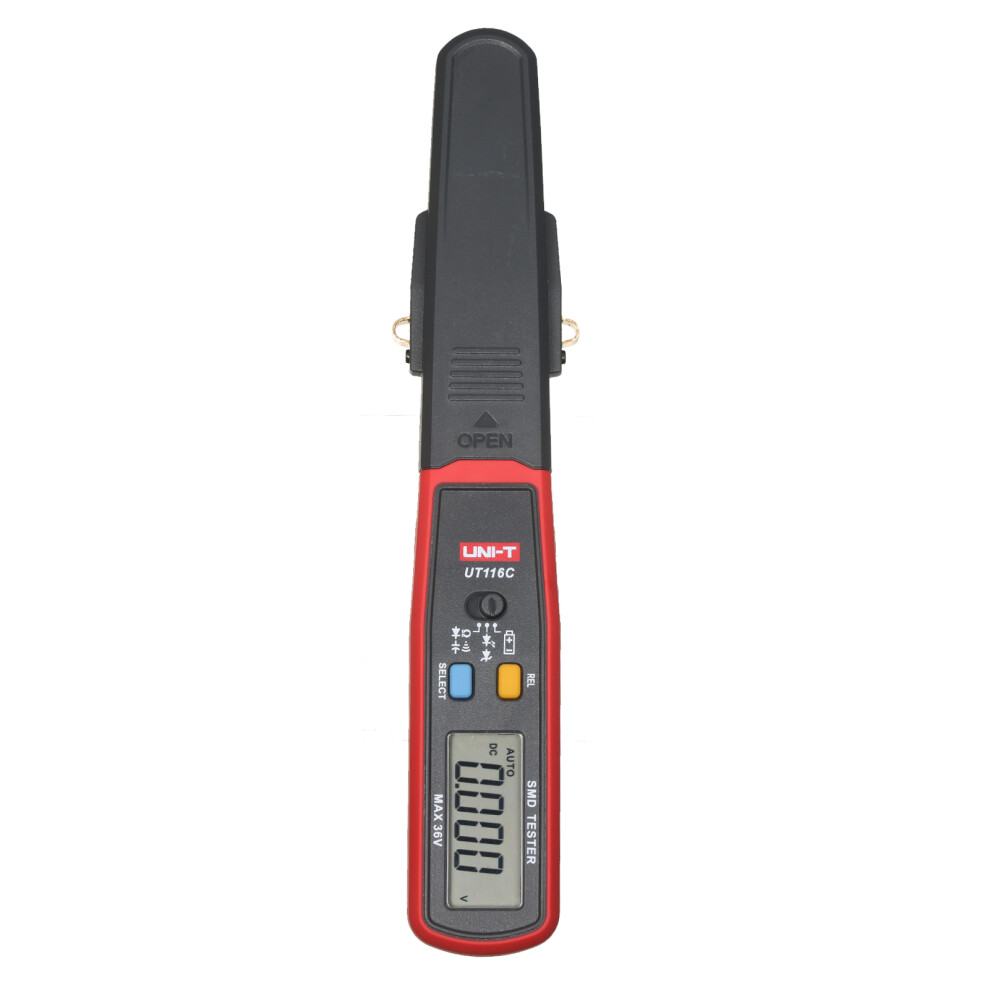

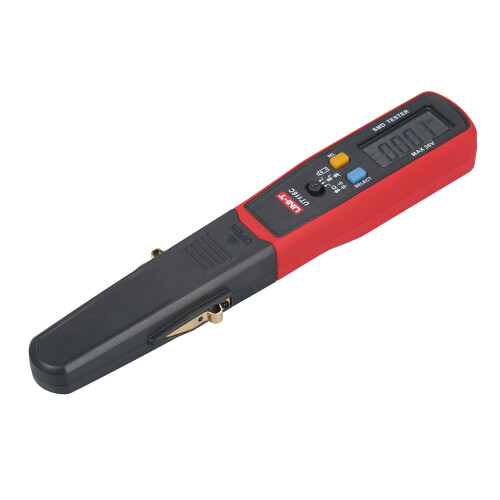

UNI-T UT116C SMD Digital Multimeter Resistance Capacitance Diode Tester

UNI-T UT116C SMD Digital Multimeter Resistance Capacitance Diode Tester Description

UNI-T SMD Tester Resistor Capacitor Diode (RCD) Parameter Meter LCD Auto Range SMD Digital Multimeter

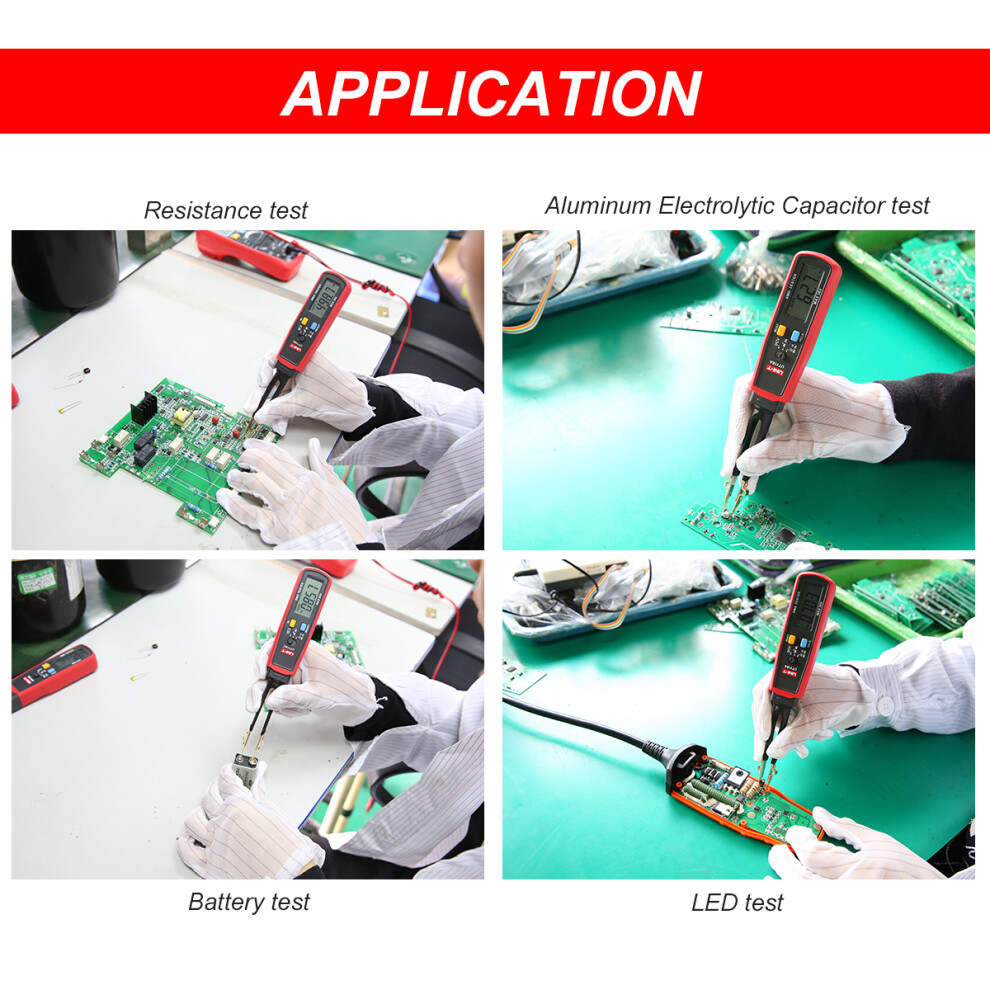

This product is a miniaturized, integrative, instrument for measurements of SMD resistance, capacitance, diode (RCD) parameters and battery voltage. In addition, it can also be used for LED, zener diode and on/off circuit testing. This tester is a great tool for electronic factories and electronic devices maintenance.
Features:
The UT116C is designed for measurement of resistance, capacitance, diode, battery voltage; and can also do on or off circuit and zener diode polarity/LED testing.

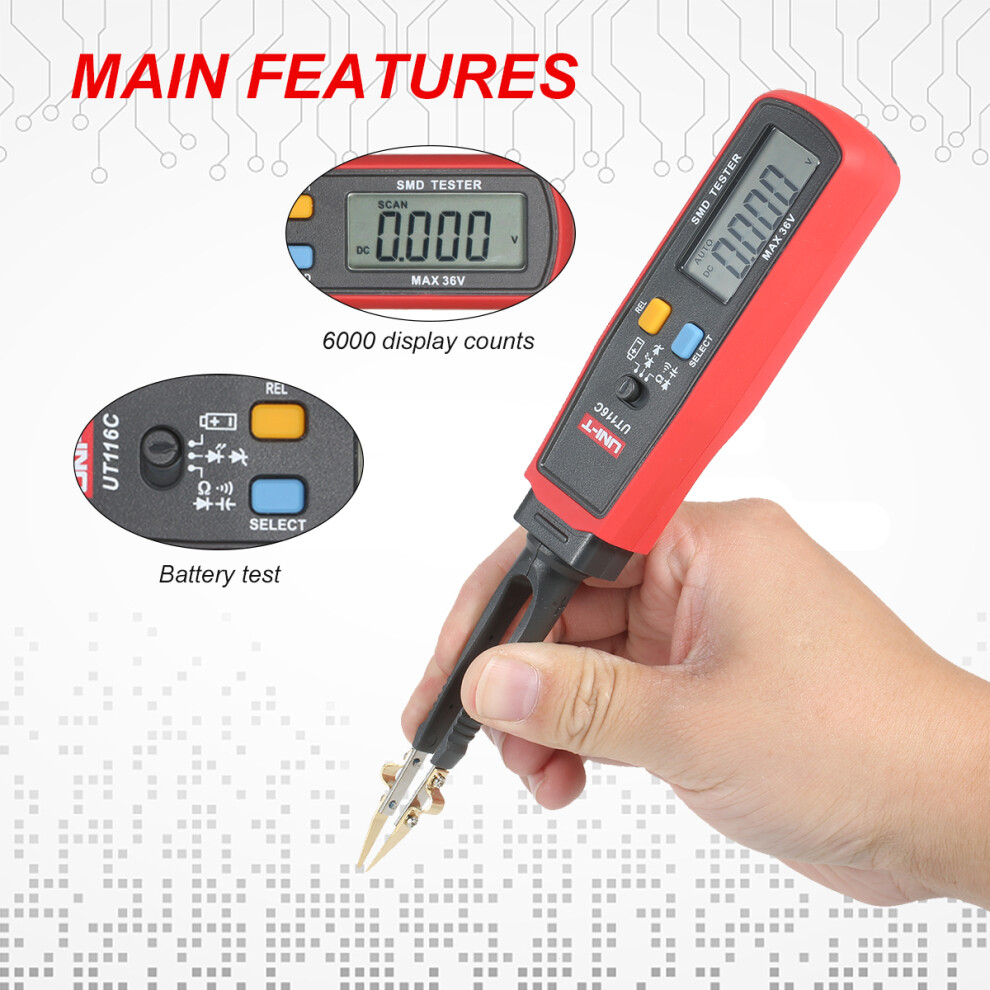

With practical features, such as auto-range, data hold, low battery indicator, LCD display with 6000 counts，and auto-power off.

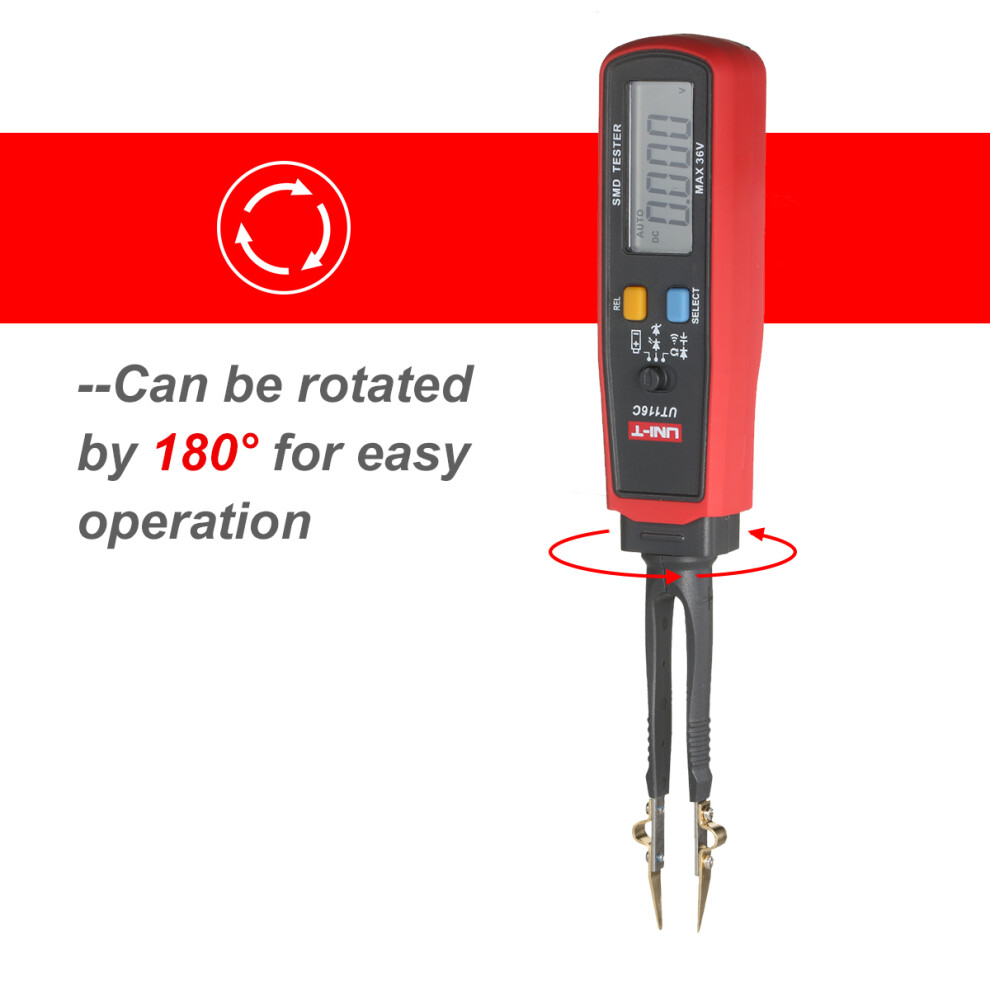

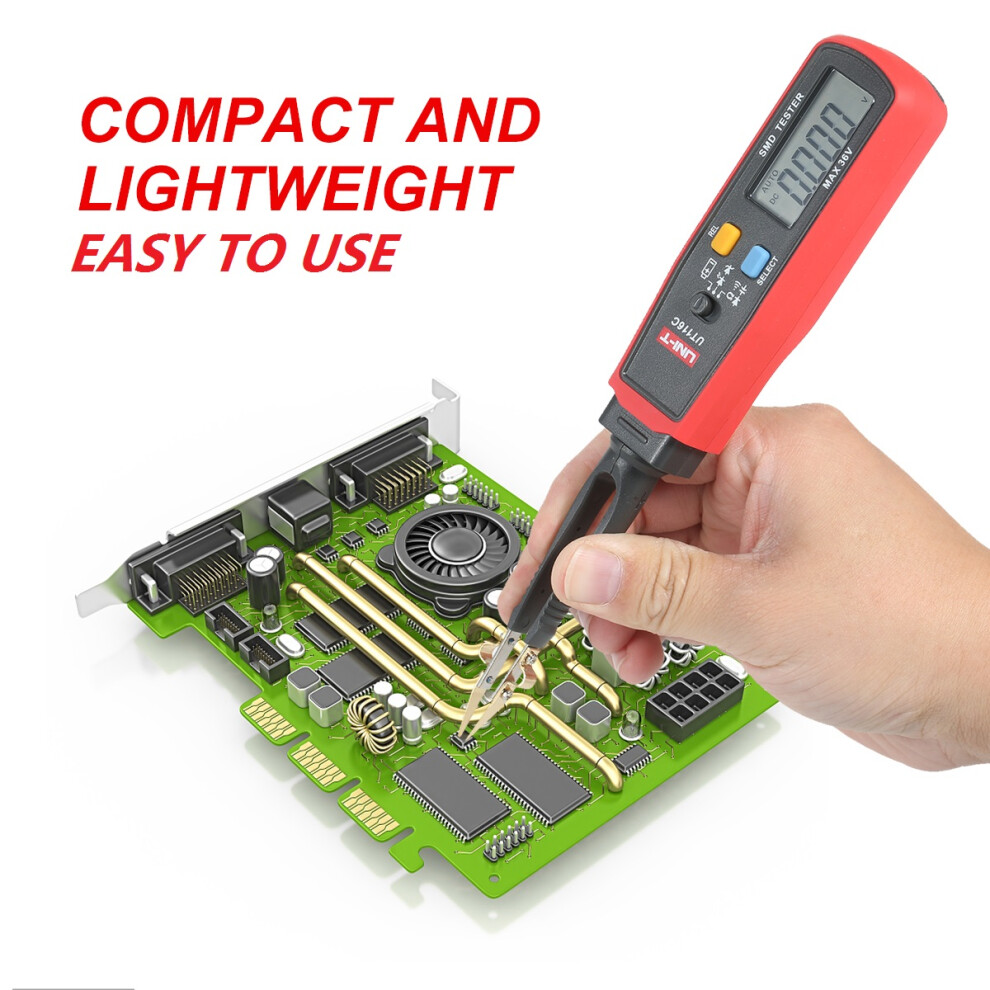

Compact and portable, the pen can be rotated by 180for easy reading and operation.

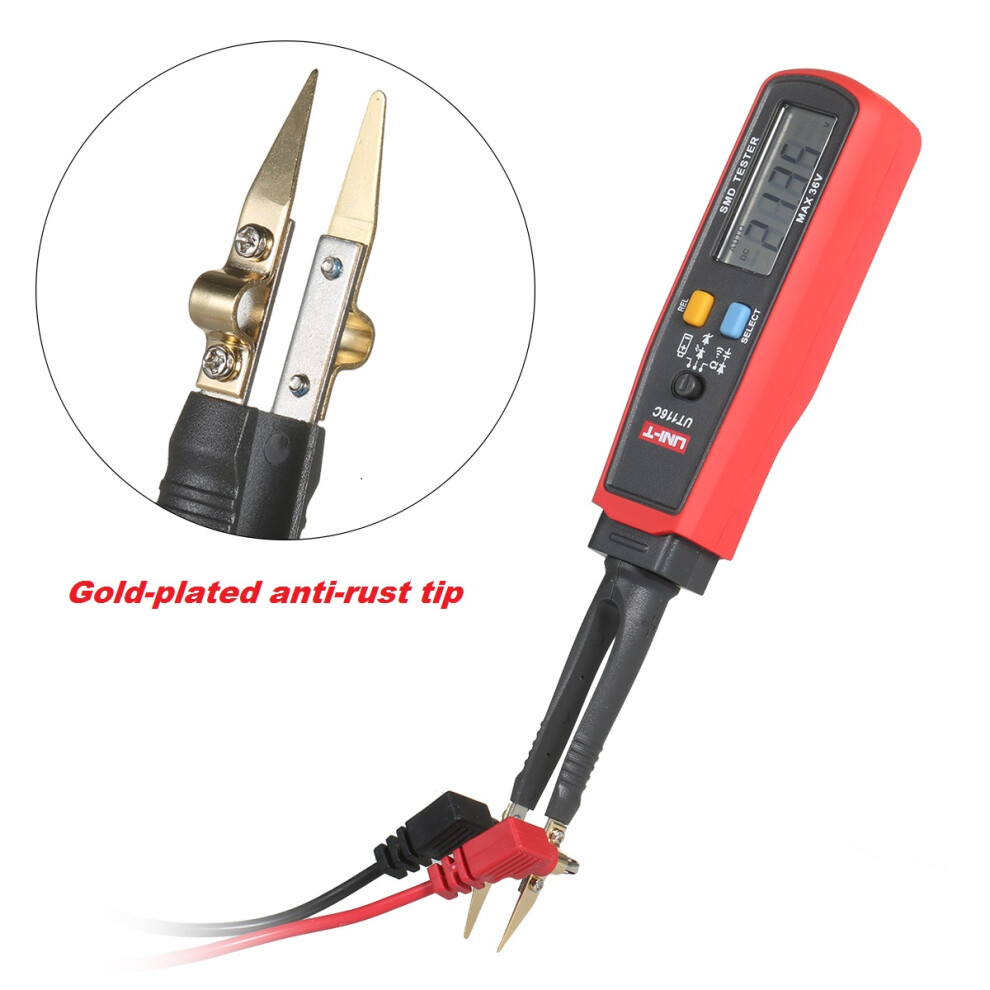

Constructed with ABS housing and gold-plated tip to prevent rust.
Ideal tool for electronic engineers, repairman or professionals who engaged in SMD testing.

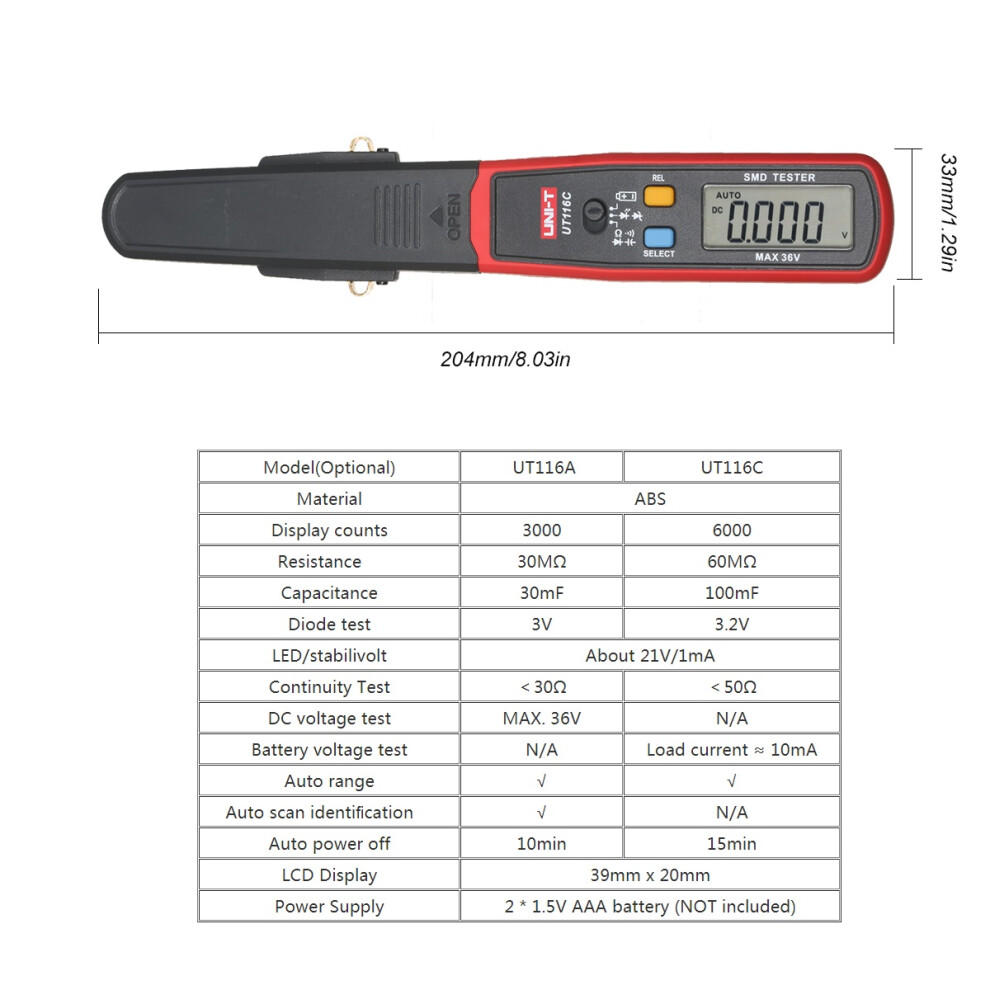

Specifications:

Model(Optional)
       UT116A
UT116C
Material
ABS
Display counts
3000
6000
Resistance
30MΩ
60MΩ
Capacitance
30mF
100mF
Diode test
3V
3.2V
LED/stabilivolt
About 21V/1mA
Continuity Test
30Ω
50Ω
DC voltage test
MAX. 36V
N/A
Battery voltage test
N/A
Load current 10mA
Auto range


Auto scan identification

N/A
Auto power off
10min
15min
LCD Display
39mm x 20mm
Power Supply

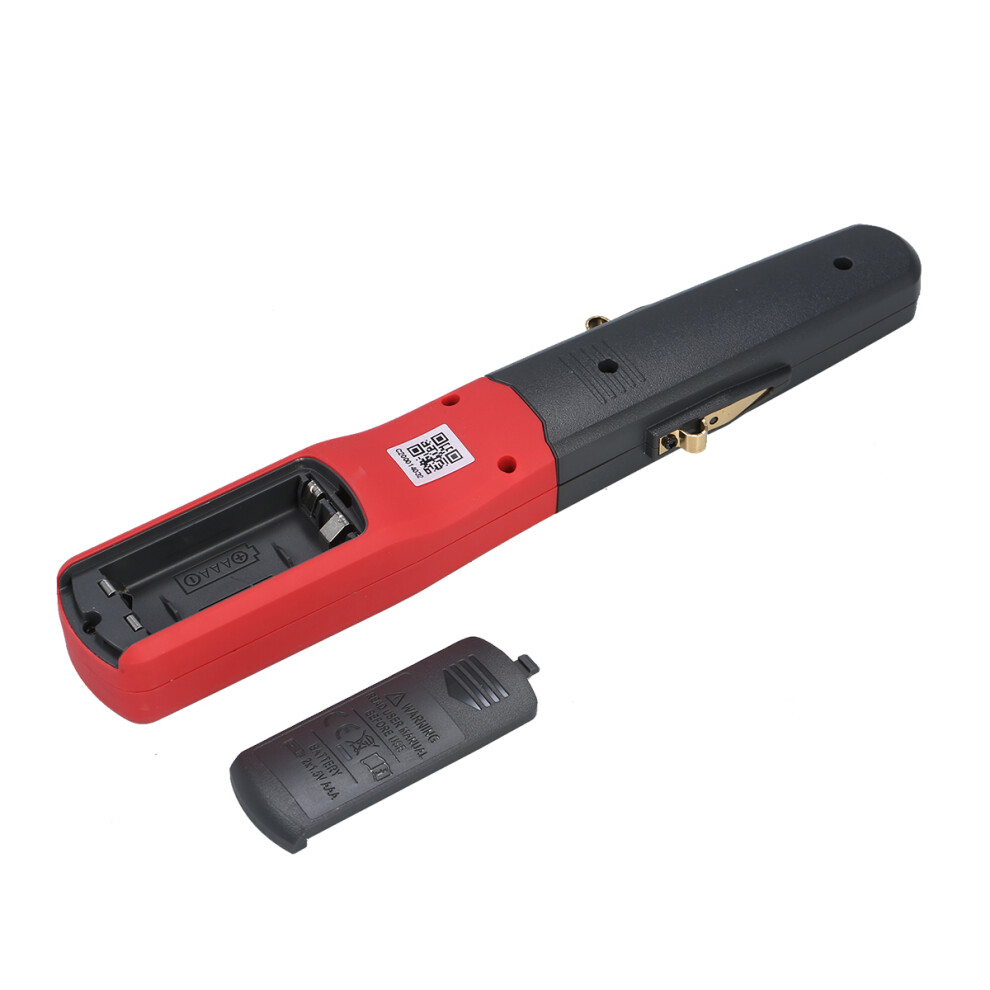

2 * 1.5V AAA battery (NOT included)
Item Size: 204 * 33 * 25mm / 8.03 * 1.29 * 0.98in
Item Weight: 80g / 2.82oz
Package Weight: 167g / 5.89oz
Package Size: 21.5 * 6.6 * 4.6cm / 8.46 * 2.59 * 1.81in

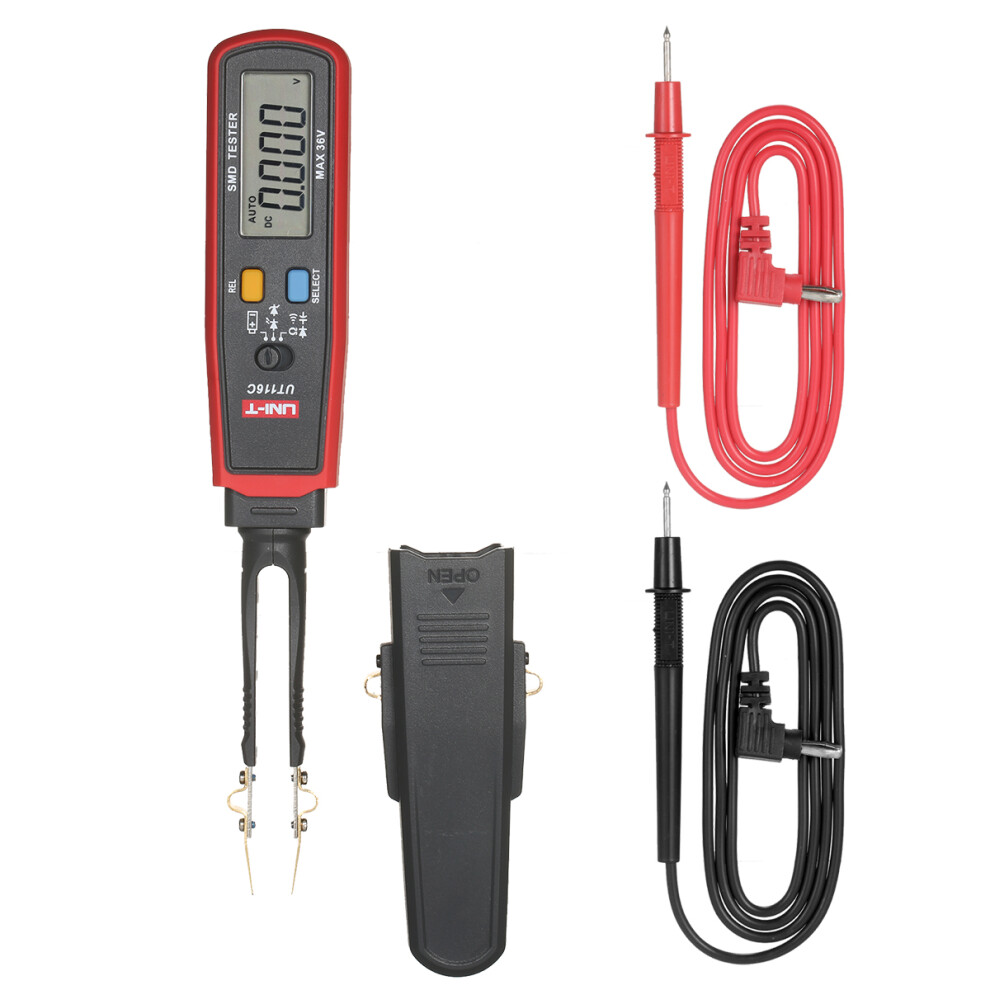

Packing List:
1 * SMD Tester
2 * Spare test clamps

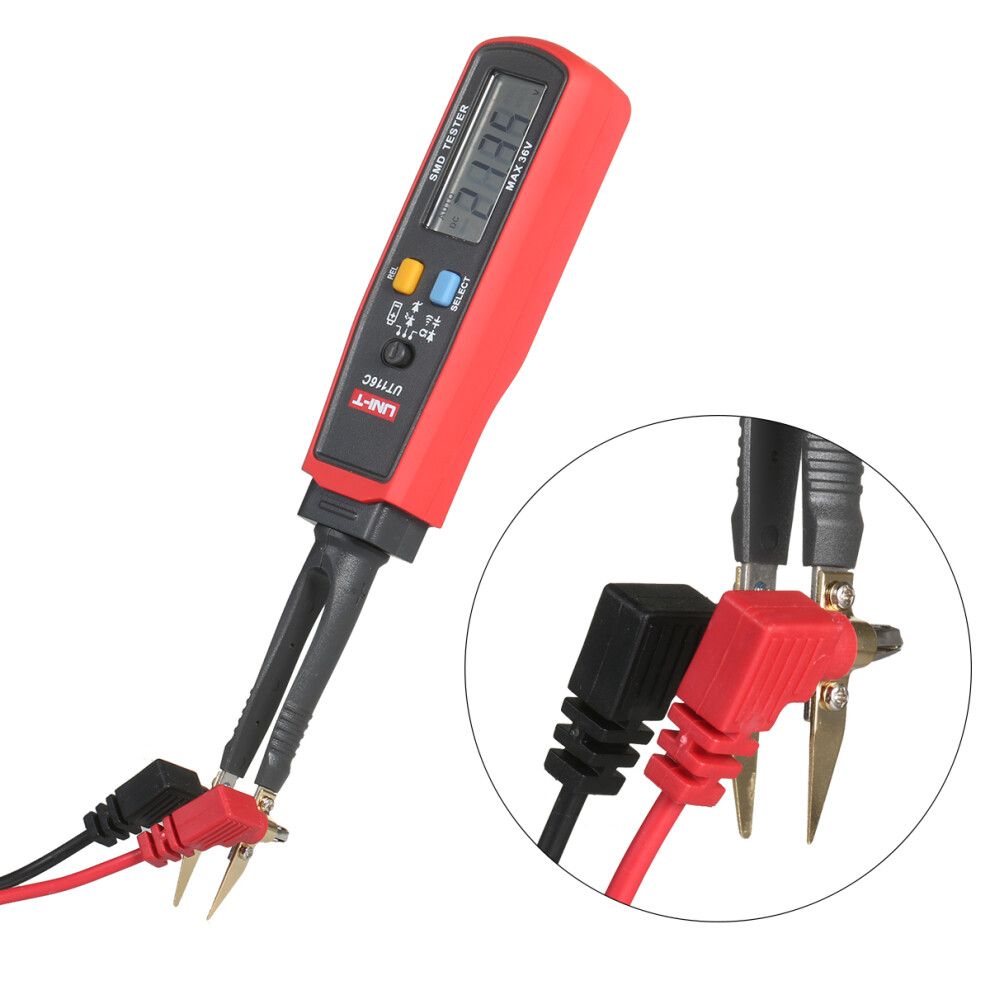

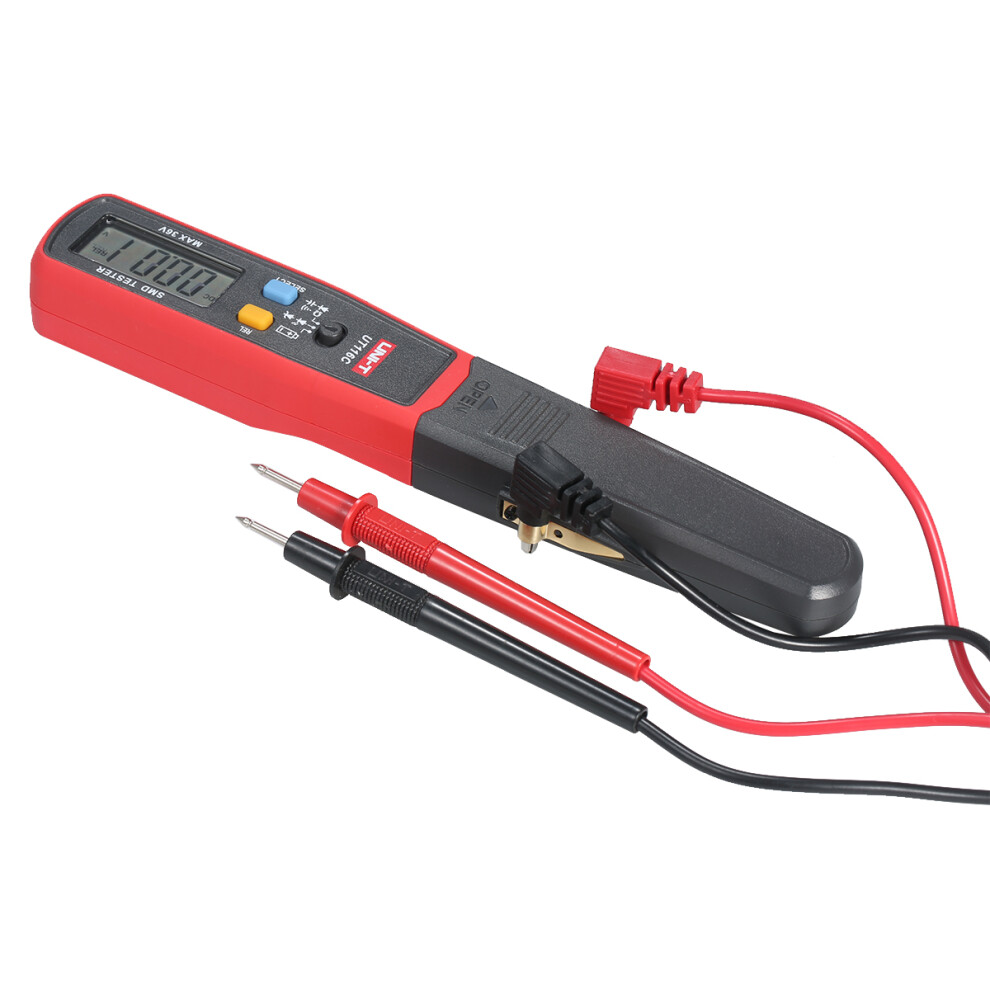

1 * Pair of dedicated test leads
1 * User Manual (English)
