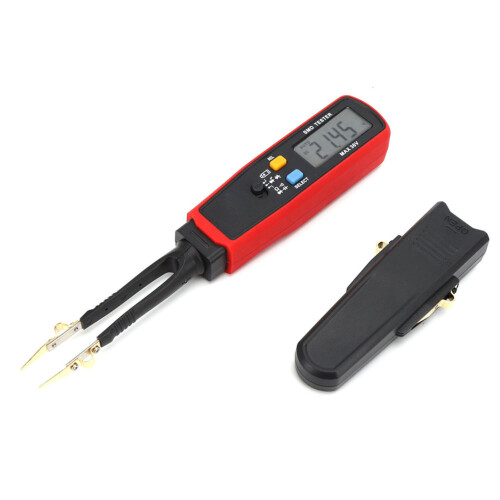

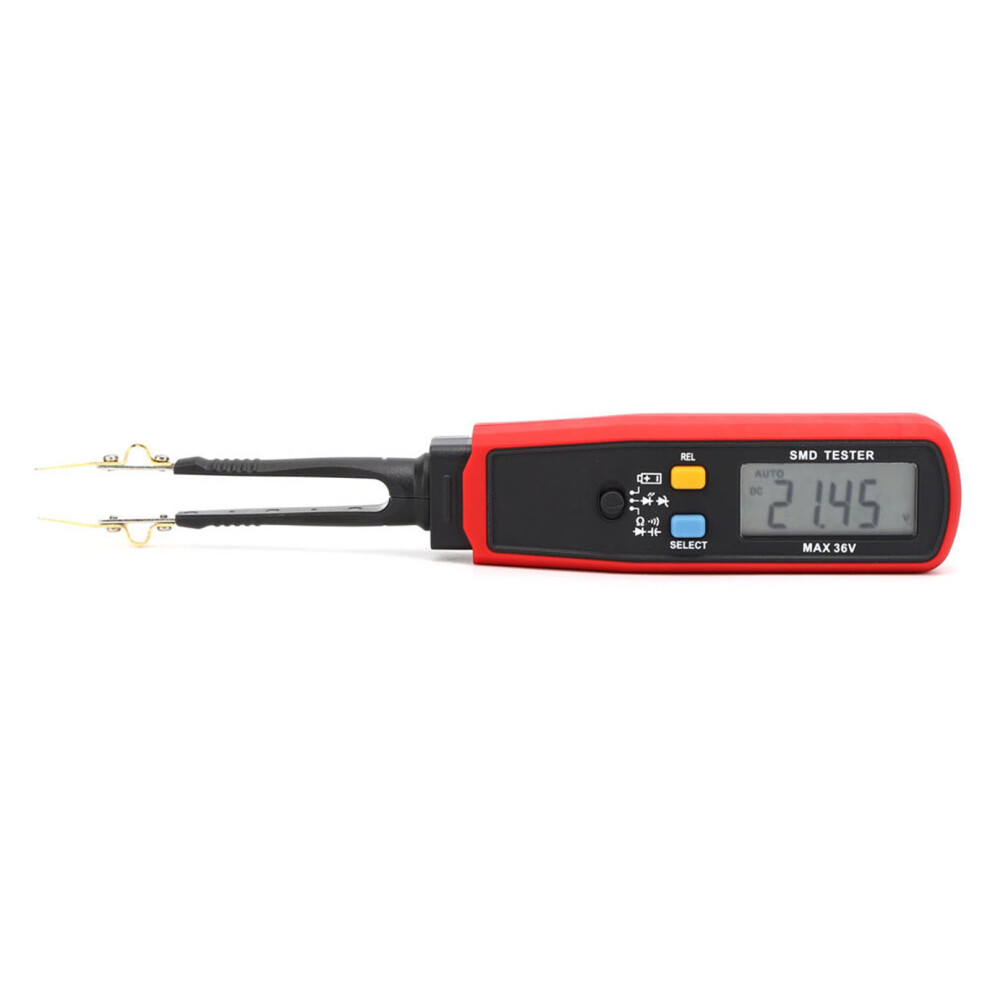

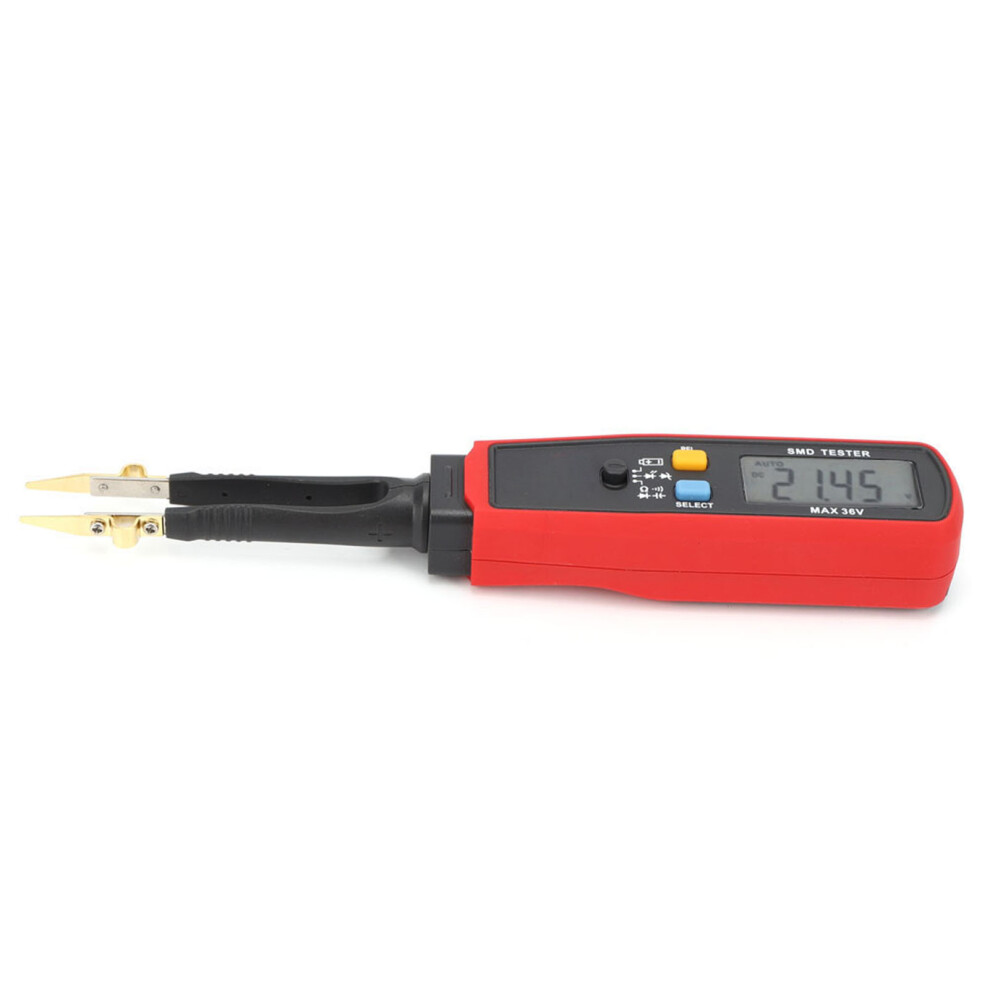

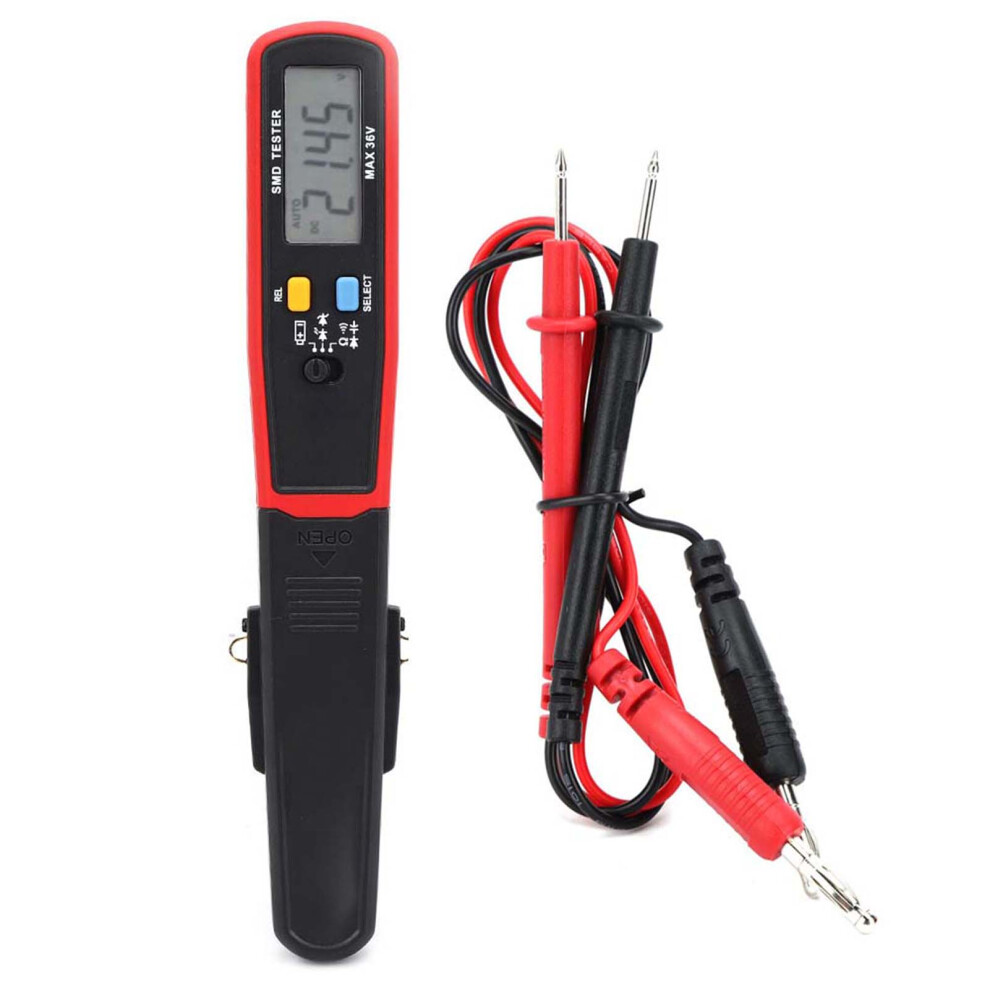

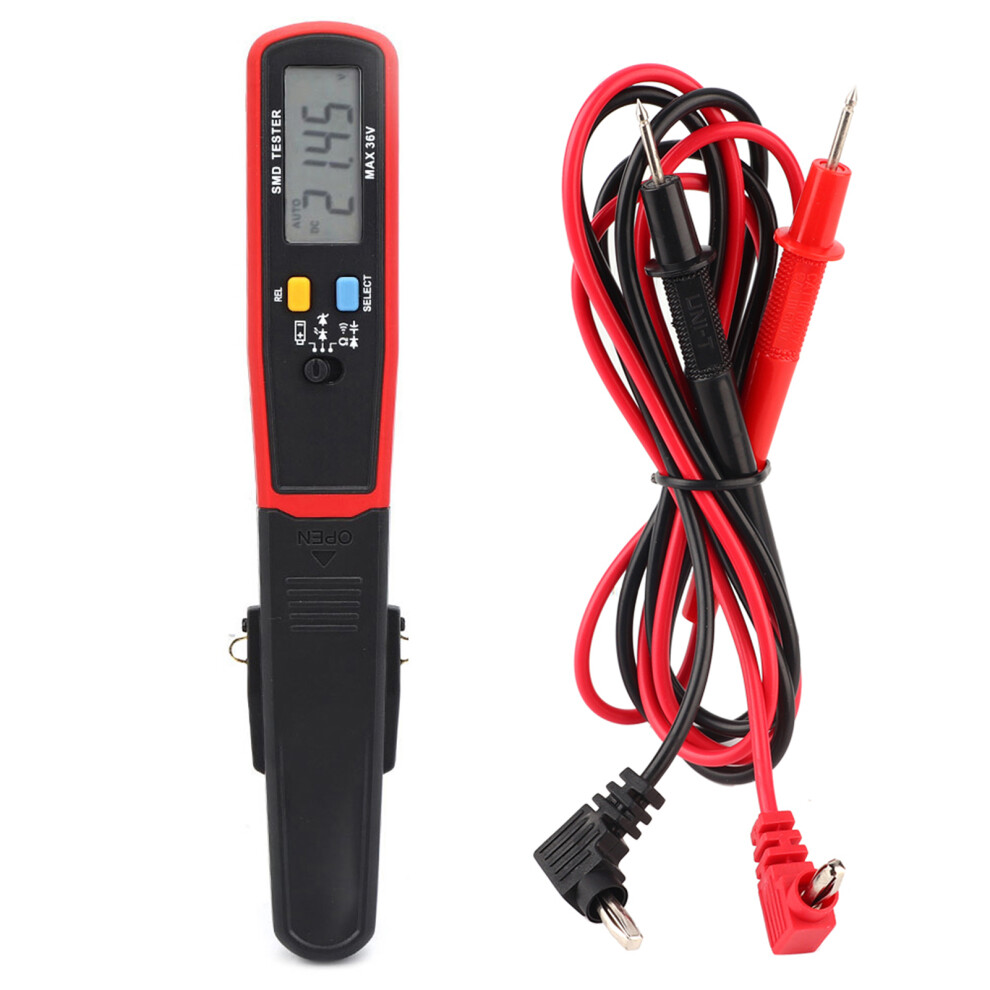

UT116C SMD RCD Multimeter Tester - Resistance Capacitance Diode

UT116C SMD RCD Multimeter Tester - Resistance Capacitance Diode Description

UT116C Tester for SMD Resistance Capacitance Diode (RCD) Multimeter Testing Equipment
Condition:
Item Type: Multimeter
Material: ABS
Application: It is widely used in the measurement for SMD resistance, capacitance, and diode (RCD) parameters.
UT116C
Function
Range
Resolution
Accuracy (a% Reading + b% Digit)
Resistance
600Ω
0.1Ω
(1.0% Reading +10)
6KΩ
1Ω
60KΩ
10Ω
600KΩ
100Ω
6MΩ
1KΩ
(1.5% Reading +10)
60MΩ
10KΩ
(2.5% Reading +10)
Capacitance
9.999nF
0.001nF
(3.0% Reading +20)
99.99nF
0.01nF
(2.5% Reading +10)
999.9nF
0.1nF
9.999μF
1nF
99.99μF
10nF
999.9μF
100nF
(3.5% Reading +25)
9.999mF
1μF
(5% Reading +50)
99.99mF
10μF
For Reference
Continuity Test
50Ω sound, 100Ω buzzer does not sound, 50Ω to 100Ω may or may not sound
Diode
Forward 4148: 500mV~800mV. Open circuit voltage is about 3.2V, measuring current is about 2mA
Battery Measurement
Load current is about: 10mA; (1.5% reading +5)
DC Voltage
No
Semiconductor / LED
Open circuit voltage: about 21V, if the display voltage exceeds 21V, it will not damage the semiconductor or LED under test; current: about 5mA
SELECT
Yes
HOLD
Yes
Sleep Function
About 15min, standby current <20uA, short press SELECT button to wake up
Low Voltage Detection
About <2.7V display ''low battery''
Power Supply
1.5V 2 x AAA Battery (Not Included)
Color
Red + Gray

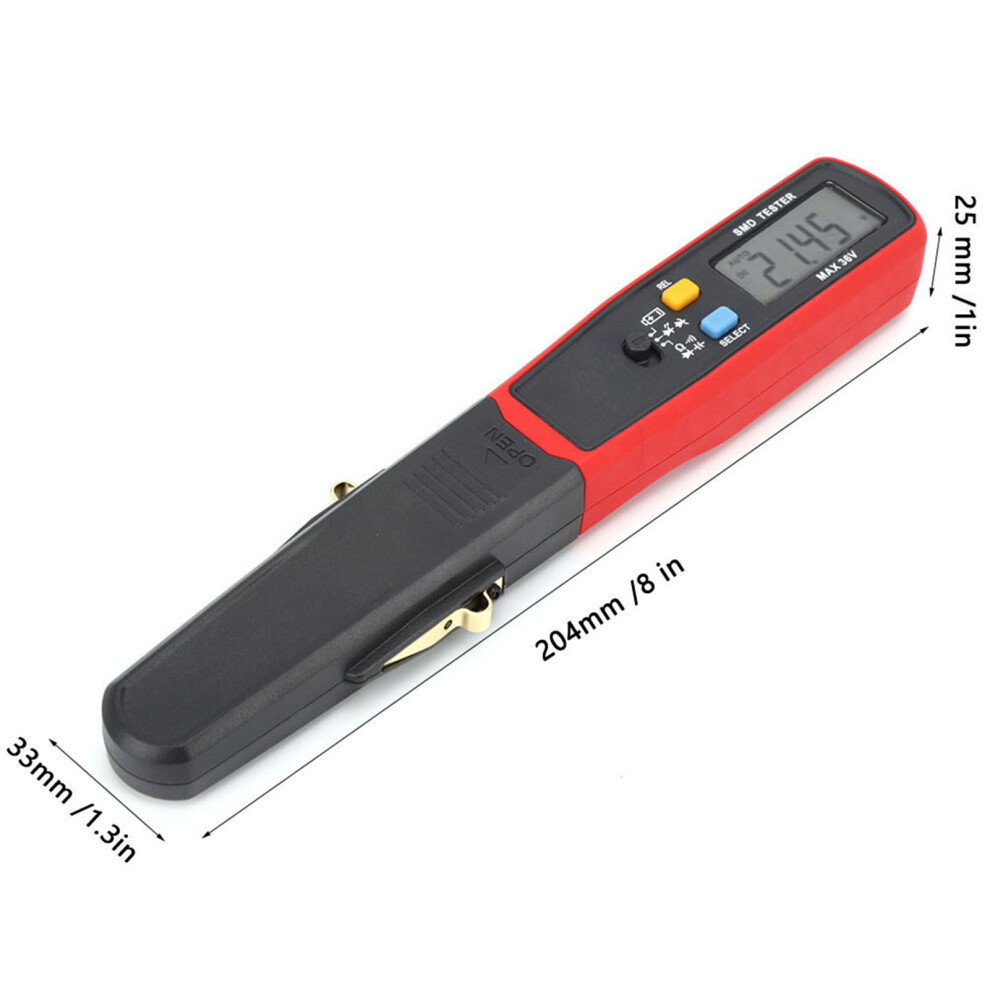

Product Size
Approx. 204 x 33 x 25 mm / 8 x 1.3 x 1 in
Weight
Approx. 151g / 5.3oz
