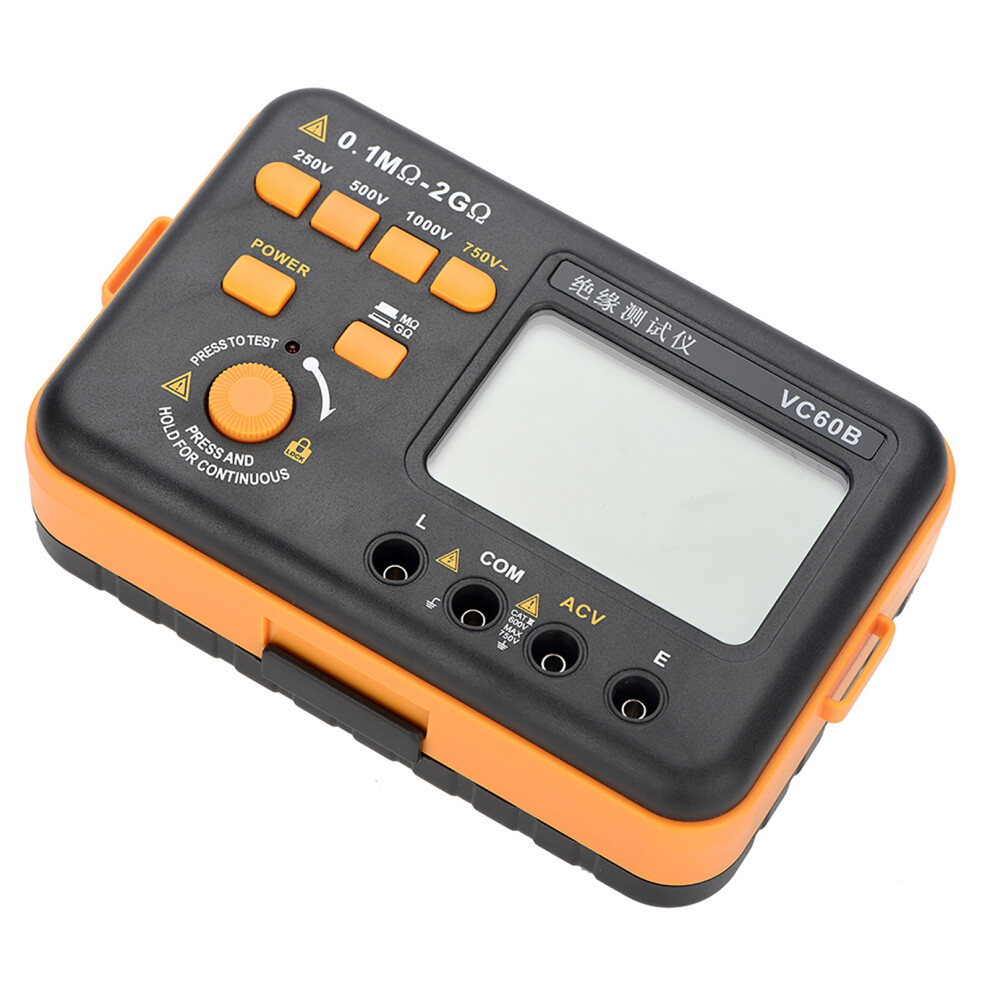

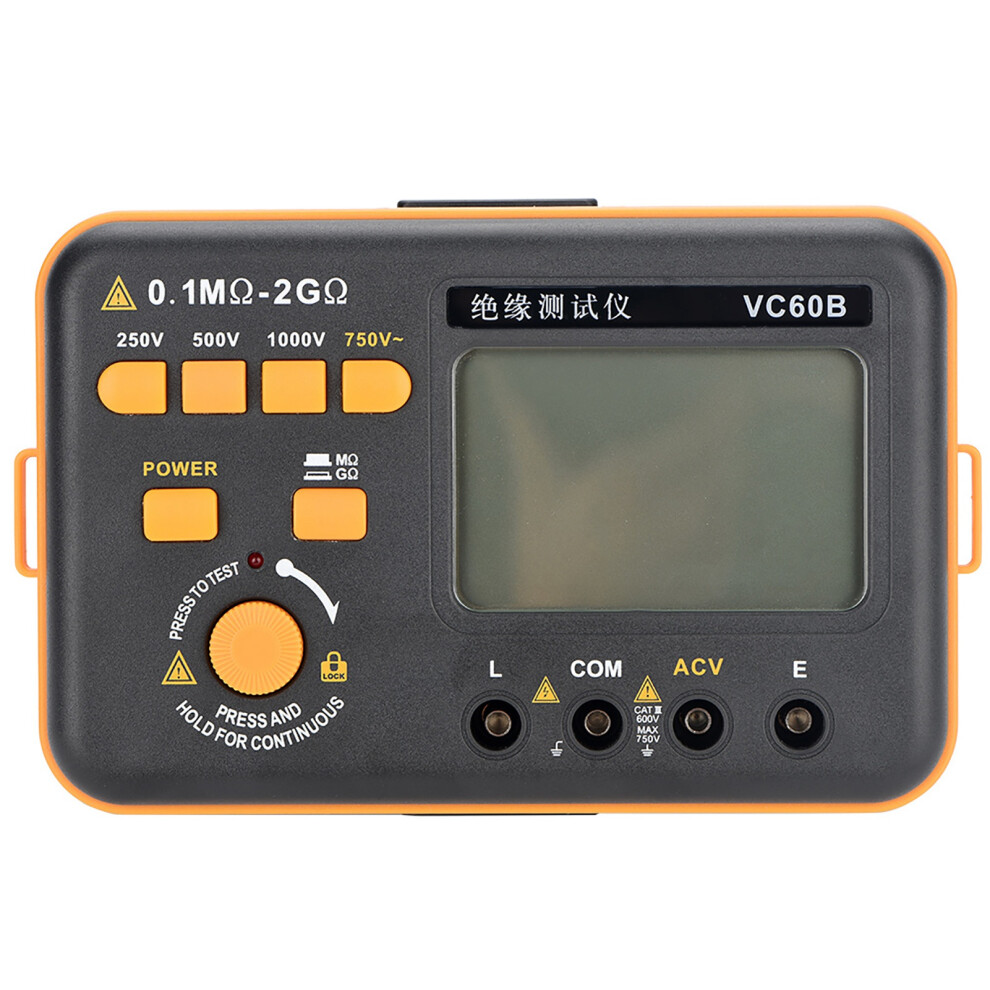

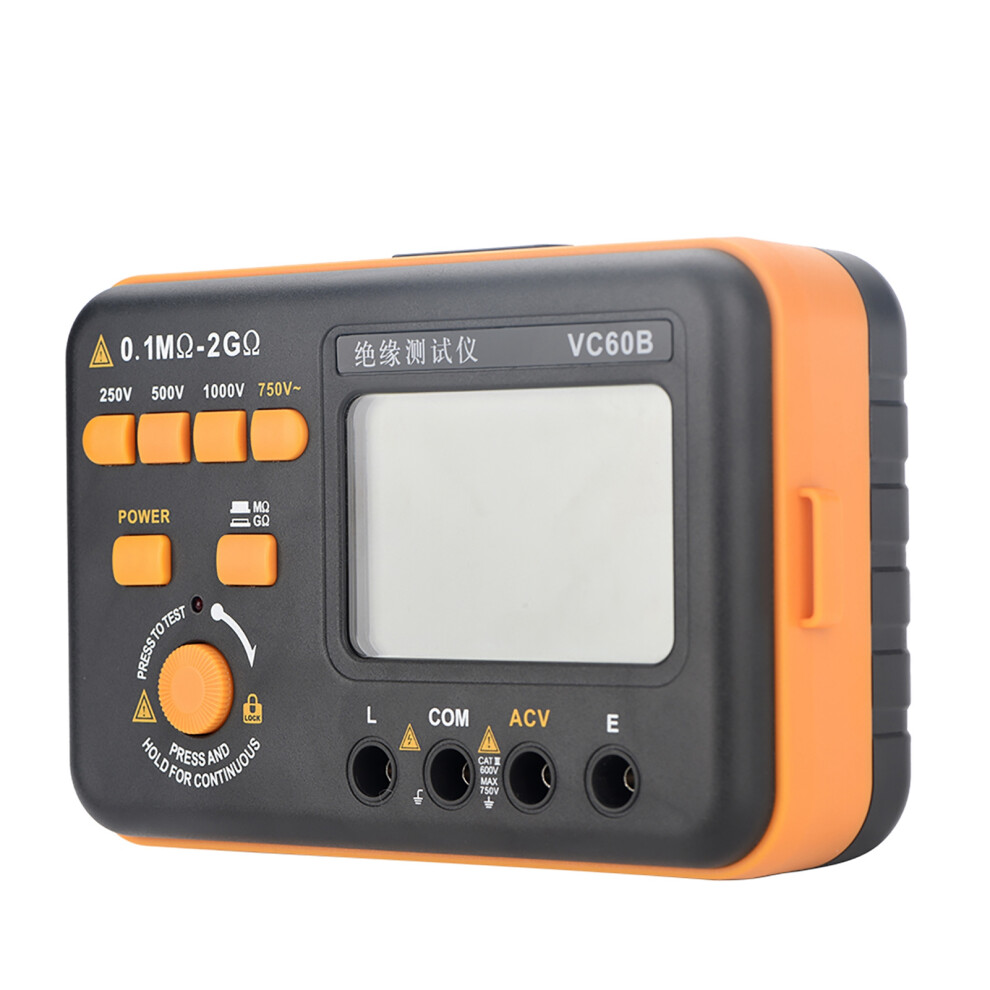

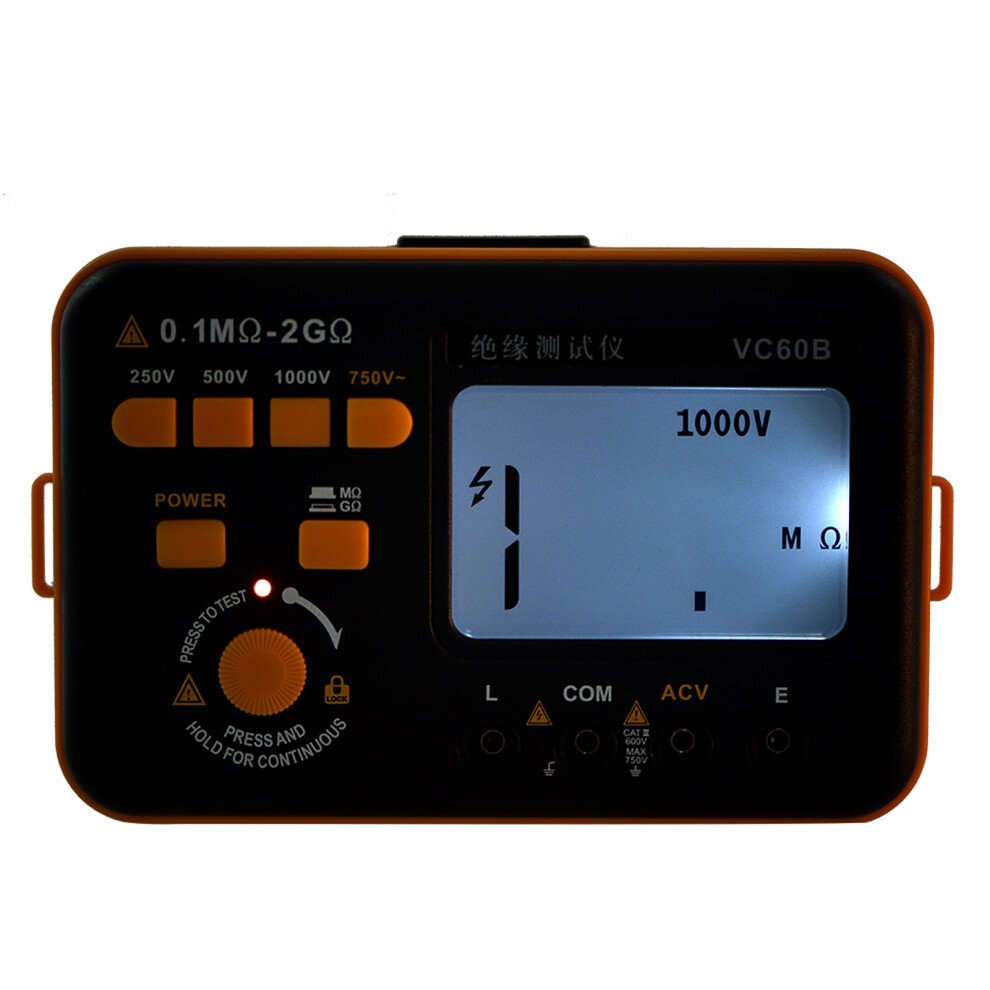

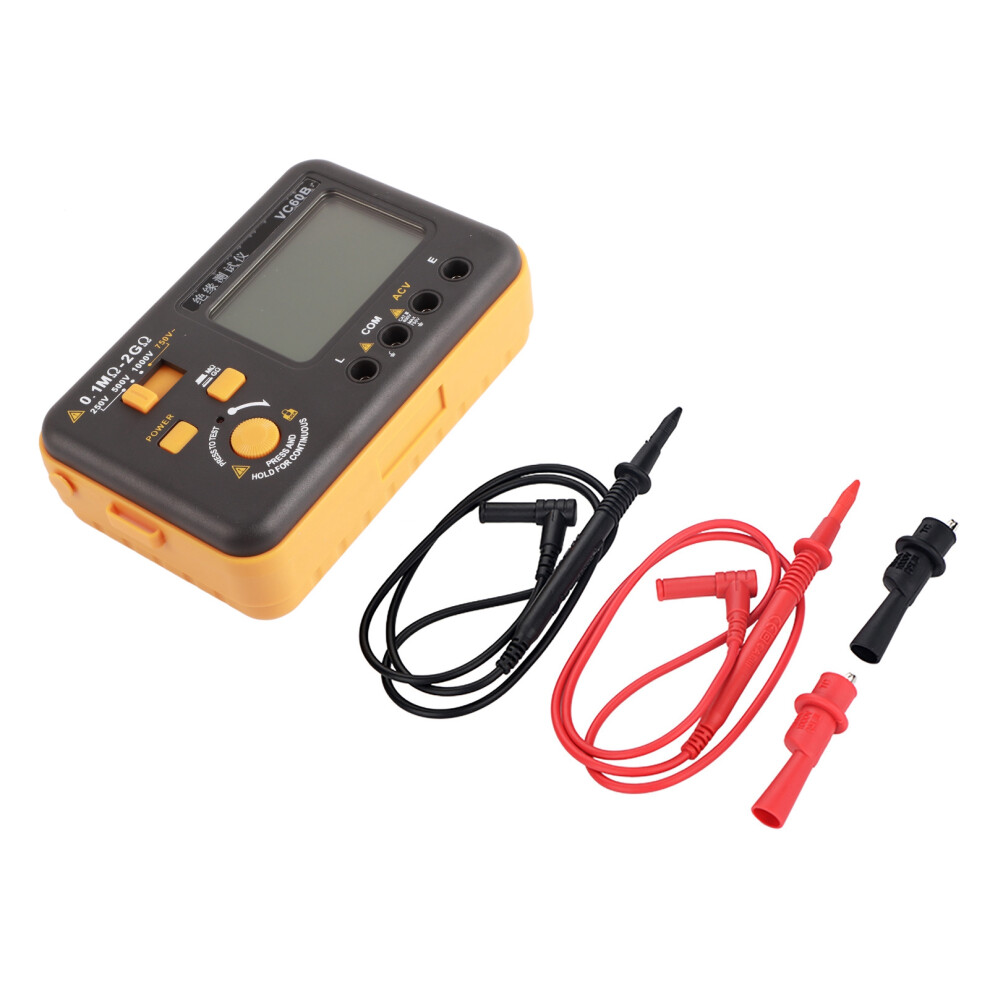

VC60B LCD Digital Insulation Resistance Tester 200MΩ/2GΩ

VC60B LCD Digital Insulation Resistance Tester 200MΩ/2GΩ Description

1、3-1/2 digit display, maximum reading 1999. 2、Test voltage of /500V/1000V. 3、The load capacity is strong, accurate, reliable and stable. 4、Insulation resistance range is 200MΩ/2Ω. 5、It has measuring data hold function.
Features:
3-1/2 digit display, maximum reading 1999.
The load capacity is strong, accurate, reliable and stable.
Insulation resistance range is 200MΩ/2Ω.
Powered by 6 AA batteries(not included), longer use time.
It has measuring data hold function.
Specifications:
Model: VC60B
LCD Display: 80*52mm
Max. Reading: 1999
Over-range Indication: Display "1"
Power Supply: 6pcs AA batteries (NOT included)
Low Battery Indication: Yes
Quiescent Power Consumption: 10mA
Maximum Current: 280mA
Voltage
Range
Measuring Range
Resolution
Medium Resistance
Uncertainty
250V
200MΩ
5M~200M
0.1M
10M
(4%+8d)
2GΩ
50M~2G
1M
20M
500V
200MΩ
5M~200M
0.1M
10M
2GΩ
50M~2G
1M
20M
1000V
200MΩ
5M~200M
0.1M
20M
2GΩ
50M~2G
1M
200M
(10%+5 d)
Measuring Range
Resolution
Uncertainty
750V
1V
(1.0%+3d)
AC Frequency Response: 40Hz~400Hz
Display: Sine wave effective value (average value response)
Operating Temperature: 0~40
Operating Humidity: 30%RH~80%RH
Storage Temperature: -10~+50
Storage Humidity:
