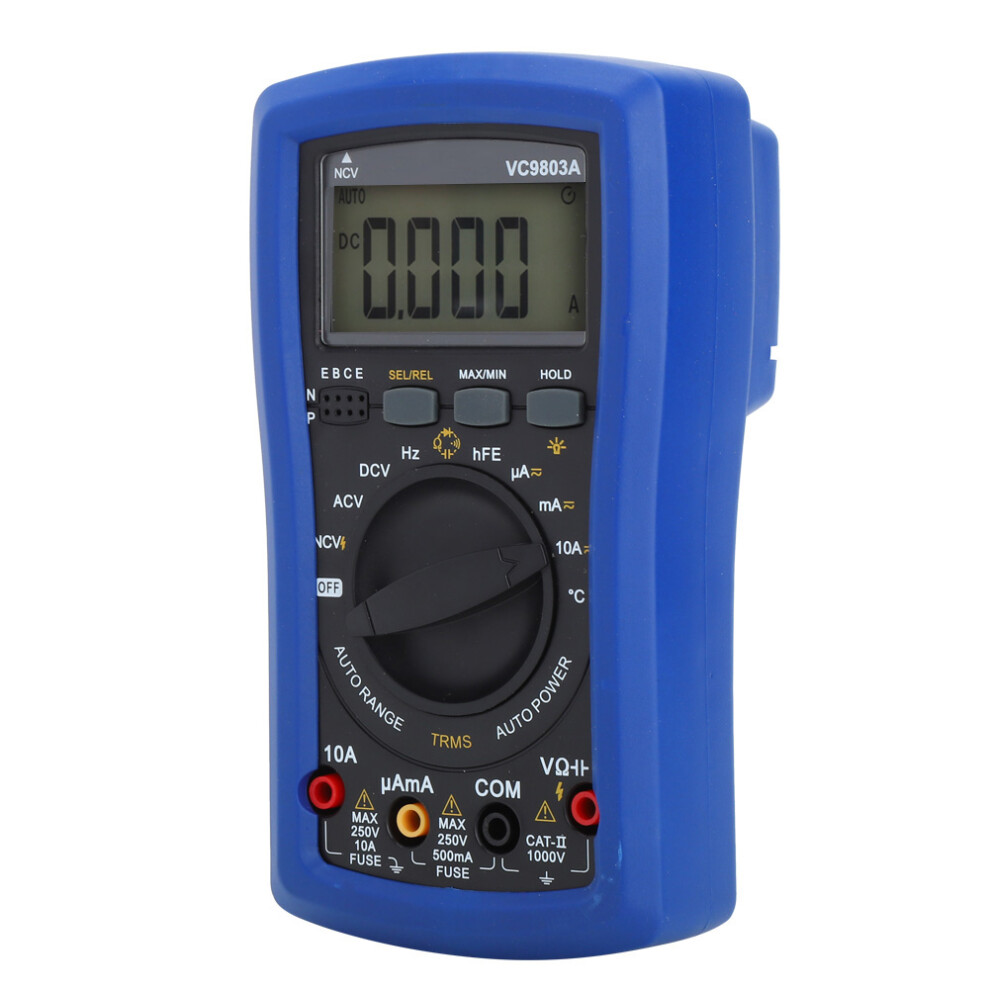

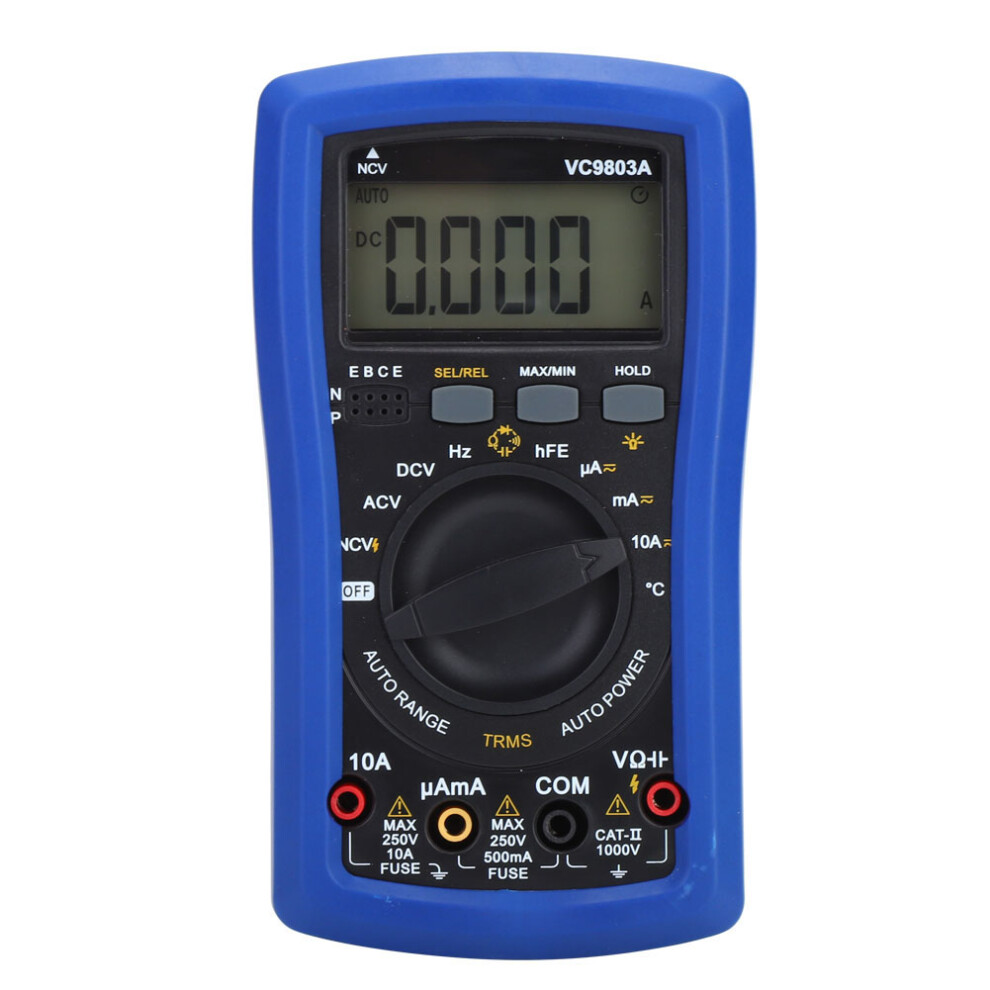

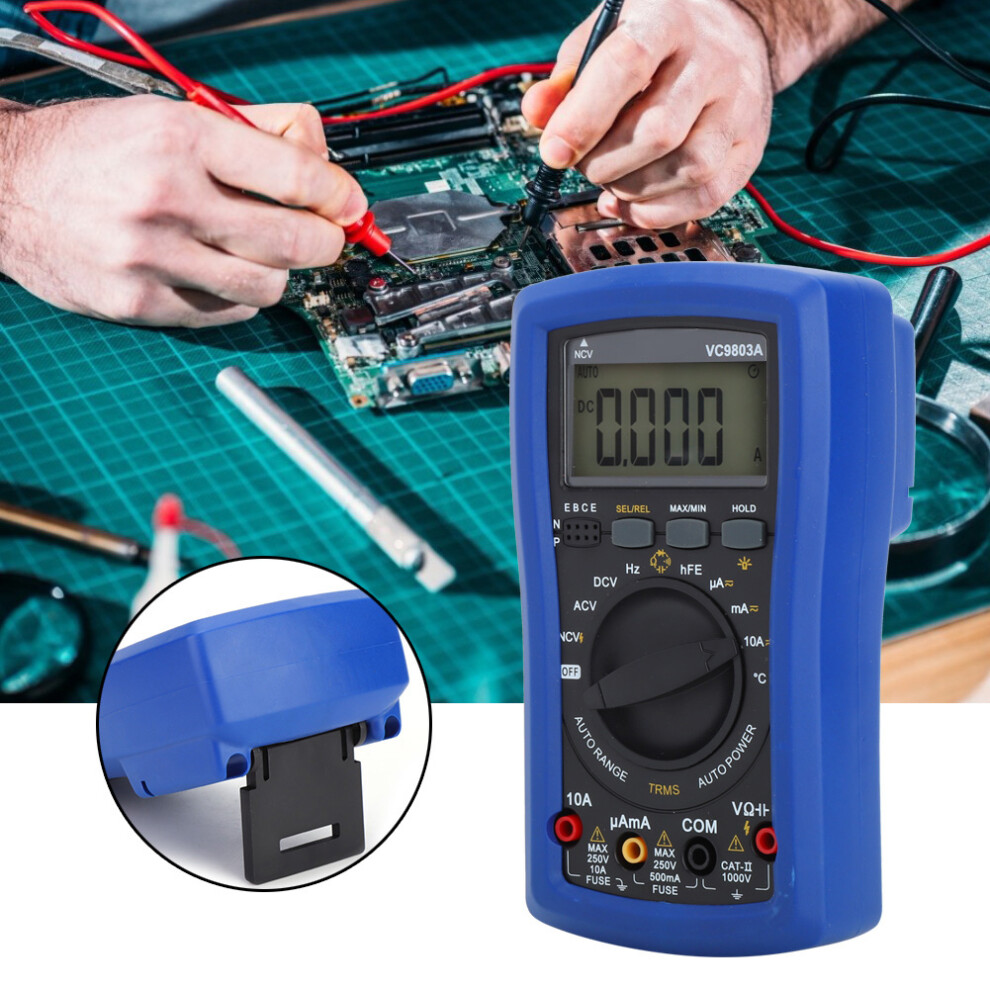

VC9803A Digital RMS Multimeter 3999 Display Resistance Voltage Current

VC9803A Digital RMS Multimeter 3999 Display Resistance Voltage Current Description

VC9803A Digital Automatic Range Rrue RMS Multimeter AC/DC Voltage/Current Tester
Condition:
Item Type: Multimeter
Material: ABS
Color: As shown in the picture
Maximum Display
3999 Automatic polarity
 Overload display
Maximum display "OL"
Static Power
less than 2mA
Measuring Method
High precision A/D conversion

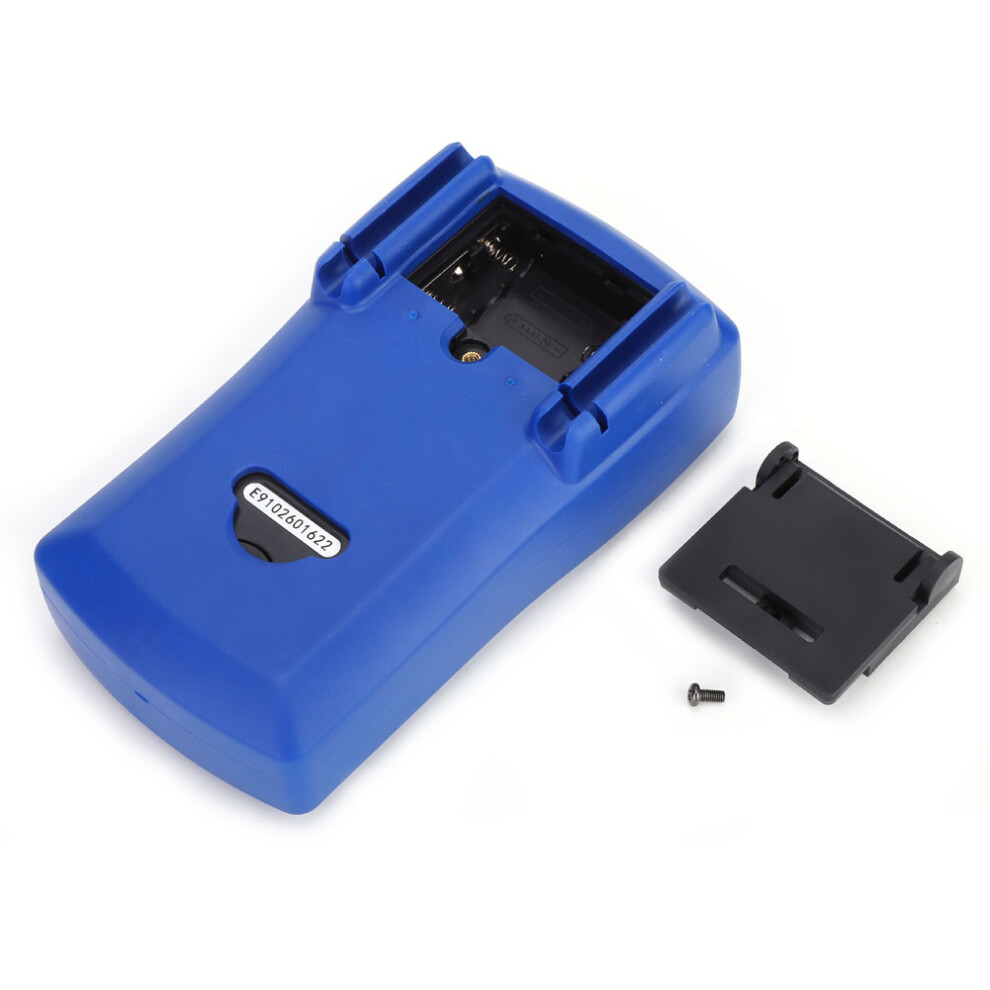

Power supply
3 x AAA(Not included)
Size

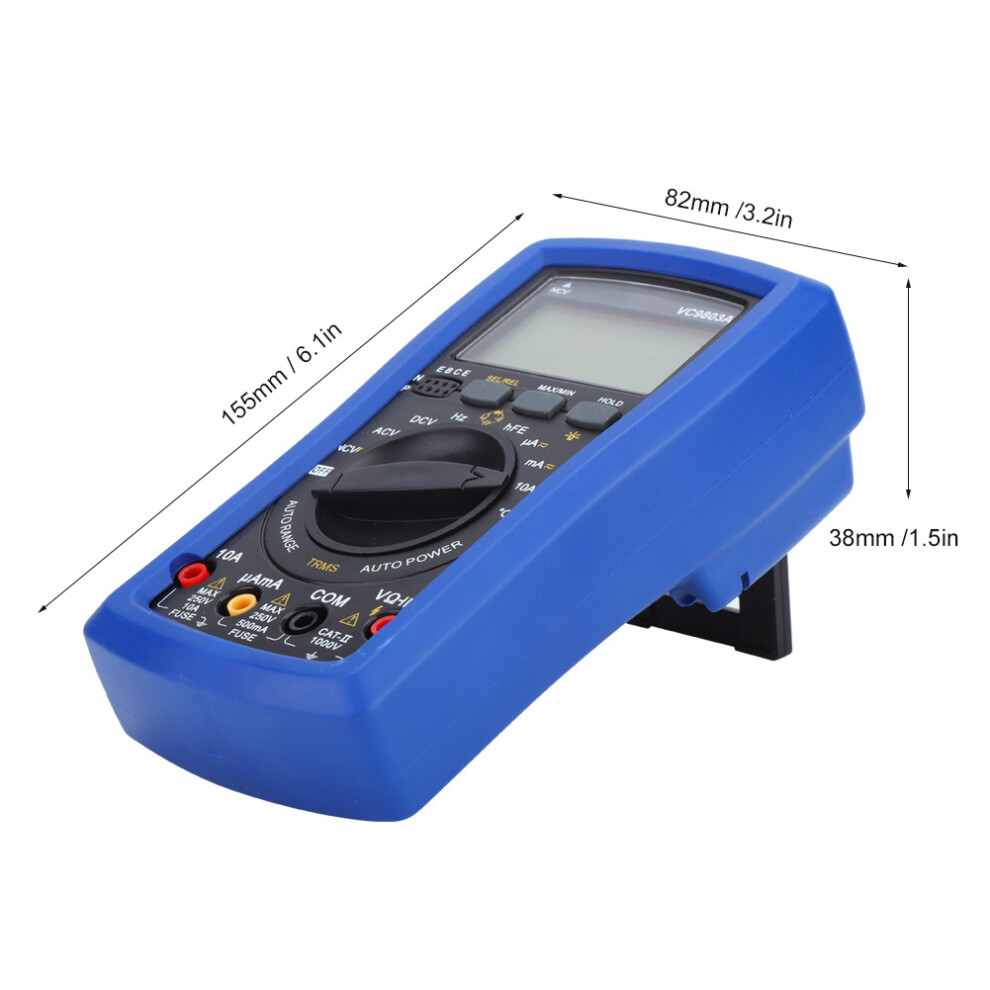

155x82x38mm / 6.1x3.2x1.5in
Sample Rate
About 3 times per second
Low voltage display
Display battery symbol
Weight
Approx.320g/11.3oz(including protective case without battery)
Operating ambient temperature
0C~40C, relative humidity<80%RH
Storage environment temperature
-10C~50C, relative humidity<85%RH
function
Range（VC9803A)
Resolution
uncertainty
DC V
DC 400mV~1000V
0.1mV
（1.0%+5d）
AC V
AC 4V~750V
1.0mV
（2.0%+5d）
AC-DC current
400μA/4000μA
0.1μA
（1.2%+5d）
40mA/400mA
10μA
（1.2%+5d）
4A/10A
1mA
（1.2%+10d）
Resistance
400Ω~40MΩ
0.1Ω
（1.0%+5d）
Frequency
10Hz~1MHz
0.001Hz
（0.5%+3d）
1MHz~10MHz
0.001MHz
（1.0%+5d）
Capacitance
4nF~400nF
1pF
（4.0%+15d）
400nF~4mF
1μF
（10%+15d）

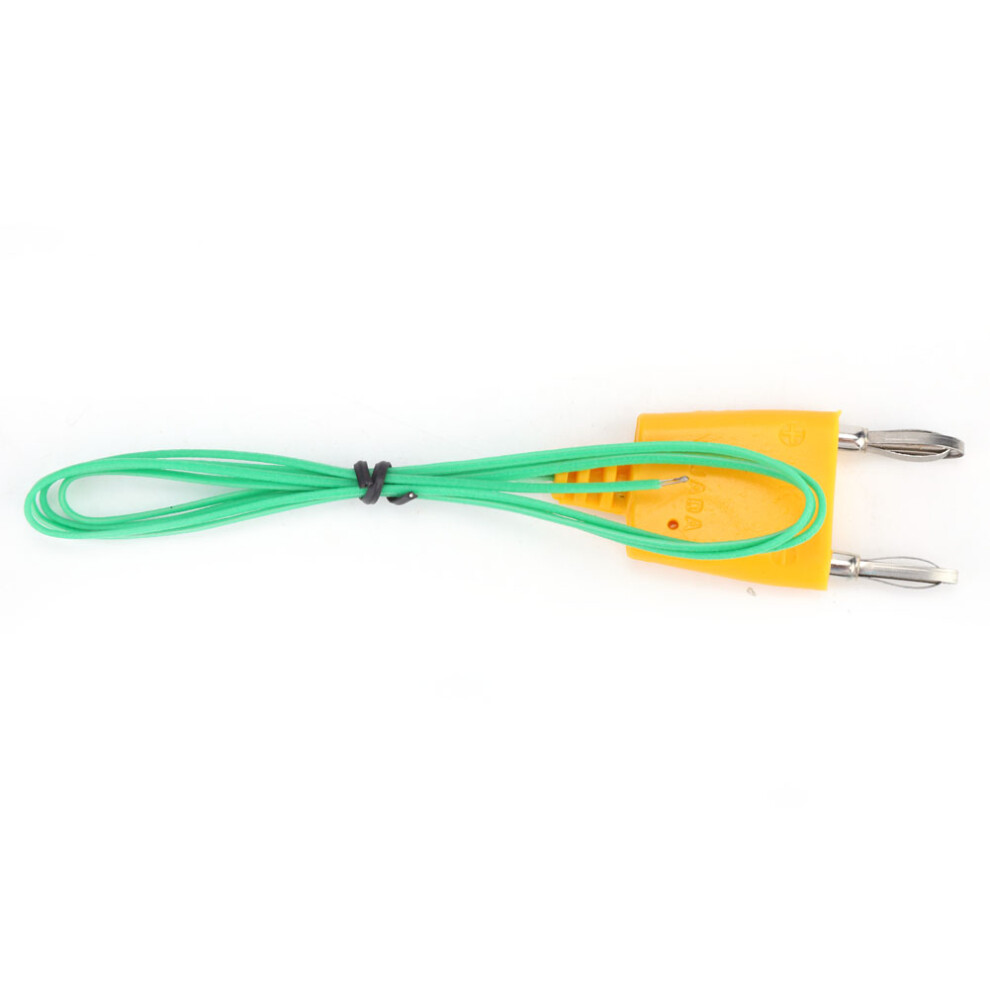

Temperature
-20C~250C
1C
（2.0%+3d）
Diode and on-off test
open circuit voltage>2.2V; On and off judge the resistance: <50Ω，and buzzer
Triode
1b=about 1μA, NPN/PNP  0-1999
Other functions

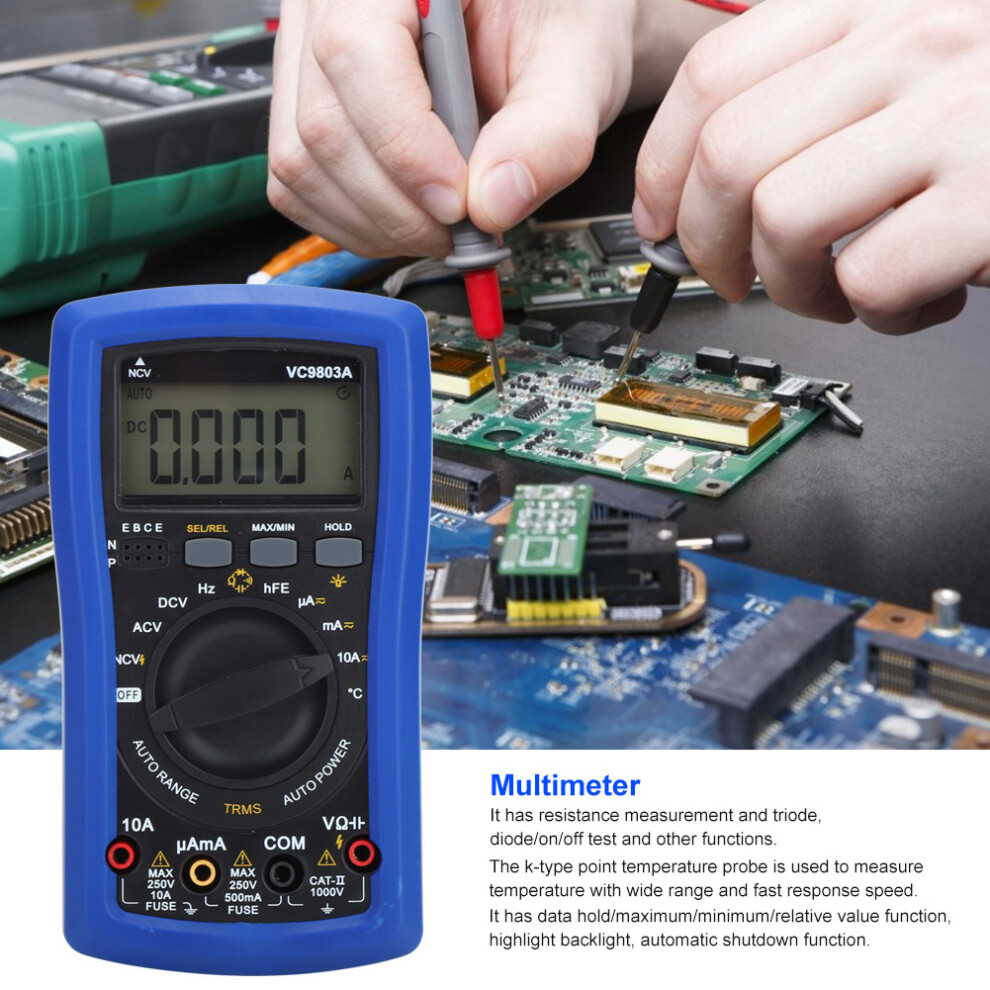

Automatic range, true RMS value, relative value, inductive fulfillment, highlight backlight, data saving, maximum and minimum value
