Veterinary Color Pulse Oximeter Animals use

Veterinary Color Pulse Oximeter Animals use Description

Introduction

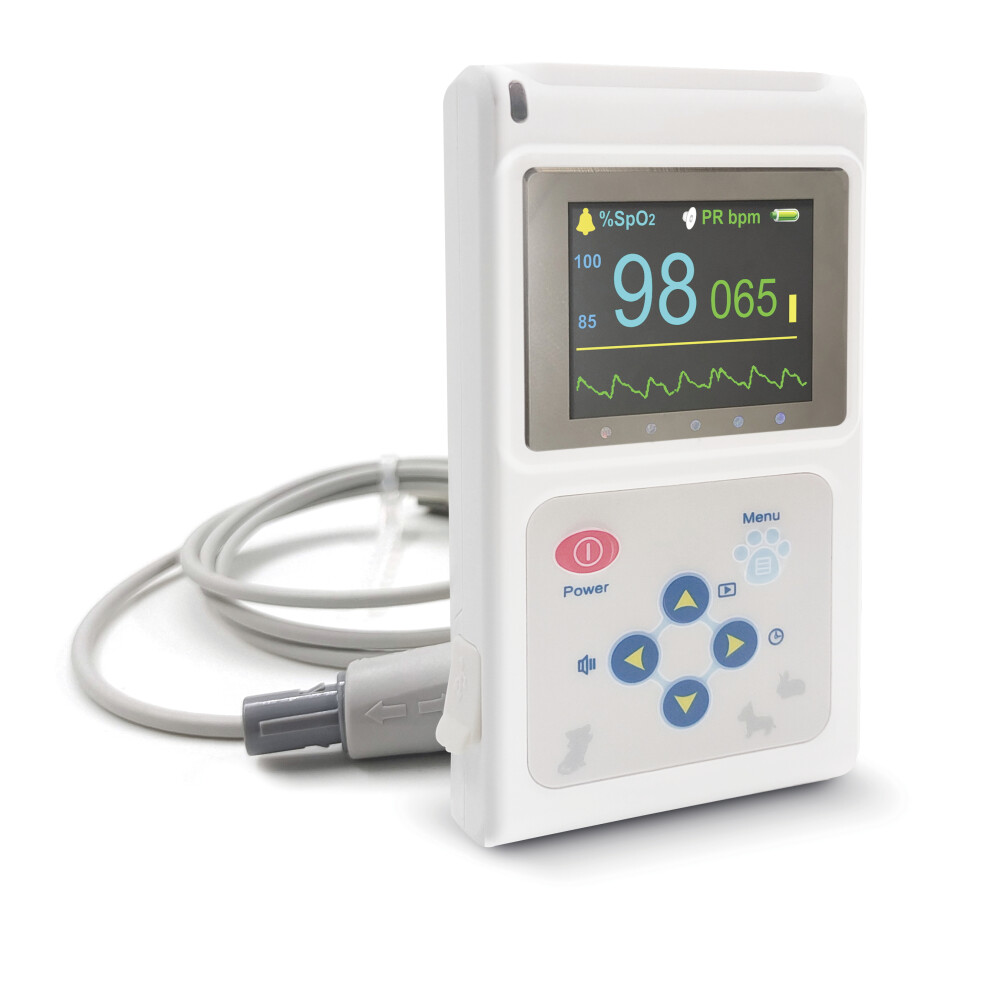

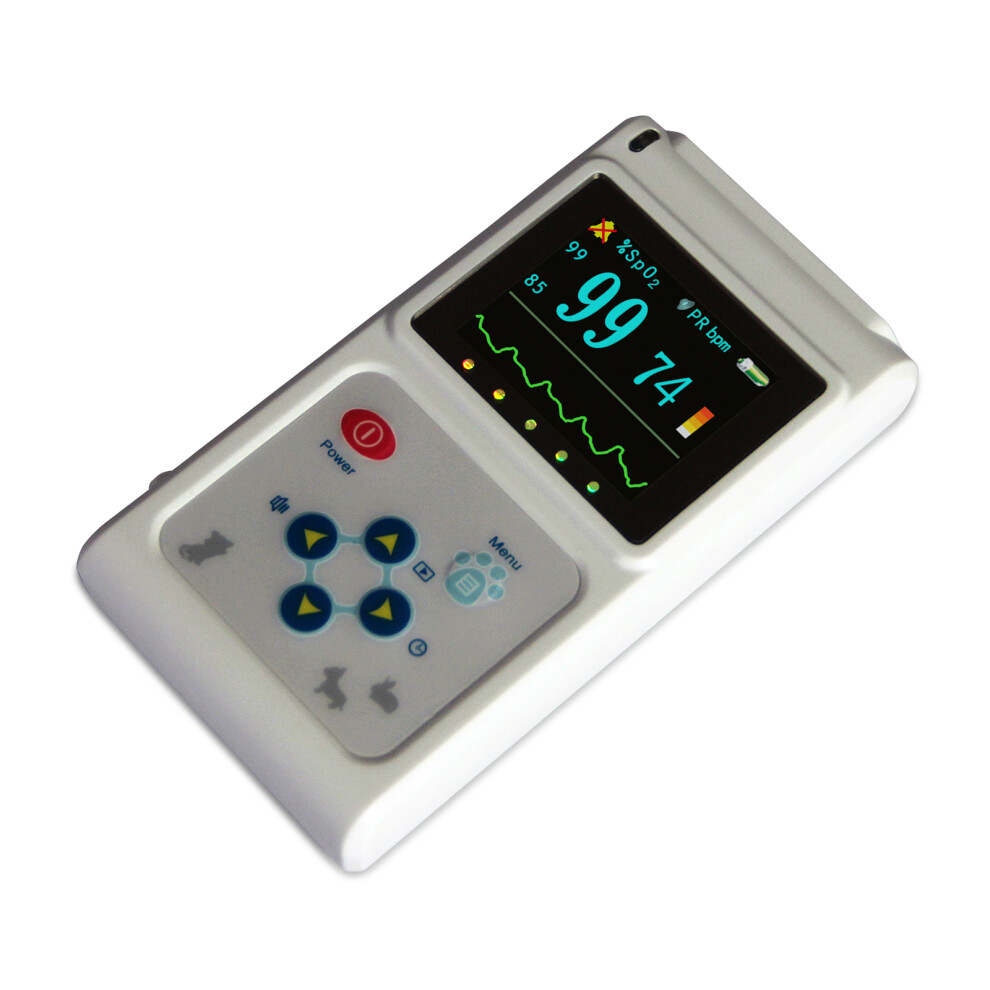

The CMS60D-VET Veterinary Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology in accordance with Capacity Pulse Scanning & Recording Technology, which can be used to measure SpO2 and pulse through animal's tongue or ear. It is applicable for use in family and pet hospital, etc.

Features

●With function menu.

●SpO2 value display.

●PR value and bar graph display.

●Pulse waveform display.

●Screen brightness can be changed.

●Pulse sound indication.

●Review function.

●Clock function.

●Voice prompt for over-limit and low battery.

●Battery status indication.

●Low-voltage indication: low-battery indication appears when the battery voltage is too low to work.

●With SpO2 value and pulse rate value record function, the stored data can be uploaded to computer.

●Real-time data can be transmitted to computer.

●It can be connected with an external oximeter probe.

Performance

●Display mode: 1.77"color screen.

Screen resolution: 128*160.

●SpO2 measurement range: 0 % ~ 100 %(resolution: 1 %).

Accuracy: 70%~100%: ±2%.

0%~69%: unspecified.

●PR measurement range: 30 bpm~250 bpm(resolution: 1 bpm).

Accuracy: ±2 bpm or ±2 %, whichever is greater.

●Accuracy under low perfusion: low perfusion 0.4 %, SpO2 accuracy: ± 4 %; PR accuracy: ± 2 bpm or ± 2 %, whichever is greater.

●Light interference: Under normal and ambient light conditions, the SpO2 deviation ≤ 1%.

●Working current: ≤ 100 mA.

●Working voltage: DC 2.6 V - 3.6 V.

●Power supply: Two AA 1.5V alkaline battery.

●Safety class: internally powered equipment, type BF applied part.

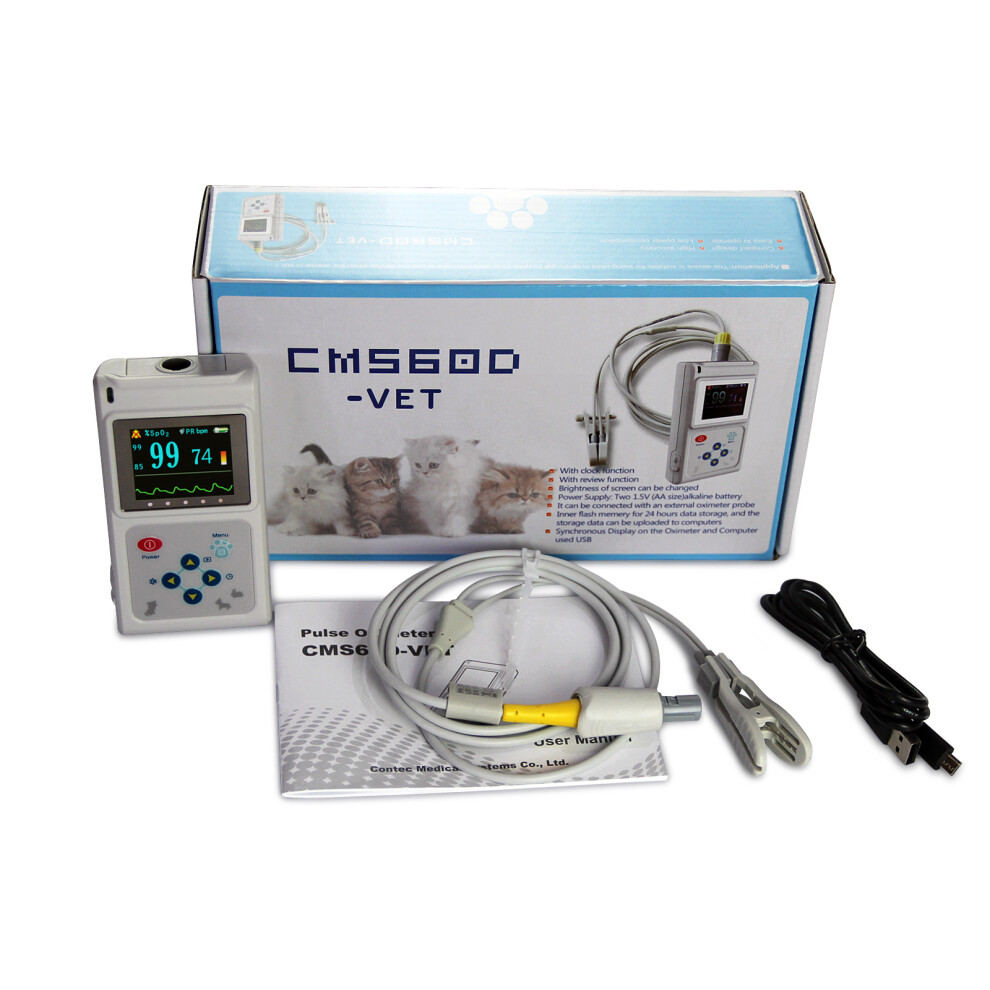

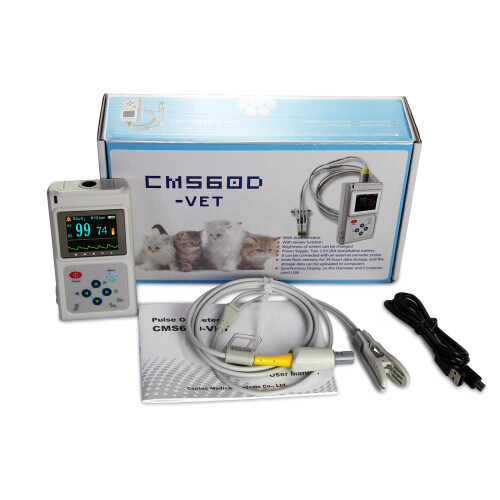

Accessory

●A user manual

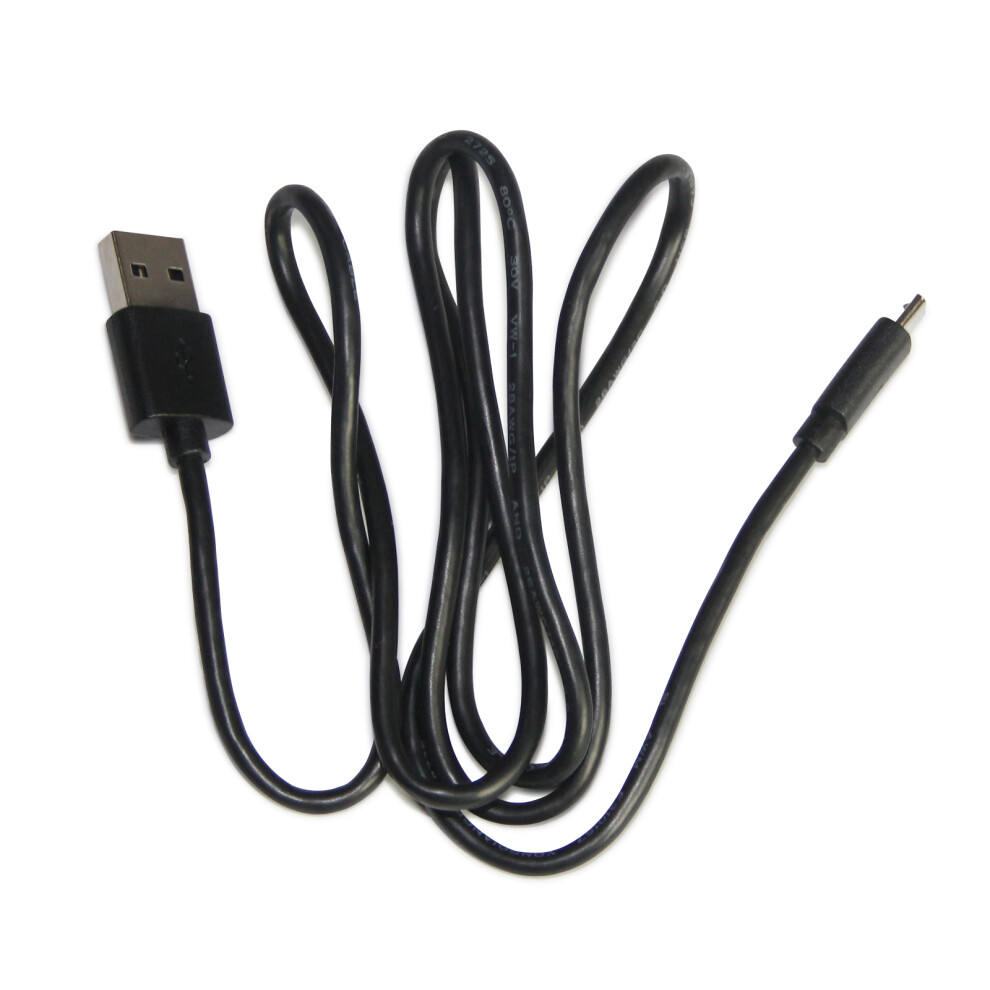

●A data line

●PC software

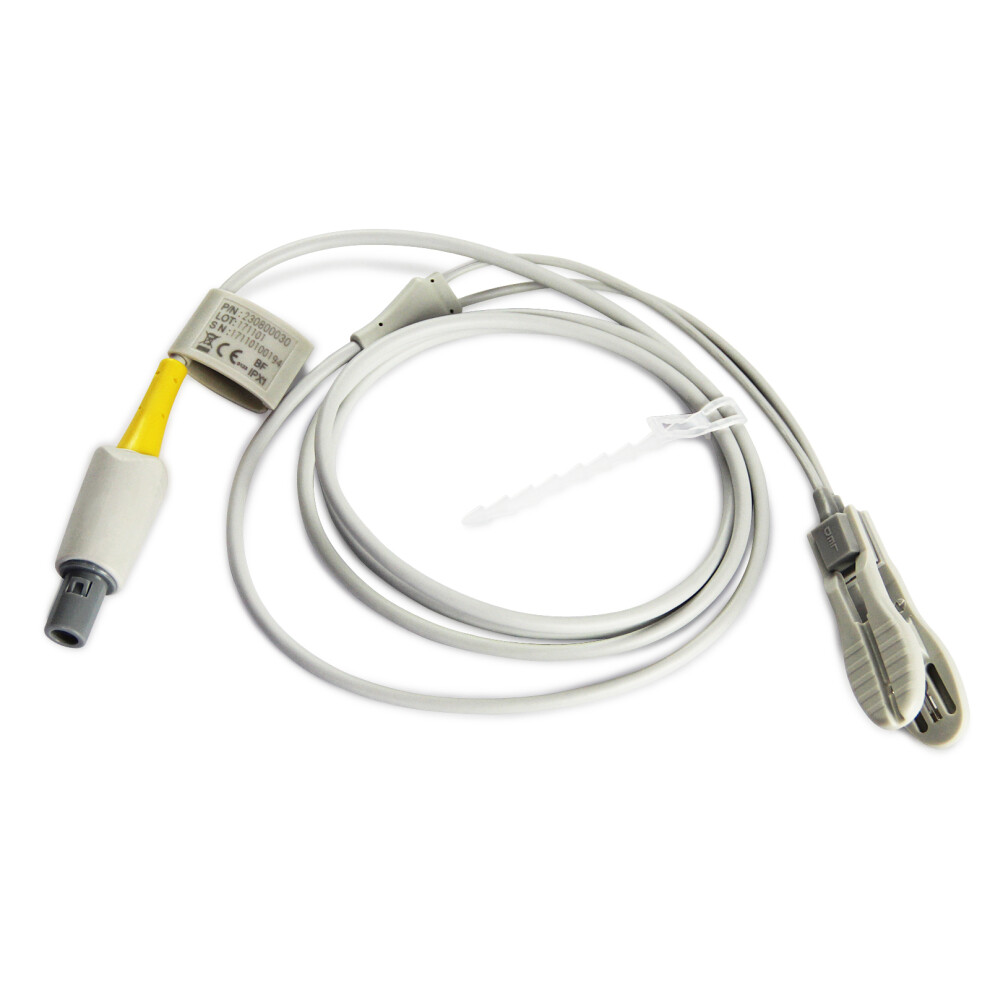

●A veterinary SpO2 probe

Physical characteristic

Dimension: 110 mm(L) × 60 mm(W) × 24 mm(H)

Weight: about 120 g (including battery)
