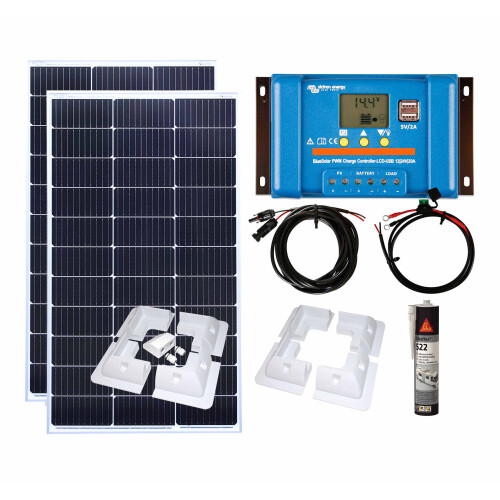

Victron 250w Solar Panel Kit battery charging PWM-USB Controller brackets

Victron 250w Solar Panel Kit battery charging PWM-USB Controller brackets Description

Solar Kit Contents

• 2 x 125w Monocrystalline Solar Panels
• 20A Victron Bluesolar PWM Charge Controller 12/24v 20A LCD Screen & USB
• Solar PV to controller cable
• Battery to solar controller cable
• 8 ABS Corner mounting brackets
• 1 ABS Cable entry
• 1 Tube of Sikaflex

Technical Specifications

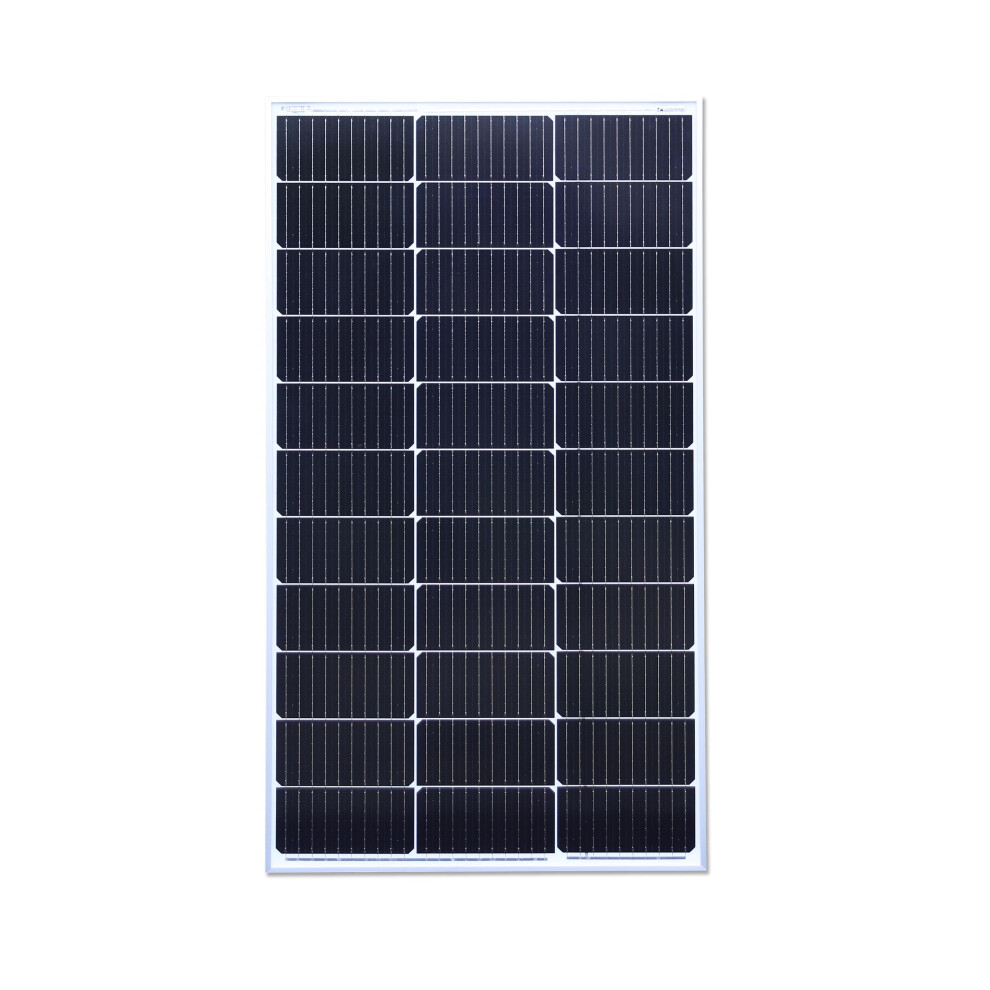

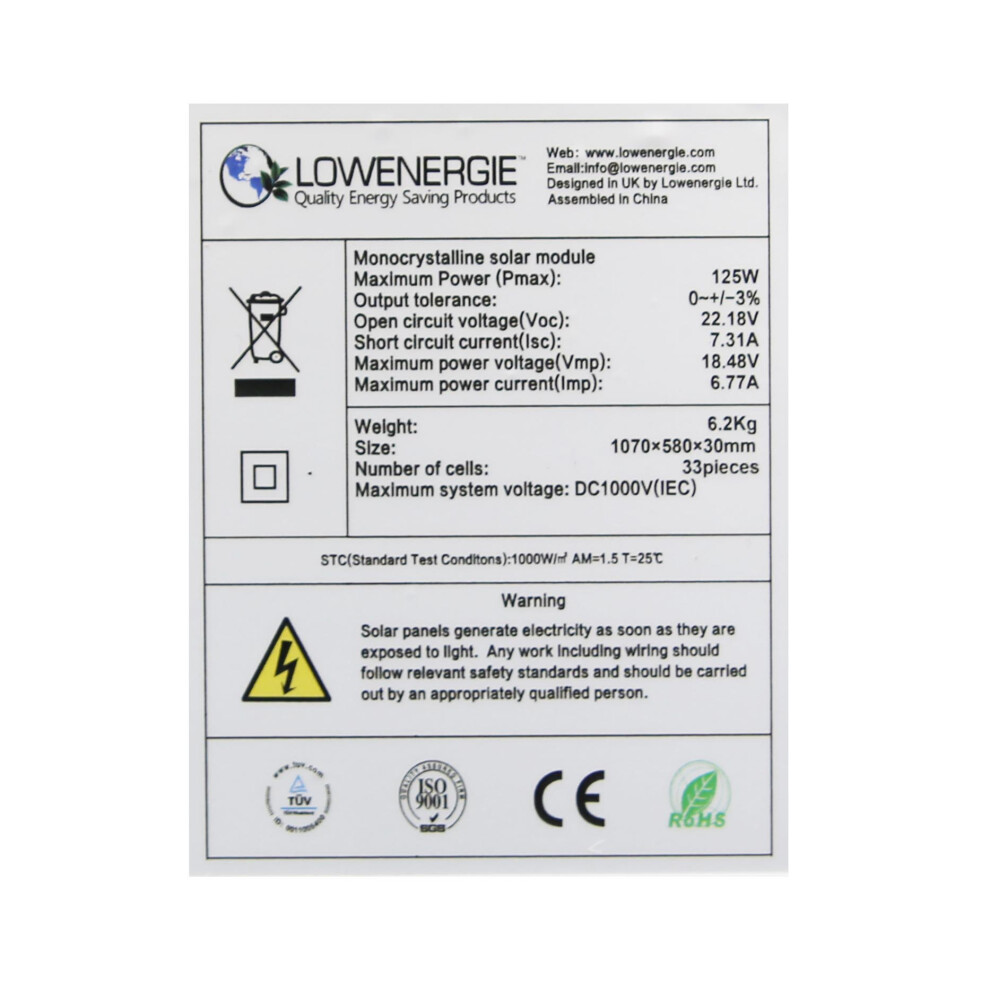

125 Watt Solar Panel - (with 1m Cable & Solar Connector Plugs)

• Maximum Power (Pmax): 125W
• Maximum Power Voltage (VMP): 18.48V
• Maximum Power Current (IMP): 6.77A
• Open Circuit Voltage (VOC): 22.18V
• Short Circuit Current (ISC): 7.31A
• Weight: 6.20KG
• Size: 1070 x 580 x 30mm
• Cell Quantity 33
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V

OUR NEW 9BB 100w Monocrystalline Solar Panels.  These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power!  9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells.  The overall panel efficiency is now up from 18% to 21.2%.

Technical - Victron Bluesolar 20A PWM+USB Solar Charge Controller

Controller Specification:

• Dimensions: 96 x 169 x 36mm
• Weight: 150g
• Rated charging & load current: 20 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

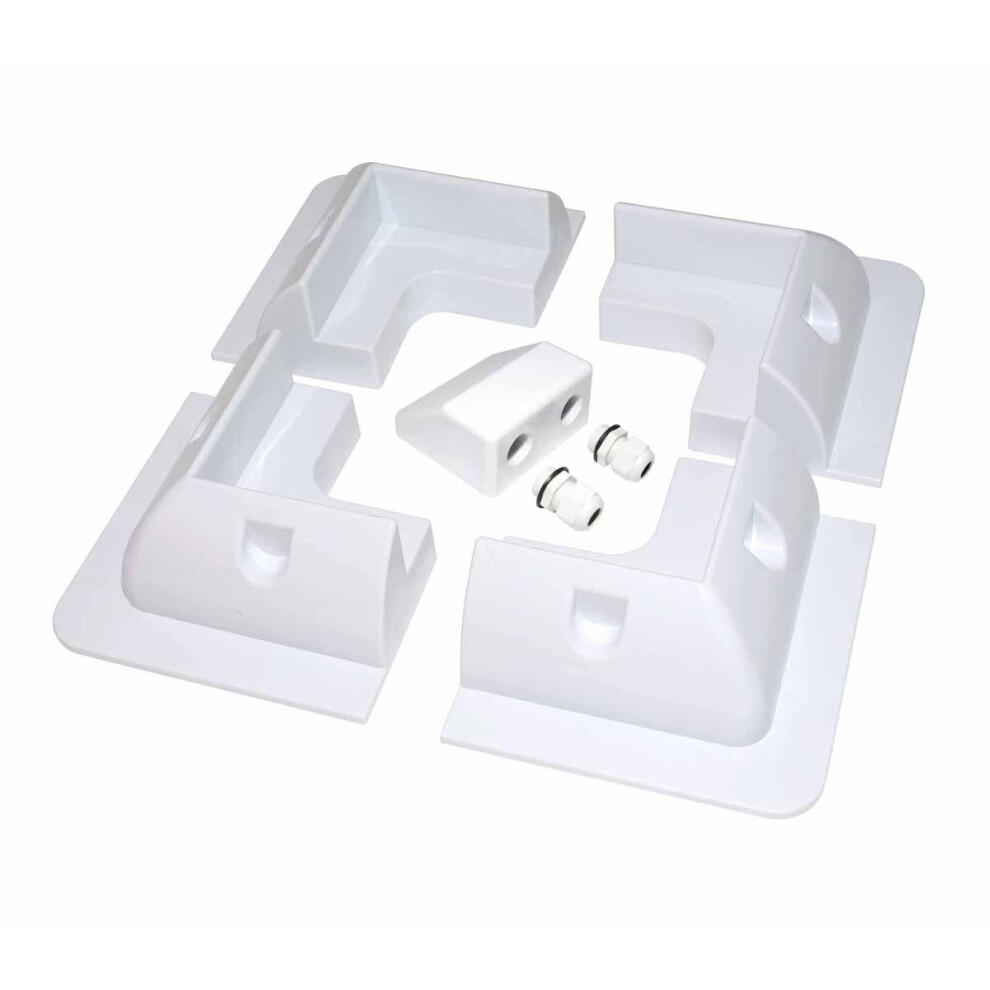

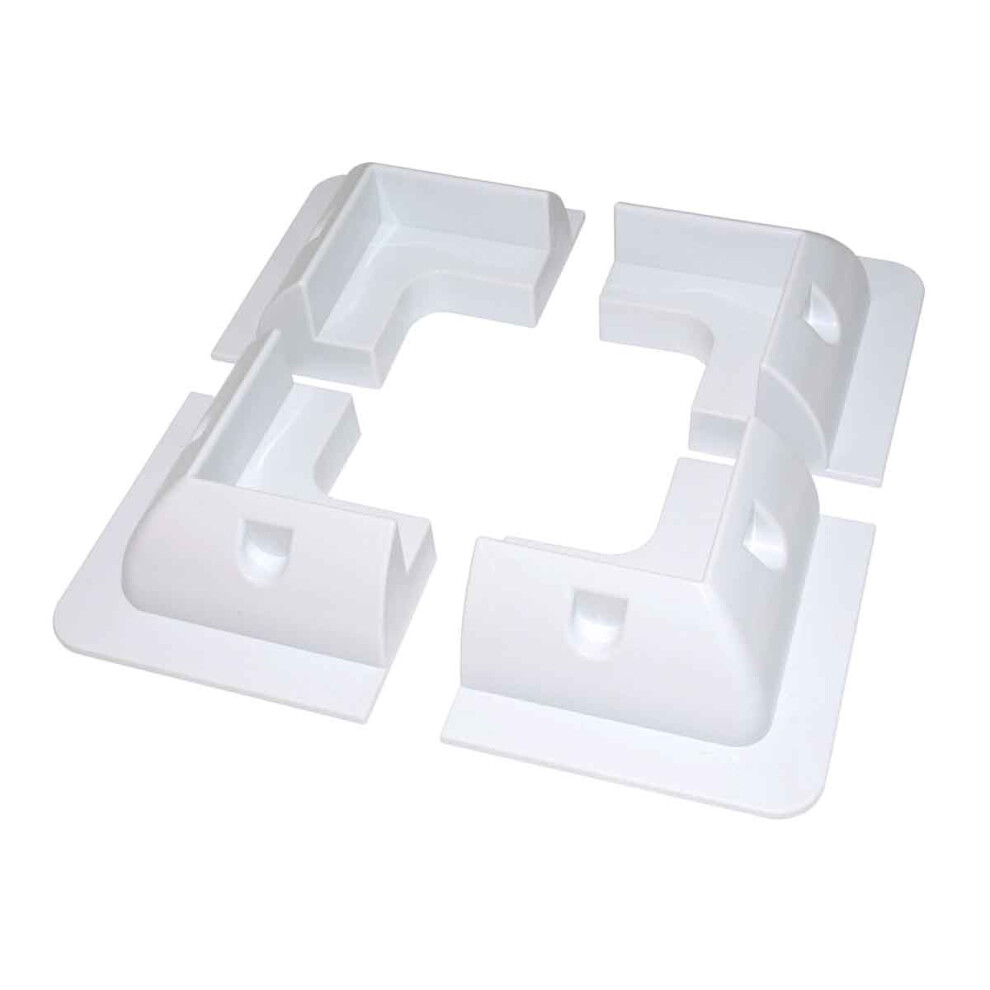

Solar Brackets:

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg
• Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

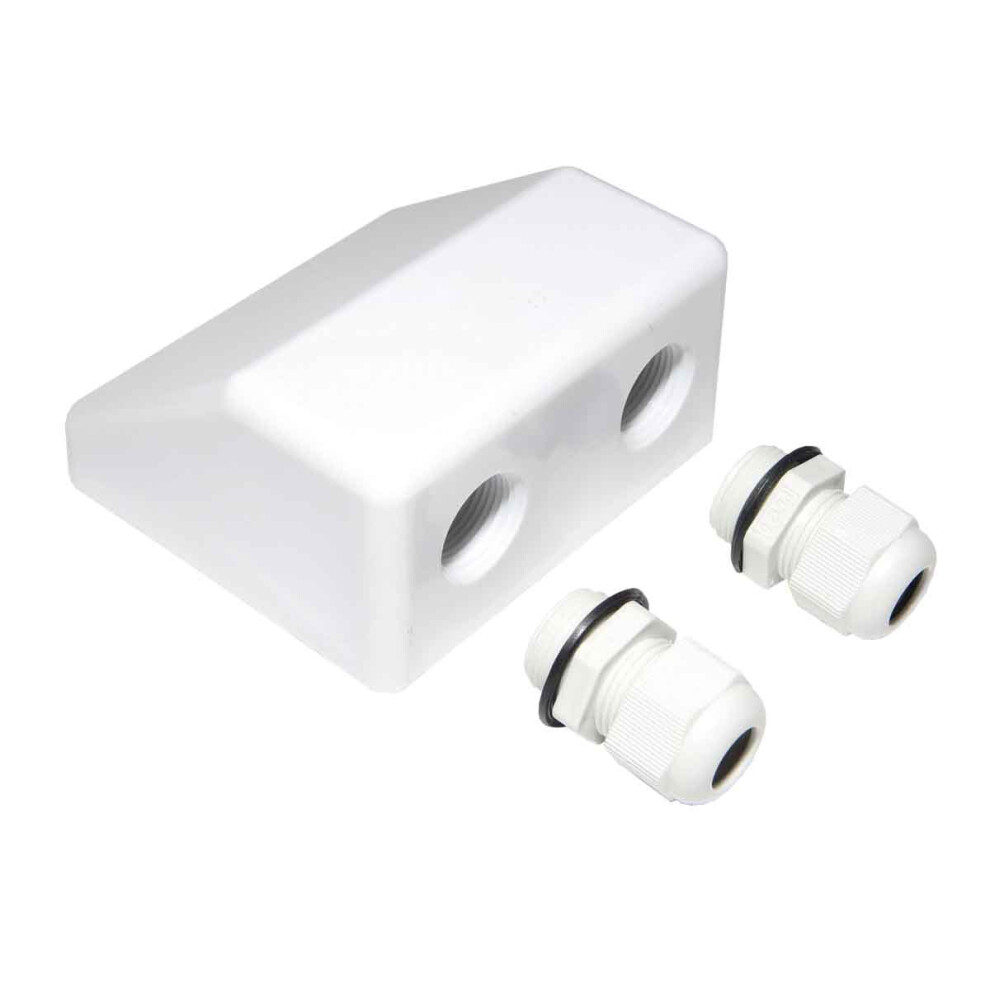

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

Product Warranties

• Solar Panel = 10 Year for materials and workmanship
• Charge Controller = 5 Year Victron Energy
• All other components have a 12 month warranty.
