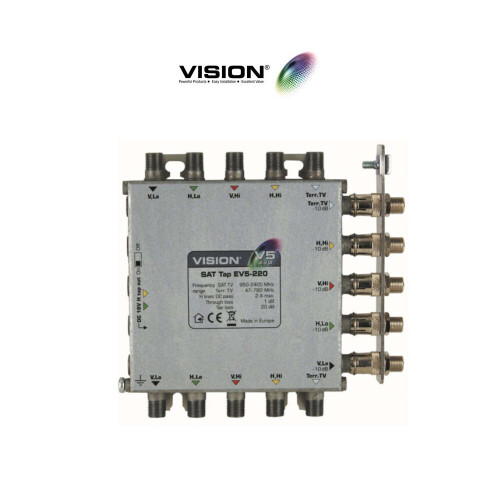

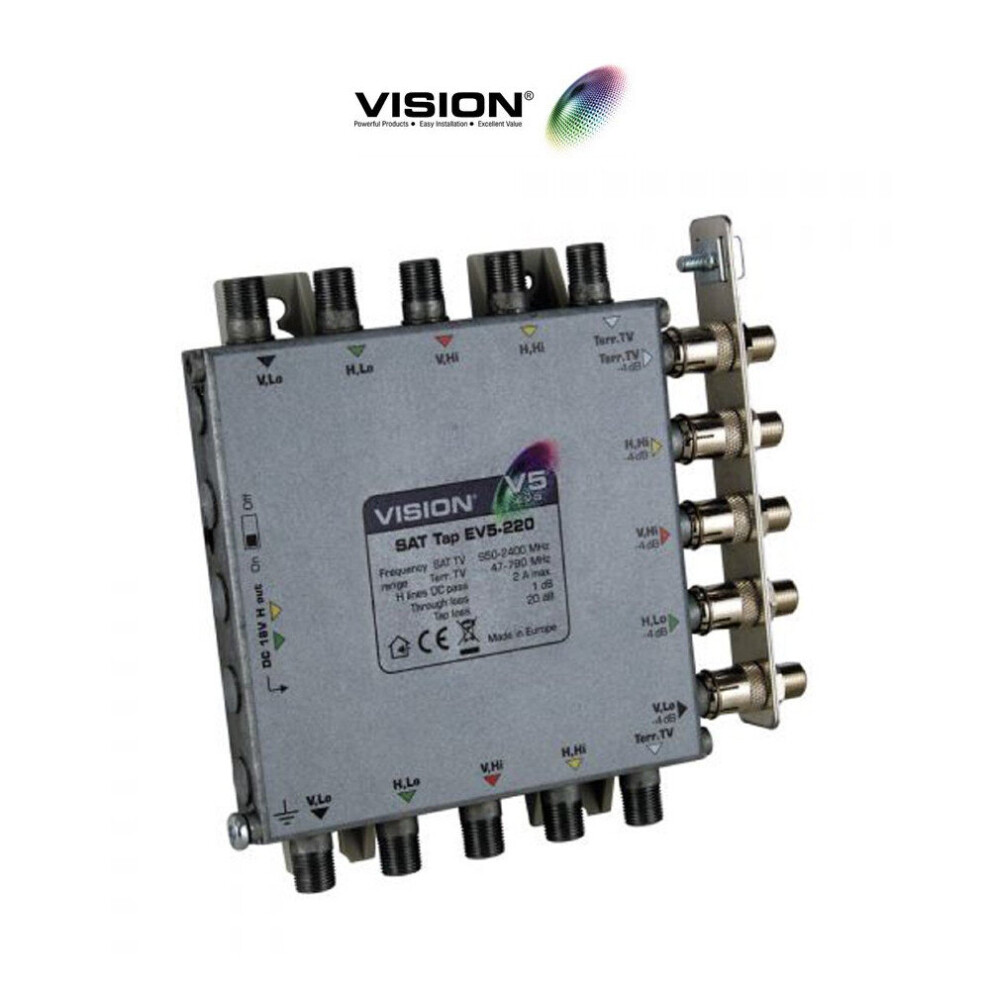

Vision EV5-220 1-Way Tap 5 Wire 20dB

Vision EV5-220 1-Way Tap 5 Wire 20dB Description

Vision EV5-220 1-Way Tap 5 Wire 20dB

EV5 splitters are built to compliment all V5-EVO models, IRS installations. A leader in its area for performance in terms of low insertion loss, cable slope pre-emphasis and linearity, these splitters and taps allow managed trunk signal distribution for 5-wire IRS. V5-EVO taps attenuate the signal to the side output while minimising trunk through losses. EV5 splitters provide equal division of the incoming signal to all ports.
V5-EVO splitters and taps pass DC on the through lines at up to 2A when the current is shared across 2 of the IF lines.

Features:

• Built to compliment all V5-EVO multiswitches
• DC pass on all inputs 2.0A switchable
• Switchable DC pass to tap line
• Supplied with earth bar
• High quality low VSWR connectors for 1.0mm coaxial cable

Technical Specification:

Model: EV5-220
Frequency Range SAT IF: 4 x 950-2400MHz
Frequency Range Terr: 1 x 5 -862MHz
Number of tap outputs: 1 x 5 Tap
Through loss SAT:
