Vision V5-220 5 Wire 2 Way 20db Loss Tap

Vision V5-220 5 Wire 2 Way 20db Loss Tap Description

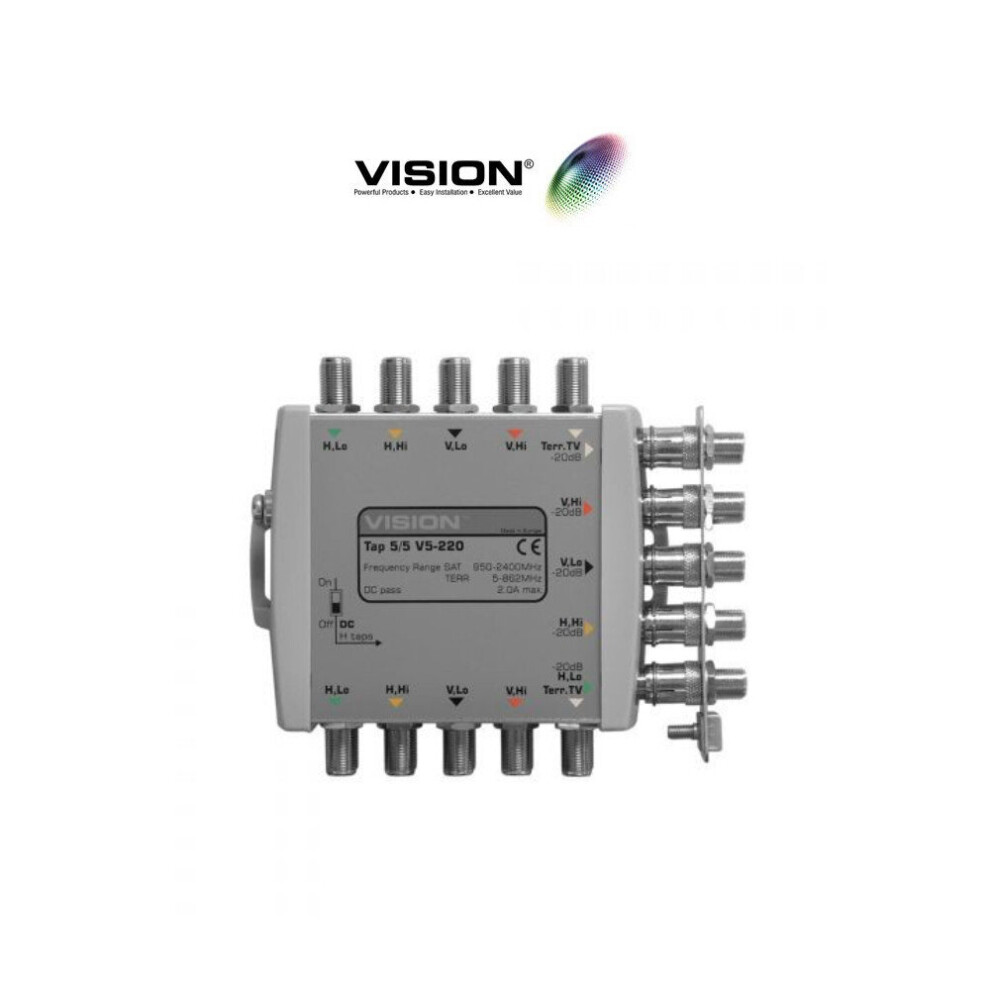

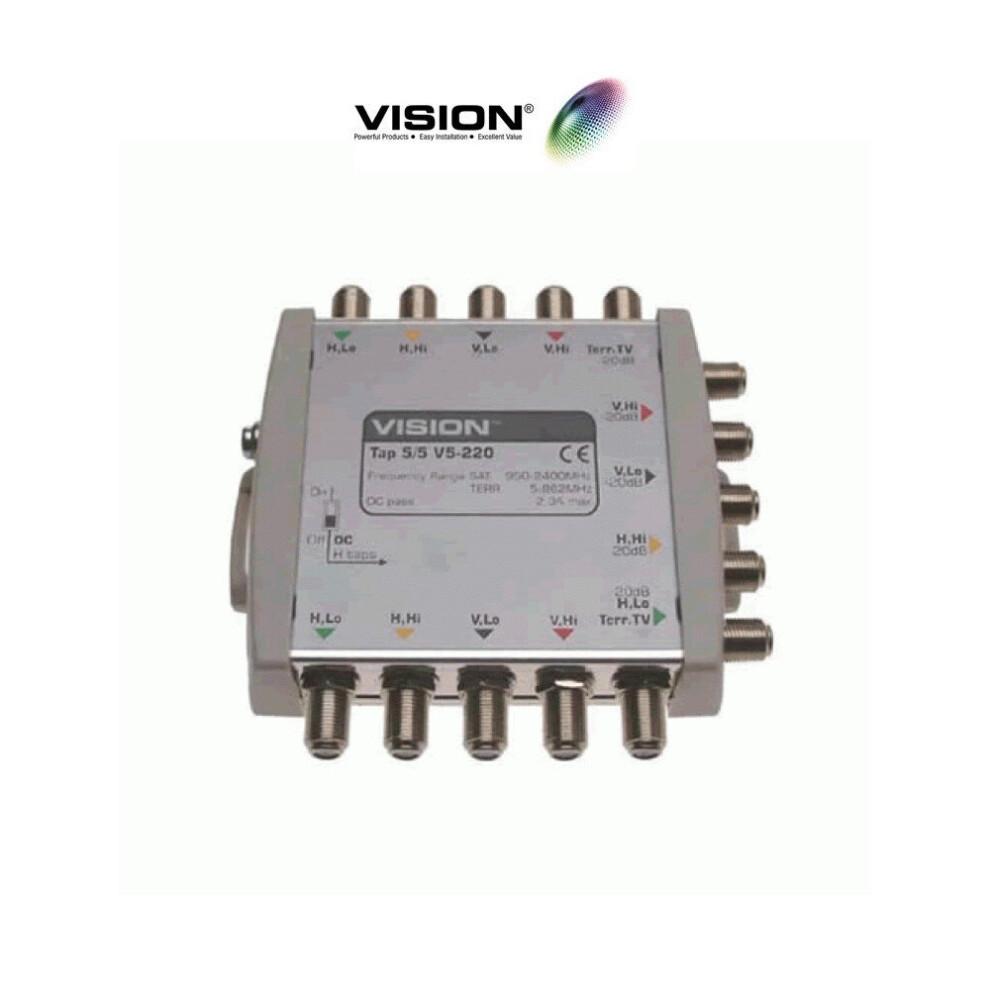

The Vision V5-220 is five separate 1-way taps in one unit. Connects up to four satellite polarities & 1 terrestrial signal from a trunk cable.
The unit will pass up to 2.0A at 18V DC. Insertion loss for satellite 0.7dB; and for terrestrial 1dB. Tap Loss is satellite 18-22dB; terrestrial 20dB. Flatness is ±0.5dB. Isolation is greater than 30dB. Frequency ranges for satellite 950-24000MHz; and for terrestrial 5-862MHz.

Features:

• Low insertion loss
• DC Pass 2.0A to through line and tap
• Switchable DC pass to tap line
• Supplied with earth bar
• High quality low VSWR connectors for 1.0mm coaxial cable

Technical Specification:

Model: V5-220
Frequency Range SAT IF: 4 x 950-2400MHz
Frequency Range Terr: 1 x 5 -862MHz
Number of tap outputs: 1 x 5 Tap
Through loss SAT: <1dB
Through loss Terr: <1dB
Tap loss SAT: 20dB
Tap loss Terr: 20dB
Input Isolation SAT: 30dB
Input Isolation Terr: 30dB
Return loss: >13dB
DC through pass H lines: 2.0A max when shared across H:lo & H:hi (1A max through one line)
DC through pass Terr line: 0.1A max
Operating temperature                -20°C to +50°C
Dimensions mm: 126x135x30mm
Weight: 0.44kg

What's included:
      1x Vision V5-220 Tap
