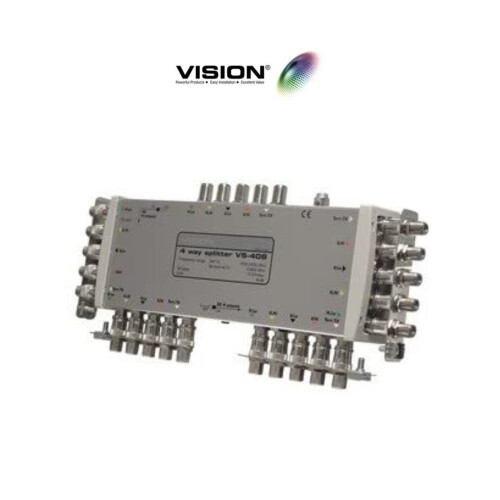

Vision V5-408 Splitter for Multiswitches 4 Way

Vision V5-408 Splitter for Multiswitches 4 Way Description

Vision V5-408 5 Splitter for Multiswitches 4 Way

This splitter is part of the Vision V5 range.

V5- splitters are built to compliment all V5-EVO models. With class leading performance in terms of low insertion loss, cable slope pre-emphasis and linearity, these splitters and taps allow managed trunk signal distribution for 5-wire IRS. V5- taps attenuate the signal to the side output while minimising trunk through losses. EV5 splitters provide equal division of the incoming signal to all ports.

V5-EVO splitters and taps pass DC on the through lines at up to 2A when the current is shared across 2 of the IF lines.

FEATURES

• 5-wire trunk cable into 4 separate 5-wire trunk
• Low insertion loss at both satellite and terrestrial frequencies
• Switchable DC pass on Horizontal lines for outputs 1/2 and 3/4
• Colour coding to industry standard

Technical Specification:

Model: V5-408
Frequency Range SAT IF: 4 x 950-2400MHz
Frequency Range Terr: 1 x 5 -862MHz
Number of tap outputs: 4 x 5 Tap
Through loss SAT: <8dB
Through loss Terr: <8dB
Tap loss SAT: 8dB
Tap loss Terr: 8dB
Input Isolation SAT: 30dB
Input Isolation Terr: 30dBReturn loss: >13dB
DC through pass H lines: 2.0A max when shared across H:lo & H:hi (1A max through one line)
DC through pass Terr line: 0.1A max
Connectors : F female (F male quick to f female on earth bar) 1.0mm max centre conductor for direct connection 5 x F male quick to F male quick for close coupling of multiswitch
Operating temperature                -20°C to +50°C
Dimensions mm: 287x135x30mm

Weight: 0.7kg
