Wireless HD Multimedia Transmitter Receiver 1080P 60HZ 2.4G 5G

Wireless HD Multimedia Transmitter Receiver 1080P 60HZ 2.4G 5G Description

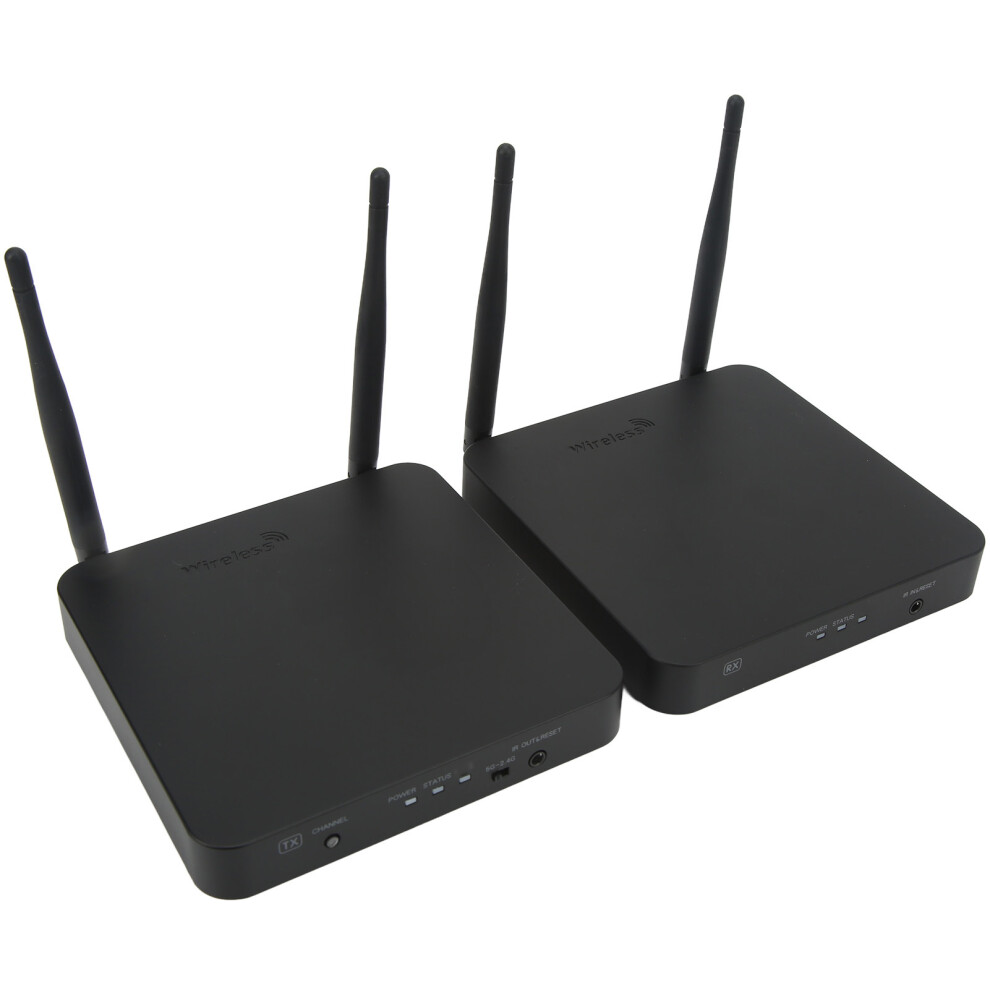

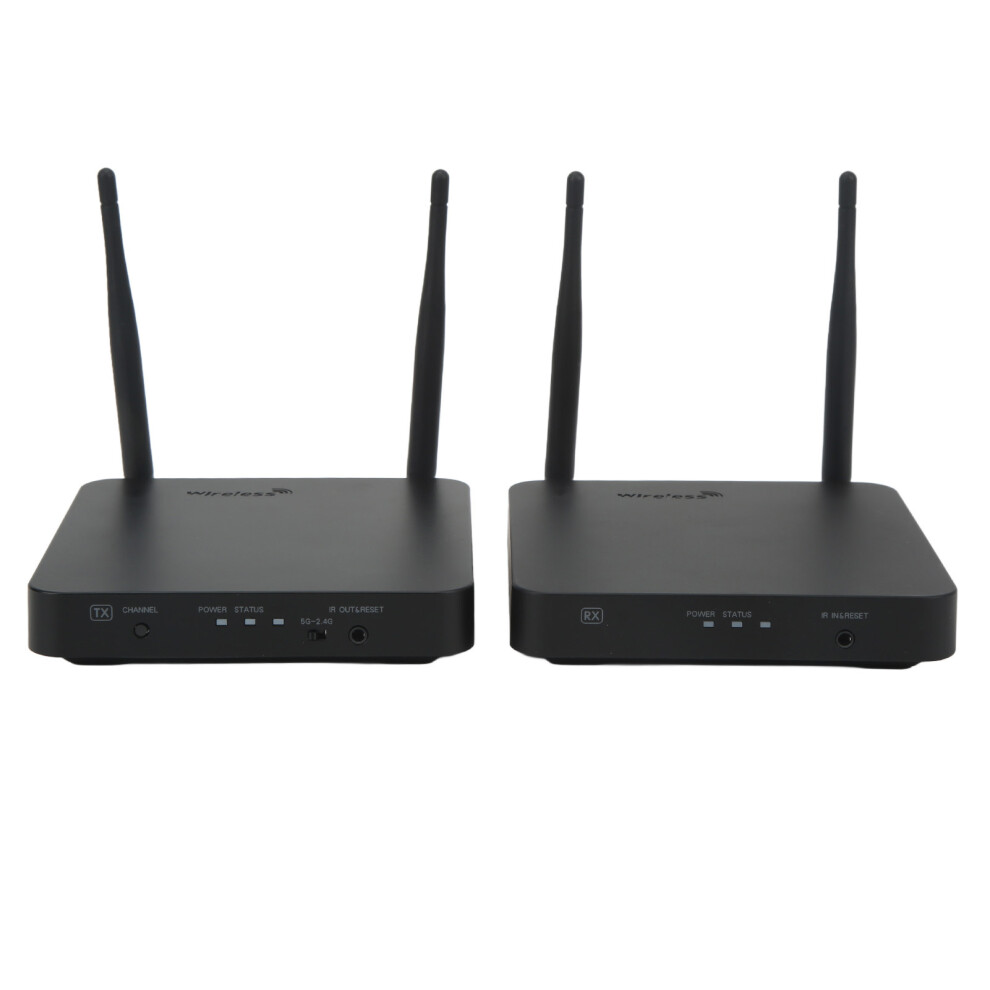

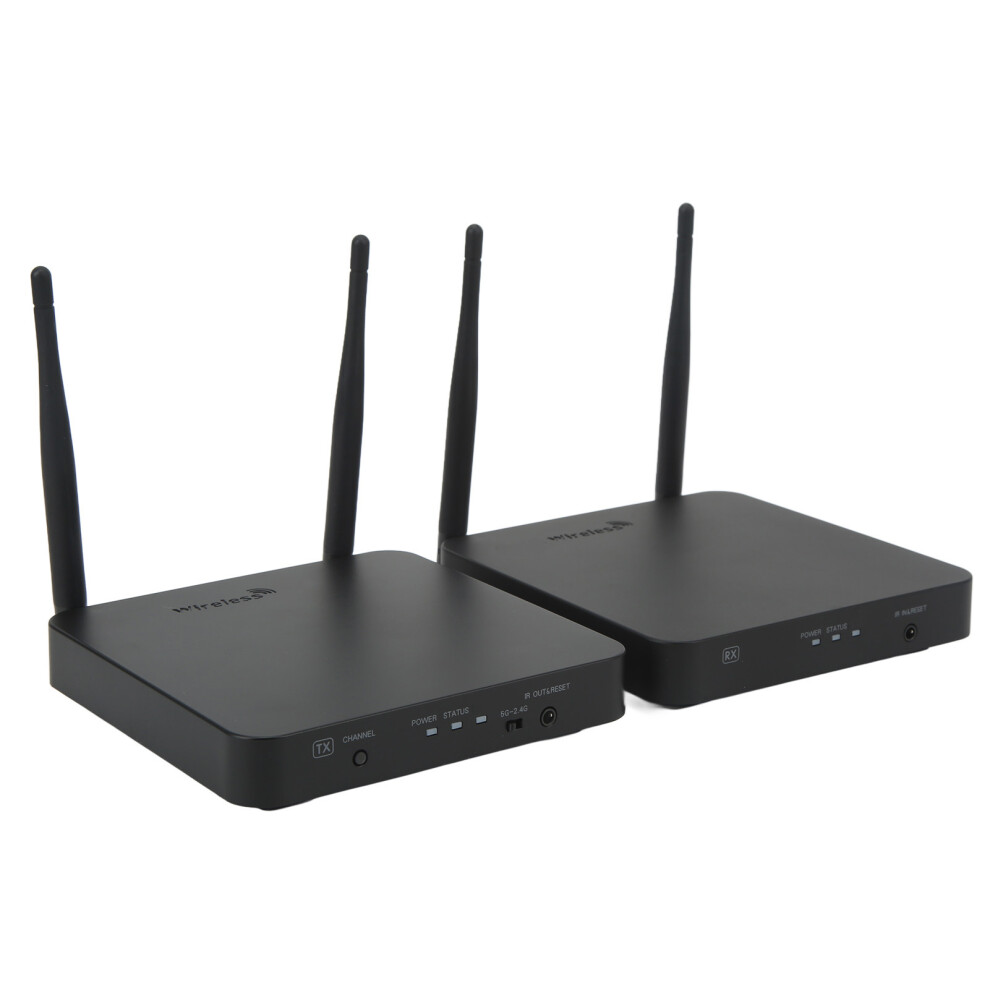

1、Transmitter, Receiver: Wireless HD Multimedia Interface extender consists of two parts, transmitter and receiver, which can transmit HD Multimedia Interface HD signal wirelessly from the transmitter to the receiver. 2、Screen Monitoring: Wireless HD Multimedia Interface transmitter supports one HD Multimedia Interface loop out for local screen monitoring at the source. It supports resolutions up to 1080p 50 Hz 60Hz. 3、Stable Signal Transmission: Wireless HD Multimedia Interface transmitter receiver adopts the international common 2.4G 5G wireless dual band transmission signal, transmission speed is faster and anti interference ability is stronger. 4、328.1ft Long Range: Wireless HD Multimedia Interface extender adopts external dual gain antenna, ultra long distance transmission, open transmission distance up to 100m/328.1ft (may be affected by the use environment). 5、Infrared Remote Control: The wireless HD Multimedia Interface transmitter receiver kit supports infrared remote control for remote extension, allowing remote control of source devices at the display end. 6、Easy to Use: HD Multimedia Interface extender supports OSD display to keep track of device status. Pure hardware mode, plug and play, no driver installation when connected to a computer. Support Web configuration interface, simple and easy to use.
Item Type: Wireless HD Multimedia Interface Extender
Material: ABS, Metal
Size: Approx. 127.5x127.5x25mm / 5.02x5.02x0.98in
Support Resolution Format: Up to 1080P 50Hz 60Hz
Support Sound Format: LPCM2.0 48KHz 16Bit
Maximum Transmission Rate: 6.75Gbps
Maximum Transmission Bandwidth: 225MHz
Wireless Type: External Dual 3dBi Gain Antenna
Wireless Transmission Standard: IEEE 802.11a b g n
Wireless Transmission Frequency Band: 2.4GHz,5GHz ISM Band
Wireless Transmitting Power: (IPEX) 162dBm
Maximum Wireless Transmission Distance: 100m/328.1ft (open and Unobstructed)
IR Carrier Frequency Range: 20‑60KHz
TX RX Maximum Operating Current: 1A

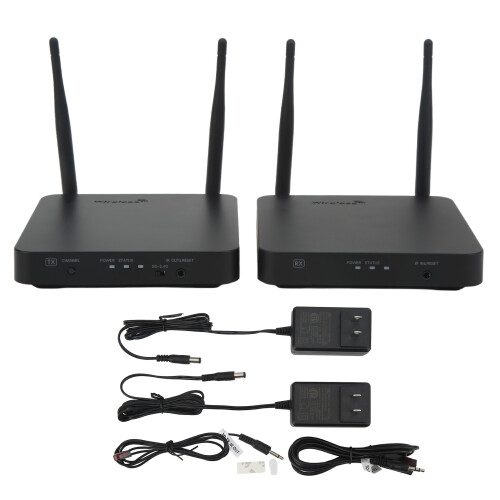

1 x Transmitter
1 x Receiver
1 x Transmitter Infrared Extension Cable
1 x Transmitter Infrared Extension Line Sticker
1 x Receiver Infrared Extension Cable
1 x Receiver Infrared Extension Line Sticker
2 x Power Adapter
1 x Manual
