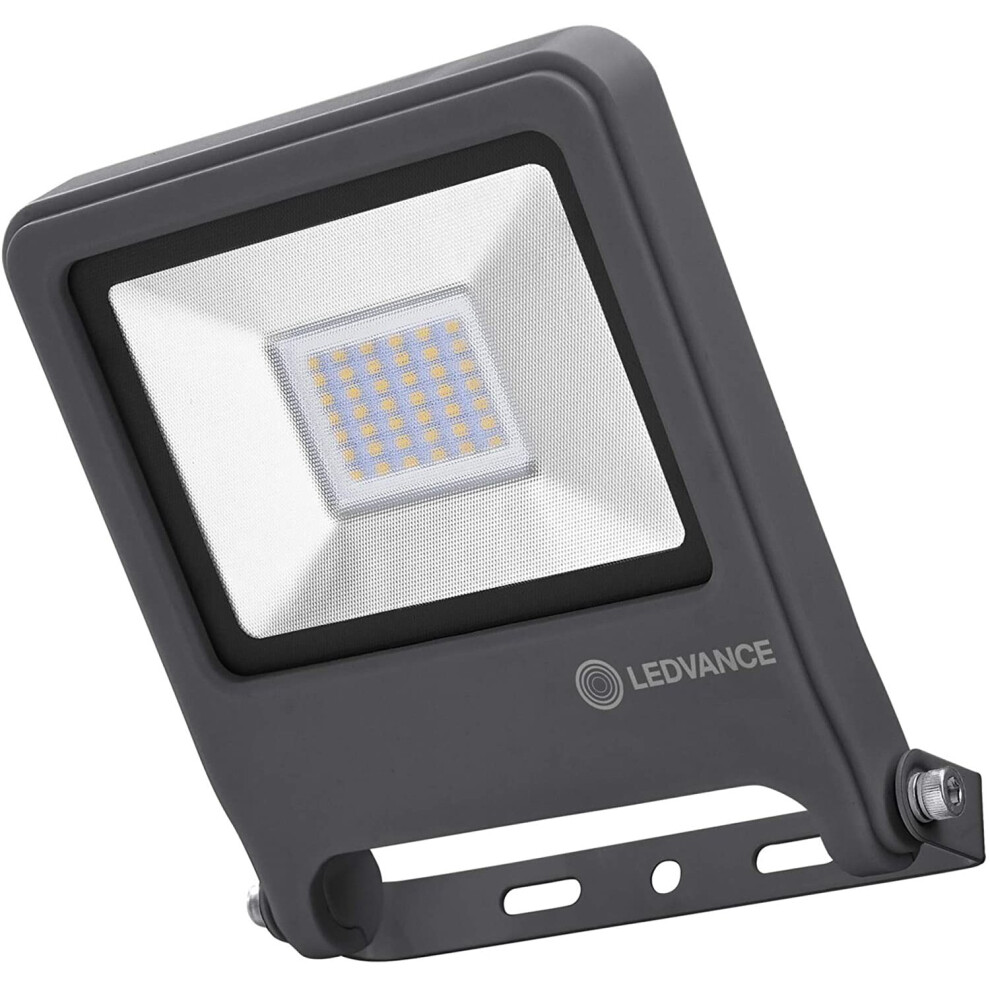

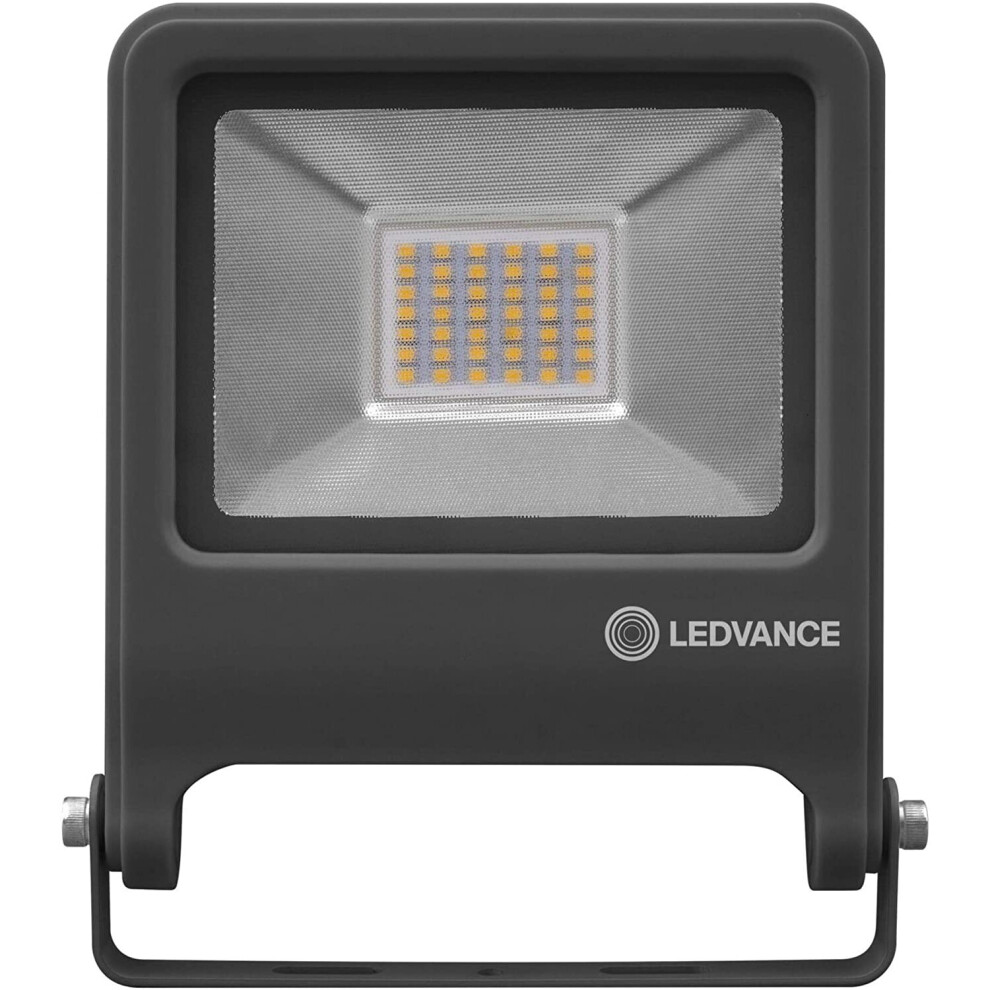

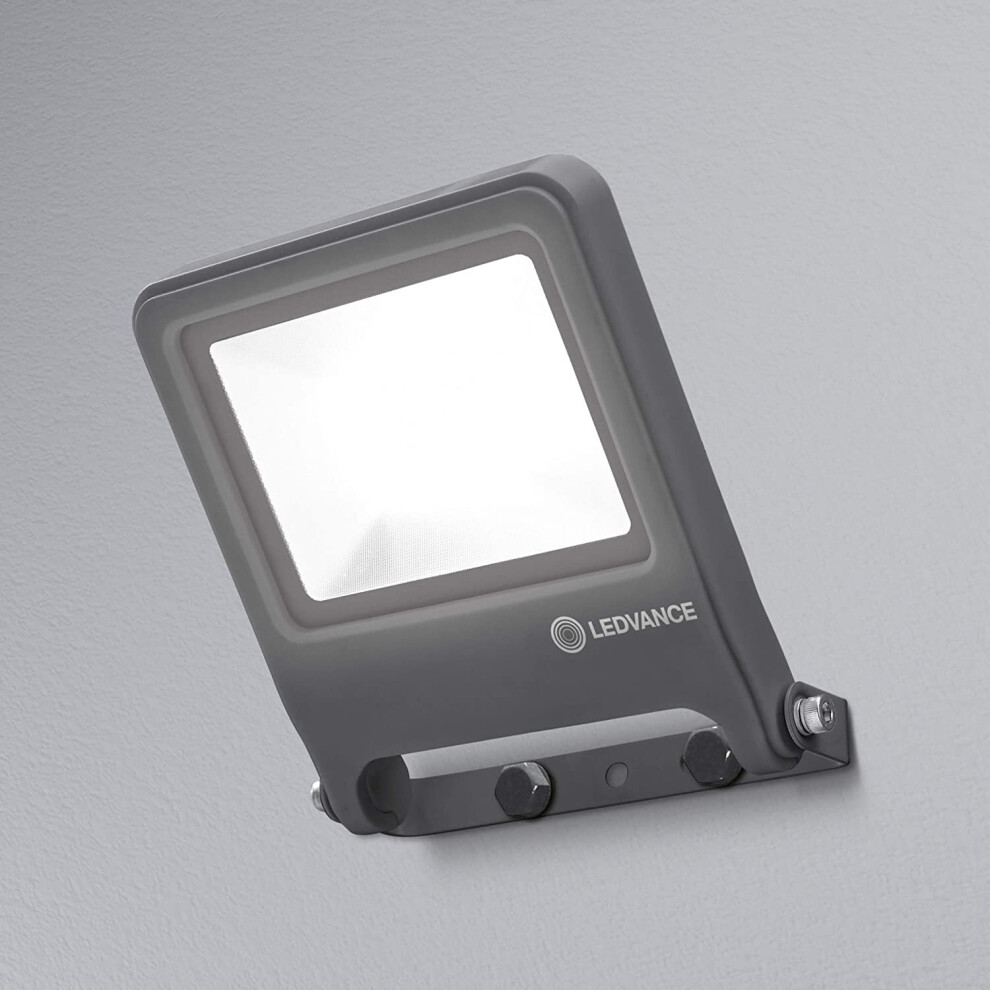

(Without Sensor | 30W) Ledvance Endura Flood Light | Dark Grey

(Without Sensor | 30W) Ledvance Endura Flood Light | Dark Grey Description

Edura Flood | Cool White | 50W | 400K – LV206724

• Quick and simple installation thanks to low profile, compact and light weight design
• Energy savings of up to 80 % compared to halogen lamp floodlights
• Semi-frosted, tempered glass cover for uniform illumination

Areas of Application

• Outdoor
• Replacement for floodlights with halogen lamps
• Garages
• Building facades

Features

• Very bright and functional outdoor LED luminaires
• Symmetrical beam angle: 110° x 110°
• Mounting bracket for up to 180° tilting
• Type of protection: IP65
• Ambient temperature in operation: -20…+45 °C
• Connection via 1 m cable, wiring required

Specifications

Electrical Data

• Nominal wattage: 50.00 W
• Operating mode: ELECTRONIC CONTROL GEAR (ECG)
• Nominal voltage: 220…240 V
• Mains frequency: 50/60 Hz

Photometrical Data

• Colour temperature: 4000 K
• Colour rendering index Ra: ≥80
• Light colour (designation): Cool White
• Luminous flux@: 4500 lm
• Luminous efficacy: 90 lm/W

Light Technical Data

• Beam angle: 120 °

Dimensions & Weight

• Length: 245.0 mm
• Width: 210.0 mm
• Height: 43.0 mm
• Product weight: 1070.00 g

Colours & Materials

• Body material: Aluminium
• Product colour: Dark Gray
• Housing colour: Dark Gray
• Cover material: Glass

Temperatures & Operating Conditions

• Ambient temperature range: -20…+45 °C

Lifespan

• Number of switching cycles: 100000
• Lifespan: 25000 h

Additional Product Data

• Mounting type: Surface
• Mounting location: Wall

Capabilities

• Dimmable: No
• Type of connection: Cable, 3-pole
• LED module replaceable: Not replaceable

Certificates & Standards

• Protection class: I
• Type of protection: IP65
• Standards: CE/EAC/REACH/RoHS

Edura Flood | Cool White | 30W | 400K – LV206700

• Quick and simple installation thanks to low profile, compact and light weight design
• Energy savings of up to 80 % compared to halogen lamp floodlights
• Semi-frosted, tempered glass cover for uniform illumination

Areas of Application

• Outdoor
• Replacement for floodlights with halogen lamps
• Garages
• Building facades

Features

• Very bright and functional outdoor LED luminaires
• Symmetrical beam angle: 110° x 110°
• Mounting bracket for up to 180° tilting
• Type of protection: IP65
• Ambient temperature in operation: -20…+45 °C
• Connection via 1 m cable, wiring required

Specifications

Electrical Data

• Nominal wattage: 30.00 W
• Operating mode: ELECTRONIC CONTROL GEAR (ECG)
• Nominal voltage: 220…240 V
• Mains frequency: 50/60 Hz

Photometrical Data

• Colour temperature: 4000 K
• Colour rendering index Ra: ≥80
• Light colour (designation): Cool White
• Luminous flux: 2700 lm
• Luminous efficacy: 90 lm/W

Light Technical Data

• Beam angle: 120 °

Dimensions & Weight

• Length: 193.0 mm
• Width: 170.0 mm
• Height: 39.0 mm
• Product weight: 650.00 g

Colours & Materials

• Body material: Aluminium
• Product colour: Dark Gray
• Housing colour: Dark Gray
• Cover material: Glass

Temperatures & Operating Conditions

• Ambient temperature range: -20…+45 °C

Lifespan

• Number of switching cycles: 100000
• Lifespan: 25000 h

Additional Product Data

• Mounting type: Surface
• Mounting location: Wall

Capabilities

• Dimmable: No
• Type of connection: Cable, 3-pole
• LED module replaceable: Not replaceable

Certificates & Standards

• Protection class: I
• Type of protection: IP65
• Standards: CE/EAC/REACH/RoHS

Edura Flood Sensor | Cool White | 50W | 400K – LV206786

• Optimized weight and size due to compact design
• Energy savings of up to 80 % compared to halogen lamp floodlights
• Semi-frosted, tempered glass cover for uniform illumination

Areas of Application

• Outdoor use (IP44)
• Replacement for floodlights with halogen lamps
• Garages
• Building facades

Features

• Very bright and functional outdoor LED luminaires
• Symmetrical beam angle: 110° x 110°
• Mounting bracket for up to 180° tilting
• Ambient temperature in operation: -10…+40 °C
• Connection via 1 m cable, wiring required
• Adjustable IR daylight and motion sensor with a detection range of up to 9 m

Specifications

Electrical Data

• Nominal wattage: 50.00 W
• Operating mode: ELECTRONIC CONTROL GEAR (ECG)
• Nominal voltage: 220…240 V
• Mains frequency: 50/60 Hz

Photometrical Data

• Colour temperature: 4000 K
• Colour rendering index Ra: ≥80
• Light colour (designation): Cool White
• Luminous flux: 4500 lm
• Luminous efficacy: 90 lm/W

Light Technical Data

• Beam angle: 120 °

Luminaire Sensor Data

• Type of sensor: Light / Motion
• Sensor technology: Passive infrared (PIR)
• Sensor detection angle: 120 °
• Detection range of motion sensor: 2…9 m
• Detection threshold of daylight sensor: 20…2000 lx
• Sensor controlled switching time: 10 s…10 min

Dimensions & Weight

• Length: 267.0 mm
• Width: 210.0 mm
• Height: 70.0 mm
• Product weight: 1150.00 g

Colours & Materials

• Body material: Aluminium
• Product colour: Dark Gray
• Housing colour: Dark Gray
• Cover material: Glass

Temperatures & Operating Conditions

• Ambient temperature range: -10…+40 °C

Lifespan

• Number of switching cycles: 100000
• Lifespan: 25000 h

Additional Product Data

• Mounting type: Surface
• Mounting location: Wall

Capabilities

• Dimmable: No
• Type of connection: Cable, 3-pole
• LED module replaceable: Not replaceable

Certificates & Standards

• Protection class: I
• Type of protection: IP44
• Standards: CE/EAC/REACH/RoHS

Edura Flood Sensor | Cool White | 30W | 400K – LV206762

• Optimized weight and size due to compact design
• Energy savings of up to 80 % compared to halogen lamp floodlights
• Semi-frosted, tempered glass cover for uniform illumination

Areas of Application

• Outdoor use (IP44)
• Replacement for floodlights with halogen lamps
• Garages
• Building facades

Features

• Very bright and functional outdoor LED luminaires
• Symmetrical beam angle: 110° x 110°
• Mounting bracket for up to 180° tilting
• Ambient temperature in operation: -10…+40 °C
• Connection via 1 m cable, wiring required
• Adjustable IR daylight and motion sensor with a detection range of up to 9 m

Specifications

Electrical Data

• Nominal wattage: 30.00 W
• Operating mode: ELECTRONIC CONTROL GEAR (ECG)
• Nominal voltage: 220…240 V
• Mains frequency: 50/60 Hz

Photometrical Data

• Colour temperature: 4000 K
• Colour rendering index Ra: ≥80
• Light colour (designation): Cool White
• Luminous flux: 2700 lm
• Luminous efficacy: 90 lm/W

Light Technical Data

• Beam angle: 120 °

Luminaire Sensor Data

• Type of sensor: Light / Motion
• Sensor technology: Passive infrared (PIR)
• Sensor detection angle: 120 °
• Detection range of motion sensor: 2…9 m
• Detection threshold of daylight sensor: 20…2000 lx
• Sensor controlled switching time: 10 s…10 min

Dimensions & Weight

• Length: 223.0 mm
• Width: 170.0 mm
• Height: 66.0 mm
• Product weight: 720.00 g

Colours & Materials

• Body material: Aluminium
• Product colour: Dark Gray
• Housing colour: Dark Gray
• Cover material: Glass

Temperatures & Operating Conditions

• Ambient temperature range: -10…+40 °C

Lifespan

• Number of switching cycles: 100000
• Lifespan: 25000 h

Additional Product Data

• Mounting type: Surface
• Mounting location: Wall

Capabilities

• Dimmable: No
• Type of connection: Cable, 3-pole
• LED module replaceable: Not replaceable

Certificates & Standards

• Protection class: I
• Type of protection: IP44
• Standards: CE/EAC/REACH/RoHS
