XLR Speaker Matrix Zone Mixer for Amplifiers Switch Splitter Distribution Box DJ

XLR Speaker Matrix Zone Mixer for Amplifiers Switch Splitter Distribution Box DJ Description

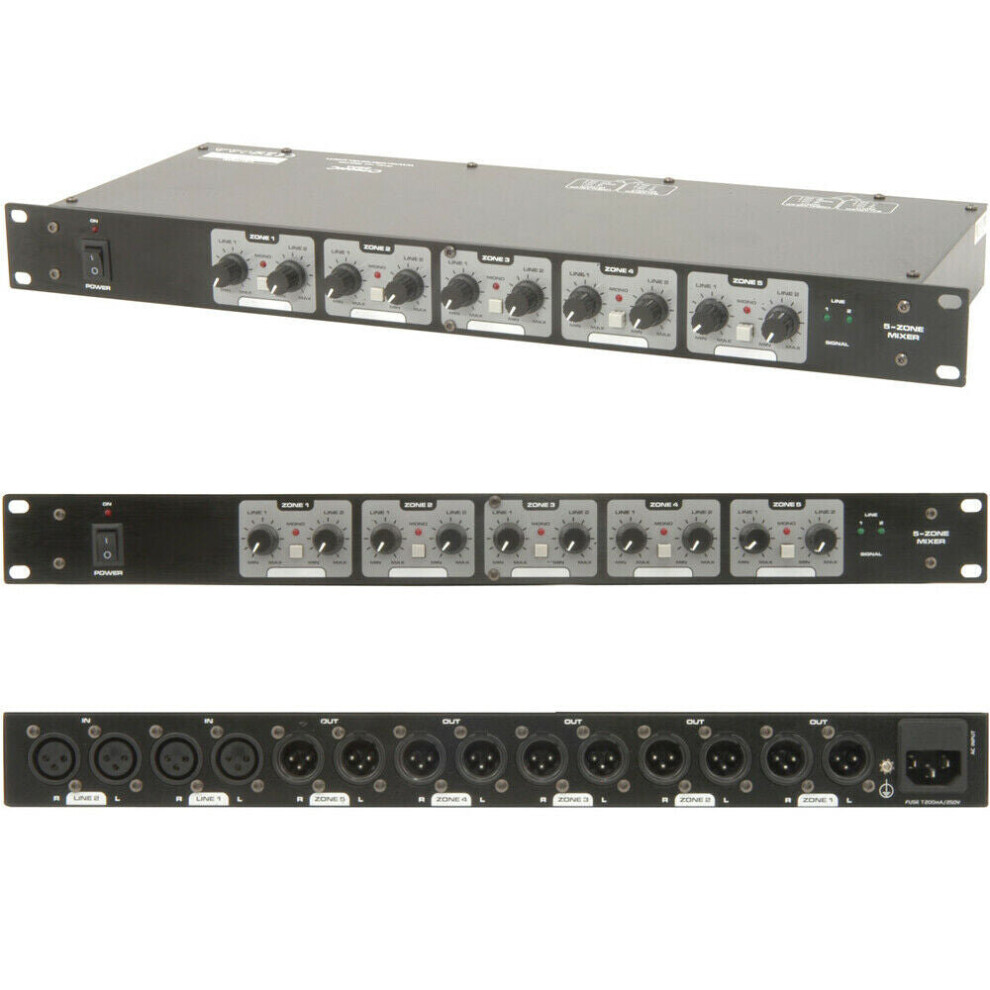

2 Input, 5 Output Balanced XLR Matrix Splitter Box

Audio Management & Distribution

How it works â" Commonly used with any multi-output setup, this unit is suited to controlling a multi-room zoning sound system with up to 5 stereo or mono zones. Individual zones can be selected/switched as mono or stereo if required. 2 separate stereo inputs can be selected or blended at will in each zone.

For example, a typical example is below;

Input 1 > Output 1, 4
Input 2 > Output 3
Output 2 is switched off

Ideal for home use, office use, business use, such as bars and clubs where an independent sound control is required for different rooms or zones.

Build Quality â" This box has a metal outer case, feet on the bottom and because the build quality is excellent, it is robust and durable. The dimensions are 483mm x 175mm x 44mm.

Technical Specification:

Power Supply: 90-240Vac 50/60Hz (IEC cable supplied)
Inputs: Line 1 L+R, Line 2 L+R, Balanced XLR Female
Outputs: Zone 1 to 5 L+R, Balanced XLR Male
Input Impedance: 40K Ohms
Output Impedance: 220 Ohms
Frequency response: 20Hz - 25kHz, +0/-1dB
Signal to noise ratio: >100dB
THD: <0.005%
