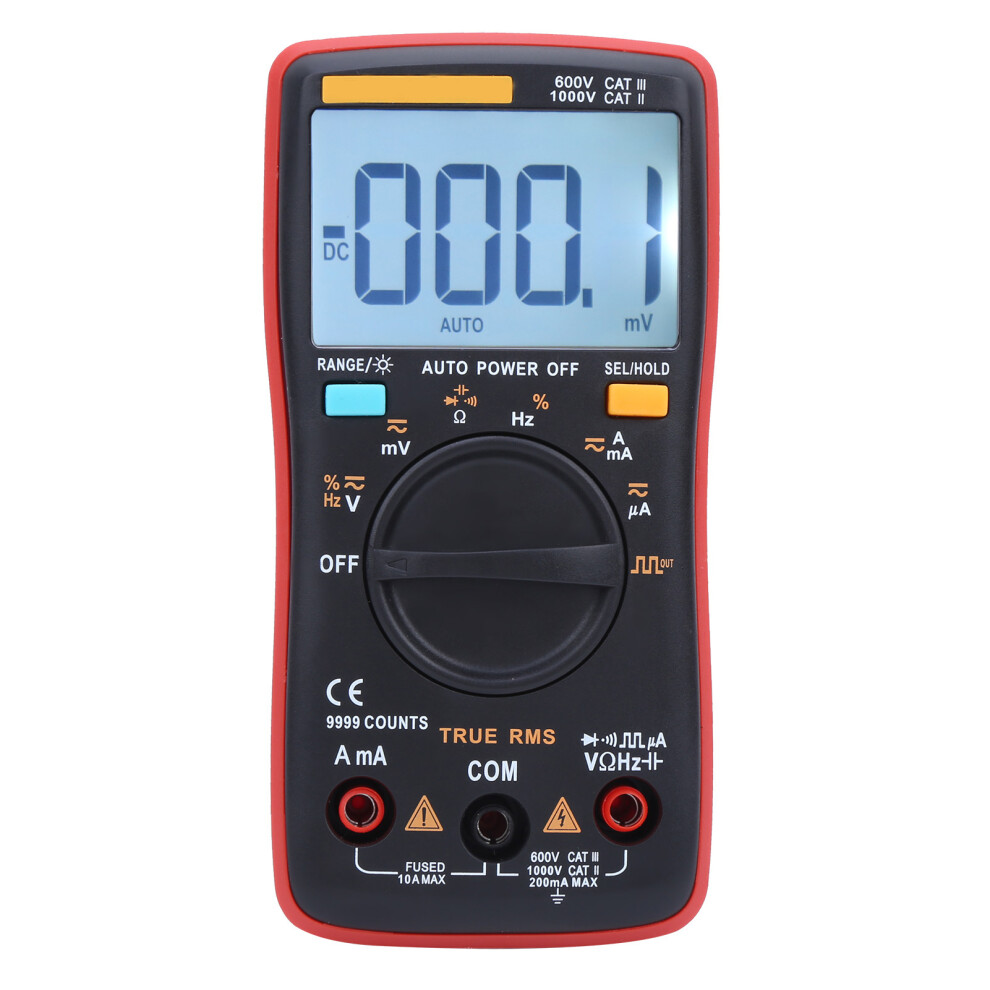

ZT109 Digital Multimeter 9999 Count True RMS AC/DC Volt, Current, Resistance

ZT109 Digital Multimeter 9999 Count True RMS AC/DC Volt, Current, Resistance Description

ZT109 Professional Digital Multimeter 9999 Count True RMS AC / DC Current Voltage Tester
Condition:
Item Type: Multimeter
Material: ABS
Backlight Time: 120s
Count: 9999 Count
Sampling Rate: 3 Seconds/Time
Features
Range
Resolution
Accuracy
Maximum
Others
DC Voltage DC (V)
999.9mV
0.1mV
(0.5%+3)
999.9V
9.999V
0.001V
40HZ‑1KHZ
99.99V
0.01V
999.9V
0.1V
DC Voltage DC (MV)
9.999mV
0.001mV
99.99mV
99.99mV
0.01mV
AC Voltage AC (V)
999.9mV
0.1mV
(1.0%+3)
750V
9.999V
0.001V
99.99V
0.01V
750V
0.1V
AC Voltage AC (MV)
9.999mV
0.001mV
99.99mV
99.99mV
0.01mV
DC Current DC (A, mA)
999.9mA
0.1mA
(1.0%+3)
9.999A
40HZ‑1KHZ
9.999A
0.001A
AC Current AC (uA)
99.99uA
0.01uA
(0.8%+3)
999.9uA
999.9uA
0.1uA
AC Current AC (mA, A)
999.9mA
0.1mA
(1.2%+3)
9.999A
9.999A
0.001A
AC Current AC (uA)
99.99uA
0.01uA
(1.0%+3)
999.9uA
999.9uA
0.1uA
Resistance (Ω)
99.99Ω
0.01Ω
(1.0%+3)
9.999MΩ
999.9Ω
0.1Ω
(0.5%+3)
9.999kΩ
0.001kΩ
99.99kΩ
0.01kΩ
999.9kΩ
0.1kΩ
9.999MΩ
0.001MΩ
(1.5%+3)
Capacitance (F)
9.999nF
0.001nF
(5.0%+20)
9.999mF
99.99nF
0.01nF
(2.0%+5)
999.9nF
0.1nF
9.999uF
0.001μF
99.99uF
0.01μF
999.9uF
0.1μF
9.999mF
0.001mF
(5.0%+5)
Frequency (HZ)
99.99Hz
0.01Hz
(0.1%+2)
9.999MHz
999.9Hz
0.1Hz
9.999kHz
0.001kHz
99.99kHz
0.01kHz
999.9kHz
0.1kHz
9.999MHz
0.001MHz
Duty Cycle
1%‑99%
0.10%
(0.1%+2)
Diode
Support
Continuity
Support
Square Waves Output
50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz
Power Supply
2 x 1.5V AAA Batteries (Battery Not Included)
Product Size
Approx. 130x65x32mm / 5.1x2.6x1.3in
Operating Temperature
0‑40
Working Humidity
<75%
Storage Temperature
‑20‑60
Storage Humidity
<80%
