2X 9V-30V 60A 2Way PWM Motor Driver Module Speed Controller High Power H-Bridge Forward/Reverse Speed Adjustable
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£30.75
£37.12
17% off!
+£1.50 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Tue 21st - Mon 27th Jul
Sold by: YPDblue
Returns: 30 days
180-day payment protection
Most Popular in Circuit Boards
Description & Details
Summary

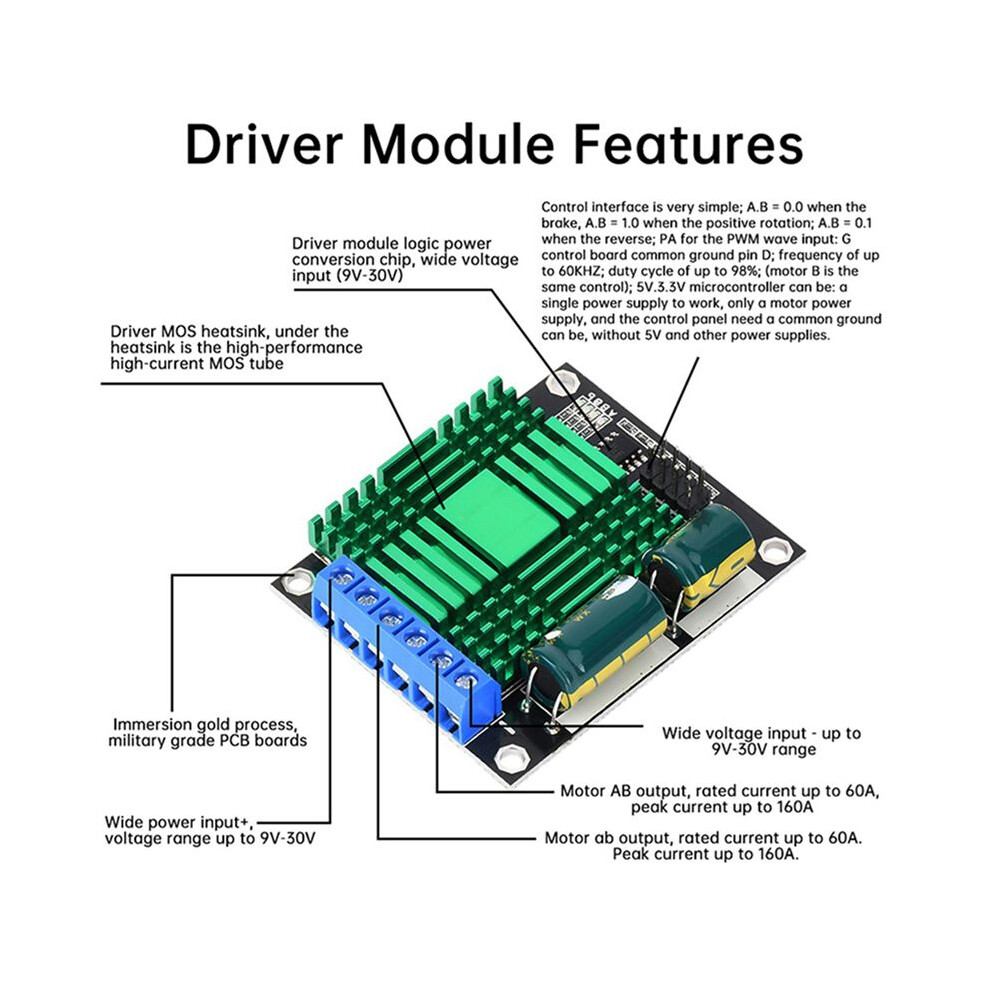

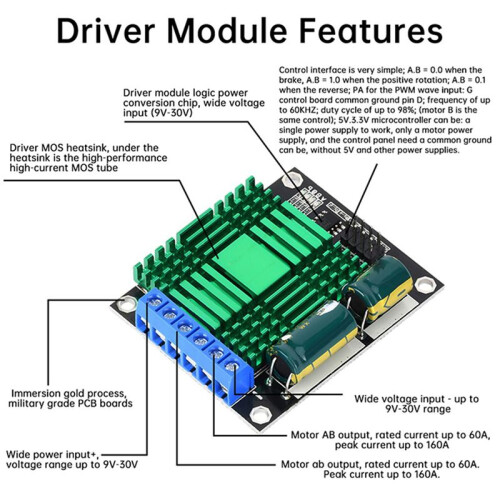

- 1.The basic components of this product for the SMD high degree of integration, the module design is beautiful, well laid out, very small size, on-board two-way high-power DC motor drive

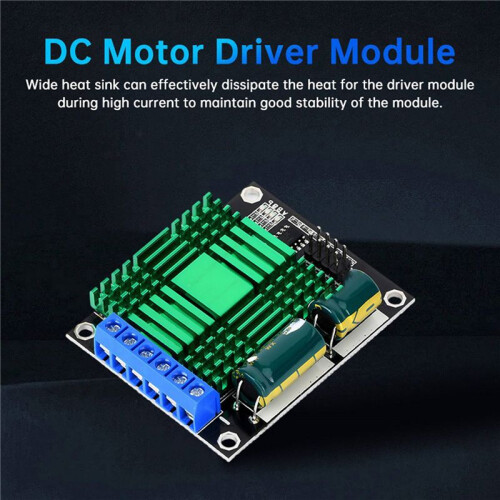

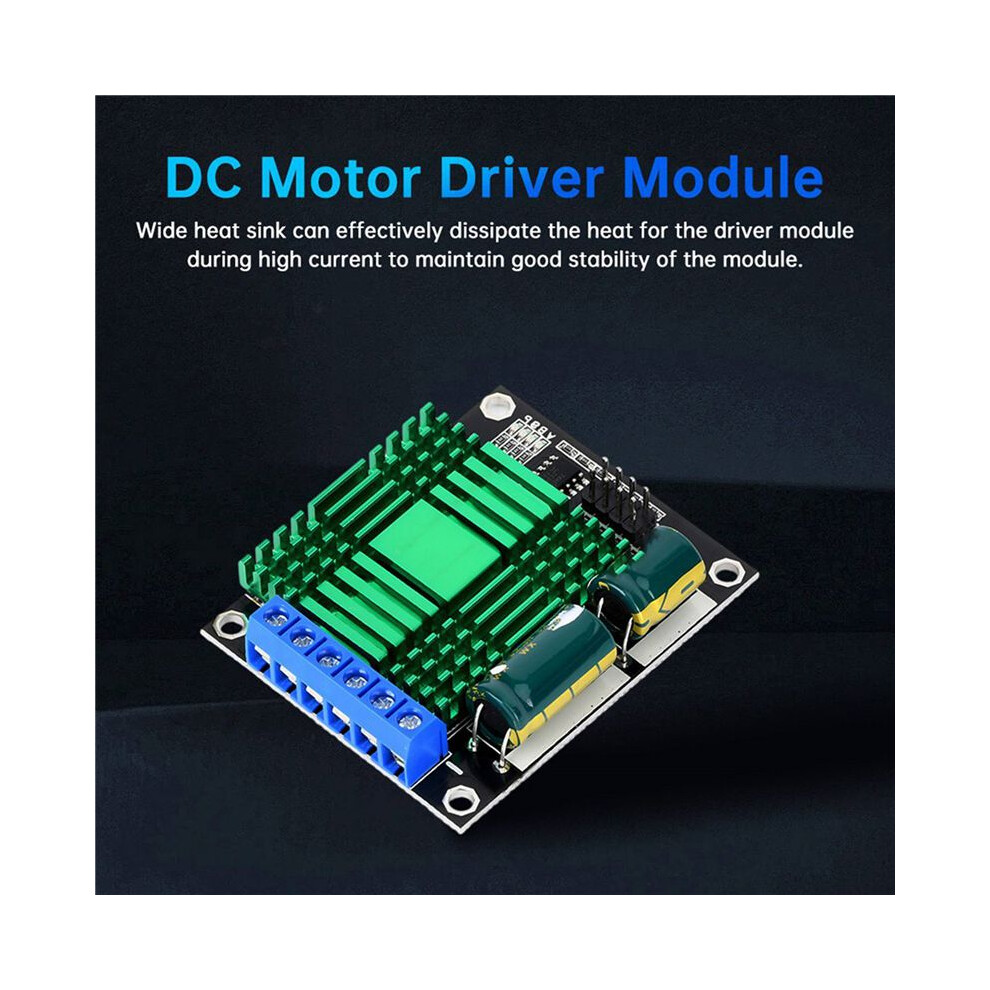

- 2. Wide heat sink can effectively dissipate heat for the drive module when high current,to maintain the module's good stability performance
- 3. When driving the motor, the maximum rated current of the module can be up to 60A, and the on-resistance is only 0.003 ohm.
- 4. High switching frequency, up to 60KHZ, which effectively avoids the unpleasantness of debugging motor frequency is low.

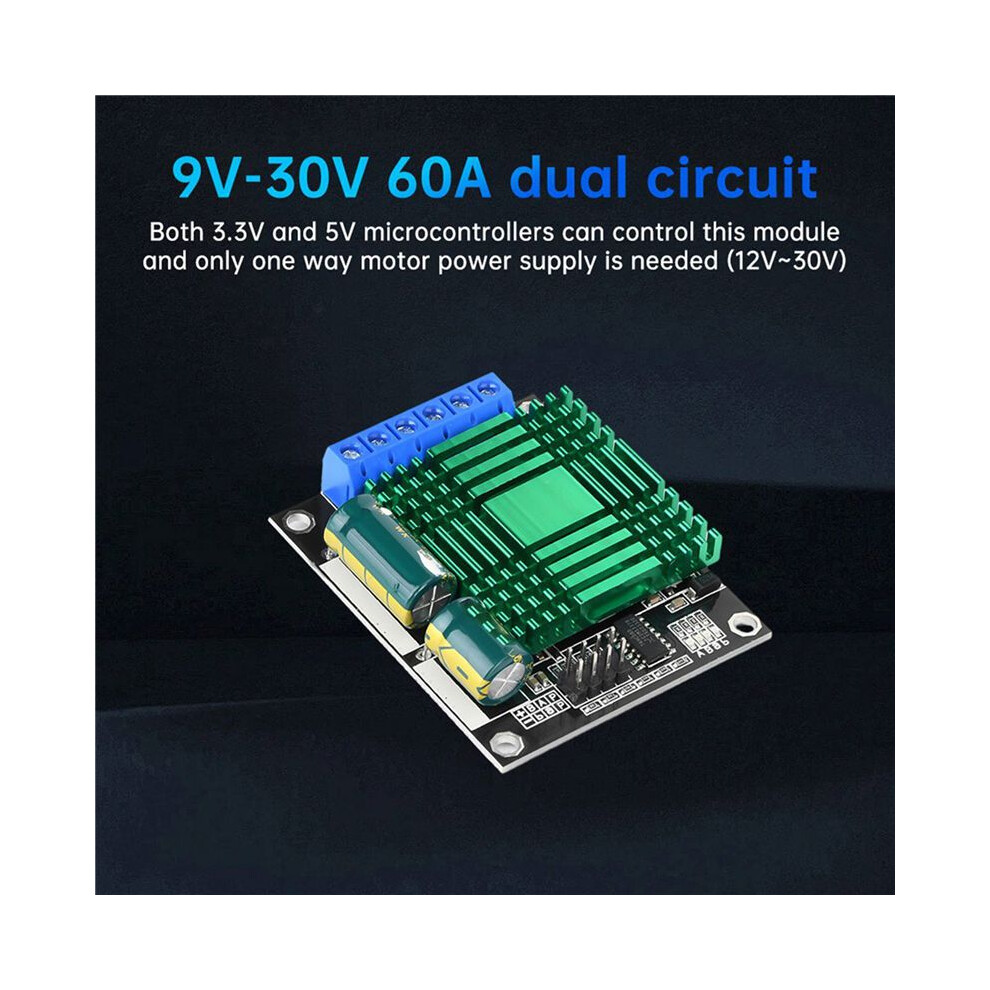

- 5.3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V - 30V)
2X 9V-30V 60A 2Way PWM Motor Driver Module Speed Controller High Power H-Bridge Forward/Reverse Speed Adjustable Description
1.The basic components of this product for the SMD high degree of integration, the module design is beautiful, well laid out, very small size, -board two-way high-power motor drive
2. Wide heat sink can effectively dissipate heat for the drive module when high current,to maintain the module's good stability performance
3. When driving the motor, the maximum rated current of the module can be to 60A, and the -resistance is only 0.003 ohm.
4. High switching frequency, to 60KHZ, which effectively avoids the unpleasantness of debugging motor frequency is low.
5.3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V - 30V)
Input voltage: 9-30V

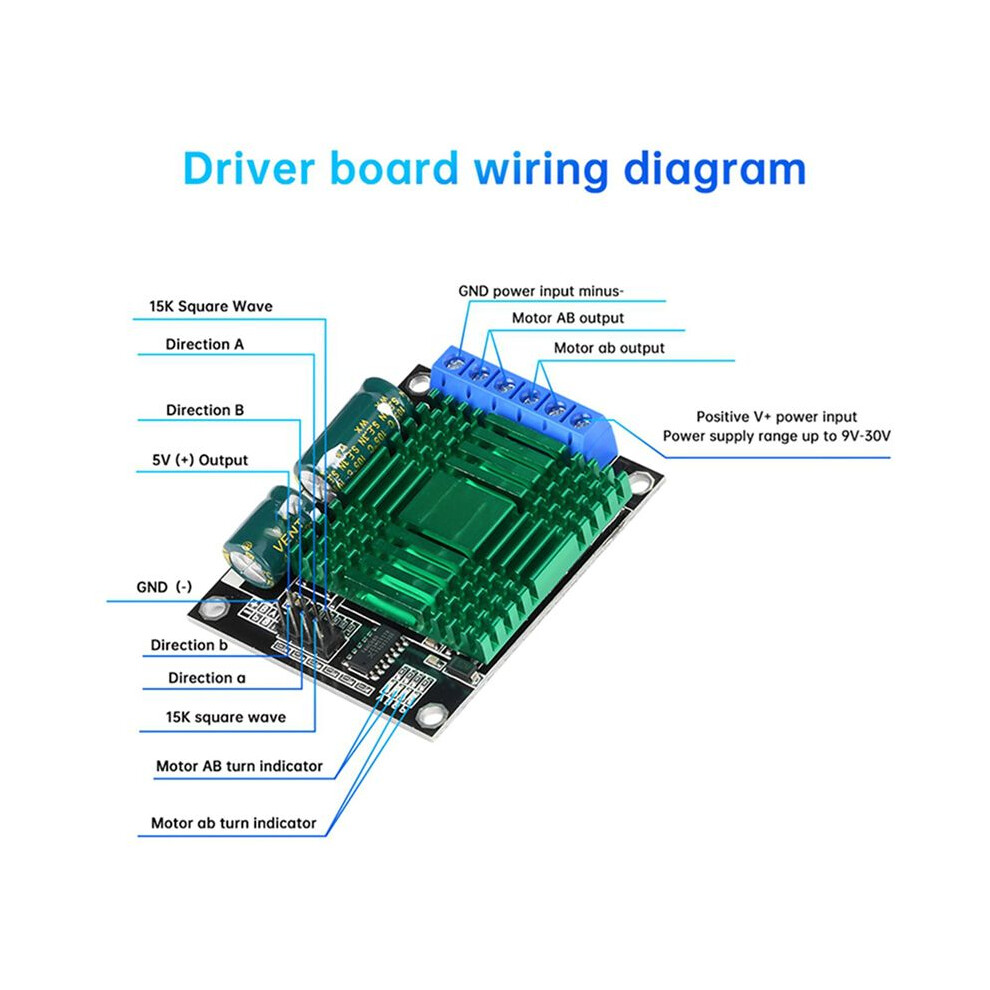

Control interface:
A.B=0.0 for brake
A.B=1.0 for positive rotation
A.B=0.1 for reverse rotation
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B road for the same control)
Positioning hole: 3mm
Hole pitch: 52x42mm
Colour:As Shown
Material:PC
Package Contents:
2 x Motor driver module(Due to different product batches, the appearance may vary, which does not affect the use)
Details
| OPC | PTJ5TSV |
|---|---|
| Codes | 4713751608925 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 6cm |
| Weight | 0.068kg |
| Colour | As Shown |
| Material | PC |
