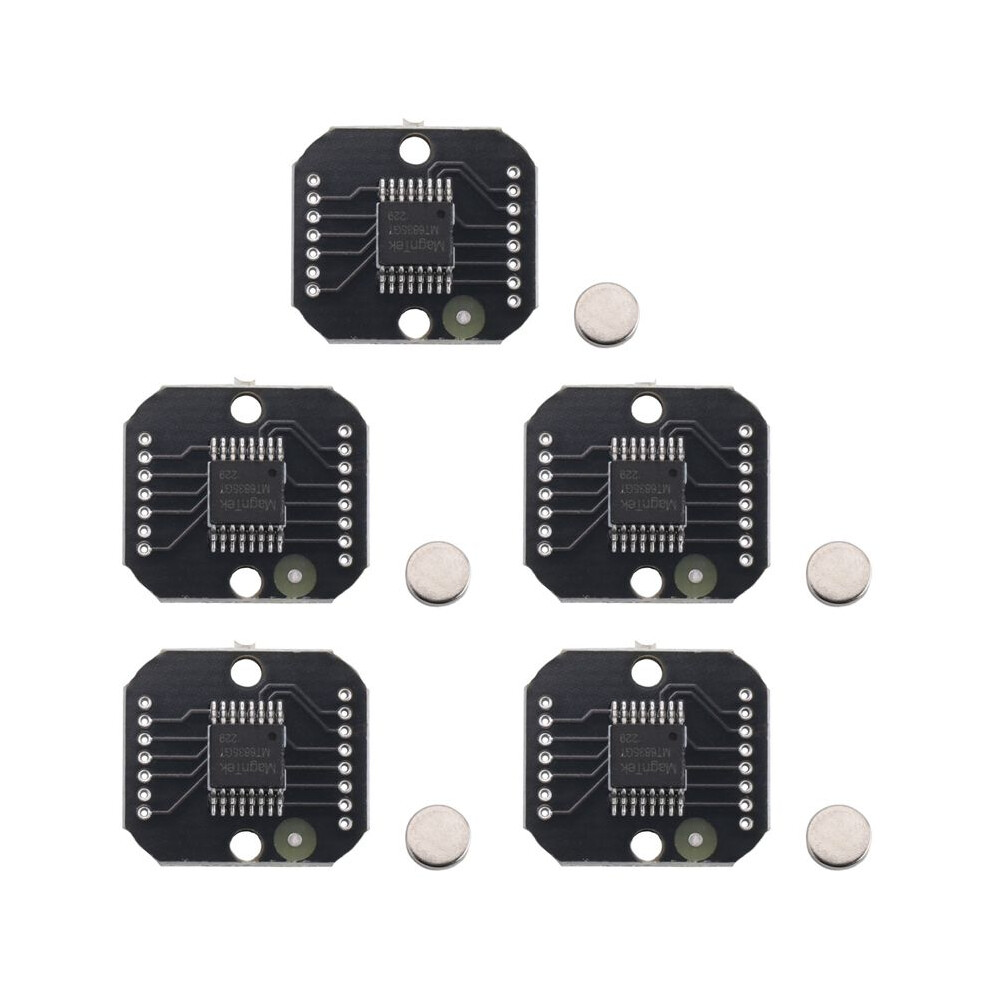

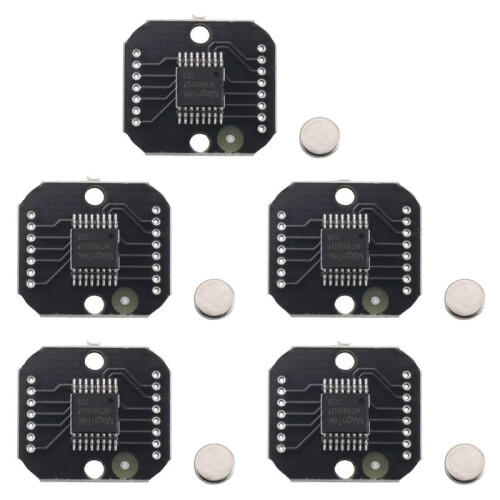

5X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Mon 20th - Sat 25th Jul
Sold by: YPDblue
Returns: 30 days
180-day payment protection
Most Popular in Circuit Boards
Summary
- Based on AMR technology, it provides absolute angle measurement from 0° to 360°
- Working voltage 3.3~5.0V
- Working temperature -40℃~125℃
- Typical value of linearity deviation Less than ±0.5° (factory value), typical value of linearity deviation Less than ±0.07° (typical value self-calibration), typical value of linearity deviation Less than ±0.02° (typical NLC self-calibration)
- The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm
5X MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048 Description
Based AMR technology, it provides absolute angle measurement from 0 to 360
Working voltage 3.3~5.0V
Working temperature -40~125
Typical value of linearity deviation Less than 0.5 (factory value), typical value of linearity deviation Less than 0.07 (typical value self-calibration), typical value of linearity deviation Less than 0.02 (typical NLC self-calibration)
The system delay is 2us~10us, and the maximum speed can be to 120,000 rpm
Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip
Incremental output ABZ supports any resolution from 1 to 16384 lines
Incremental output UVW supports 1~16 arbitrary pole pairs
Support to 5 times online zero programming
The output is SPI
Colour:
Material:PCB
Package Contents:
5 x Magnetic encoder
5 x Magnet
Details
| OPC | PTJ2BRD |
|---|---|
| Codes | 4712080411244 (EAN) |
Product Data
| Height | 5cm |
|---|---|
| Width | 5cm |
| Length | 5cm |
| Weight | 0.025kg |
| Colour | Purple |
| Material | PCB |
