  5. Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity
Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity

Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity

New

Hurry only 1 left

Smart shoppers OnBuy it!

  • Earn Cashback on every purchase – spend it instantly on your next order
  • Free delivery – on millions of items across the site
  • Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating

See full product description & details

£12.77
£16.37 22% off!
FREE Delivery
1% What is instant Cashback? Learn More
Add to Basket

Interest-free payment options available

Sold by SpiceSphere Pantry
Professional Seller
Visit store

See full product description & details

Delivery: Standard (Free) | Mon 27th - Wed 29th Jul

Returns: 30 days

180-day payment protection

Add to Basket

Most Popular in Circuit Boards

Circuit Boards
MP118TX power board advertising machine touch LCDMP118TX power board advertising machine touch LCD£31.35FREE Delivery
150Pcs DRG-01 PCB for DIN 35 Rail Mount Mounting Support Adapter Circuit Board Bracket Holder Carrier Clips Connectors150Pcs DRG-01 PCB for DIN 35 Rail Mount Mounting Support Adapter Circuit Board Bracket Holder Carrier Clips Connectors£39.28FREE Delivery
MEGA 2560 R3 Microcontroller With Prototype Board + L293D Motor Driver ShieldMEGA 2560 R3 Microcontroller With Prototype Board + L293D Motor Driver Shield£30.80FREE Delivery
UNO R3 Atmega328P CH340G Development Board with USB Cable PinheaderUNO R3 Atmega328P CH340G Development Board with USB Cable Pinheader£7.50FREE Delivery
NRF24 ESP32 3-in-1 WiFi Expansion Module for Flipper 0NRF24 ESP32 3-in-1 WiFi Expansion Module for Flipper 0£52.98FREE Delivery
Muscle Signal Sensor Emg Sensor For ArduinoMuscle Signal Sensor Emg Sensor For Arduino£19.52FREE Delivery
Arduino Uno A000066 Board R3Arduino Uno A000066 Board R3£55.29FREE Delivery
Ideal Classic 173799 Printed Circuit Board 25EIdeal Classic 173799 Printed Circuit Board 25E£90.00FREE Delivery
3Pcs BL1830 Li-Ion Battery PCB Charging Protection Circuit Board for Makita 18V 1.5Ah 3Ah 6Ah 9Ah BL1815 BL1845 BL18603Pcs BL1830 Li-Ion Battery PCB Charging Protection Circuit Board for Makita 18V 1.5Ah 3Ah 6Ah 9Ah BL1815 BL1845 BL1860£13.62FREE Delivery
8 Channel MOSFET Microcontroller PLC Amplification8 Channel MOSFET Microcontroller PLC Amplification£19.24FREE Delivery
2X T-Dongle-S3 ESP32-S3 Dongle with LCD Display for Nerdminer Bitcoin Nerd Miner BTC USB2X T-Dongle-S3 ESP32-S3 Dongle with LCD Display for Nerdminer Bitcoin Nerd Miner BTC USB£37.81FREE Delivery
2Inch IPS LCD Display for ,65K RGB Color2Inch IPS LCD Display for ,65K RGB Color£11.72FREE Delivery
CJMCU-1220 ADS1220 ADC 24 Bit A/D Converter Module I2C Low PowerCJMCU-1220 ADS1220 ADC 24 Bit A/D Converter Module I2C Low Power£12.47FREE Delivery
ICM42688 Six- Attitude Sensor Module,Supports IIC and SPI DriversICM42688 Six- Attitude Sensor Module,Supports IIC and SPI Drivers£15.00FREE Delivery
MAX7219 Dot Matrix Module LED Display 5V 4-in-1 AMAX7219 Dot Matrix Module LED Display 5V 4-in-1 A£7.41FREE Delivery
AC 220V/230V Coil Voltage PCB Power Relay 8 Pins DPDT 2NO 2NC MK2P-1AC 220V/230V Coil Voltage PCB Power Relay 8 Pins DPDT 2NO 2NC MK2P-1£3.07FREE Delivery
Li-Ion Protection Replacement Battery PCB Chip Board for Makita 18VLi-Ion Protection Replacement Battery PCB Chip Board for Makita 18V£6.18FREE Delivery
10W Qi Wireless Fast Charger Module Transmitter PCBA Circuit Board DIY Charging Coil10W Qi Wireless Fast Charger Module Transmitter PCBA Circuit Board DIY Charging Coil£9.09FREE Delivery
ESP32-S3 3.5 Inch Capacitive Touch IPS Display Development BoardESP32-S3 3.5 Inch Capacitive Touch IPS Display Development Board£27.92FREE Delivery
Hammond 1590A Diecast Enclosure Natural (92.5 x 38.5 x 31mm)Hammond 1590A Diecast Enclosure Natural (92.5 x 38.5 x 31mm)£10.07FREE Delivery
Test Board Kit VNA Demo Vector Network AnalyzerTest Board Kit VNA Demo Vector Network Analyzer£6.91FREE Delivery
Filter Attenuator VNA Test Board Tester Demo Kit Module Breadboard Network Analyzer Universal ToolFilter Attenuator VNA Test Board Tester Demo Kit Module Breadboard Network Analyzer Universal Tool£11.84FREE Delivery
30cm x 20cm One Sided DIY Copper Clad Plate Laminate PCB Circuit Board30cm x 20cm One Sided DIY Copper Clad Plate Laminate PCB Circuit Board£8.05FREE Delivery
220V 40KHz 150W Ultrasonic Cleaner PCB Driver Boards Circuit Board220V 40KHz 150W Ultrasonic Cleaner PCB Driver Boards Circuit Board£44.81FREE Delivery
Description & Details

Summary

  • The mixer has the advantage of high isolation
  • The passive mixers adopt mini components design,compact and light weight
  • Passive Mixer has low conversion loss of 8.5 dB
  • GaAs Schottky diode and novel in-plane transformer chip barron structure are used.

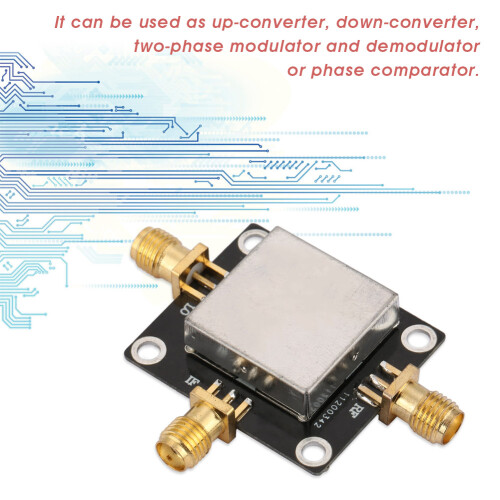

  • It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.

Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity Description

1.5-4.5G High Linear Low Noise Passive Mixer Diode Double Balanced Mixer

Features:



The mixer has the advantage of high isolation


The passive mixers adopt mini components design,compact and light weight


Passive Mixer has low conversion loss of 8.5 dB


GaAs Schottky diode and novel in-plane transformer chip barron structure are used.


It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.







Specification:


Conversion loss: 8.5db


LO to RF isolation: 40 dB


LO to IF isolation: 35dB.


Frequency range, RF and LO: 1.5-4.5GHz


Frequency range, IF: dc-1.5GHz


1dB gain compression (input) : 8dBm


IP3 (input) : 18dBm


Weight: Approx.10g/0.4oz






Package list:


1 x Passive Mixer

Details

OPC PN6GNM8
Codes 8471363414384 (EAN)

Product Images

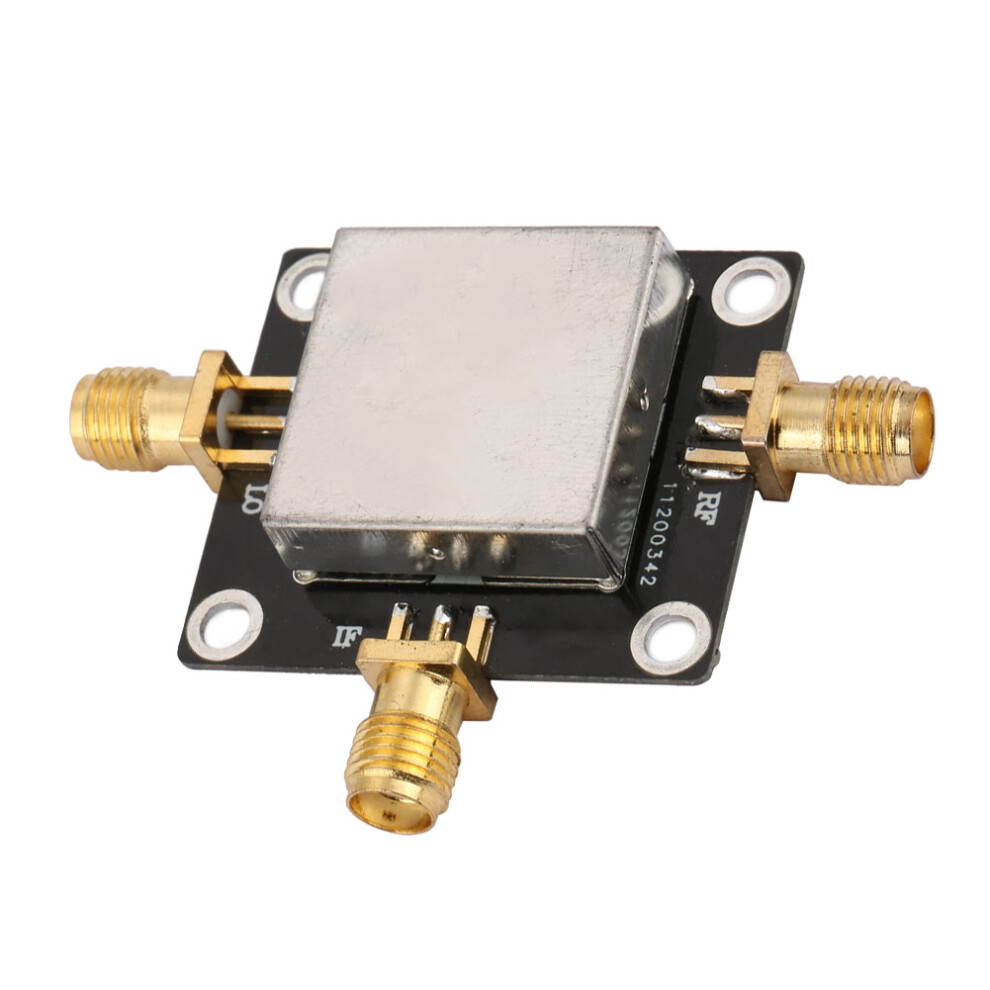

Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity 1

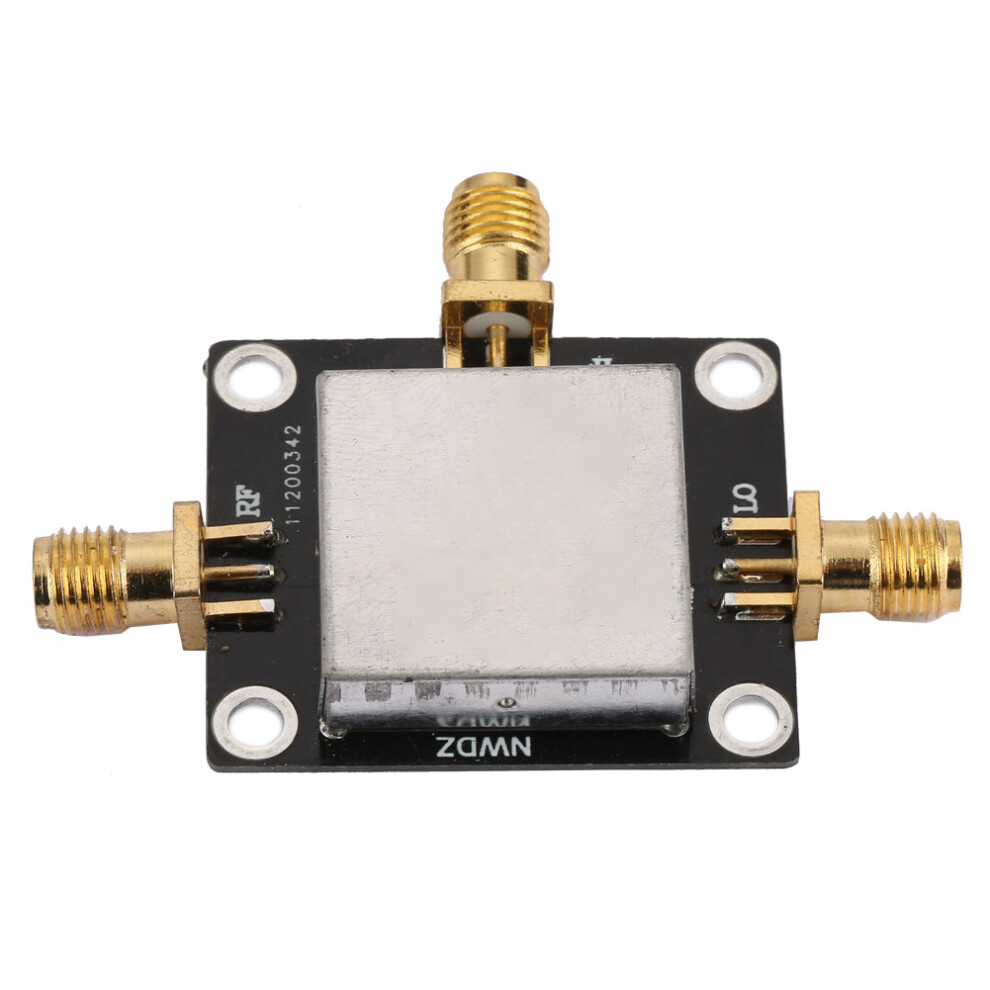

Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity 2

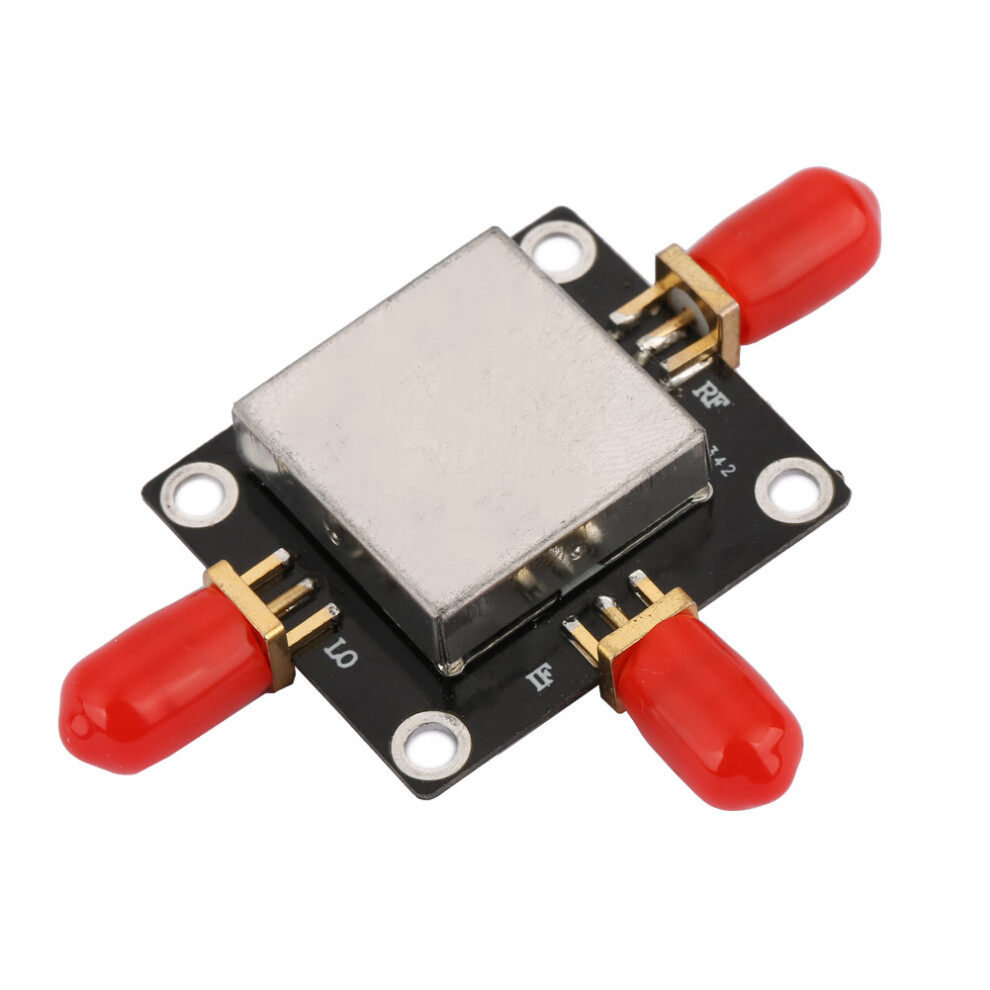

Double Balanced Passive Mixer Diode 1.5-4.5G Low Noise High Linearity
