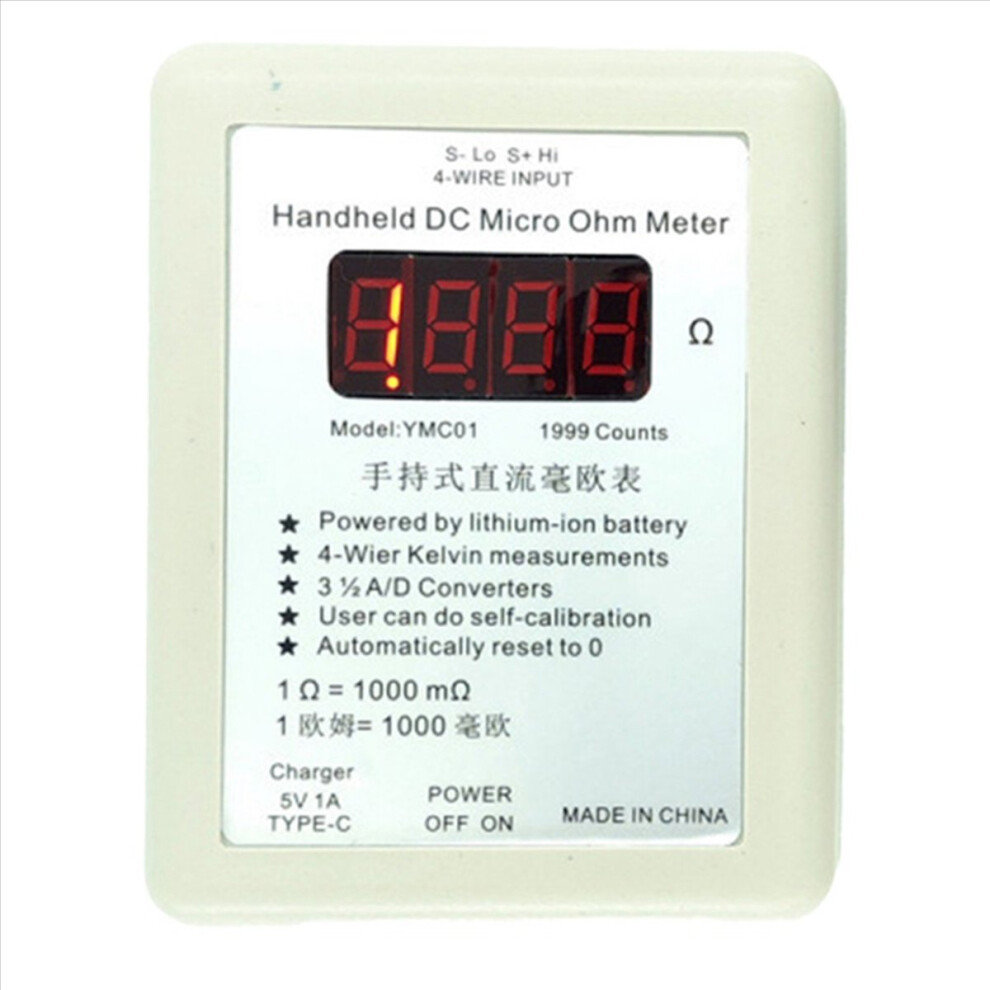

Handheld DC Milliohmmeter Low Resistance Tester 0.01-19.99Ω Four Wire

Handheld DC Milliohmmeter Low Resistance Tester 0.01-19.99Ω Four Wire Description

Features:
1. Small size handheld, easy to carry.
2. Built-in Qu battery power supply, Type-C port charging.
3. Four-line Kelvin measurement, less error.
4. Test the data retention function.

Built-in 3296 potentiometer, users can calibrate themselves.
8888 red digital tube display.
Automatically return to zero, no need to set 0.
Specifications:
Resolution: 20R=10mΩ
Measuring range: 20R= 0.01-19.99Mω
Test current: 20R= about 10mA
Accuracy: (0.1% digits +3 words)
Open circuit output voltage: Less than 4.2V DC
No-load power consumption: 13mA
Power supply: 3.7V 600mAH
Charging port input voltage: Type-C 5V1A
Charging current: 0.5A
Charging indicator: charging, the red light is on; Charging complete, red light off
Test wire length: 35cm
Resistance measurement method: four-wire Kelvin measurement
Working environment: 10-35 RH Less than 80%
D resistance for measuring small resistance values, such as:
1. Transformer coil, motor coil.
2. MOS on-resistance (requires an auxiliary power supply to trigger GS pole).
3. Contact resistance of switch and relay contacts.
4. Resistance of electronic wire and audio wire.
5. Locate the short circuit on the circuit board.
6. Sampling resistance measurement.
Color: White
Material: plastic
Specifications:Large Clip

Package Contents:
1 x Milliohm Meter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
