Insulation Resistance Tester Insulation Resistance Tester

Insulation Resistance Tester Insulation Resistance Tester Description

1. PI MEASUREMENT AND AGING IDENTIFICATION: The power system requires insulation resistance tester to measure the polarization index in the insulation test of the main transformer, cable, motor, etc., to judge the quality of the insulation condition, quality and aging problems
2. AUTOMATIC COMPARISON: The ground resistance tester can automatically calculate the DAR absorption ratio of the DAR measurement, the ratio of the insulation resistance value at 1 minute to the insulation resistance value at , and determine whether the equipment affect the insulation resistance due to humidity
3. ACCURATE AND POWERFUL: High accuracy megrohm meter, insulation resistance tester can be used for AC and DC voltage measurement, insulation resistance measurement, support 1100 sets of data storage, automatic calculation of polarization index and absorption ratio

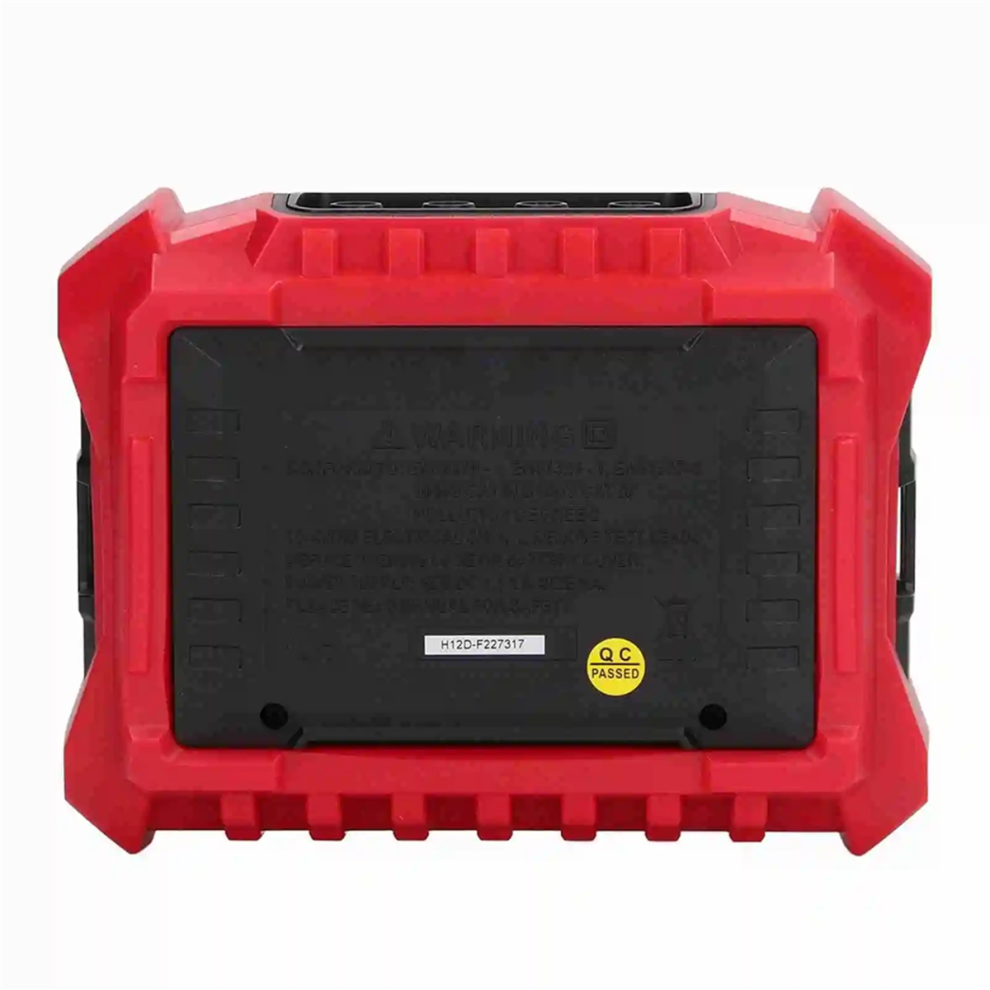

4. WITH BACKLIGHT AND SUPPORT FRAME: The digital display back light screen allow you to see the screen value in dim environment, the back has 45 extendable support frame, so that the megohm meter is convenient to stand operation
5. MULTI LEVEL HIGH VOLTAGE OUTPUT: Connect the insulation resistance measuring pen to both ends of the test appliance, select the output voltage, the TEST button automatically discharge to measure whether the appliance is normal or short circuit

Item Type:Insulation Resistance Tester
Model:HT5203
Battery:8 x 1.5V AA battery(not include)
Basic Parameters:
DC Voltage Measurement:
Range:1000V
Resolution:1V
Accuracy:(1.0% reading and 5 words)
AC Voltage Measurement:
Range:750V
Resolution:1V
Accuracy:(1.0% reading and 5 words)
Frequency Range:40-400Hz(sine wave)
Continuity Measurement:
Measuring Range:200.0Ω
Resolution:0.1Ω
Accuracy:(1.0% reading and 5 words)
Resistance:Less than about 50Ω, buzzer sound
Insulation Resistance Measurement:
Test voltage Measuring range Resolution Accuracy
50V 0-20.00MΩ 0.01MΩ (3% reading and 5 words)
20.0-200.0MΩ 0.1MΩ
100V 0-20.00MΩ 0.01MΩ (3% reading and 5 words)
20.0-200.0MΩ 0.1MΩ
0.200-1.000GΩ 0.001GΩ
250V 0-20.00MΩ 0.01MΩ (3% reading and 5 words)
20.0-200.0MΩ 0.1MΩ
0.200-2.000GΩ 0.001GΩ
500V 0-20.00MΩ 0.01MΩ (3% reading and 5 words)
20.0-200.0MΩ 0.1MΩ
0.200-2.000GΩ 0.001GΩ
2.00-20.00GΩ 0.01GΩ
1000V 0-20.00MΩ 0.01MΩ (3% reading and 5 words)
20.0-200.0MΩ 0.1MΩ
0.200-2.000GΩ 0.001GΩ
2.00-20.00GΩ 0.01GΩ
20.0-100.0GΩ 0.1GΩ (5% reading and 5 words)
How to Use:Power on and use directly.
Color:Black & Red
Material:plastic

Package Contents:

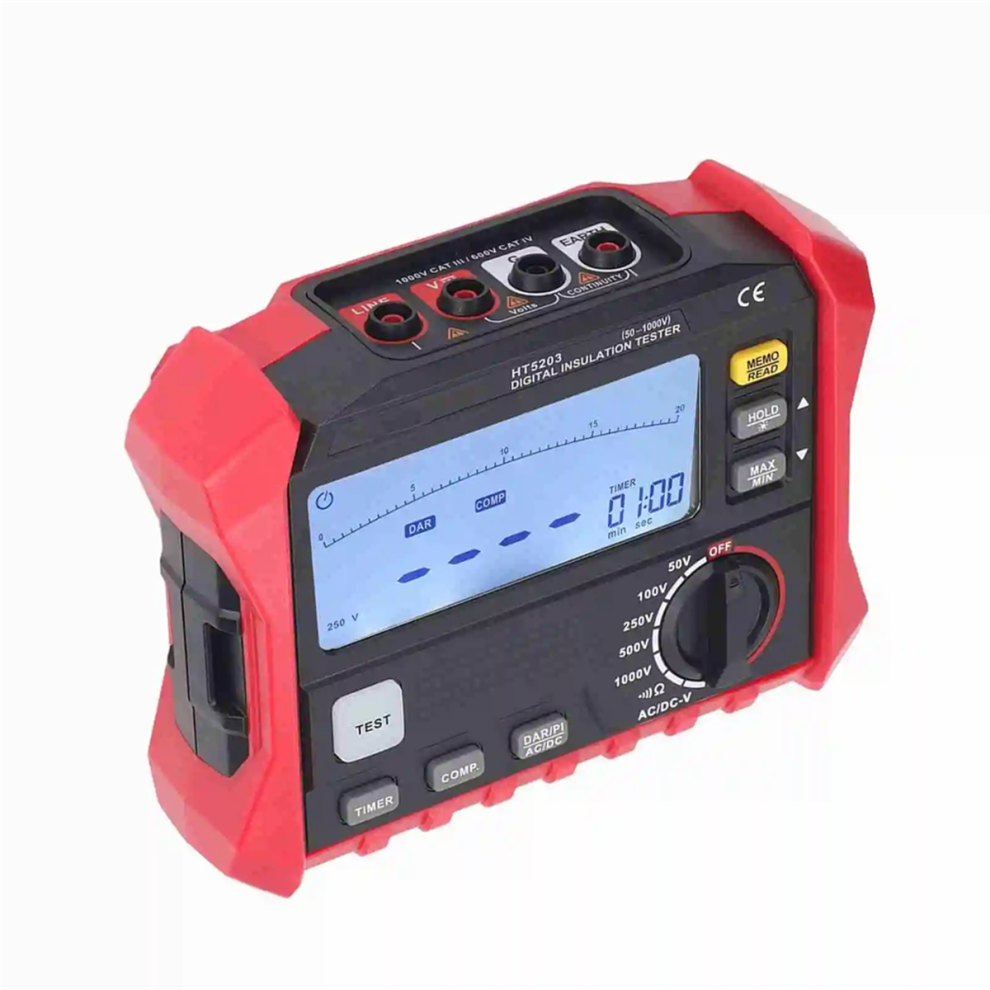

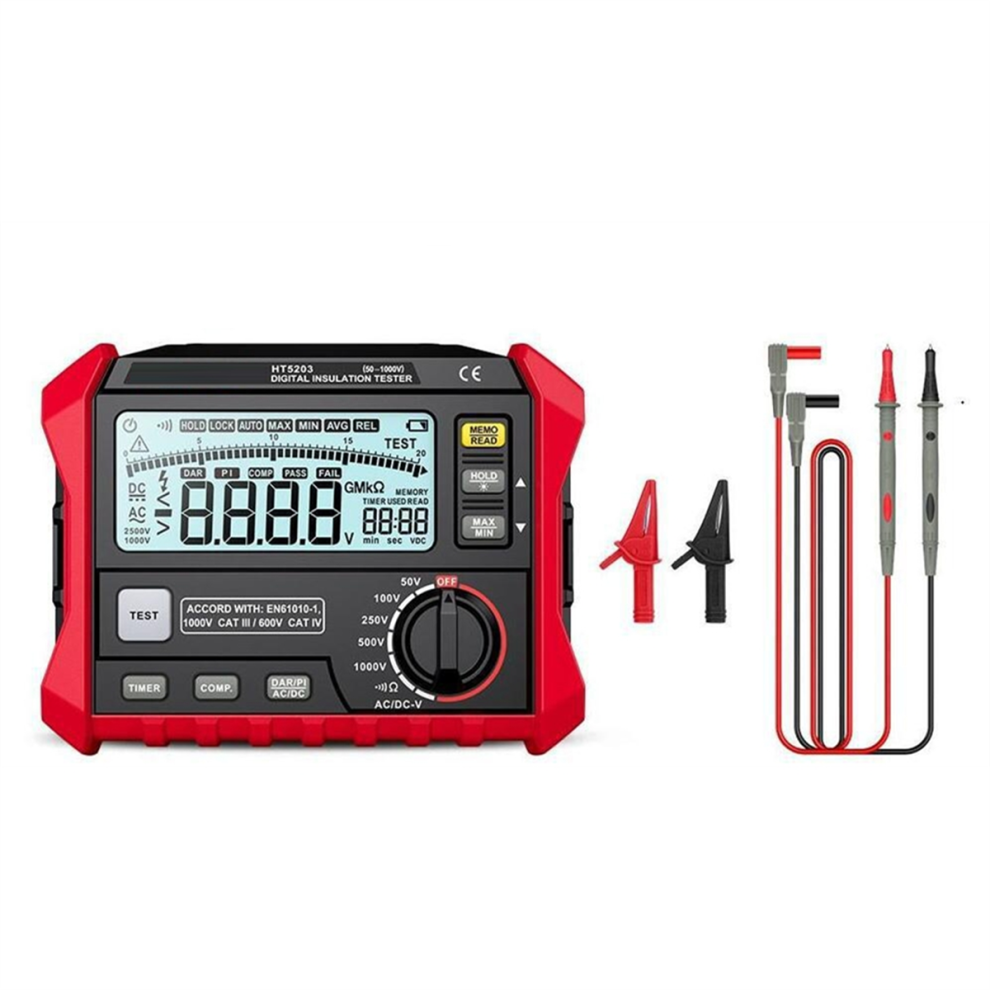

1set * HT5203 insulation resistance tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
