KC22B02_5V DC 5V 2 Channel Multifunction Delay Timer Module Delay Relay Controller Motor Reverse Cycle Loop Timers Description

Description:

DC 5V 2 channels 0-9999 seconds multi-function delay relay board
Nine kinds of functions can be switched
Products can set the delay time and Function.After setting up, power-up setting value is previous setting delay time and Function as we set last time (power-down memory function);
Size: 75mm × 35mm x 20mm
Weight : 35g
Relay maximum load capacity: DC 1-110V/6A; AC 85-250V/5A

User Manua:
Noun resolved:
COM : Common terminal
NO: Normal open
NC: Normally Close
Relay close: COM connect NO,COM disconnect NC
Relay open : COM disconnect NO,COM connect NC

Package inlcuded:1 PCS DC 5V 2 channel multi-function delay relay board

Details

OPC	P8QXWWD
Brand	Dsport
Codes	0774048926874 (EAN)

Product Images

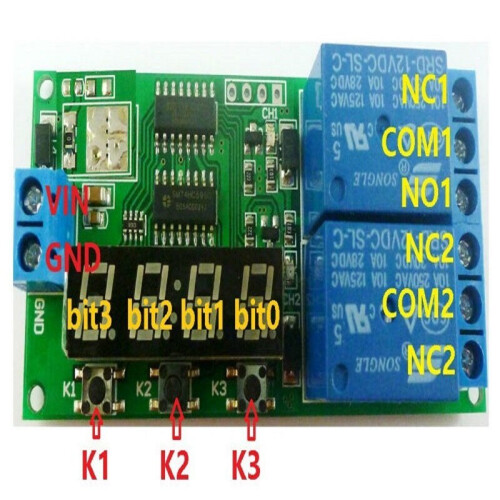

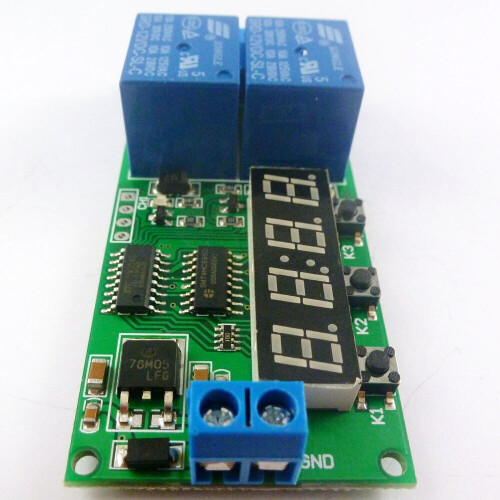

KC22B02_5V DC 5V 2 Channel Multifunction Delay Timer Module Delay Relay Controller Motor Reverse Cycle Loop Timers 1

KC22B02_5V DC 5V 2 Channel Multifunction Delay Timer Module Delay Relay Controller Motor Reverse Cycle Loop Timers 2
