MKS TMC5160-PRO Stepper Motor Driver compatible for Klipper

MKS TMC5160-PRO Stepper Motor Driver compatible for Klipper Description

MKS TMC5160-PRO Stepper Motor Driver for Klipper

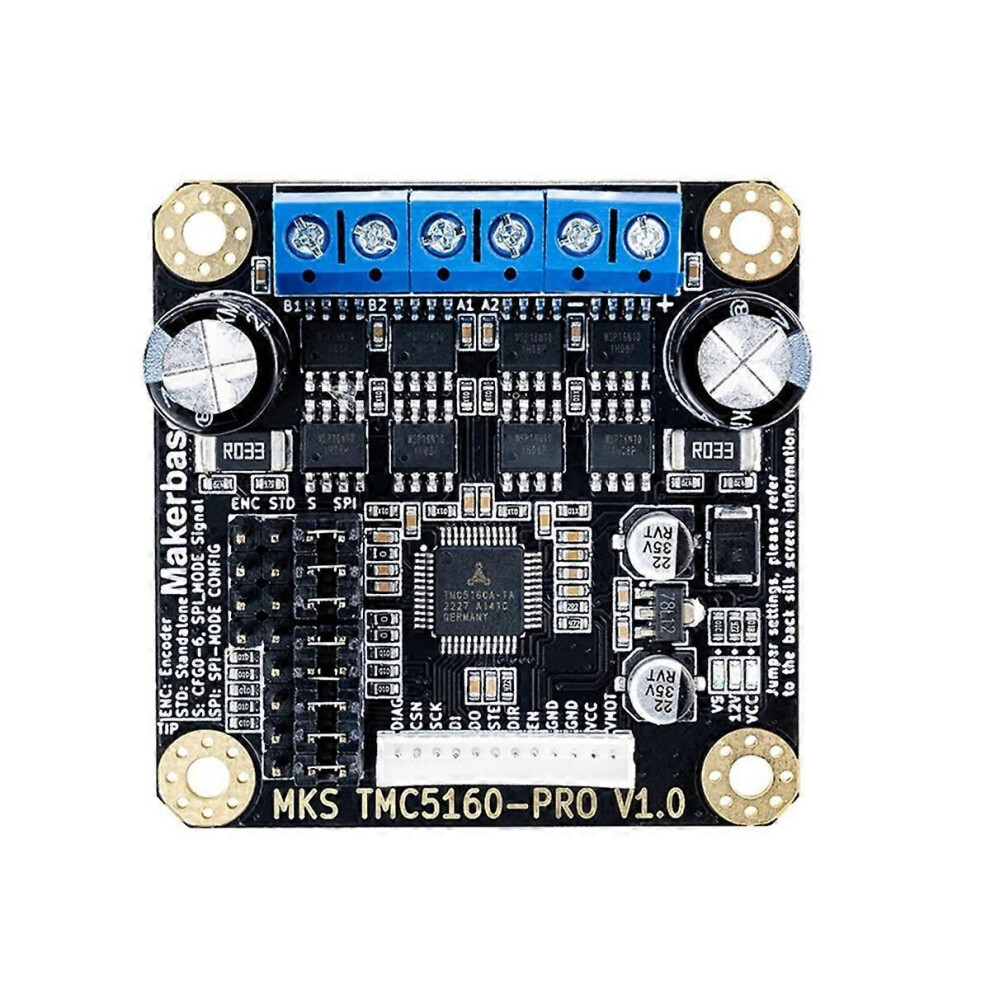

MKS TMC5160-PRO is a silent stepper motor driver that supports high voltage, high current and high speed operation. The module supports two drive modes set by short-circuit cap: SPI mode (default) and mode. With the adapter board and electronic wire, it can be directly installed on the plug-in motherboard with SPI interface. The DIAG signal led out can support the infinite position return to zero function. It can run on for and Klipper firmware.
Use 100V withstand voltage capacitor power supply filter
spike absorption protection.
SPI mode: firmware configuration current, subdivision, unlimited bit function; mode: short-circuit cap sets current and subdivision. It is recommended to use SPI mode, DC36V-60V has better performance
Input voltage:DC:8-60V
Drive current:SPI mode: 0-6A; Standalone mode:5.23-9.85A
Rsense:Alloy resistor: R2512-0.0330-3W
Drive mode:SPI mode, mode; short-circuit cap setting, default SPI mode
Wiring method:Plug-in adapter board + electronic cable connection
logic voltage:3.3V-5V
Unlimited bit function:Support, terminal has led out DIAG1 signal
Supported firmware:Cliffs,
Applicable motherboard:Plug-in motherboard with SPI interface. For example: MKS SKIPR, Monster8, Nano V3, Gen_L V2.x
(The product appearance and printed words depending on the batch, but this does not affect use)
Color:As Shown
Material:PCB
Package Contents:
1 * 6A Stepper Motor Driver
Only the above package content, other products are not included.
