Optimum WIFI Digital Programmable Thermostat UNIVERSAL Network 7 Day Combi Boiler

Optimum WIFI Digital Programmable Thermostat UNIVERSAL Network 7 Day Combi Boiler Description

Universal WIFI Digital Programmable Thermostat Network 7 Day Combi Boiler

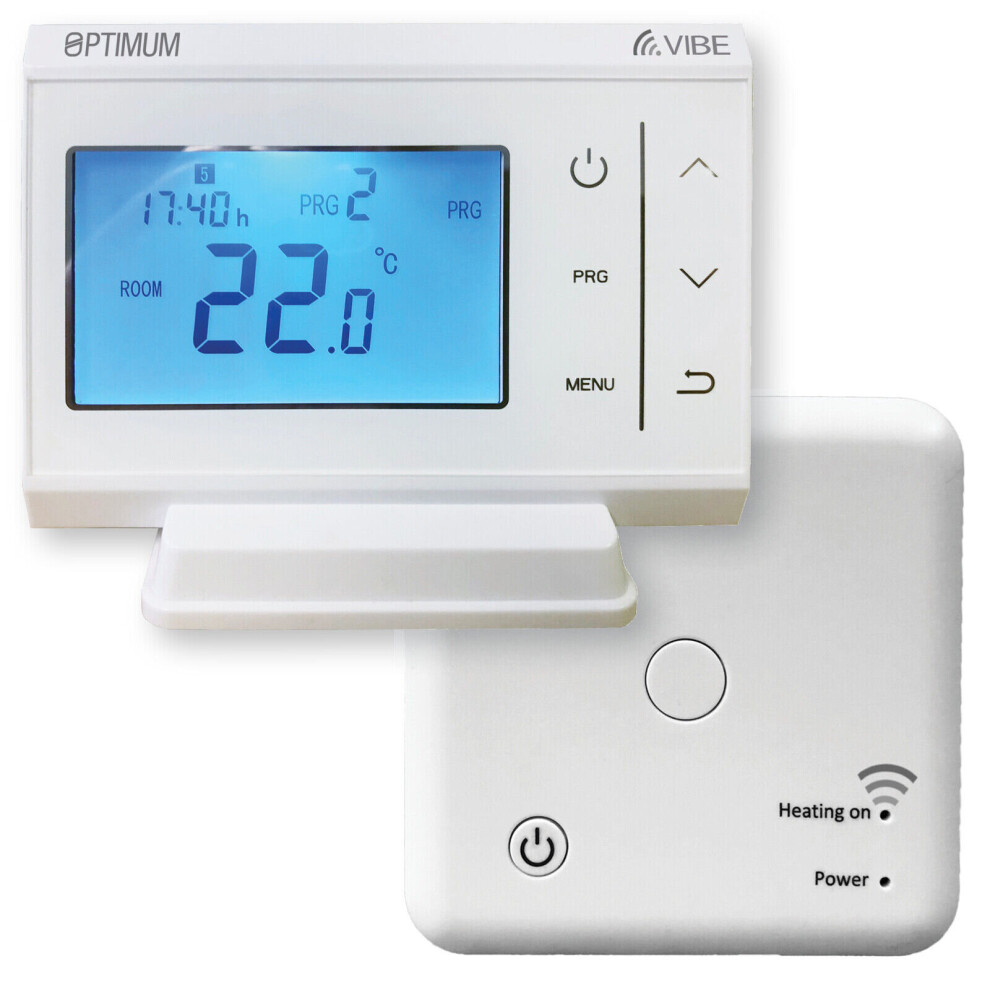

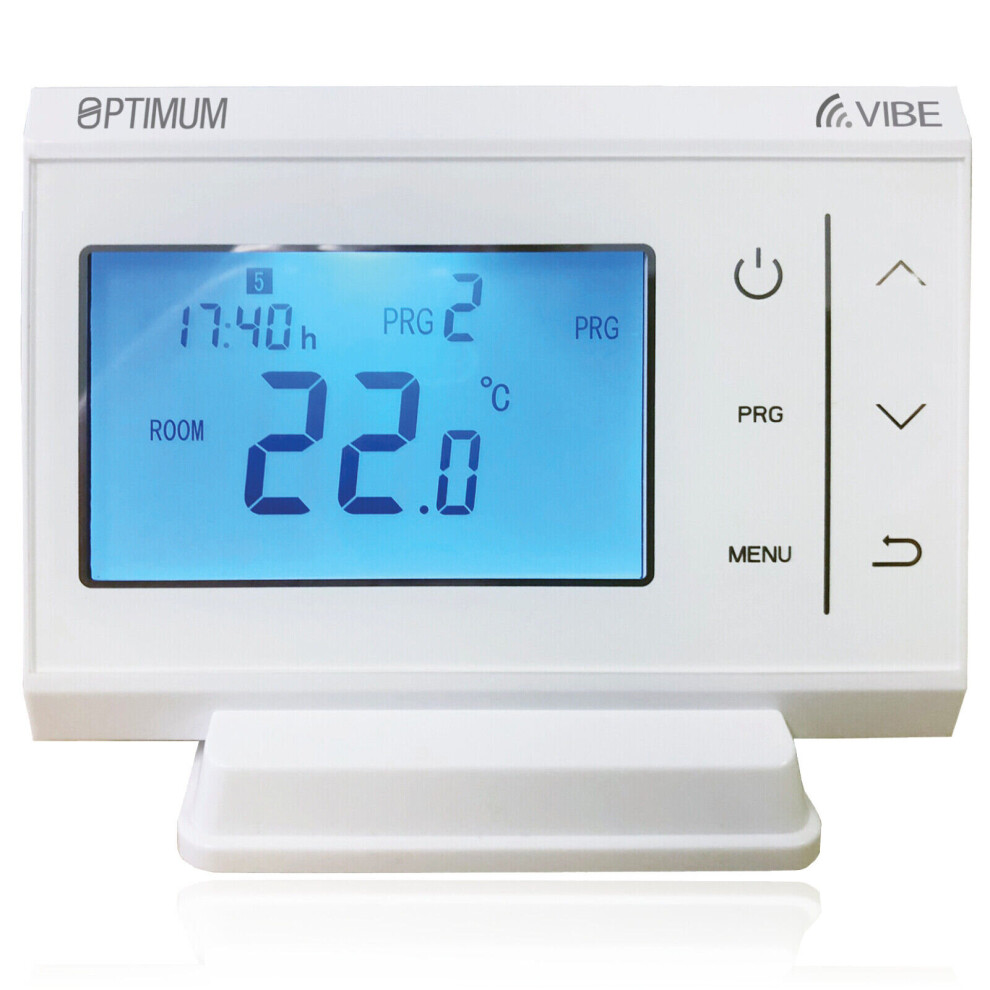

Brand new, Universal WIFI Battery-powered Programmable Room Thermostat. OP-WFSTAT is a Wi-Fi & radio frequency battery-powered programmable room thermostat with touch-screen controls, providing four timed temperature periods every 24 hours. The transmitter (Tx) has a large blue backlit display and runs a pre-programmed user adjustable temperature profile. Users can just touch the up or down control icon at any time to manually adjust the current temperature setting. The Wi-Fi & radio frequency receiver (Rx) must be wall-mounted adjacent to the boiler, has auto-recognition open therm connections and volt-free switching; indicator l.e.d. lights showing power and load status and has a button for manual operation if required. The control set uses 2.4GHz Wi-Fi and the license-free 868MHz frequency and is pre-linked in the factory with a unique code.

The OP-WFSTAT can be controlled over your Wi-Fi connection when you are in the property, or externally over a 3G/4G data connection using the free C-Home App on your IOS or Android phone

Product Features:
Wifi / Radio Frequency Programmable Thermostat
Ios / Android Smart Phone App
Equipped For Wall Mounting Or Table-Top Use
Suitable For System & Combination Boilers

Product Details:
Wifi / Radio Frequency Programmable Thermostat
Ios / Android Smart Phone App
Equipped For Wall Mounting Or Table-Top Use

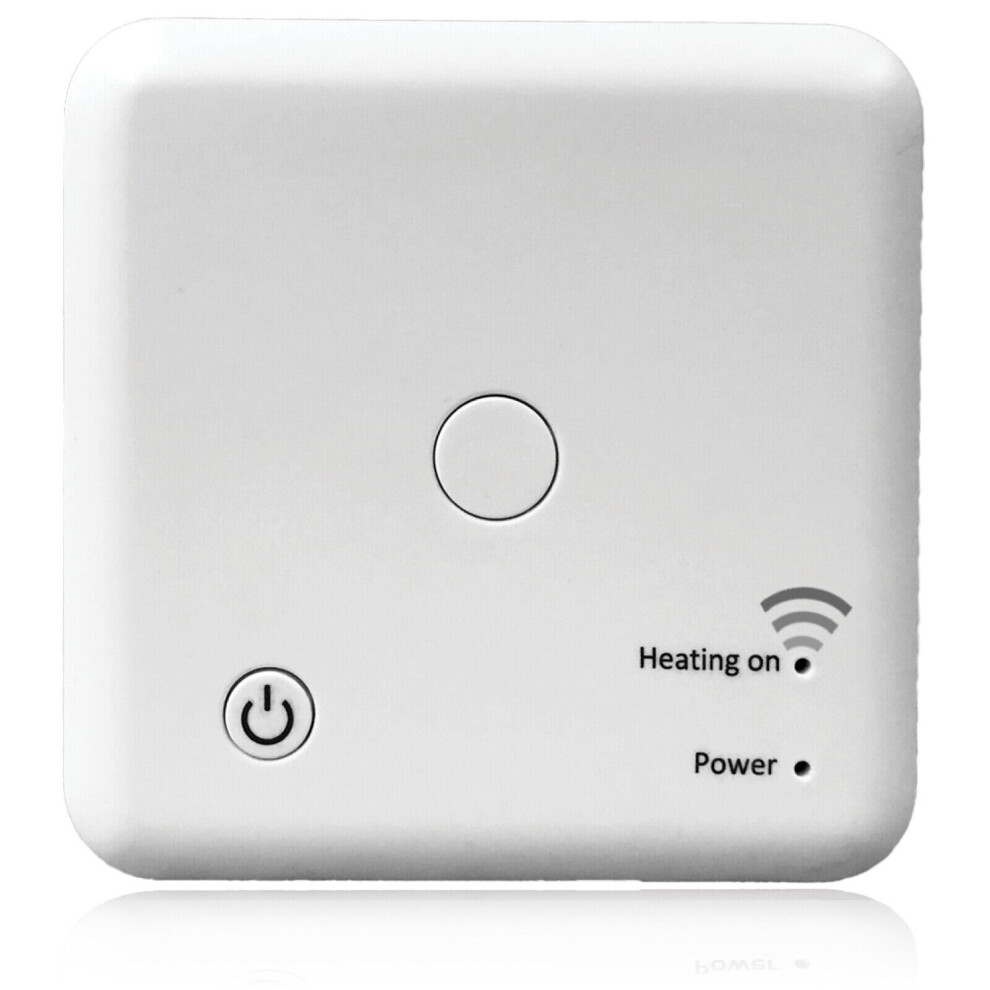

Wall-Mounted Receiver
Volt-Free Switching Suitable For Combination Boilers
Class Iv Control, 2% System Efficiency Contribution
Dimensions:  Tx: 120mm X 85mm X 22.5mm Rx: 85mm X 85mm X 25mm
Rx Connections: 7 X Wire-Protect Cage Screw Terminals
Resistive Load: 10 Amperes Resistive @ 230v 50hz
Power Supply Tx: 2 X Aaa Alkaline  Rx: 230v 50hz
Temperature Range: 5—35°C
Frost Protection Set To Off, Or User Adjustable 5 – 15°C
Temperature Regulation Selectable:  On/Off ~ Optimising ~ T.p.i.
Differential: +/- 0.5°C
Timing Accuracy: (Typically +/- 2.5 Sec / Day)
Programme Capacity: 4 X User Adjustable Temperature Periods
Day Groups 5 & 2: (Weekday / Weekend)
Adjustable Settings:
Temperature Levels: Measured, Maximum, Minimum, Differential, Frost Protection.
Backlight: Auto Or Off.
Temperature Regulation Mode: On/Off ~ Optimising ~ T.p.i.

Fits Models:

UNIVERSAL
