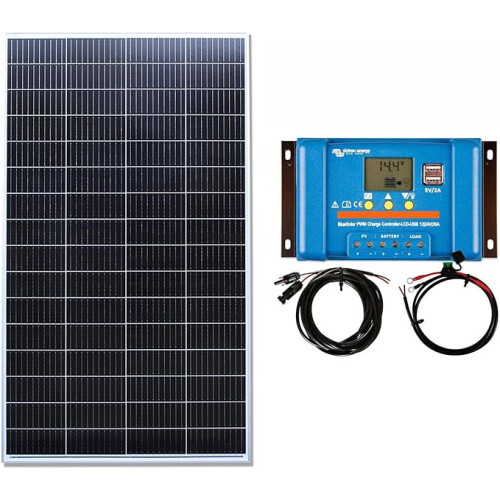

200w Solar Panel Kit Victron PWM Charging Controller Battery Cables

200w Solar Panel Kit Victron PWM Charging Controller Battery Cables Description

Solar Kit Contents

• 200 Watt Monocrystalline Solar Panel with 1M cable & solar connection plugs attached
• 5 Metre Solar Power Extension Cable with solar connection plugs
• 20A Victron Energy PWM Solar Charge Controller
• 1.5m Battery Line Fused 2.5mm2

Half - cut solar cells

• Solar Panels with half - cut solar cells and 9 to 12 buzz bars connecting the cells are 8-10% Smaller than typical square cell panels
• Solar Panels with half - cut solar cells and 9 to 12 buzz bars connecting the cells are 3% higher effiiency than typical square cell panels

Full silicone solar cells used to be square, sometimes with the corners cut off, but now the mainstream trend with all the big solar manufacturers is for half cut, small rectangular silicone cells, due to their higher efficiency.

 Solar panel technology has moved on considerably in the last few years with the introduction of half cut solar cells which can provide 2 to 3% more efficiency and higher watts per square metre. This means that the same power solar panels used in the past can now be 8-10% smaller. Alternatively you can have bigger solar panels with higher power output, but don't take up as much space.

This works by doubling the number of solar cells and increasing the number of ribbons, (BB's / buzz bars) which connect the silicone solar cells together within the panel. This helps to lower resistance in the panel, which in turn reduces tiny voltage drops in the many panel connections. Overall this provides more power output. The smaller cells are also less likely to have microfracture issues and with improved cloudy day performance.

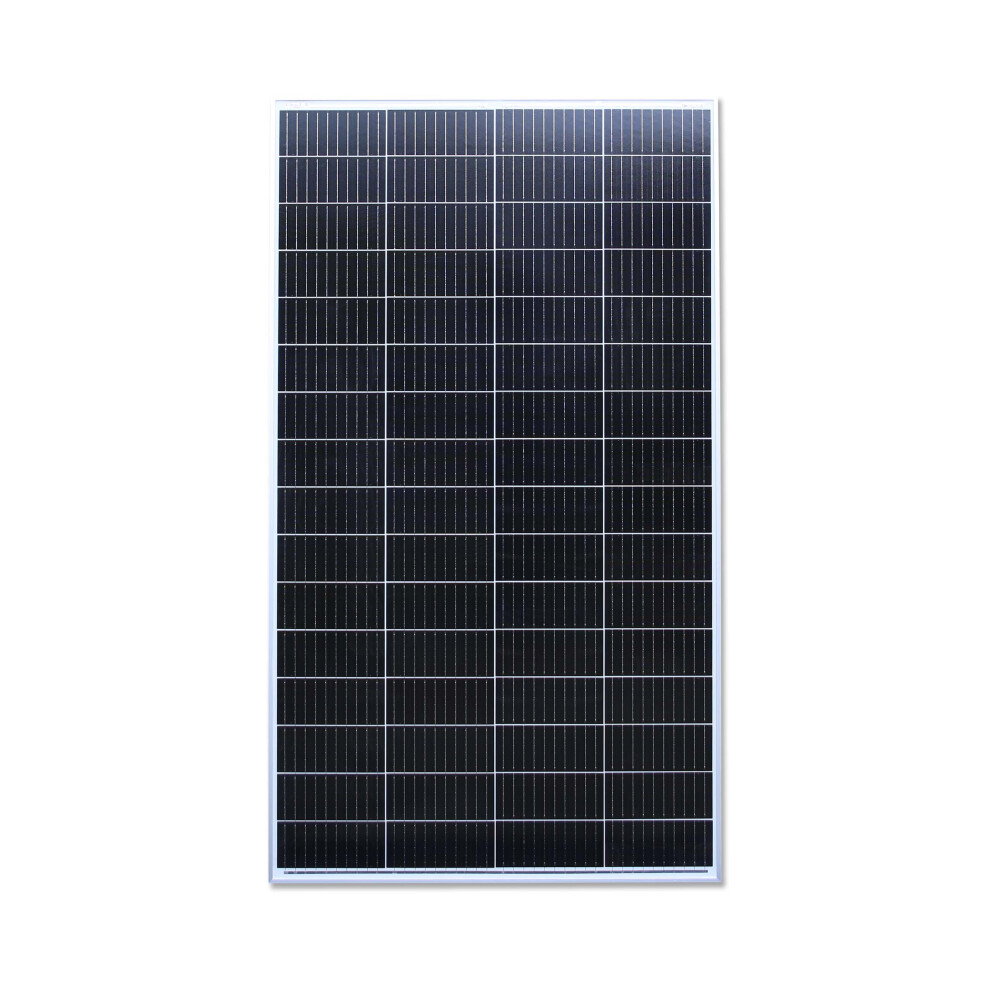

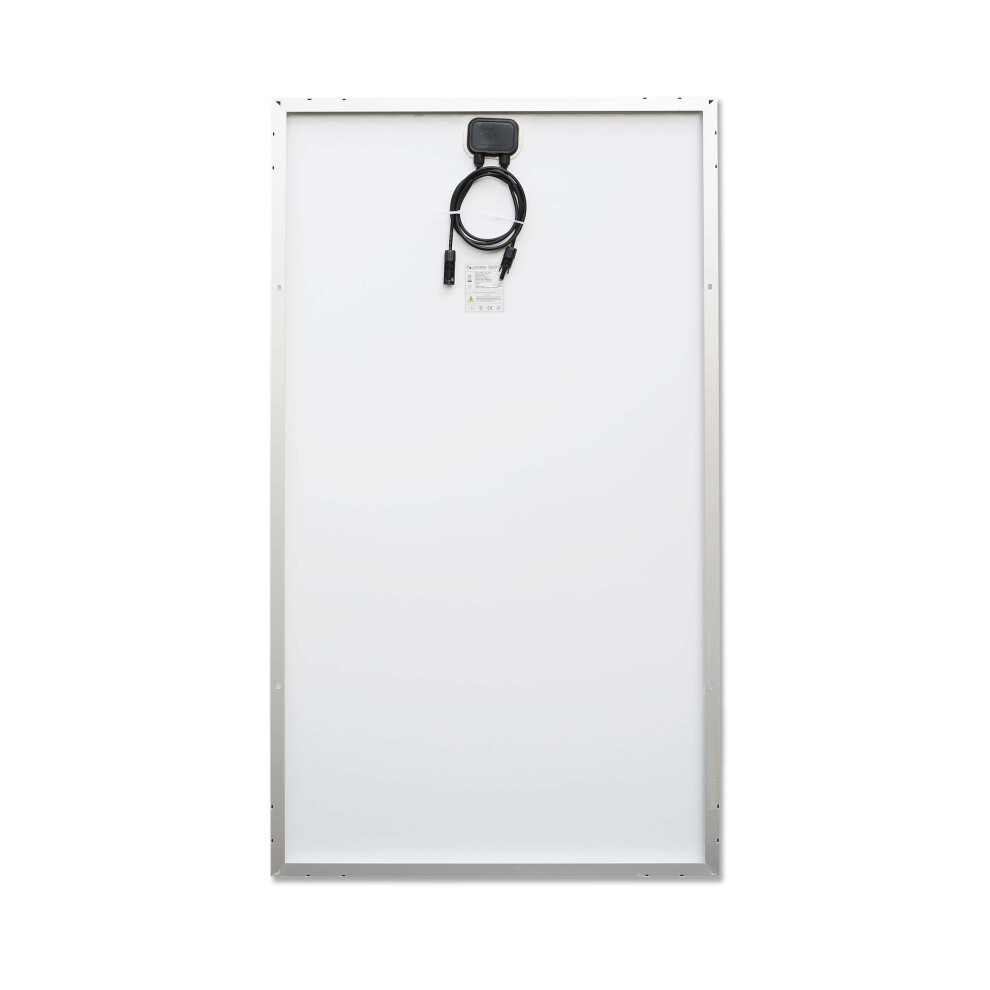

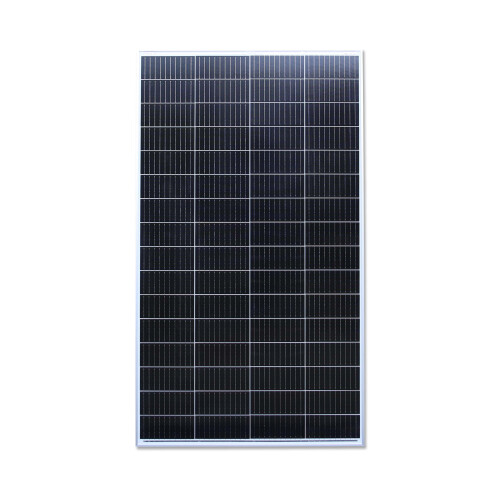

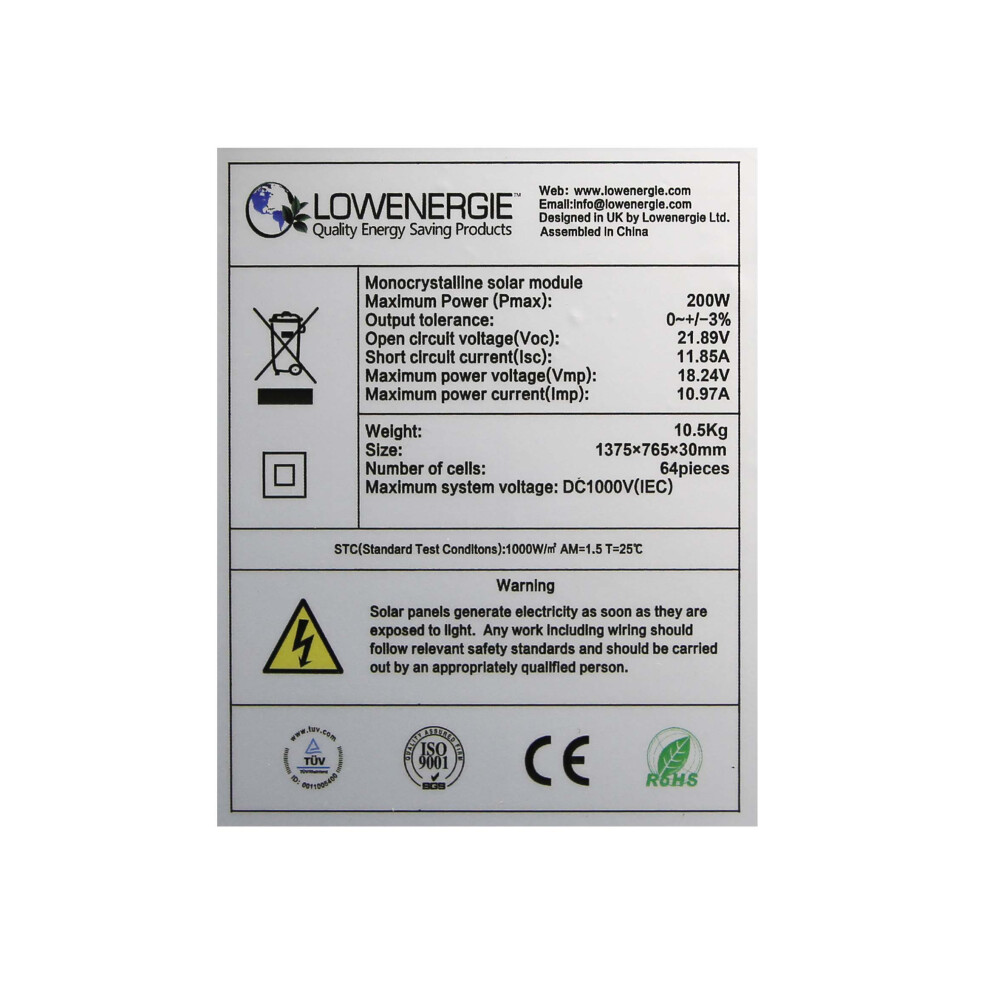

200 Watt Solar Panel - (with 1m Cable & solar connection plugs)

• Max Power: 200w
• Max Power Voltage (Vmp): 18.24V
• Max Current (Imp): 10.97A
• Open Circuit Voltage (Voc): 21.89V
• Short Circuit Curren (Isc): 11.85A
• Weight: 10.5Kg
• Size: 1375 x 765 x 30
• Number of cells: 64
• Power Tolerance: ±3%
• Maximum System Voltage: DC1000v  (IEC)

In the event that the solar panel is in shade for a prolonged period, our solar panels has two built-in bypass diodes which will enable the panel to continue generating.

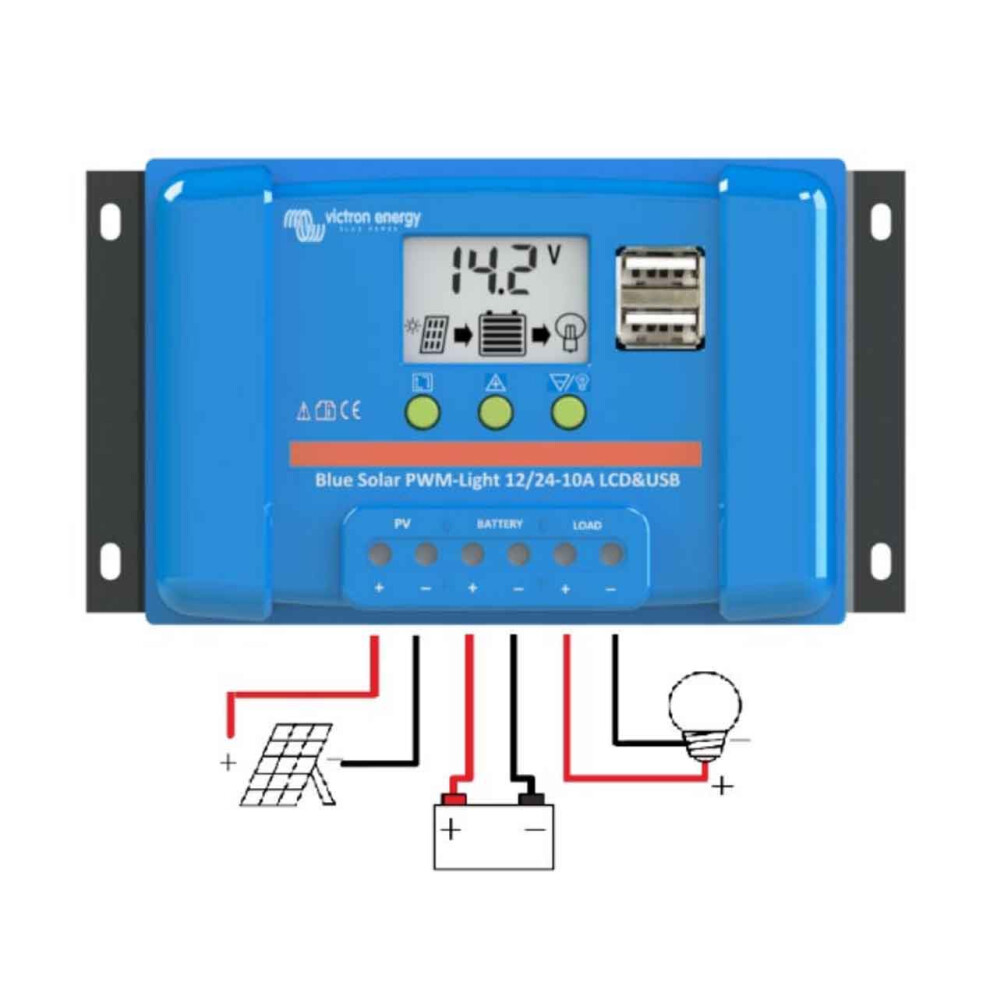

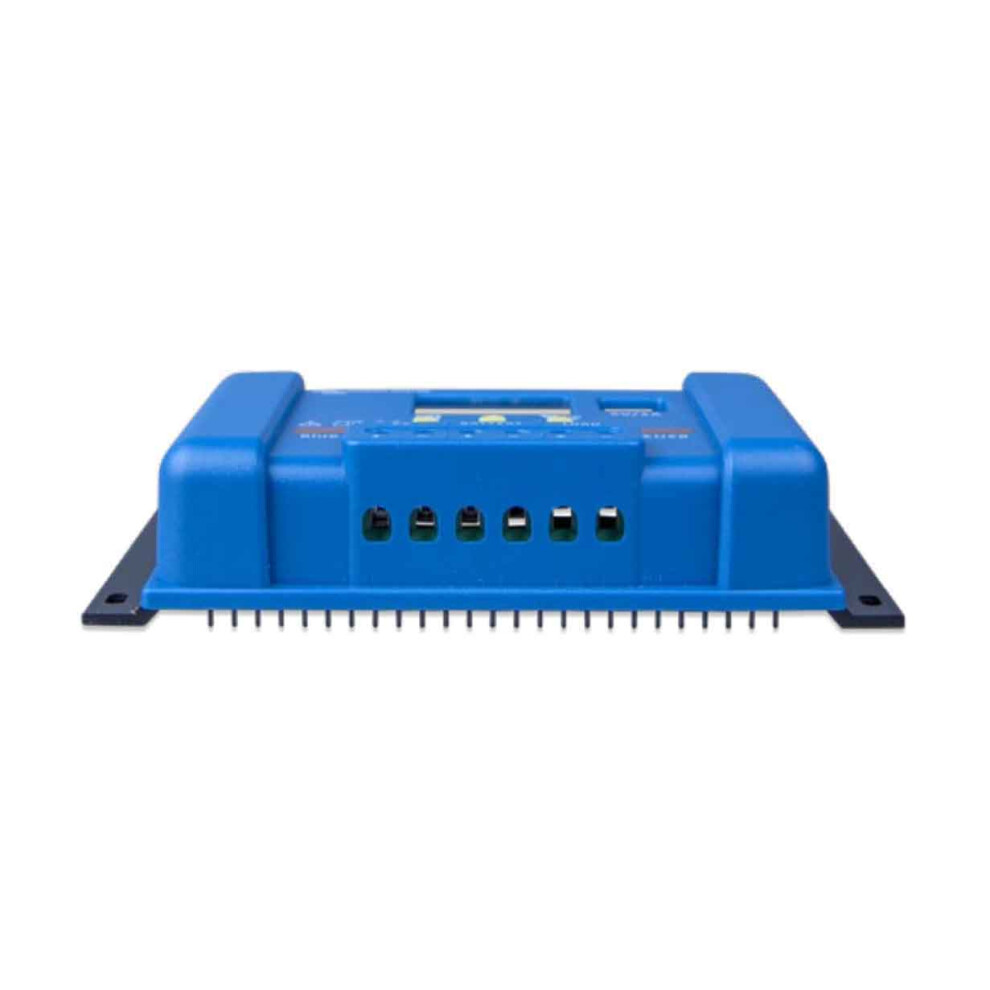

BlueSolar PWM-LCD & USB

• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

Technical Specification

• Charge Controller: 12/24-20
• Battery Voltage 12/24 V
• Rated charge current 20A
• Automatic load disconnect Yes
• Maximum solar voltage 28V / 55V
• Self-consumption < 10 mA
• Load output Manual control + low voltage disconnect +timer
• Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection
• Shut down after 60 s in case of 130% load
• Shut down after 5 s in case of 160% load
• Short circuit: immediate shut down
• Grounding Common positive
• Operating temp. range -35 to +60°C (full load)
• Humidity (non-condensing) Max 95%

Battery

• Charge voltage ‘absorption' Factory setting: 14,4V / 28,8V
• Charge voltage ‘float' (2) Factory setting: 13,7V / 27,4V
• Low voltage load disconnect Factory setting: 11,2V / 22,4V
• Low voltage load reconnect Factory setting: 12,6V / 25,2V

USB

• Voltage 5V
• Current 2A (total from 2 outputs)

Enclosure

• Protection class IP20
• Terminal size 6 mm² / AWG10
• Weight 0,15kg
• Dimensions (h x w x d) 96 x 169 x 36 mm

STANDARDS

• Safety EN60335-1, IEC 62109-1
• EMC EN 61000-6-1, EN 61000-6-3, ISO 7637-2

1) For 12V use 36 cell solar panels , For 24V use 72 cell solar panels or 2x 36 cell in series

2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.

Installation

1, make sure your battery has enough voltage for the controller to recognise the battery type before first installation.

2 the battery cable should be as short as possible to minimise loss.

3, this charge controller is only suitable for regulating solar panels. Never connect another charging source to this charge regulator.

Note:

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed, or a combination of series and parallel batteries to make a 24V energy storage system.

 Product Warranties

• Lowenergie™ Solar Panels have a 10 Year Warranty for materials and workmanship.
• Power Output Warranty is at least 90% maximum power for first 10 years of use and;
• Power Output Warranty of at least 80% maximum power output for up to 25 years use.
• Charge Controller Warranty – 5 Year manufacturer warranty
• Cables - 1 Year
