Victron 150w Solar Panel Kit battery charging PWM Controller Z-brackets K5

Victron 150w Solar Panel Kit battery charging PWM Controller Z-brackets K5 Description

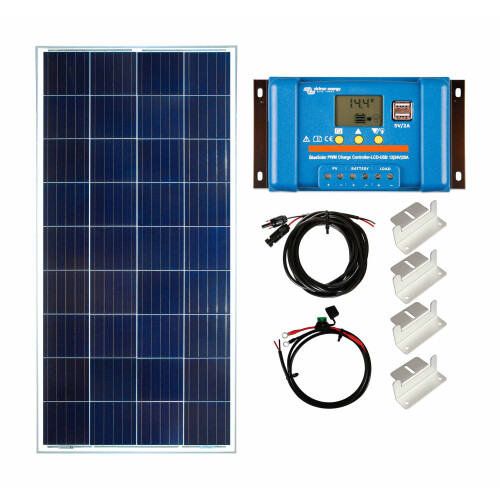

Solar Kit Contents

• 150w Polycrystalline solar panel
• 5m Solar cable with MC4 connectors
• 20A Victron Energy PWM charge controller

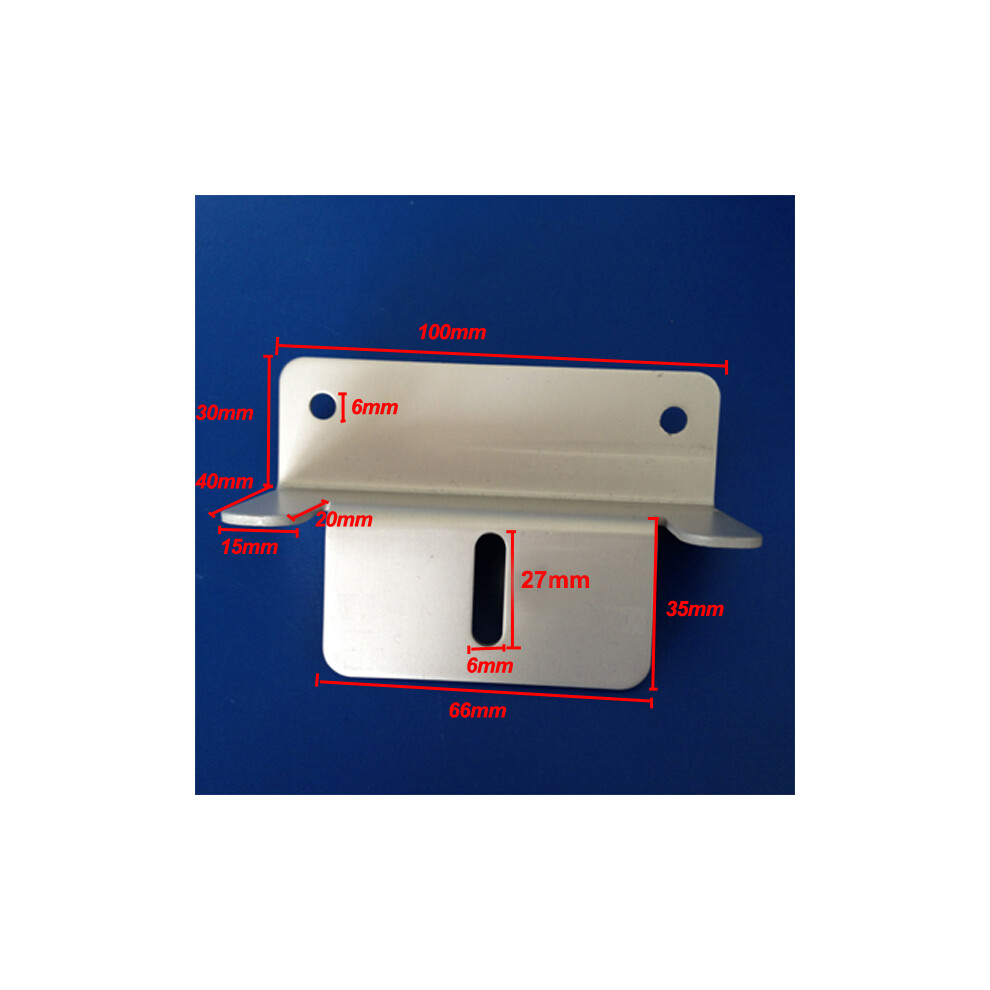

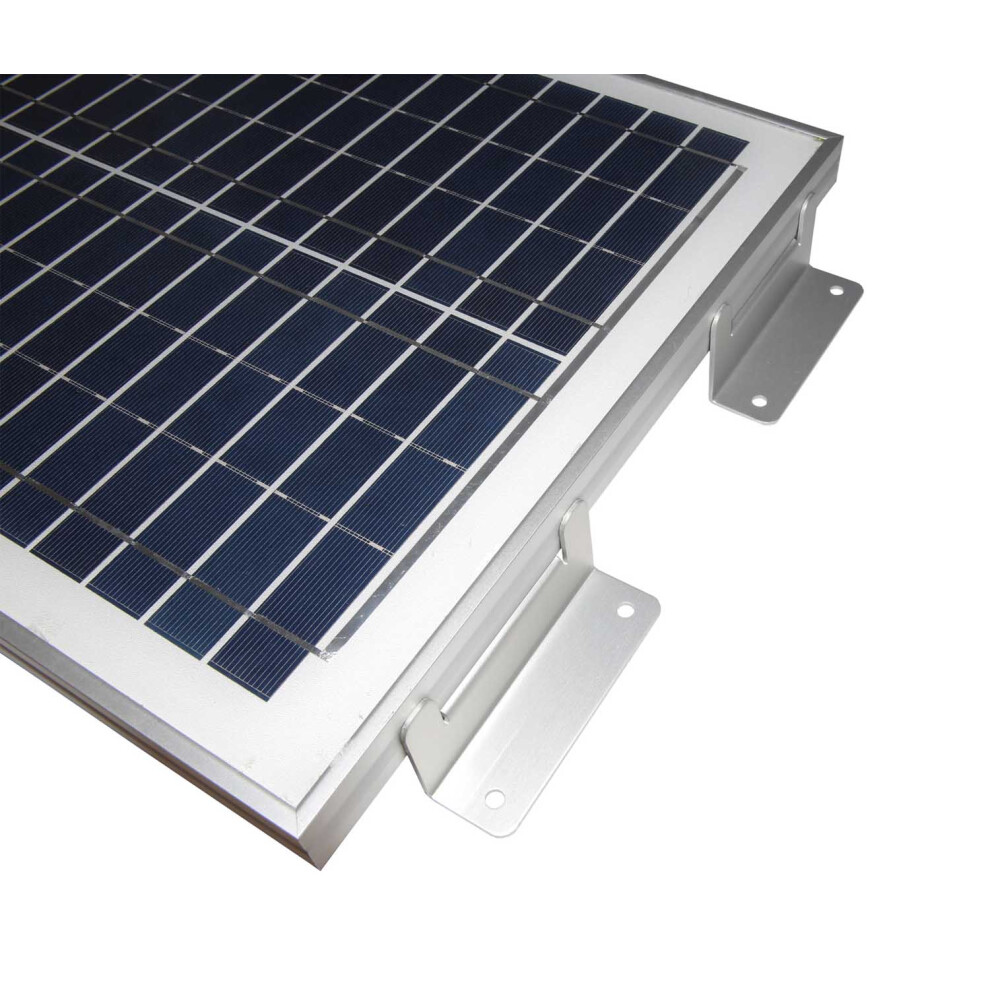

• 4 Aluminium mounting brackets
• 1.5m Charge controller to battery with spade connections

Technical Specifications

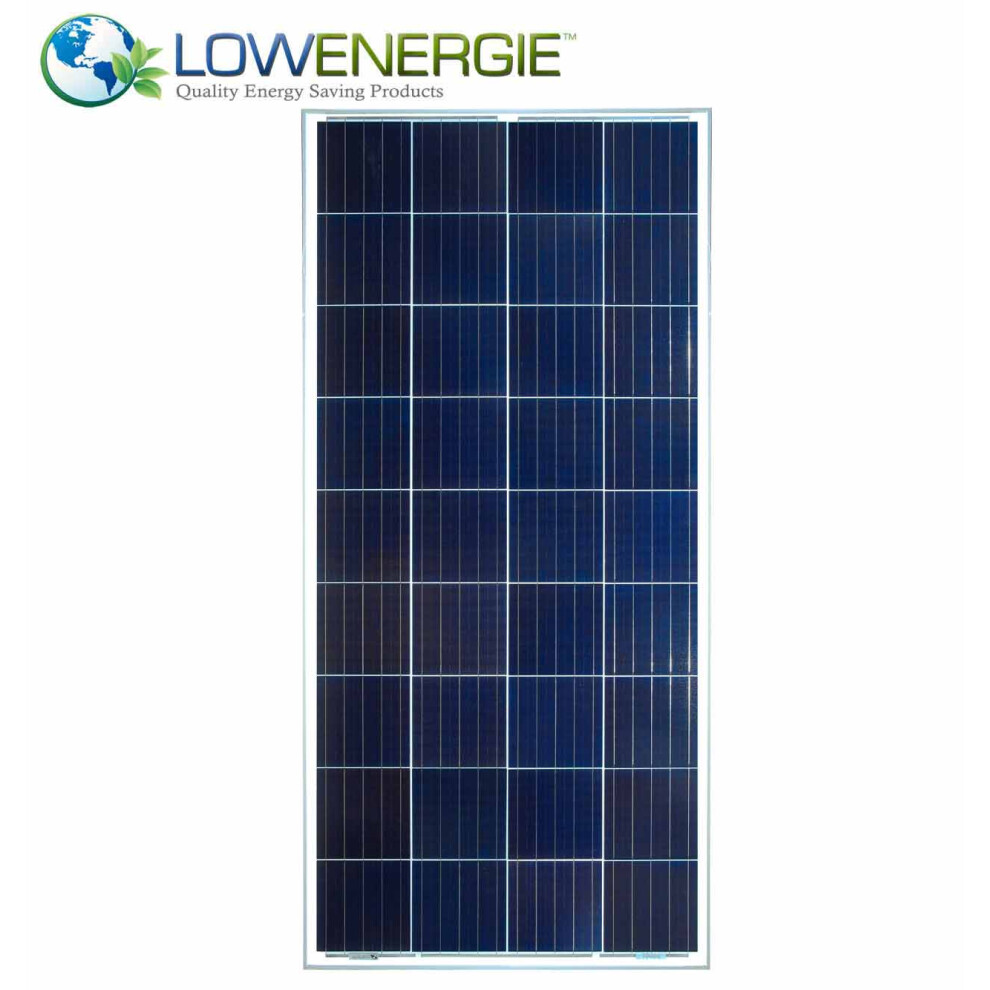

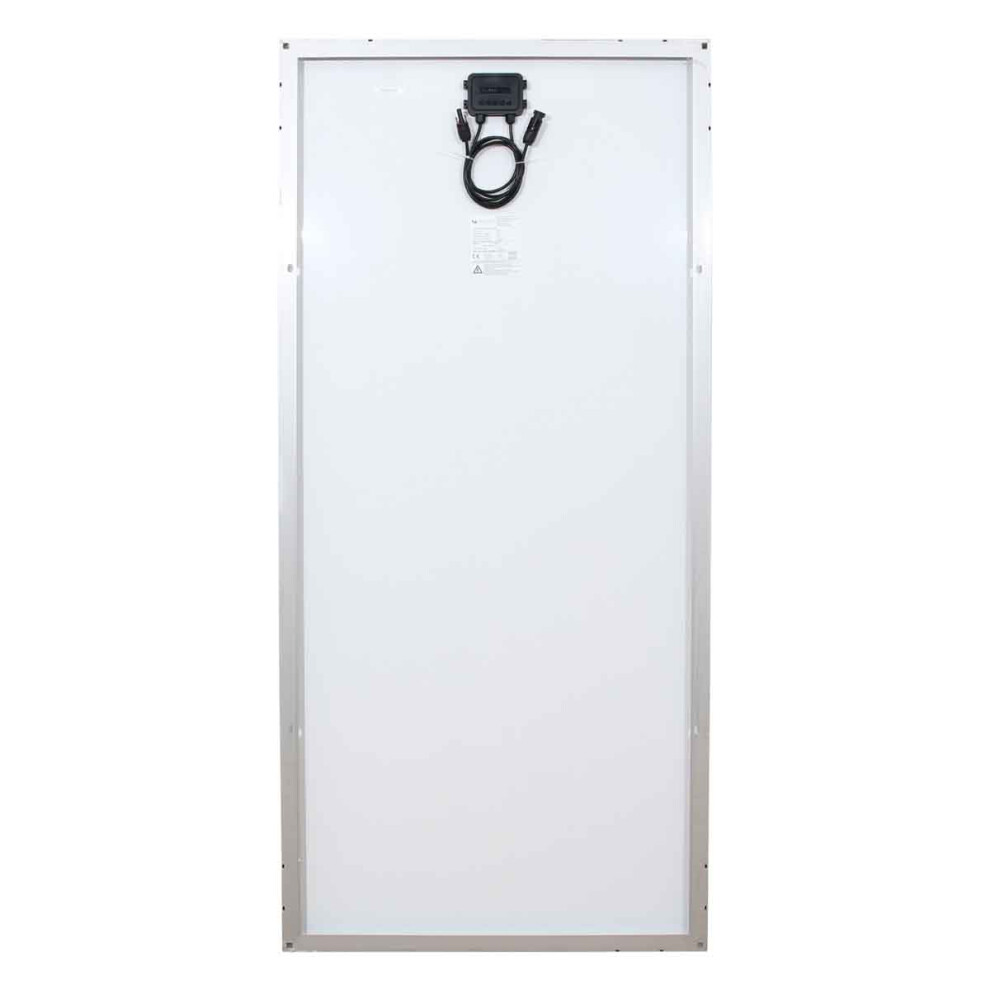

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

• Maximum Power (Pmax): 150W
• Maximum Power Voltage (VMP): 18V
• Maximum Power Current (IMP): 8.33A
• Open Circuit Voltage (VOC): 21.60V
• Short Circuit Current (ISC): 9.17A
• Weight: 9.85KG
• Size: 1480*680*35mm
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V

In the event that the solar panel is in shade for a prolonged period, our solar panels have two built-in bypass diodes which will enable the panel to continue generating.

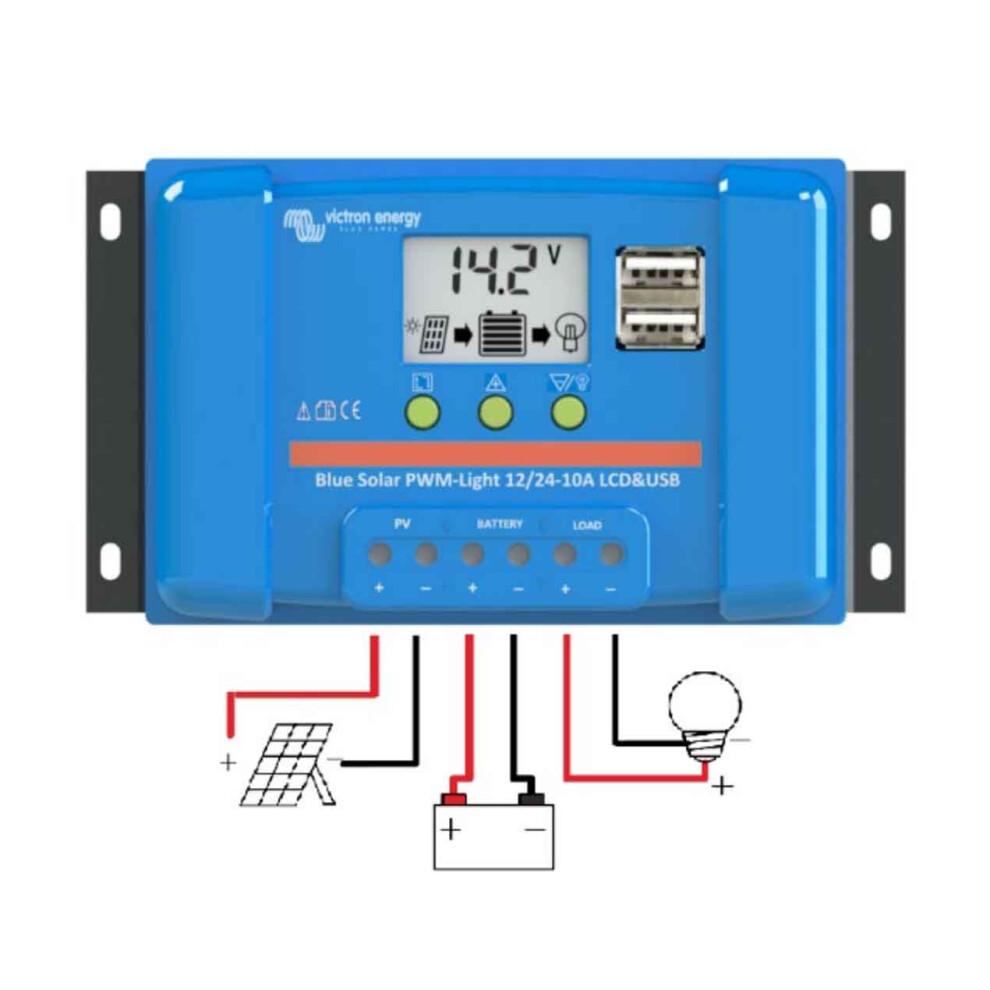

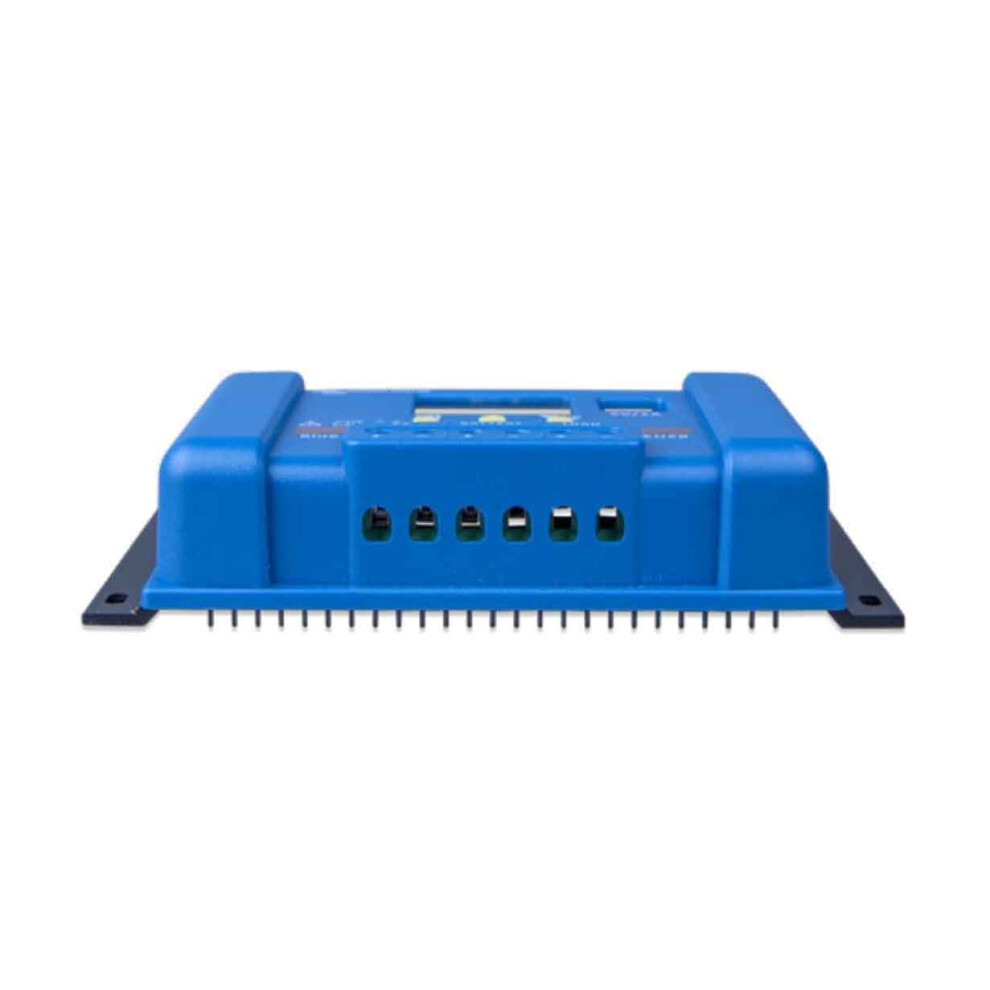

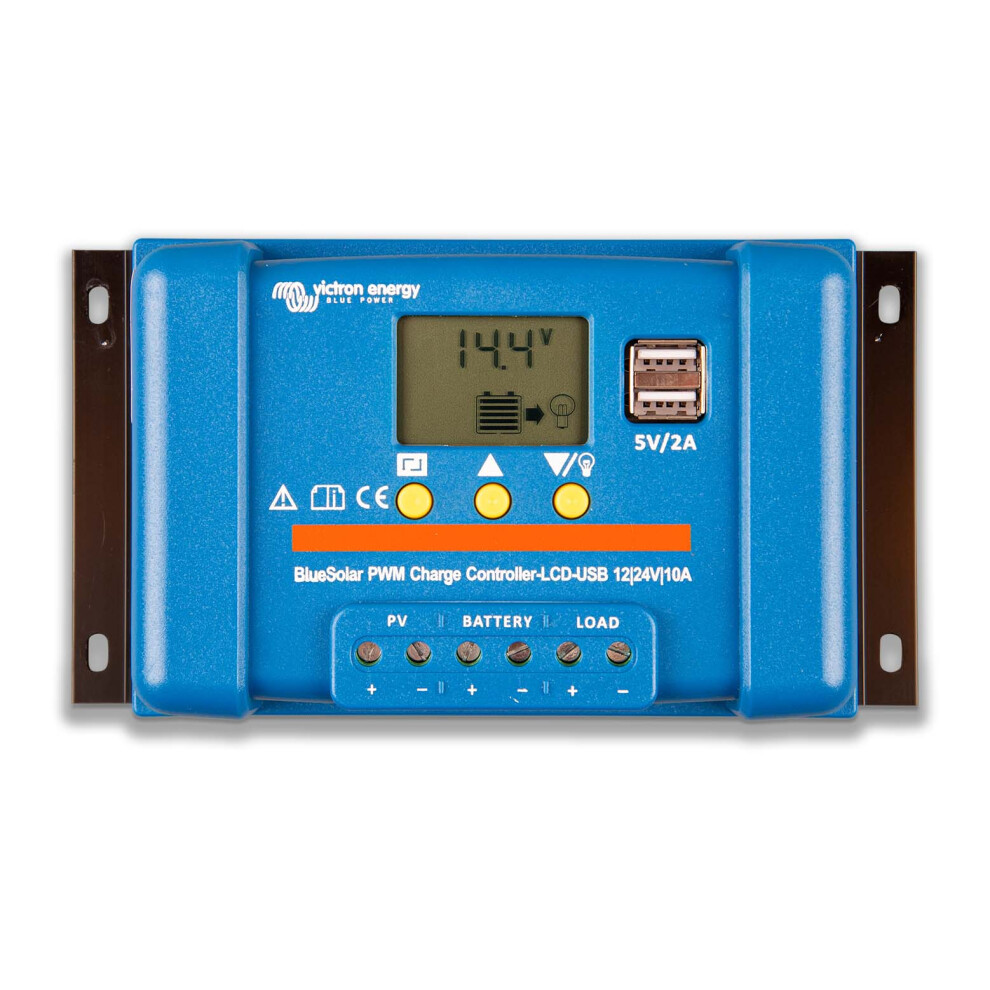

BlueSolar PWM-LCD & USB

• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

Technical Specification

• Charge Controller: 12/24-20
• Battery Voltage 12/24 V
• Rated charge current 20A
• Automatic load disconnect Yes
• Maximum solar voltage 28V / 55V
• Self-consumption < 10 mA
• Load output Manual control + low voltage disconnect +timer
• Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection
• Shut down after 60 s in case of 130% load
• Shut down after 5 s in case of 160% load
• Short circuit: immediate shut down
• Grounding Common positive
• Operating temp. range -35 to +60°C (full load)
• Humidity (non-condensing) Max 95%

Battery

• Charge voltage 'absorption' Factory setting: 14,4V / 28,8V
• Charge voltage 'float' (2) Factory setting: 13,7V / 27,4V
• Low voltage load disconnect Factory setting: 11,2V / 22,4V
• Low voltage load reconnect Factory setting: 12,6V / 25,2V

USB

• Voltage 5V
• Current 2A (total from 2 outputs)

Enclosure

• Protection class IP20
• Terminal size 6 mm² / AWG10
• Weight 0,15kg
• Dimensions (h x w x d) 96 x 169 x 36 mm

STANDARDS

• Safety EN60335-1, IEC 62109-1
• EMC EN 61000-6-1, EN 61000-6-3, ISO 7637-2

1) For 12V use 36 cell solar panels , For 24V use 72 cell solar panels or 2x 36 cell in series

2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.

Lightweight design with rigid anodised aluminium alloy frame and toughened glass

Designed in the UK. CE, TUV, ISO 9001 quality assurance.

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armoured cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generation and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change.

Applications

Sheds, Stables, Boats, Caravans, Motorhomes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecoms, mobile food outlets, and many more...

Independent Off-Grid Solar Power Source

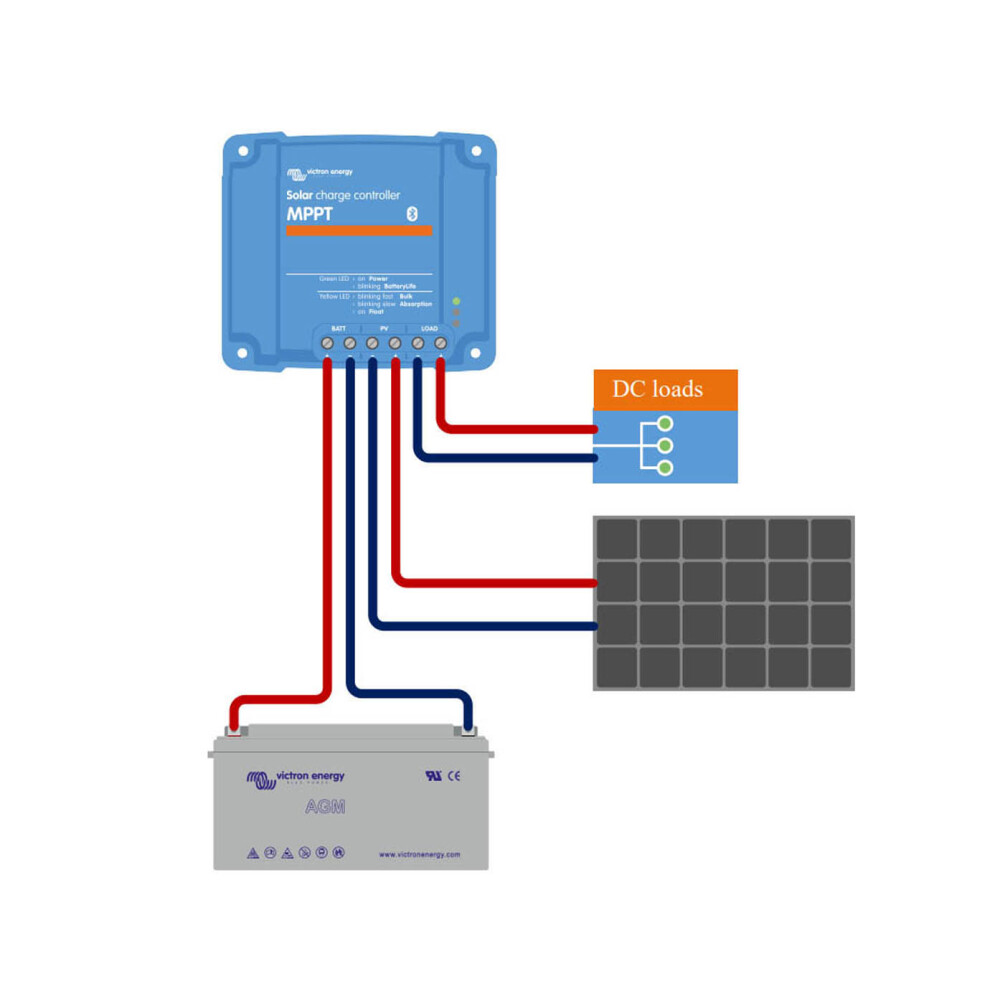

One or more solar panels can be connected a battery bank and power inverter using a solar charge controller. You can therefore have a 240v power supply anywhere in the world without grid supply. Please see our solar power kits.

Solar Panels do still generate power during cloudy and rainy weather?

We have a rough guide below to solar panel power output relative to weather conditions:-

100% power output - clear sky midday sun with the panel fully tilted toward the sun's position in the sky.

• 75-85% output - clear sky midday sun but with the panel laid flat
• 50-65% output - thin cloud, or intermittent small clouds
• 10-20% output - midday overcast sky or rainy conditions
